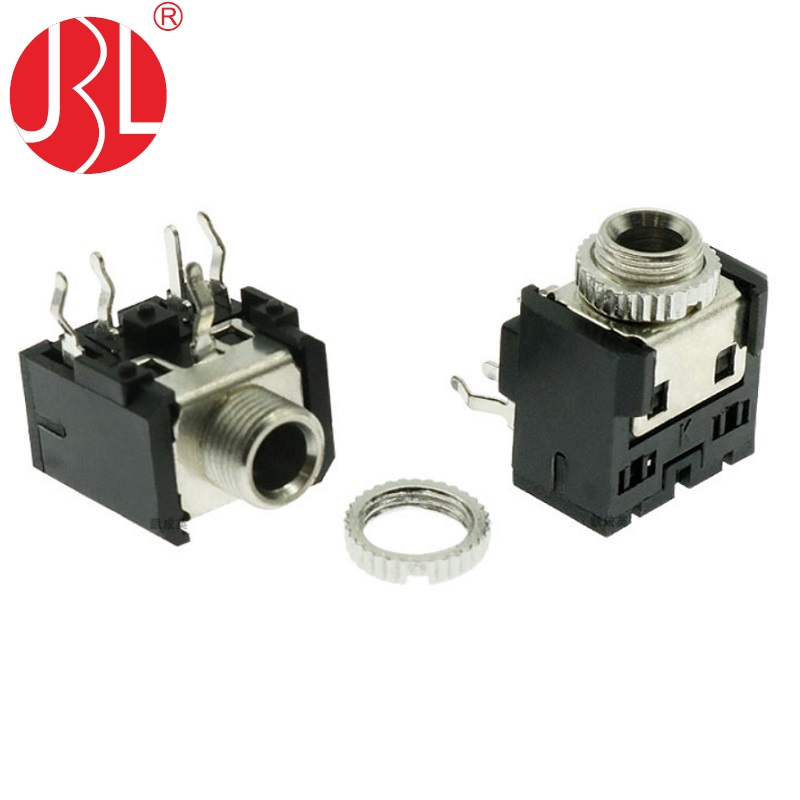

The 3.5mm audio jack is a versatile panel mount bulkhead connector designed for easy installation on various surfaces. It features a compact size, robust construction, and compatibility with PC pins for board through-hole mounting, ensuring secure and reliable connections to audio circuits.

This audio jack offers two position options: 2-conductor (TS) for mono audio signals and 3-conductor (TRS) for stereo audio signals and microphone input. Additionally, it comes with switch options: either one switch or two switches, allowing for convenient control of the audio signal flow.

As a direct alternative to Same Sky CUI jacks such as SJ1-3543, SJ1-3544, and SJ1-3545, this 3.5mm audio jack provides a similar form factor, electrical specifications, and mounting options. It is suitable for a wide range of audio applications, making it an excellent choice for replacing or upgrading existing audio connectors.

In summary, this 3.5mm audio jack is a reliable and versatile alternative to Same Sky CUI jacks, offering similar features and performance in a compact and robust package.

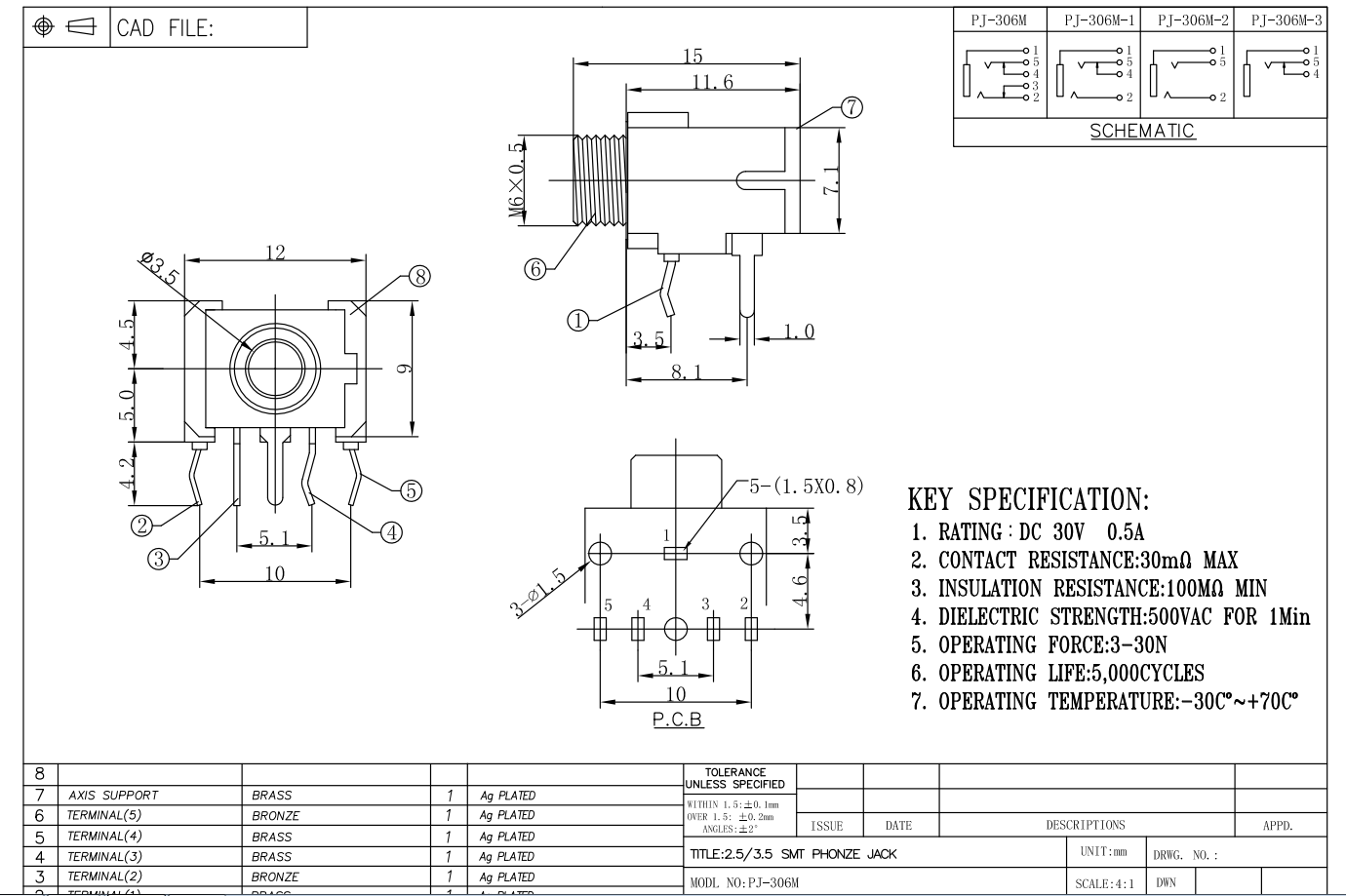

Datasheets :
