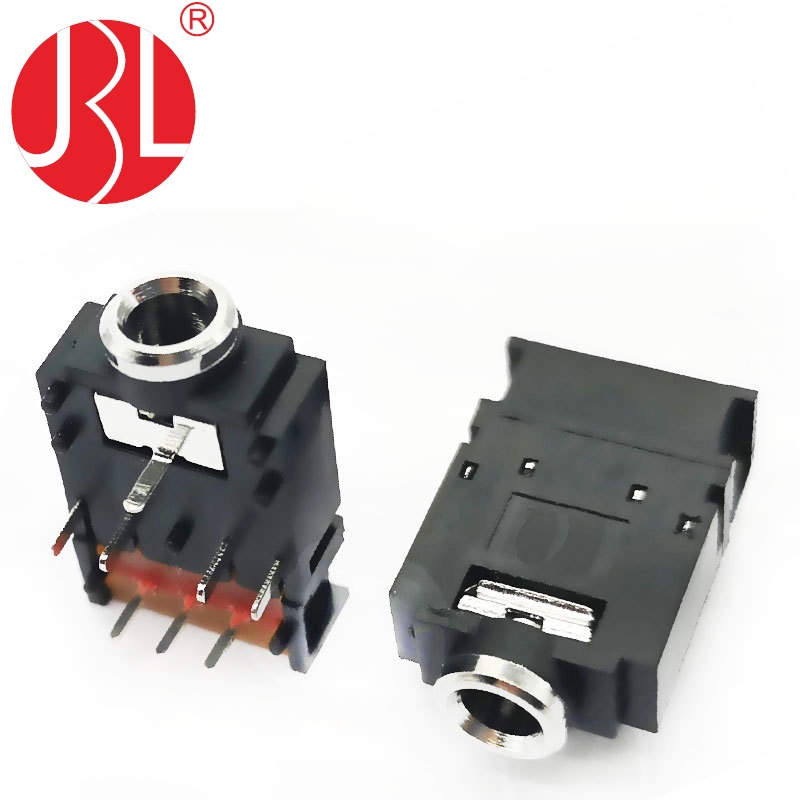

The 3.5mm audio jack is a through-hole, right-angle connector with two position options: a 2-conductor (TS) jack for mono audio signals and a 3-conductor (TRS) jack for stereo audio signals. It serves as a suitable alternative to the Same Sky CUI jack SJ-356XN series, including models such as SJ-3566AN, SJ-3566BN, SJ-3567AN, SJ-3567BN, and SJ-3568N.

The right-angle design of this audio jack allows for efficient use of space and easier access to the audio port. It provides a reliable and secure connection for audio devices, making it an excellent choice for a wide range of applications.

Overall, this 3.5mm audio jack offers versatility and compatibility with the Same Sky CUI SJ-356XN series, making it a suitable replacement or upgrade for existing audio connectors

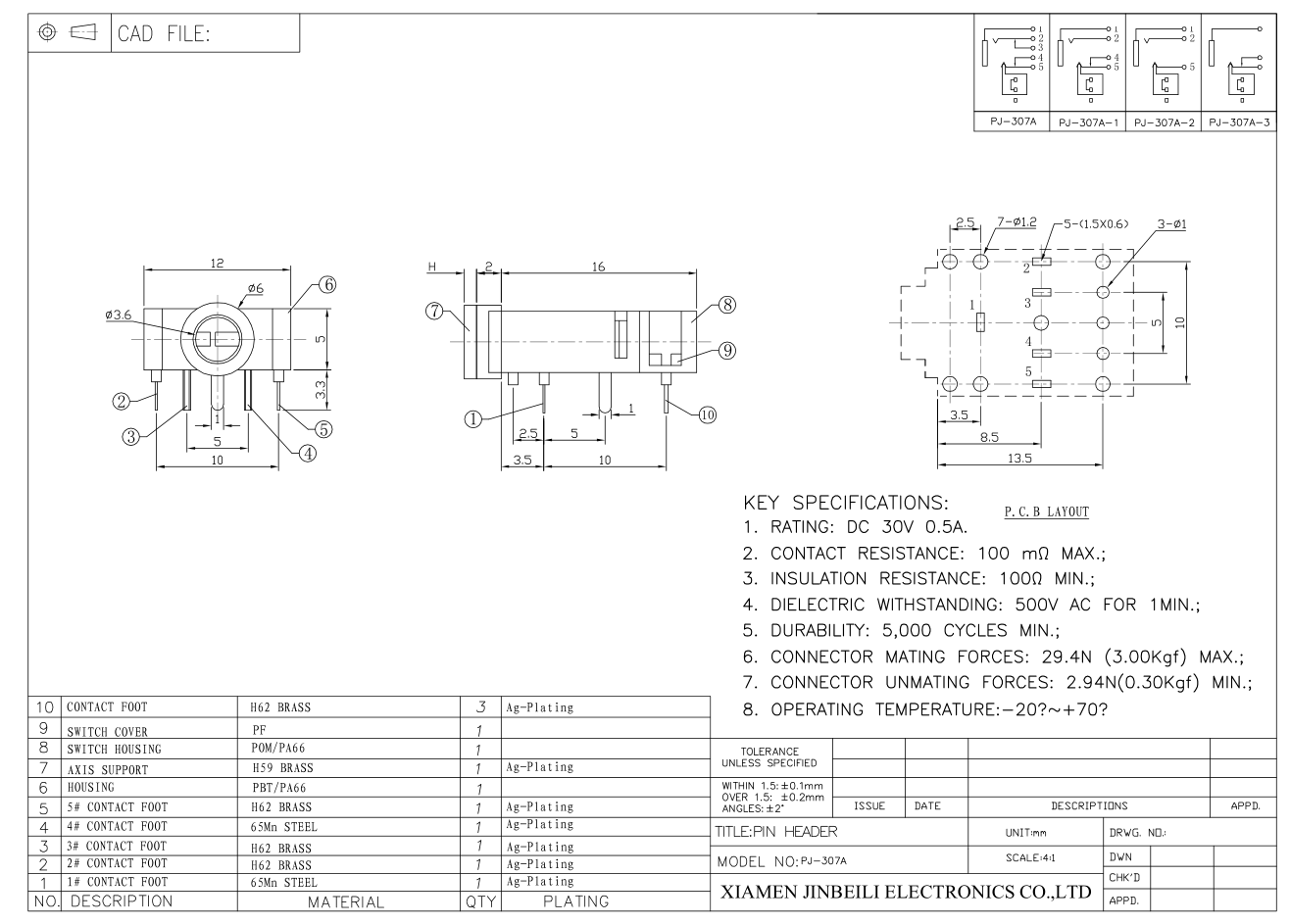

Datasheets :
