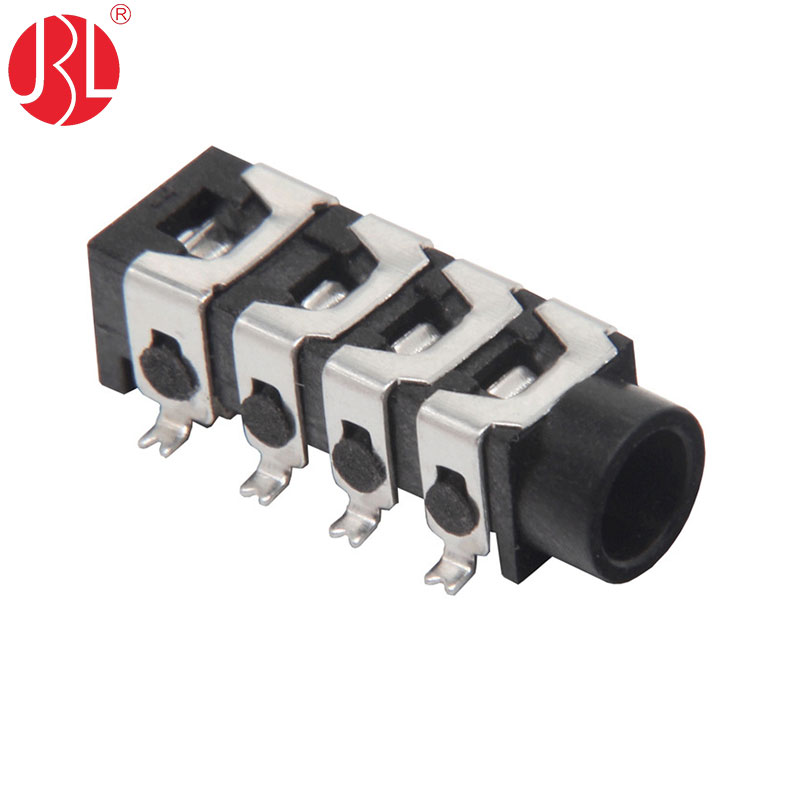

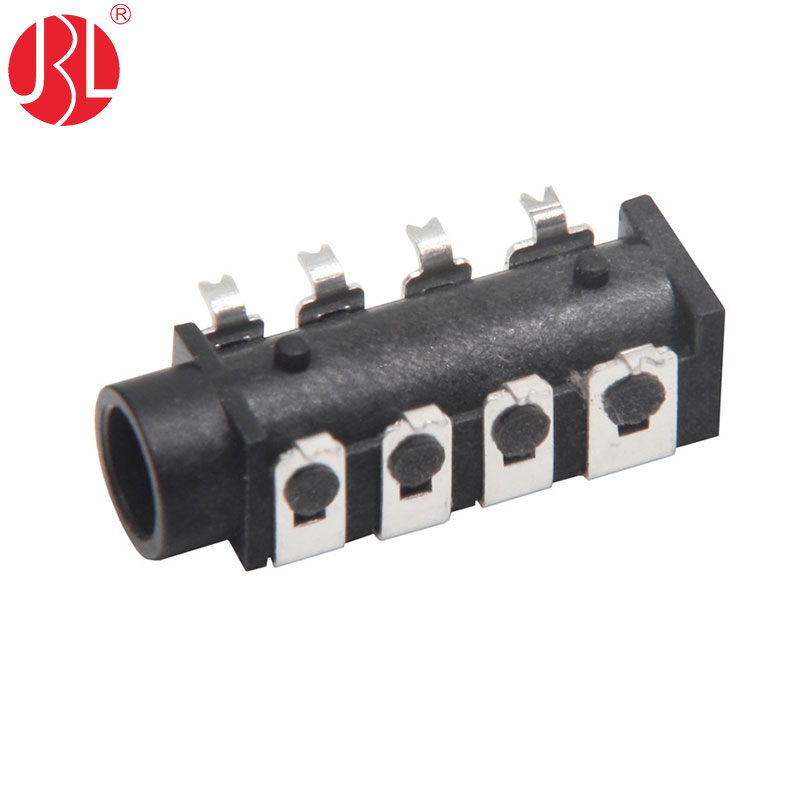

he 3.5mm Stereo Phone Jack is a compact audio connector designed for use in various electronic devices. This particular model features an SMD (Surface Mount Device) right-angle design, making it ideal for space-saving applications where a traditional straight jack would be impractical. The TRRS (Tip, Ring, Ring, Sleeve) configuration allows for the transmission of stereo audio as well as additional functions such as a microphone or control signals.

Unlike some models, this jack does not include a switch, which means it does not provide any switching functionality for controlling the audio flow. Instead, it relies solely on its TRRS configuration to manage the audio and additional signals.

The jack also comes equipped with board guides, which assist in aligning the connector during the soldering process, ensuring a secure and reliable connection to the circuit board. Its 3.5mm size is a standard in the audio industry, making it compatible with a wide range of headphones, headsets, and other audio peripherals.

Overall, this 3.5mm TRRS Stereo Phone Jack offers a reliable and space-saving solution for incorporating audio connectivity into electronic devices.
