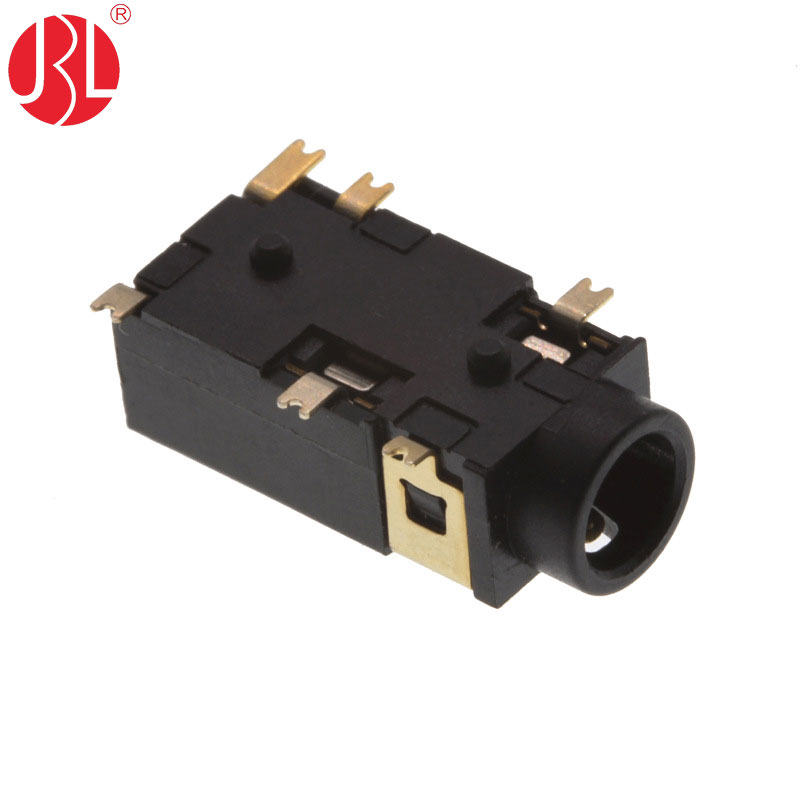

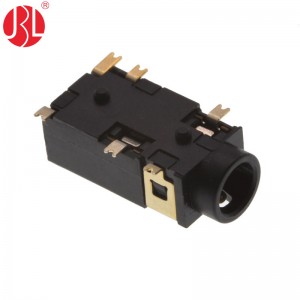

The 3.5mm Audio Jack is a surface-mount device (SMD) featuring a right-angle design for easy integration into various electronic devices. This TRRS (Tip, Ring, Ring, Sleeve) jack has 4 conductors and 6 contacts, allowing it to support a wide range of audio and control functions, such as stereo audio, microphone input, and more. It serves as a direct replacement for the Same Sky CUI Devices SJ2-3589X-SMT series phone connectors, including models like SJ2-35894D-SMT-TR, SJ2-35894C-SMT-TR, SJ2-35894B-SMT-TR, and SJ2-35894A-SMT-TR. With its compact size and reliable performance, this 3.5mm audio jack is ideal for use in smartphones, tablets, laptops, headphones, and other audio-related applications. Its right-angle design also helps in saving space and making the connection more secure and stable.

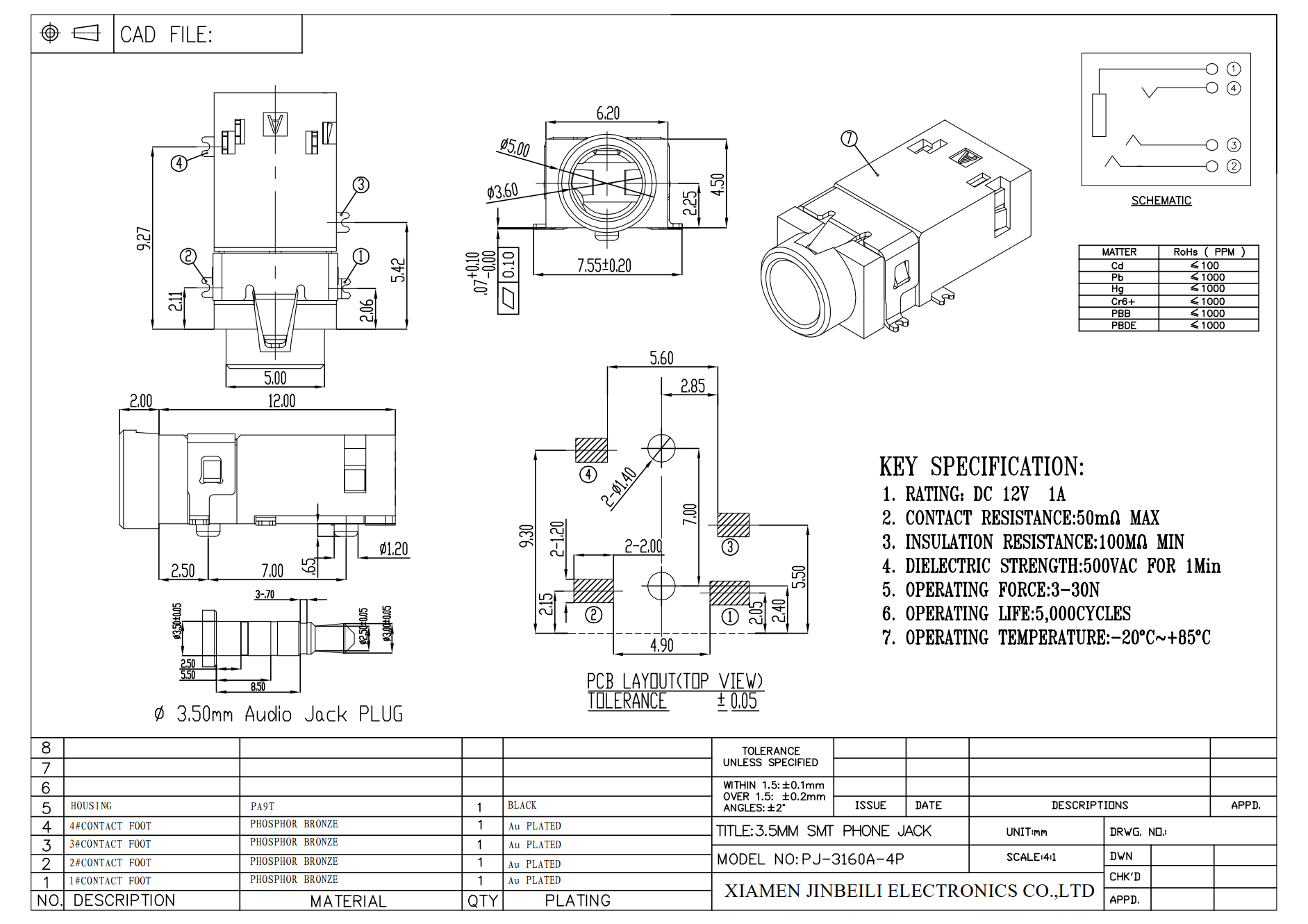

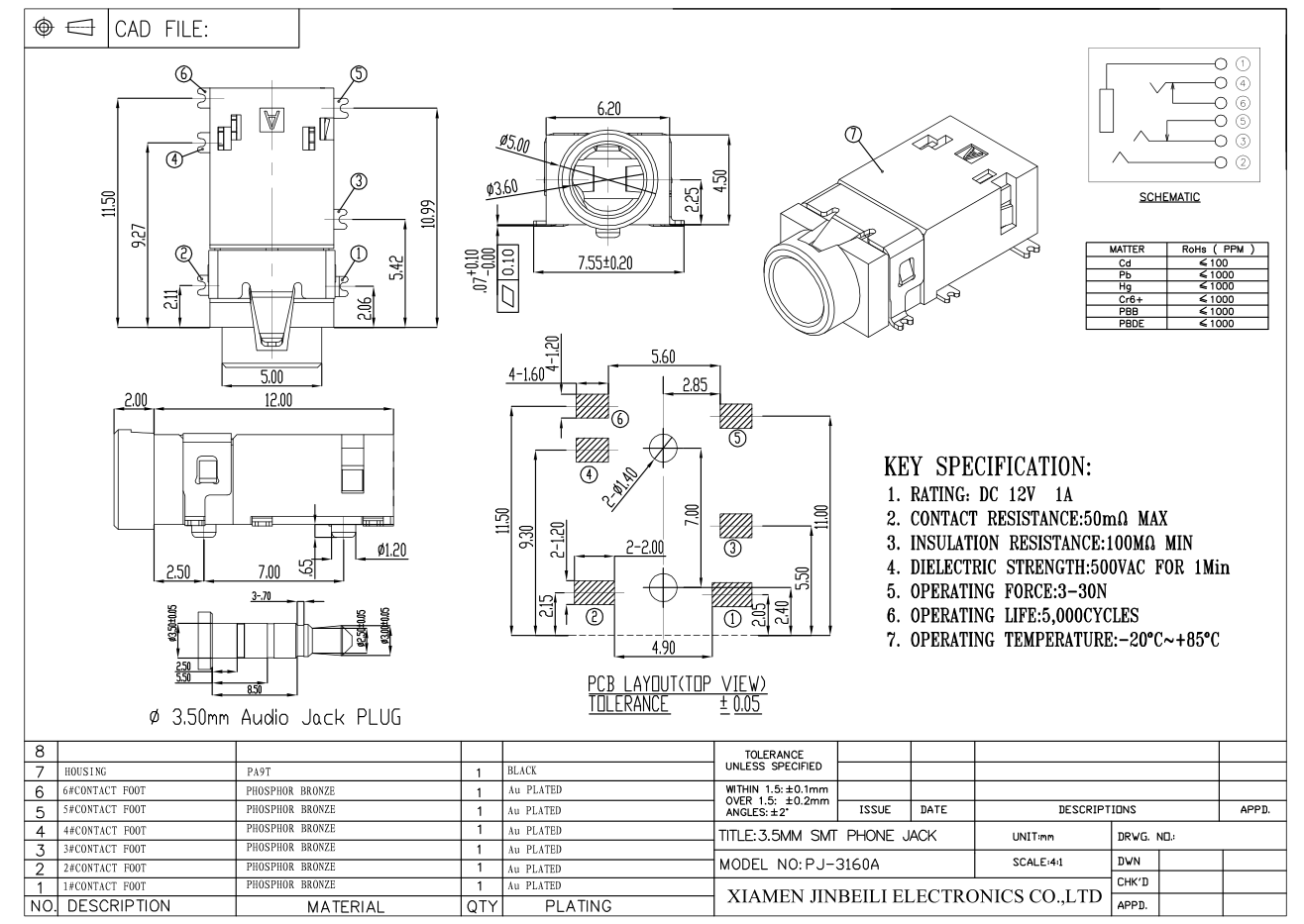

Datasheets :
