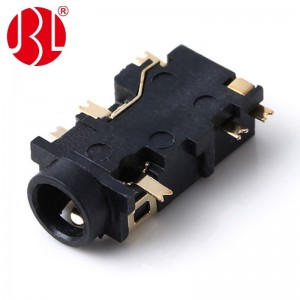

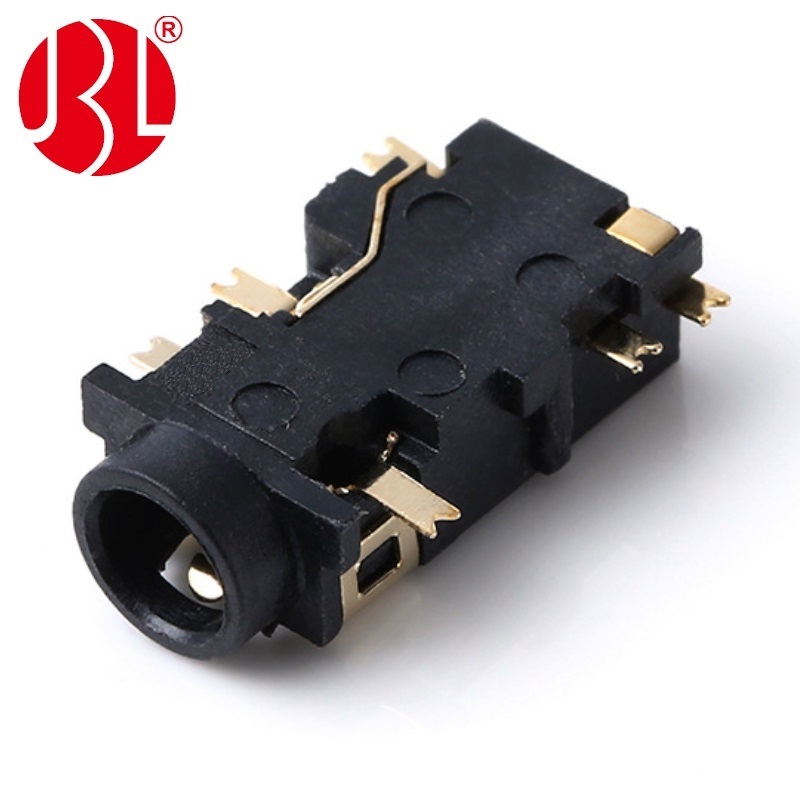

PJ-3160C Mid Mount Audio Jack 3.5mm SMD

Short Description:

3.5mm Mid Mount Headphone Phone Jack 4 Pole TRRS Connector SMD Right Angle


  • Item: Audio Connector 3.5mm
  • Mounting : SMD Right Angle
  • Power Rated: DC12V 1A
  • Feature: Mid Mount
  • Positions: 4 Conductors ( TRRS ), 6 Contacts
  • Product Detail

    Product Tags

    The Mid Mount 3.5mm Audio Jack is a surface-mount device (SMD) with a right-angle design, perfect for integrating into various electronic devices. This TRRS (Tip, Ring, Ring, Sleeve) jack has 4 poles, making it capable of supporting a wide range of audio and control functions such as stereo audio and microphone input. It serves as a suitable alternative to the Same Sky CUI Device Jack SJ-43504-SMT-TR and TSH-9518D-E. With its compact size and reliable performance, this audio jack is ideal for use in smartphones, tablets, laptops, headphones, and other audio-related applications. The mid-mount design provides a secure and stable connection, while the right-angle orientation helps save space and allows for easier routing of cables.

    PJ-3160C (1)

    www.jbl-ec.com
