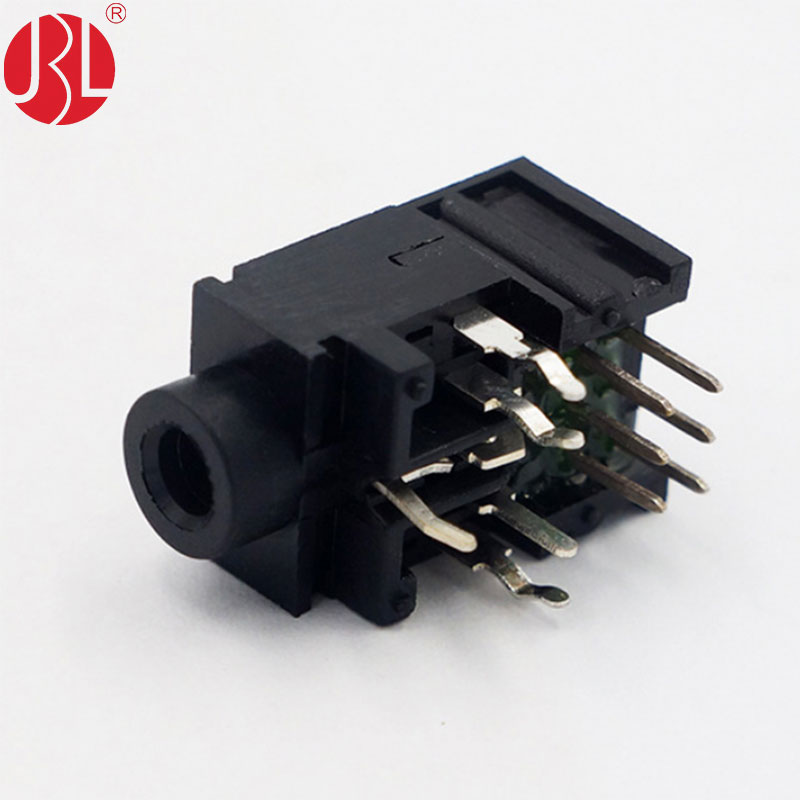

The 3.5mm Audio Jack is a compact and versatile through-hole right-angle connector designed for audio applications. It features a robust design suitable for various electronic devices and offers two main conductor options: the TS Jack with 2 conductors, and the TRS Jack with 3 conductors. The TS Jack is typically used for mono audio connections, while the TRS Jack supports stereo audio as well as additional functionalities like microphone input.

This audio jack serves as a direct replacement for the Same Sky CUI jack SJ-358XNG series, including models such as SJ-3580ANG, SJ-3580BNG, SJ-3581NG, SJ-3589ANG, and SJ-3589BNG. Its through-hole mounting and right-angle orientation make it easy to integrate into circuit boards, providing a reliable and space-saving audio connection solution. Whether you need a simple mono input or a more complex stereo with microphone support, this 3.5mm Audio Jack is a versatile and effective choice.

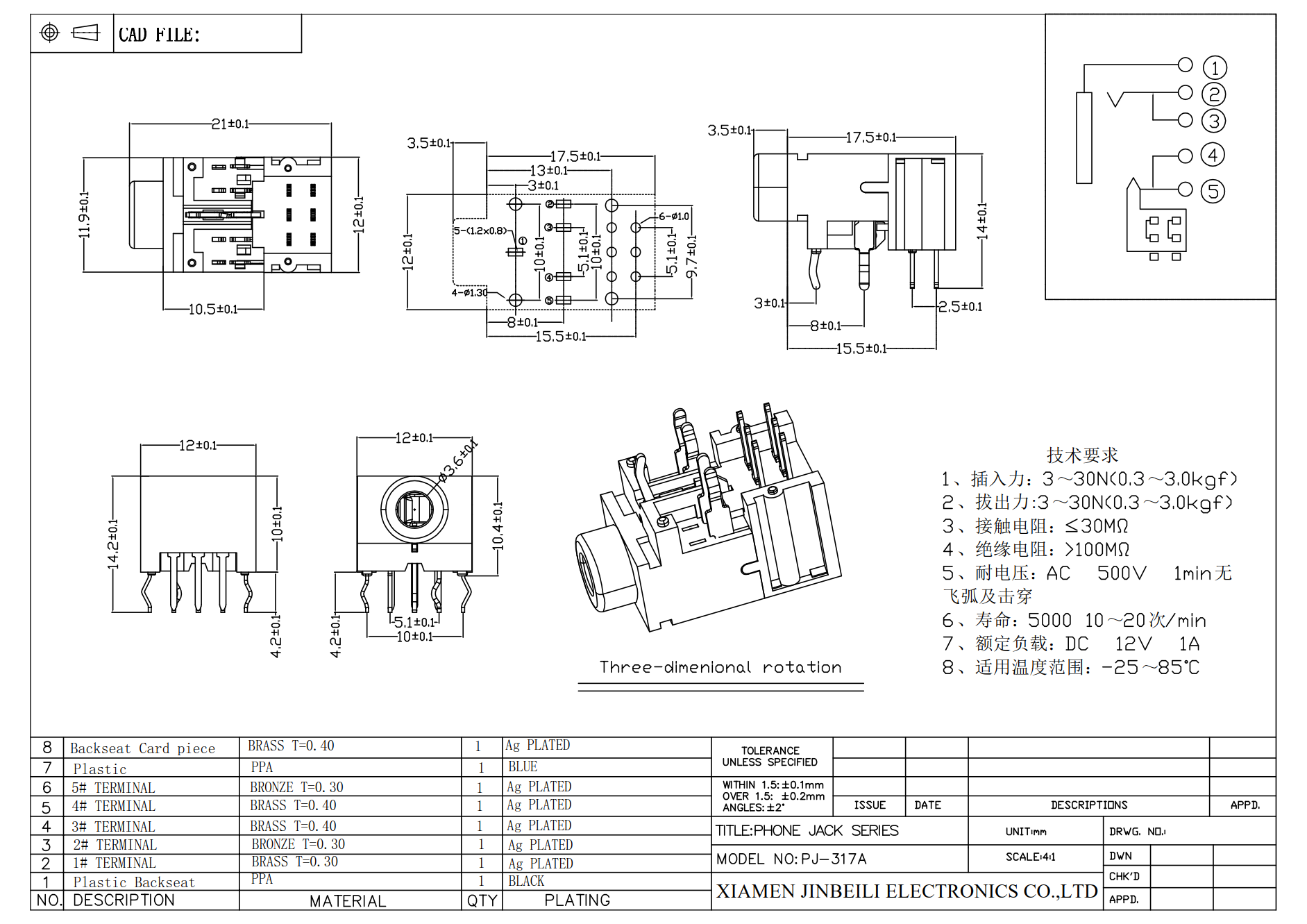

Datasheets :
