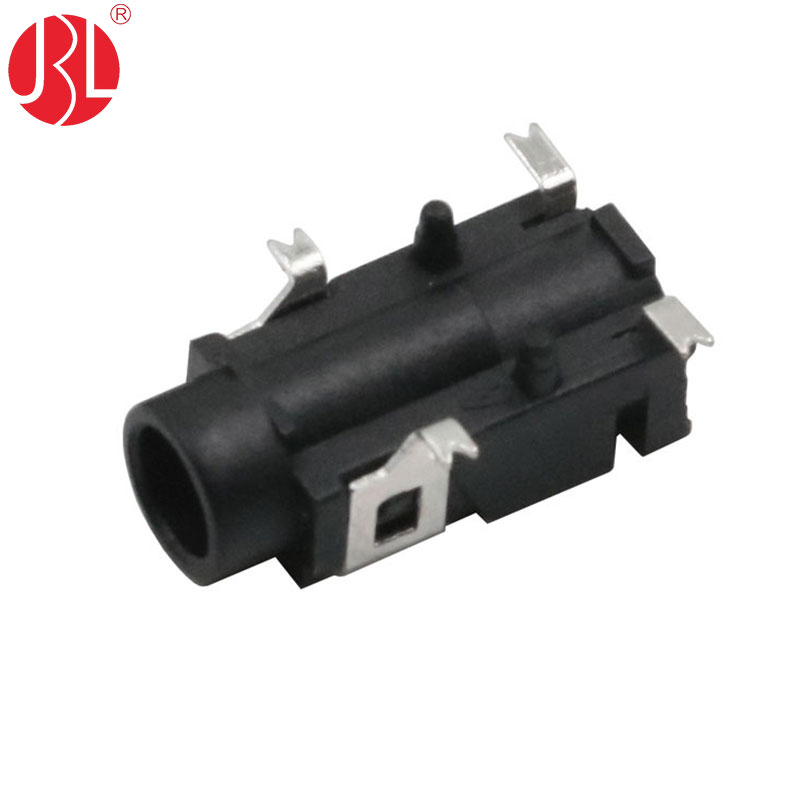

The 3.5mm phone jack is a small, versatile audio connector commonly used in various electronic devices. This particular model features an SMD (Surface Mount Device) right-angle design, making it ideal for space-saving installations. It is a 3-conductor (Tip, Ring, Sleeve – TRS) jack, capable of transmitting stereo audio signals. Additionally, it supports DC12V 1A power transmission, allowing it to serve dual functions as both an audio interface and a power supply port. Suitable for applications such as headphones, speakers, and other audio peripherals, this 3.5mm jack offers reliable and efficient performance in a compact form factor.

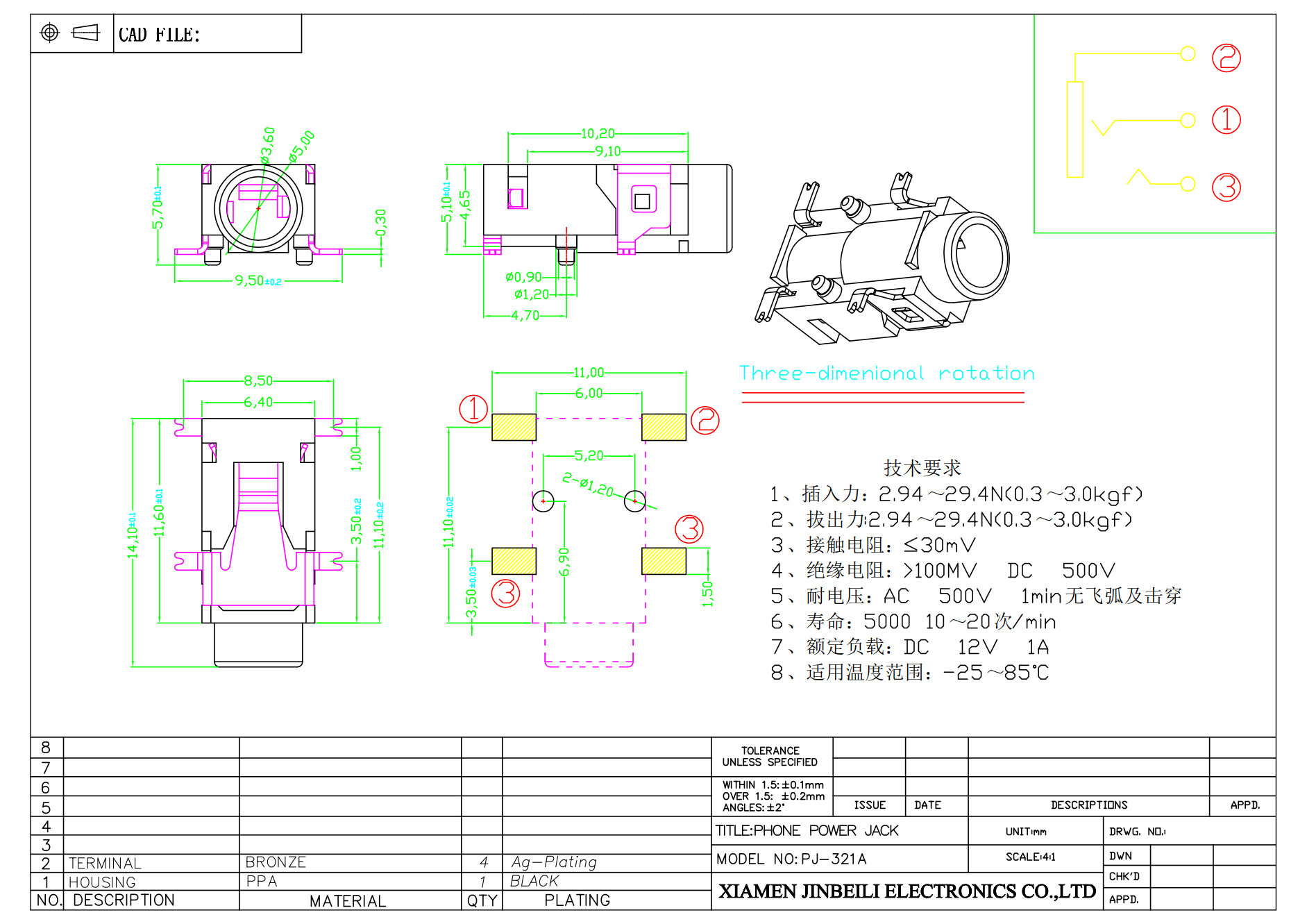

Datasheets :
