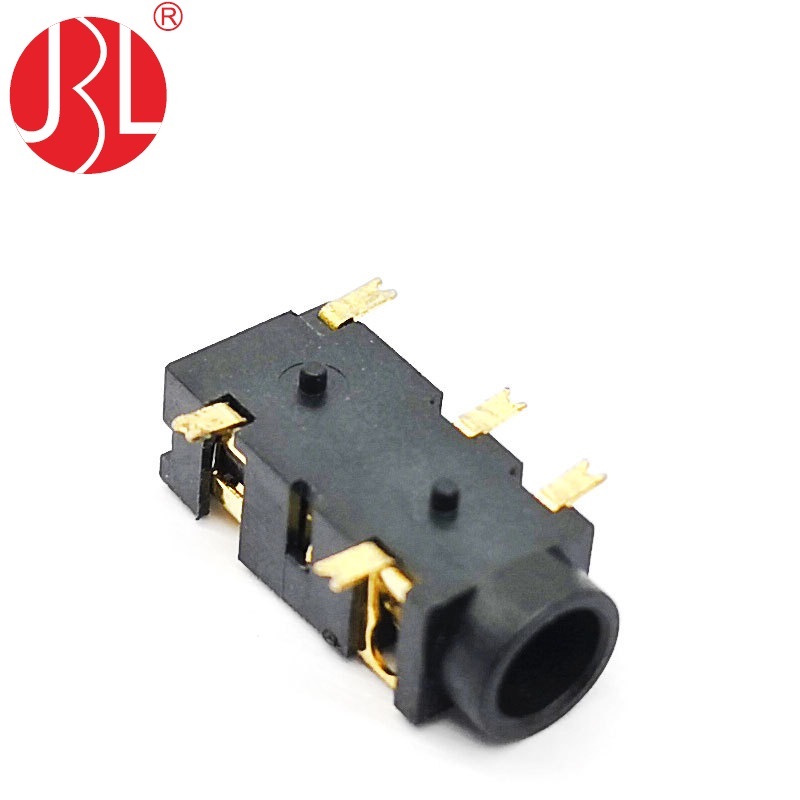

The 3.5mm audio jack is a versatile and compact connector featuring an SMD right-angle design for easy integration into devices. It is a TRS (Tip, Ring, Sleeve) type jack, capable of transmitting stereo audio signals. This particular model includes a single switch, which is ideal for additional functionality like push-to-talk on walkie-talkies. Additionally, it supports DC12V 1A power transmission, making it suitable for devices that require both audio and power connectivity.

The 3.5mm audio jack’s small size and reliability make it a popular choice for use in walkie-talkies and other communication devices. Its TRS configuration and switch functionality offer enhanced control and convenience, making it an essential component for any two-way radio setup. Whether you’re in need of a replacement jack or building a new device, this 3.5mm audio jack is a reliable and effective option.

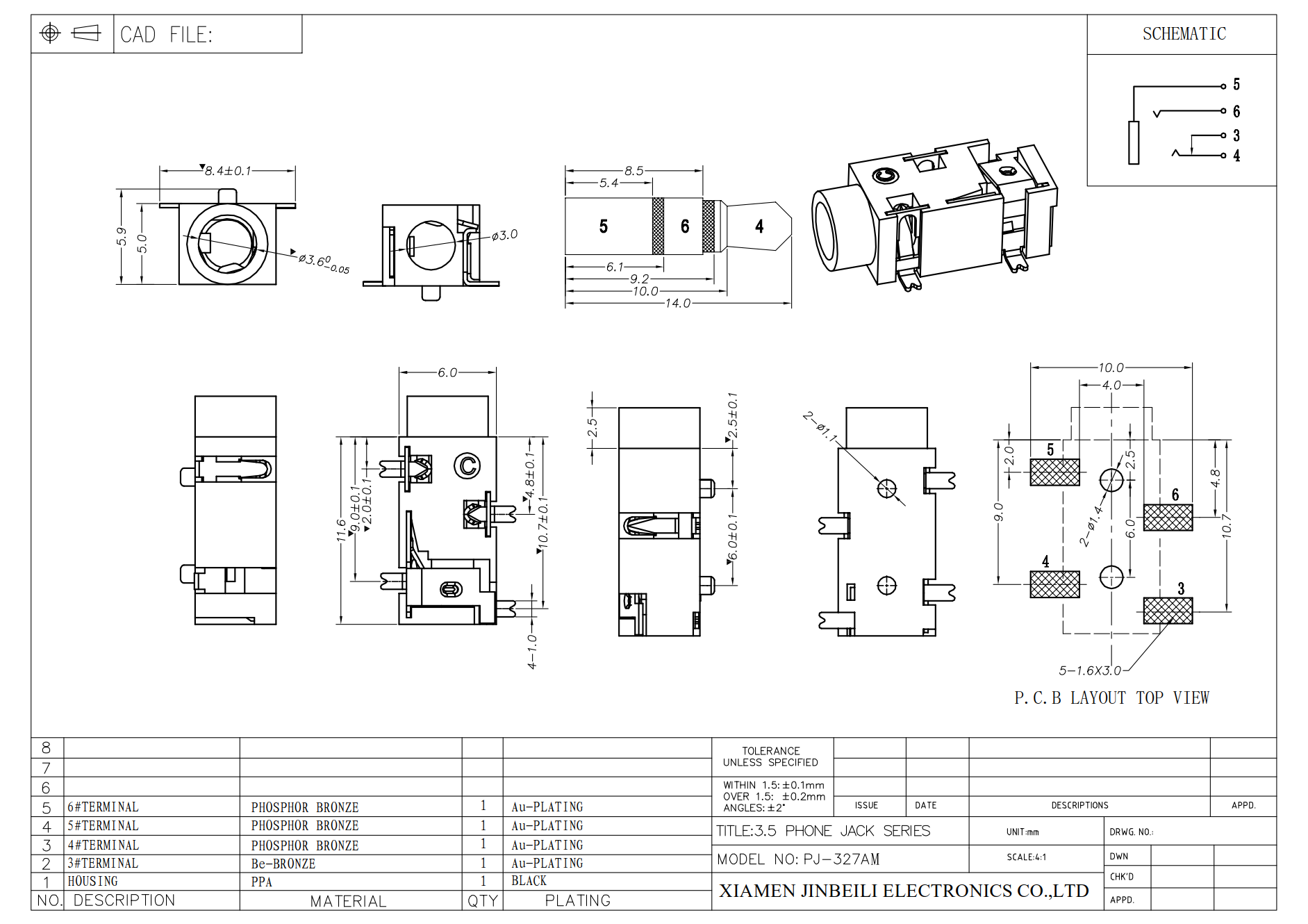

Datasheets :
