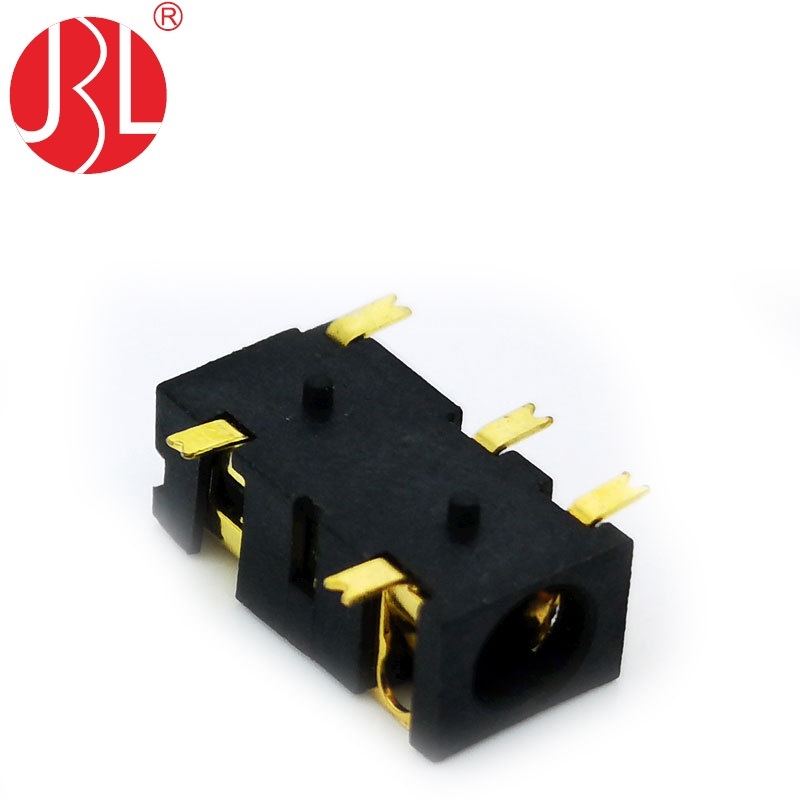

The 3.5mm audio jack is a compact and versatile connector featuring an SMD right-angle design for easy integration into various devices. It is a TRS (Tip, Ring, Sleeve) type jack, capable of transmitting stereo audio signals. This model includes a single switch, providing additional functionality such as play/pause or answer/end call control. It supports DC12V 1A power transmission, making it suitable for applications requiring both audio and power connectivity.

The 3.5mm audio jack’s small size and reliability make it an excellent choice for a wide range of audio devices, including smartphones, tablets, portable speakers, and headphones. Its TRS configuration and switch functionality offer added convenience and control, making it a valuable addition to any audio setup.

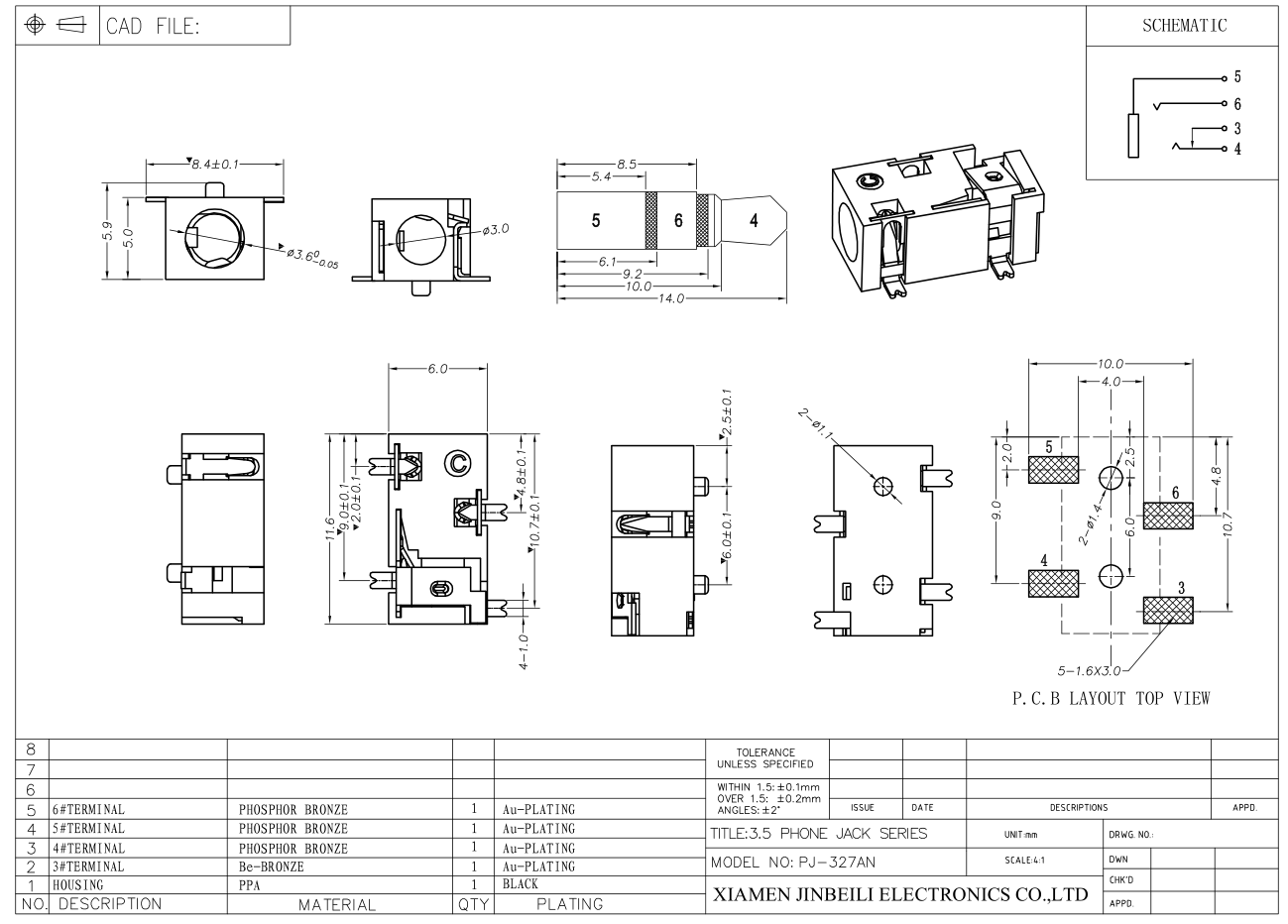

Datasheets :
