PJ-340MB Panel Mount Bulkhead TRS Audio Jack 3.5mm

Short Description:

Thread Panel Mount 3.5mm TRS Stereo Jack Phone Socket M8 Nut


  • Item: 3.5mm TRS Jack
  • Material options : Brass , stainless steel
  • Diameter: M8
  • Wire gauge options : 20AWG, 22AWG, 24AWG
  • Wire Length: 30mm to 500mm
  • Wire end options: tinned , with connectors
  • Yellow Wire: Tip
  • Red Wire: Ring
  • Black Wire: Sleeve
  • Product Detail

    Product Tags

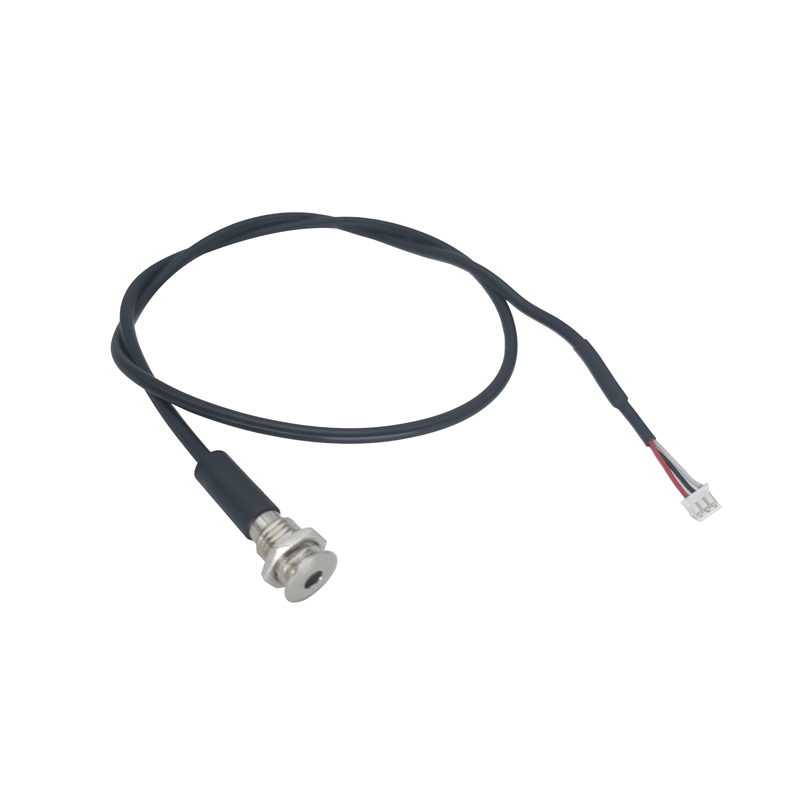

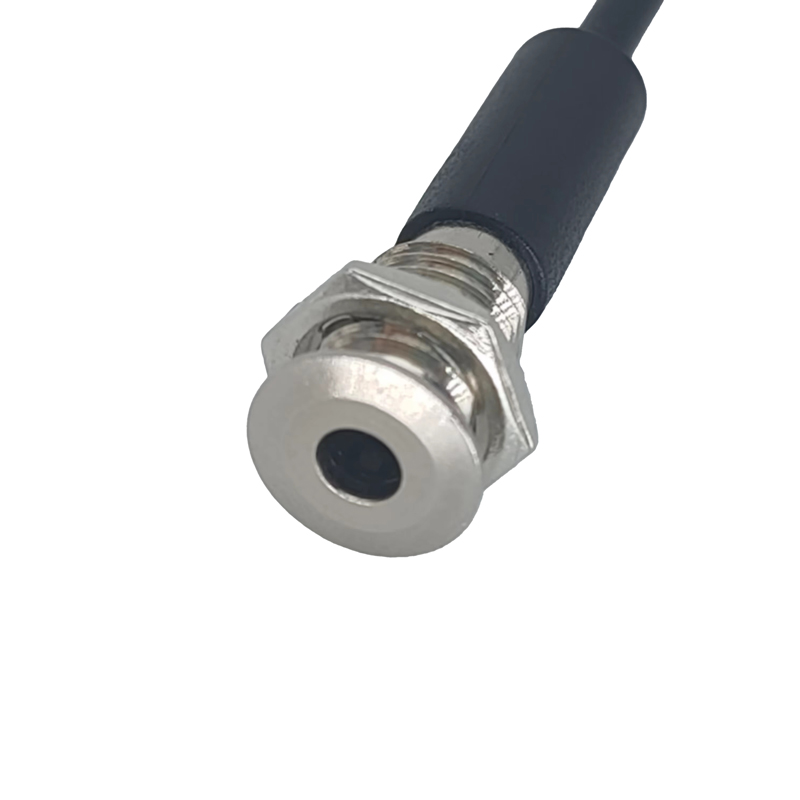

    This is a high-quality thread panel TRS mount phone jack with a 3.5mm diameter. It features M8 threads on the rear bulkhead for secure mounting and easy installation. Made of durable metal material, this jack is built to last and withstand daily wear and tear.

    The jack includes three wires: yellow, red, and black. The yellow wire corresponds to the Tip (left or mono audio channel and sometimes the sleeve of a stereo plug’s ground), the red wire corresponds to the Ring (right audio channel), and the black wire corresponds to the Sleeve (ground). This configuration allows for clear and reliable audio transmission.

    Customization options are available for the wire length, enabling you to tailor the jack to your specific needs and applications. Whether you need a short, compact connection or a longer wire for more flexibility, we can accommodate your requirements.

    Overall, this thread panel TRS mount phone jack is an excellent choice for a wide range of audio applications, including sound systems, telecommunications, and more. Its robust construction, reliable performance, and customizable features make it a standout option in the market.

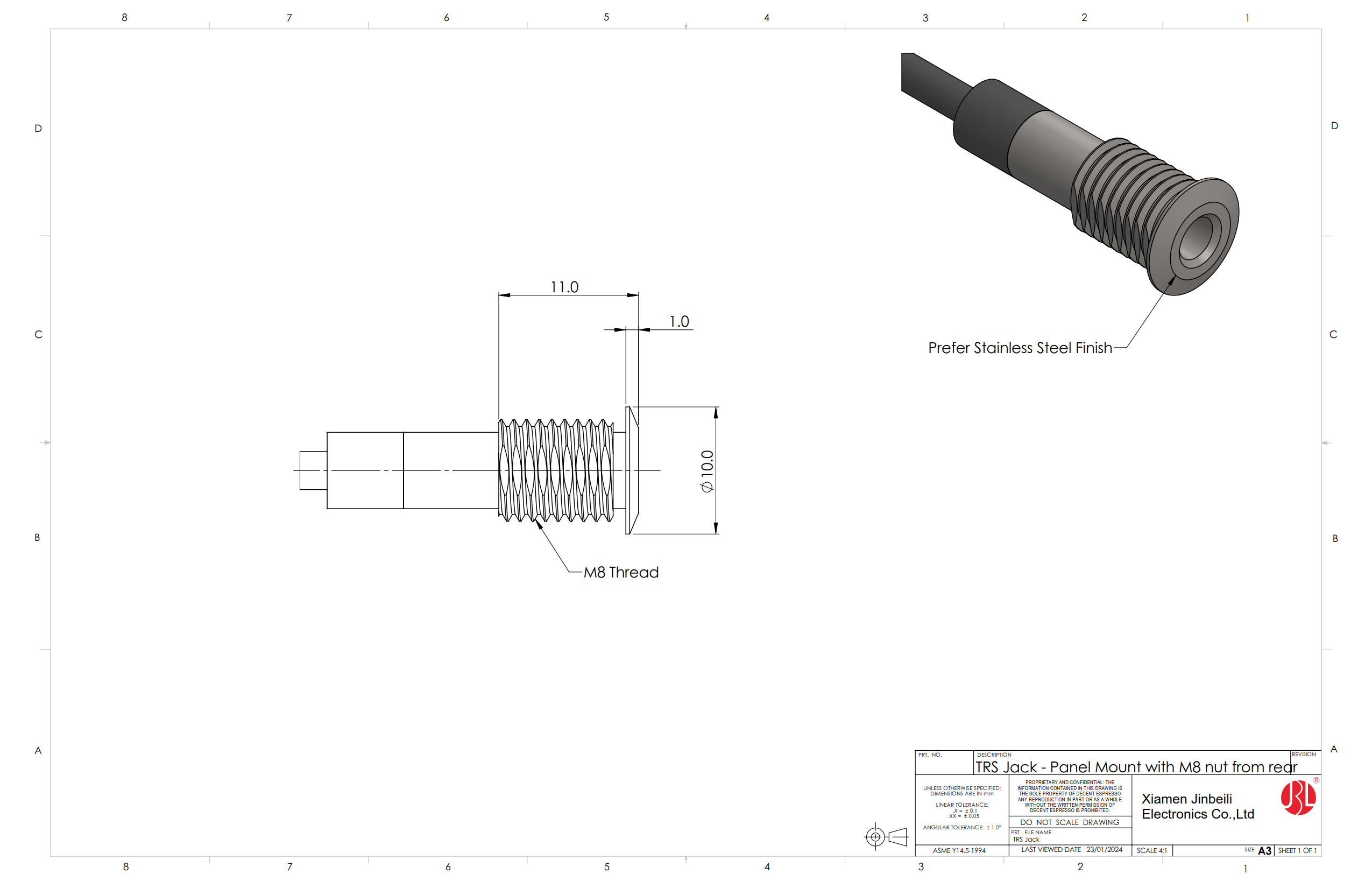

    TRS Jack Panel Mount (1)www.jbl-ec.com
