The 3.5mm Audio Jack is a TRRS (Tip, Ring, Ring, Sleeve) connector with 4 conductors, designed for high-quality audio transmission. This jack features a Bottom Mid Mount type, requiring a cutout on the board for installation.

With an IP67 rating, this audio jack offers exceptional waterproof protection, ensuring that audio signals remain clear and uninterrupted even in harsh environments. Its robust design makes it suitable for use in outdoor electronics, sports devices, and other applications where exposure to water is a concern.

Overall, this 3.5mm TRRS Audio Jack provides reliable audio connectivity with superior waterproof protection, making it an ideal choice for a wide range of audio applications.

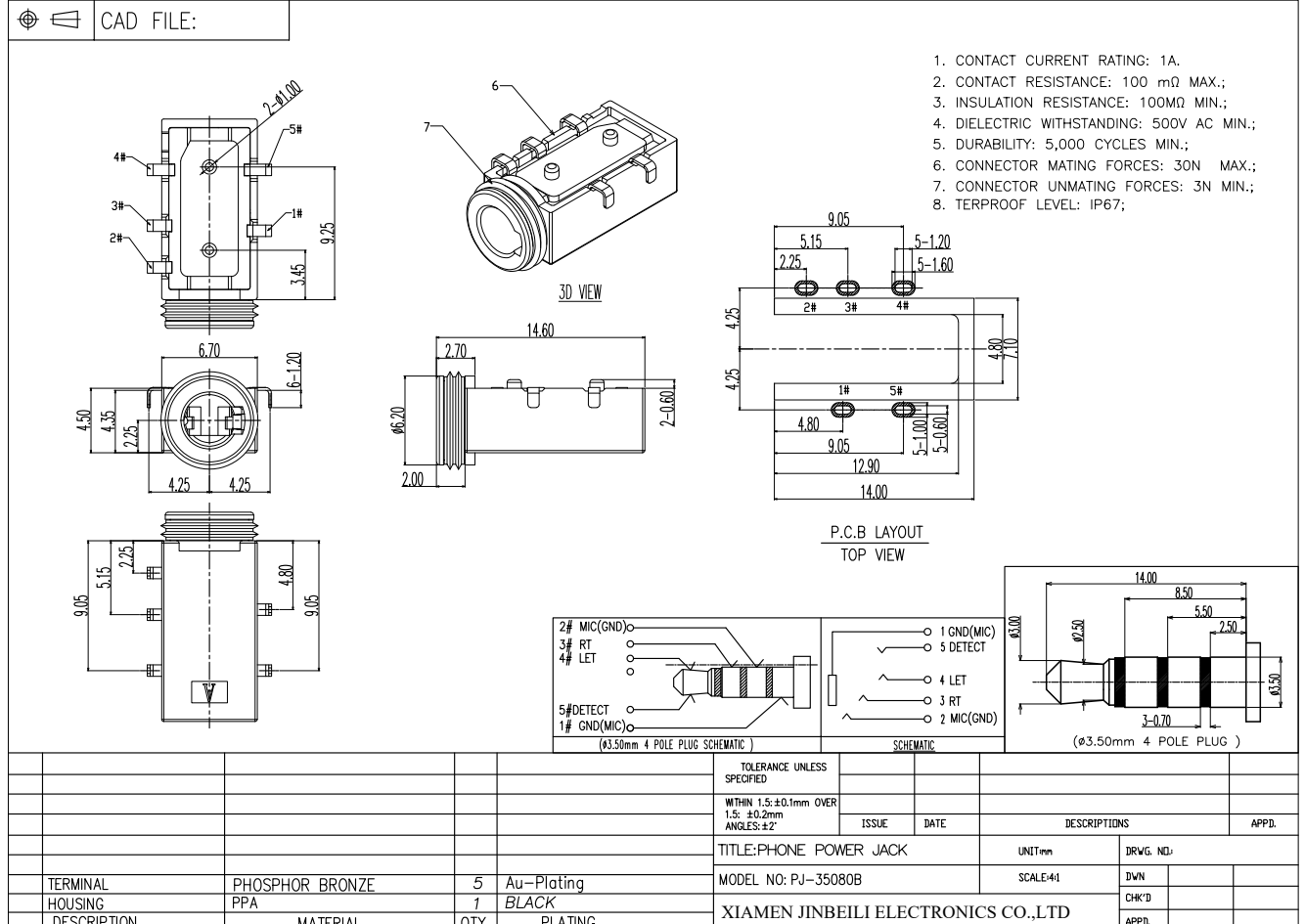

Datasheets :
