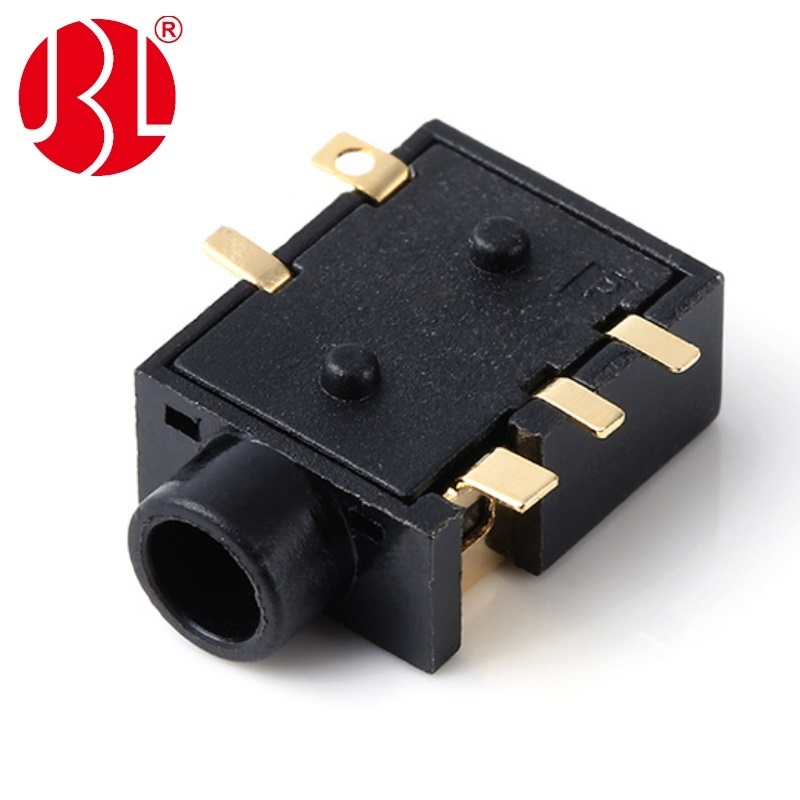

PJ-365 Series TRS Audio Jack 3.5mm SMD Right Angle

Short Description:

3.5mm Headphone Phone Jack Connector SMT Right Angle 3 Conductors TRS Jack, 2 Conductors Mono Jack

Item: Audio Connector 3.5mm

Mounting: SMT Right Angle

Power Rated: DC30V 0.5A

Housing Material: PA9T

Switch Numbers Options: No Switch, 1 Switch , 2 Switches

Conductors Numbers Options: 2 Conductors ( Mono Jack ) , 3 Conductors ( TRS )

Send email to us Download as PDF

Product Detail

Product Tags

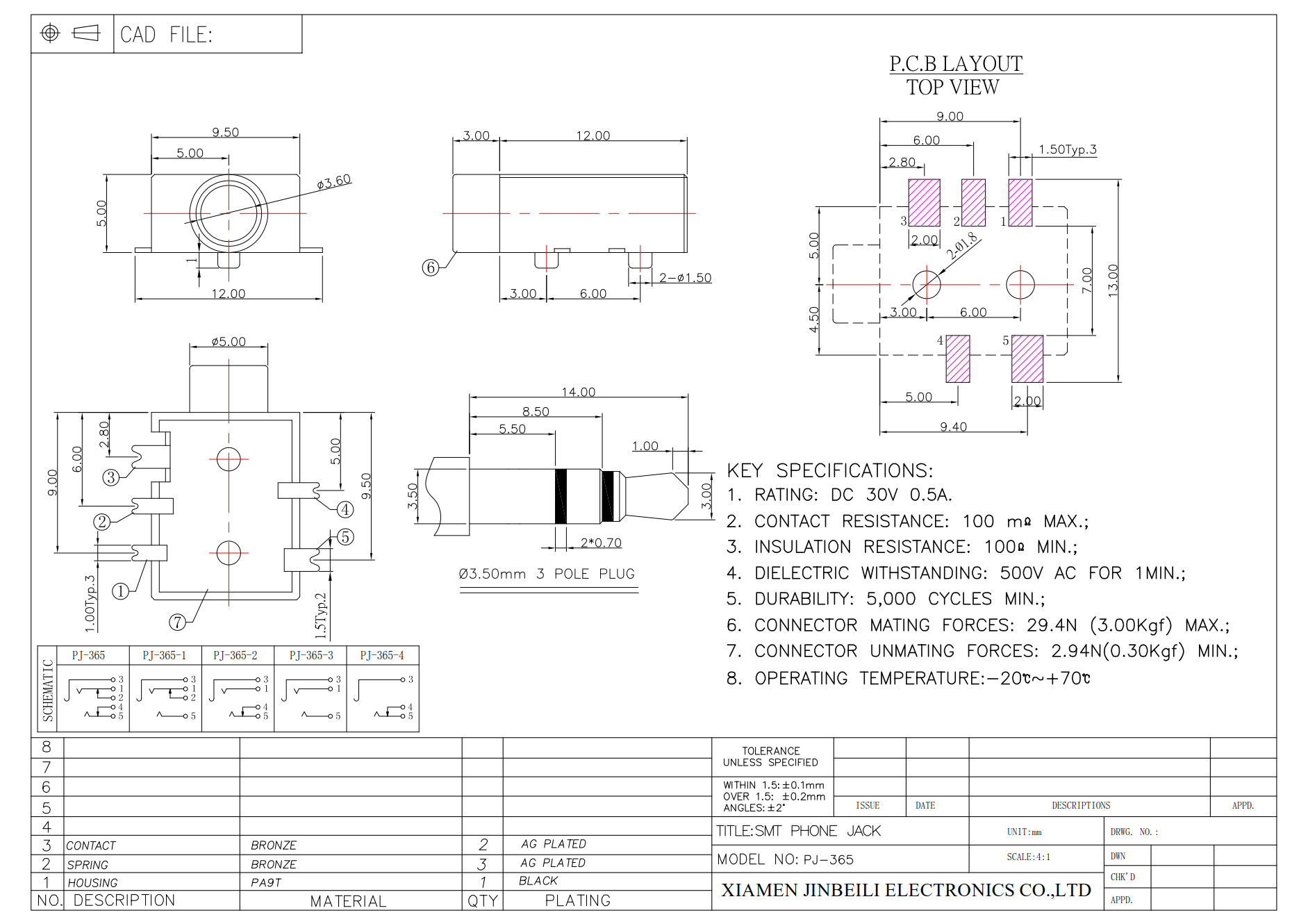

The PJ365 Series audio jack is a 3.5mm SMD (Surface Mount Device) right-angle connector designed for audio applications. It comes with two conductor options: a 2-conductor Mono Jack (part number PJ-365-4) and a 3-conductor TRS Jack (available as PJ-365, PJ-365-1, PJ-365-2, and PJ-365-3). Additionally, it offers switch options including no switches, 1 switch, and 2 switches, providing versatility for different audio needs.

With its compact design and reliable performance, the PJ365 Series audio jack is a suitable replacement for the CUI Device SJ1-351X-SMT series audio jack, specifically the SJ1-3513-SMT-TR, SJ1-3514-SMT-TR, and SJ1-3515-SMT-TR models. It maintains the same outline and functionality, ensuring seamless integration into existing designs while offering an alternative sourcing option.
