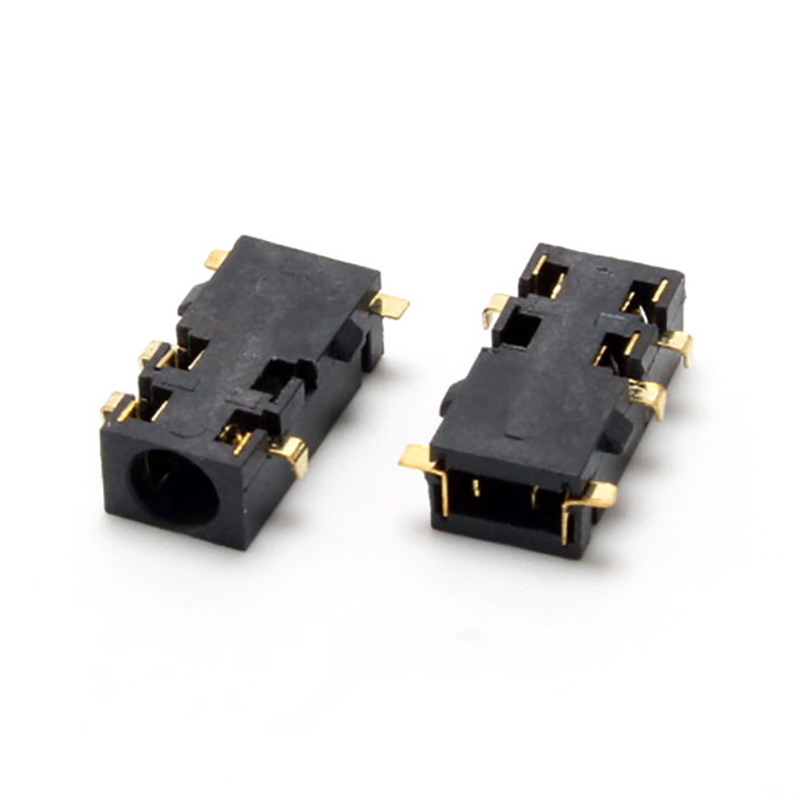

The 3.5mm Audio Jack is a compact and reliable connector designed for use in electronic devices. It features a mid-mount board cutout for easy installation on circuit boards and an SMD through-hole right-angle design that saves space while providing a secure connection.

This audio jack has 3 conductors and is configured as a TRS (Tip, Ring, Sleeve) jack, making it suitable for stereo audio applications. It does not have a switch, simplifying its design and reducing costs.

As an alternative to popular phone jacks such as the CUI Device SJ-3501-SMT-TR and the Kycon STX-35398E-5N-TR, this 3.5mm audio jack offers similar performance and reliability at a competitive price. Its robust construction ensures clear and distortion-free audio transmission, making it ideal for use in smartphones, tablets, laptops, headphones, and other audio-related devices.

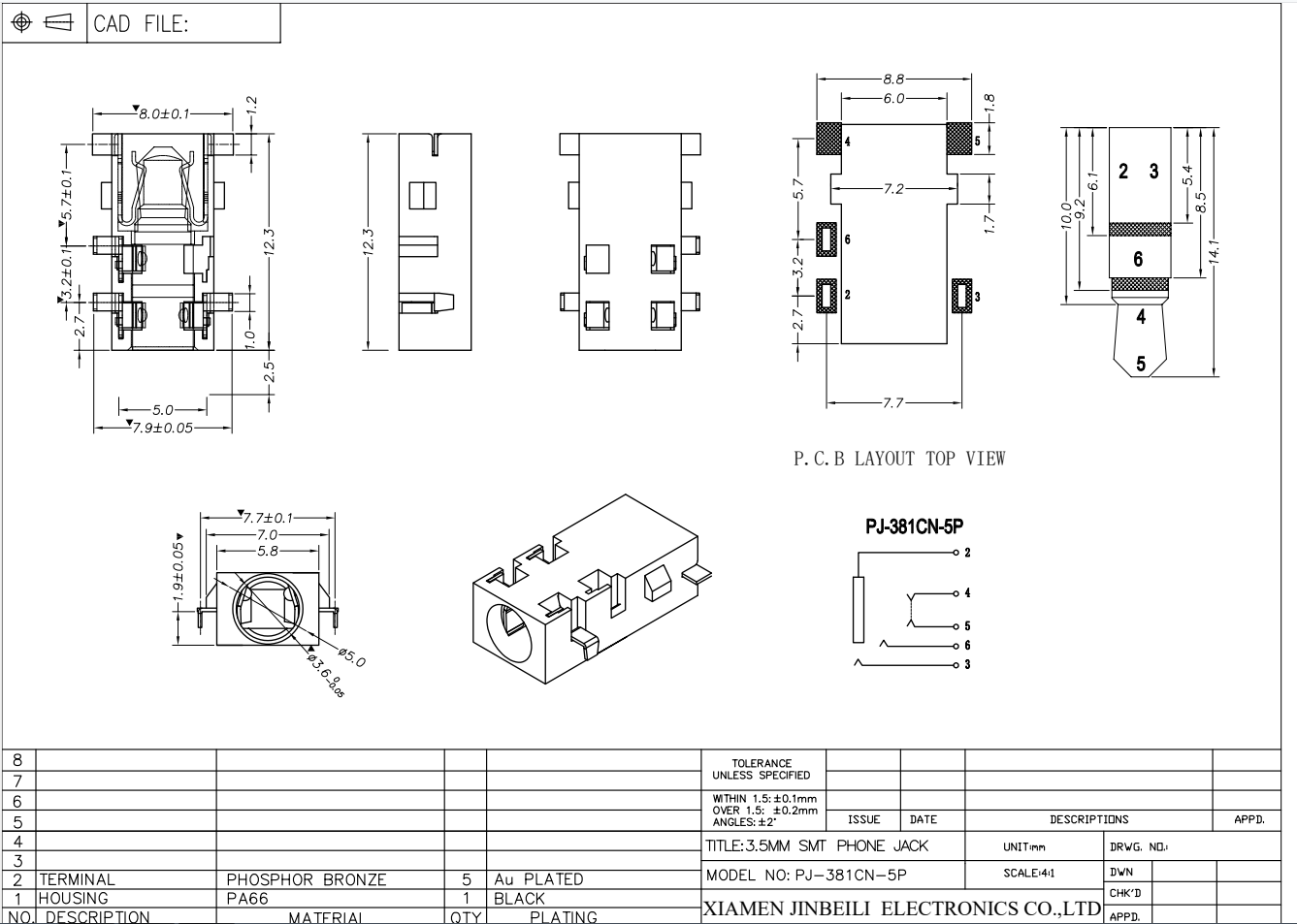

Datasheets :
