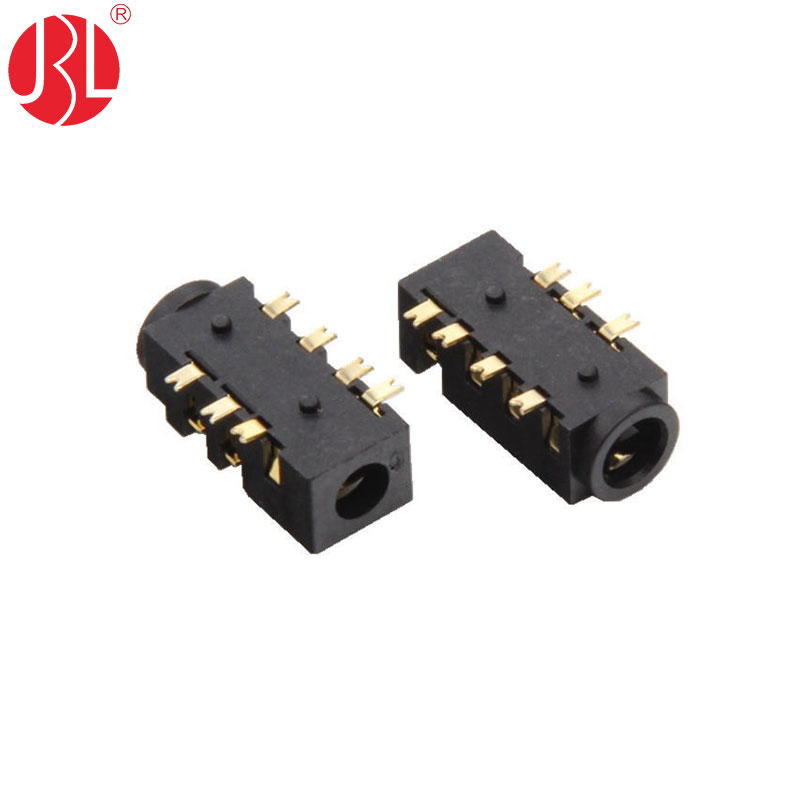

The 3.5mm Audio Jack is a compact and reliable component designed for use in various audio applications. Featuring a Surface Mount Device (SMD) right-angle design, it is ideal for use in space-constrained environments. With seven contacts and four conductors, this TRRS (Tip, Ring, Ring, Sleeve) type jack supports the transmission of both audio signals and additional functionalities such as microphone input or control signals.

This audio jack offers flexibility in terms of functionality and user control, with options for one, two, or three switches. It serves as a suitable alternative to the Same Sky CUI Device Jack SJ2-3598X-SMT series, including models such as SJ2-35984A-SMT-TR, SJ2-35984B-SMT-TR, SJ2-35984D-SMT-TR, SJ2-35984E-SMT-TR, and SJ2-35983D-SMT-TR.

Compatible with a wide range of audio cables and headphones, the 3.5mm TRRS audio jack is an excellent choice for smartphones, tablets, laptops, and other portable devices. Its robust construction ensures reliable performance, even in demanding environments. Whether you need a simple audio connection or a more complex setup with multiple switches, this audio jack is the perfect solution.

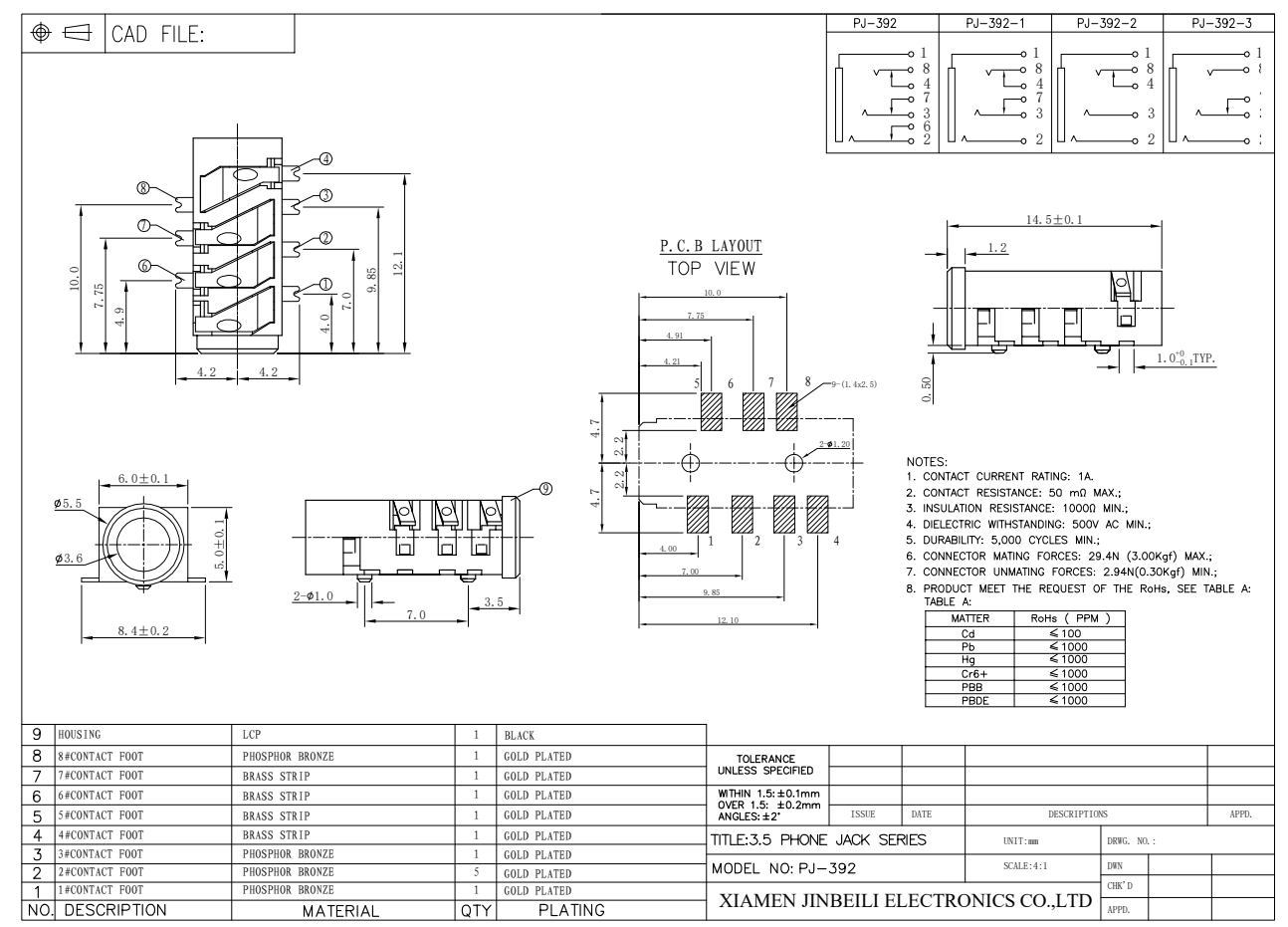

Datasheets :
