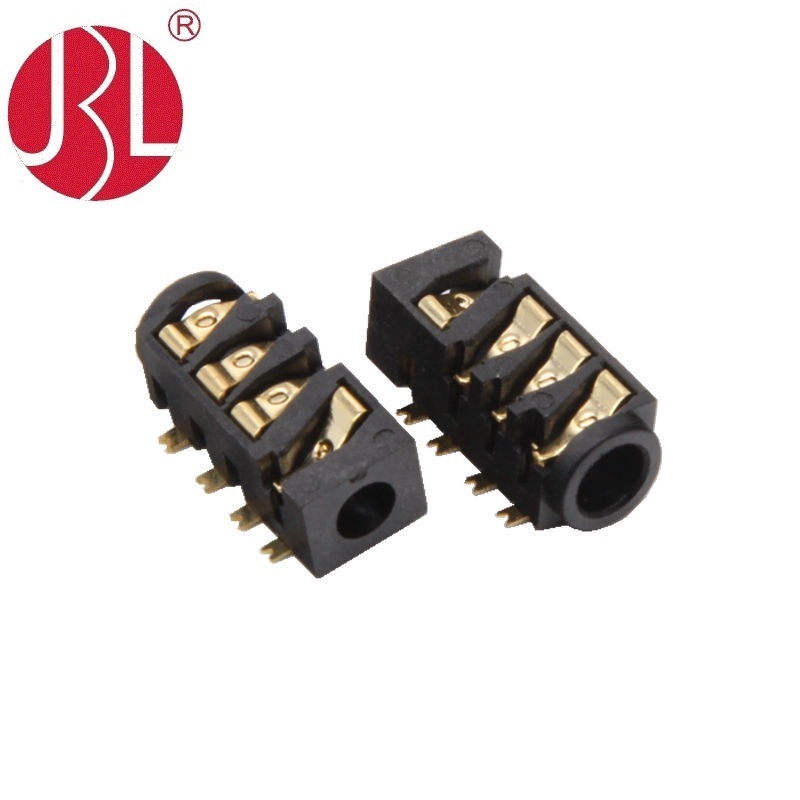

PJ-392B TRRS Audio Jack 3.5mm SMD 8 Contacts

Short Description:

TRRS Headphone Phone Connector Jack 3.5mm SMD Right Angle




  • Item: Audio Connector 3.5mm
  • Mounting : SMD Right Angle
  • Power Rated: DC30V 0.5A
  • Positions: 4 Conductors ( TRRS )
  • Switch Numbers Options: 1 Switch, 2 Swithces, 3 Switches, 4 switches
  • Product Detail

    Product Tags

    The 3.5mm Audio Jack is a compact and versatile component designed for use in various audio applications. Featuring a Surface Mount Device (SMD) right-angle design, it is perfect for space-constrained environments. The TRRS (Tip, Ring, Ring, Sleeve) type jack has four conductors, allowing for the transmission of both audio signals and additional functionalities such as microphone input or control signals.

    This audio jack offers flexibility in terms of functionality and user control, with options for one, two, three, or four switches. It can serve as a direct replacement for the CUI Device Jack SJ3-35024K-SMT-TR, making it a suitable choice for upgrading or repairing electronic devices that require a reliable and high-quality audio connection.

    With its 3.5mm size, the audio jack is compatible with a wide range of audio cables and headphones, making it an excellent choice for smartphones, tablets, laptops, and other portable devices. Its robust construction ensures reliable performance, even in demanding environments. Whether you need a simple audio connection or a more complex setup with multiple switches, this 3.5mm TRRS audio jack is the perfect solution

    Datasheets :

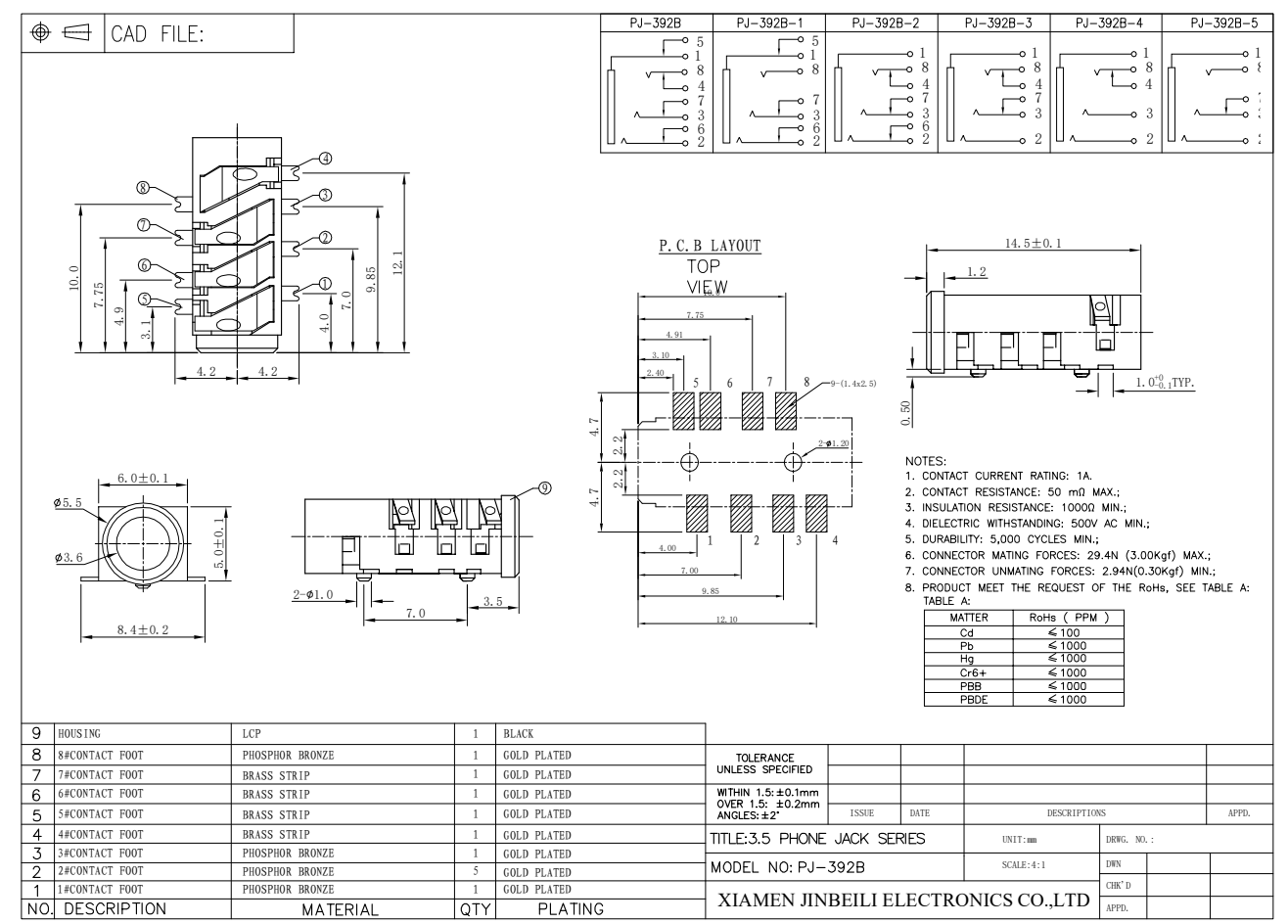

    PJ-392B DATASHEET



    www.jbl-ec.com
