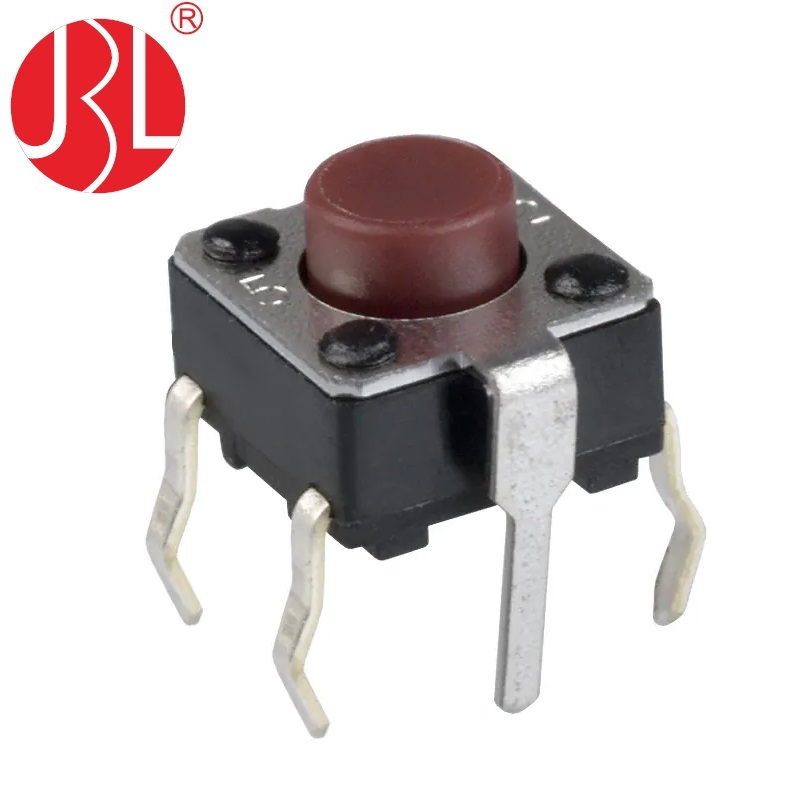

TC-00105 6.0*6.0mm Tactile Switch with Ground Terminal

Short Description:

6*6 Tactile Switch Through Hole with Ground Pin


  • Item: Tactile Switch
  • Outline: 6*6mm
  • Mounting: Through Hole
  • Actuator Height off Bottom Options: 4.3mm, 4.5mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm.....18mm
  • Operation Force Options: 120gf, 180gf, 250gf, 300gf
  • Circuit: SPST With Ground Terminal
  • Product Detail

    Product Tags

    The tactile switch in question is a through-hole type with a compact 6x6mm outline, designed as a reliable alternative to popular Omron switches such as the B3F-1100, B3F-1102, B3F-1105, B3F-1120, B3F-1122, B3F-1125, B3F-1102-G, and B3F-1122-G. It features a ground terminal for enhanced circuit stability and performance, and offers two actuator height options: 4.3mm and 5.0mm, allowing for customization to suit various design requirements and user preferences.

    The switch provides a distinct ‘click’ sensation upon actuation, enhancing user experience and interaction. Its robust construction ensures reliable performance and longevity, even in high-use applications. The switch is designed for ease of integration into printed circuit boards, making it a versatile solution for incorporating tactile feedback into various projects.

    As a direct replacement for the specified Omron switches, this tactile switch offers a cost-effective and high-quality alternative. Its compact size, adjustable actuator height, and ground terminal make it an excellent choice for achieving reliable performance and enhancing user experience in a wide range of applications. Whether you’re designing industrial controls, consumer electronics, or other projects, this tactile switch is sure to meet your needs.

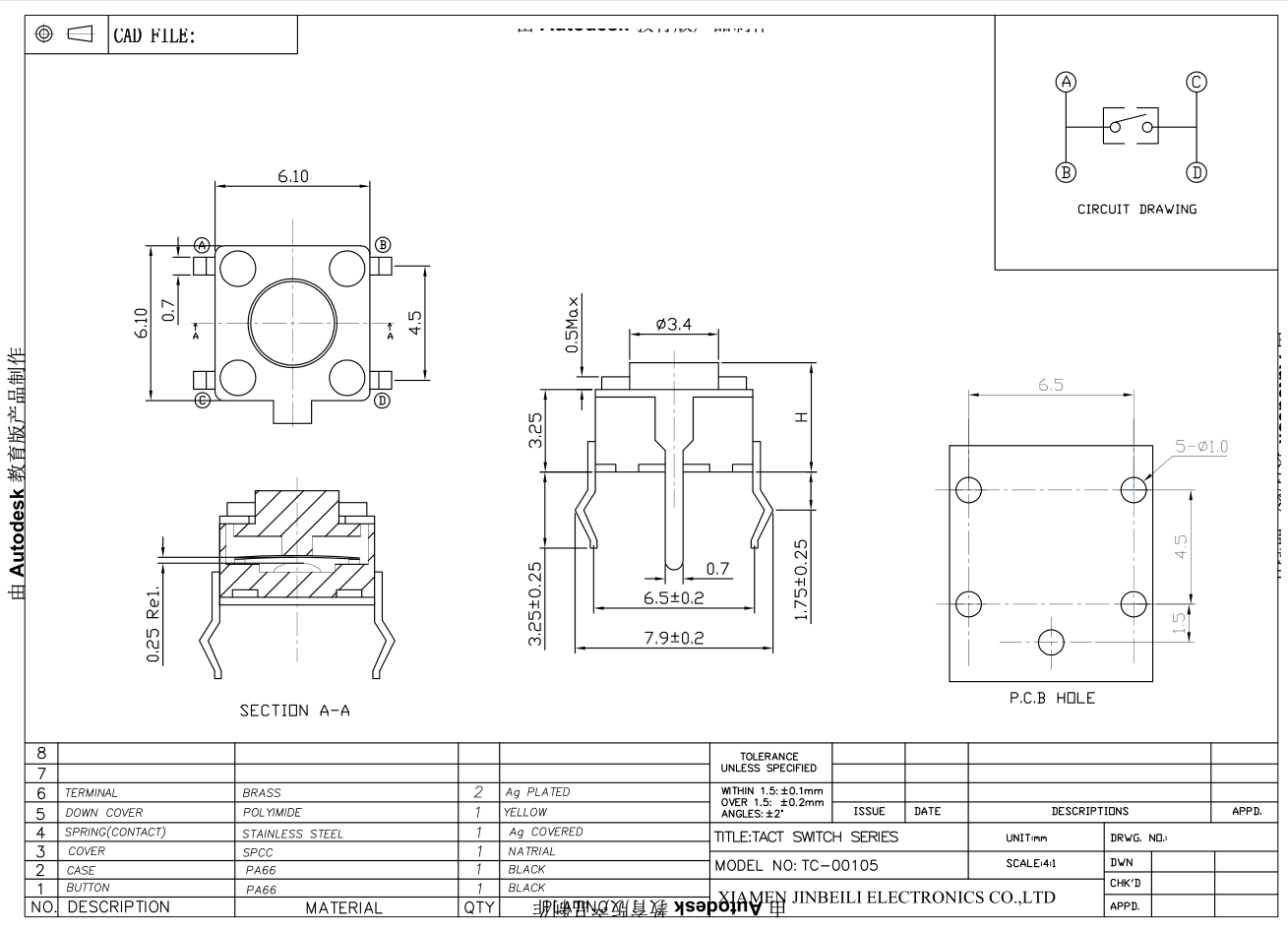

    TC-00105 5PIN TACTILE SWITCHwww.jbl-ec.com
