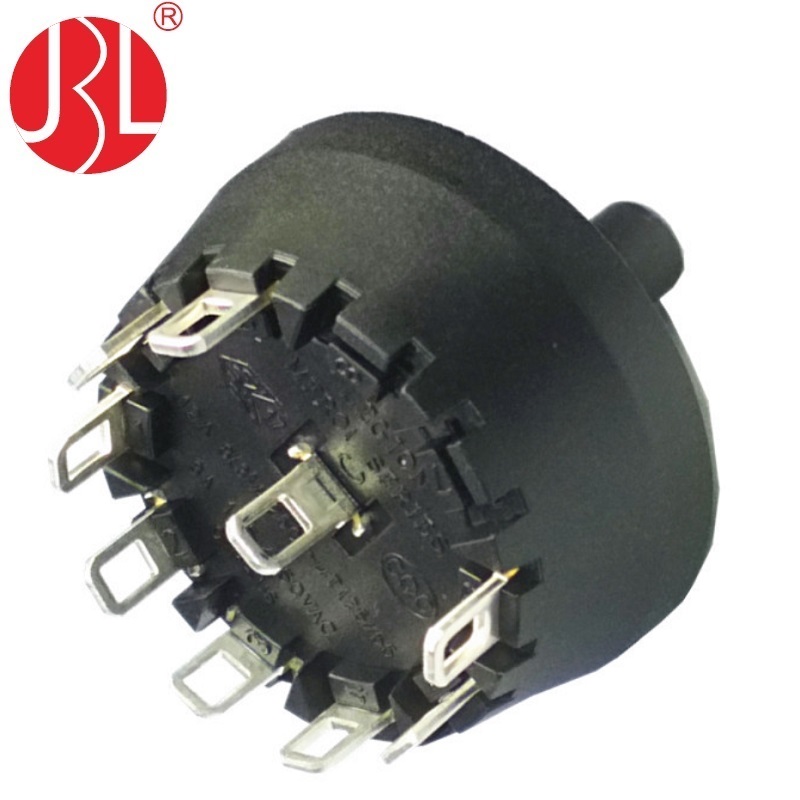

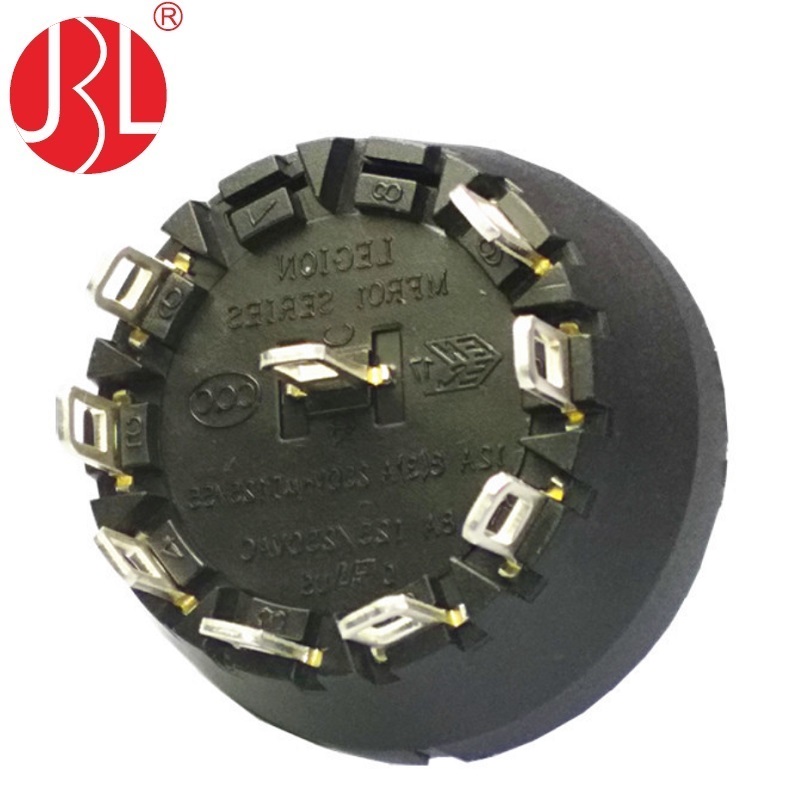

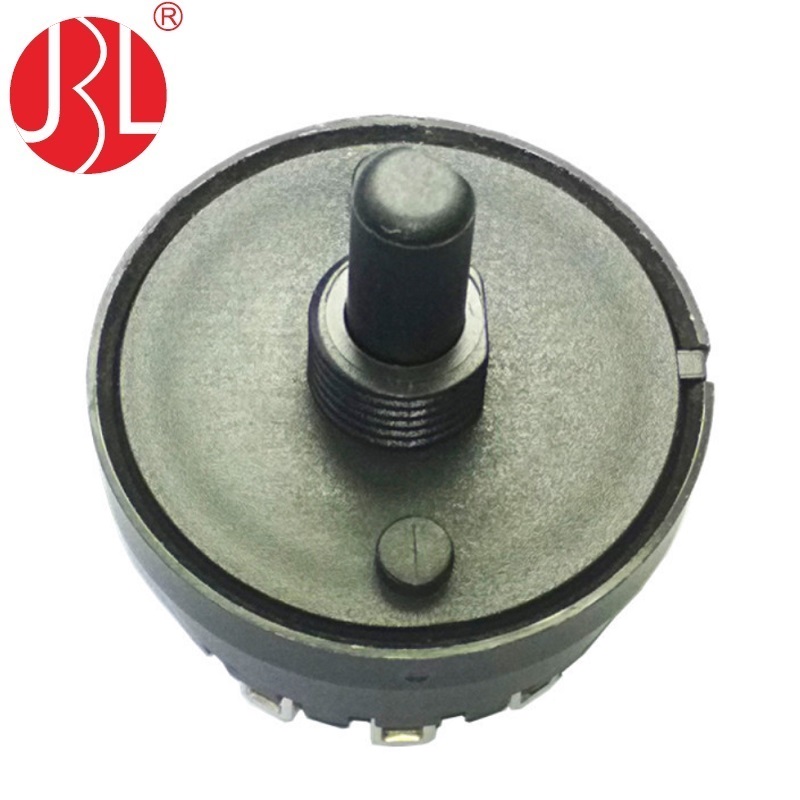

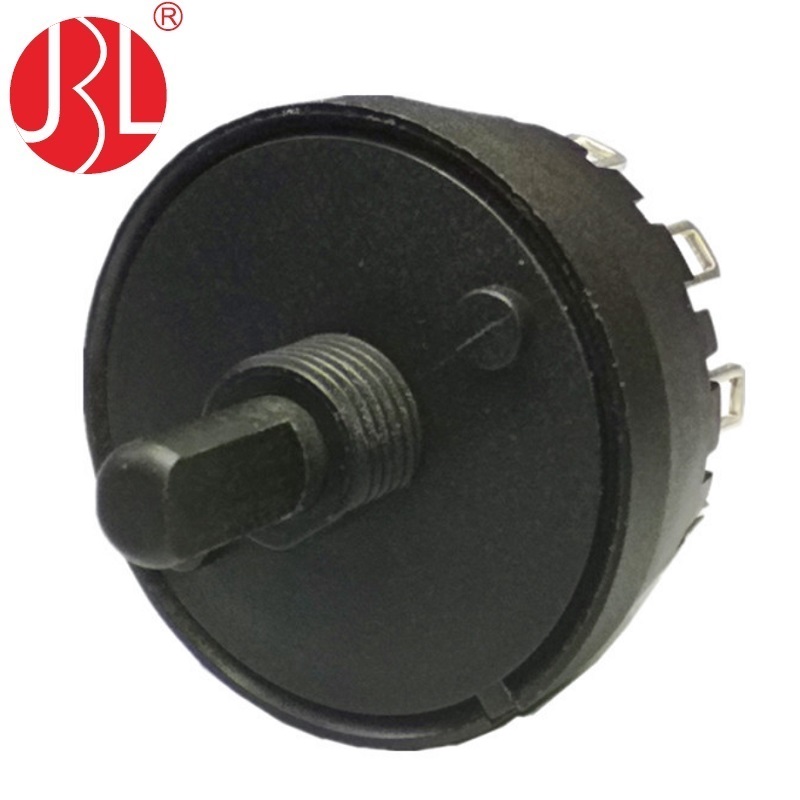

Rotary Switch 8 Position AC 125V 250V 8A 12A CAS VDE ENEC CQC Approval Certification MFR01-A1M06L5S-N

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Certification:: CUL , ENEC17 , NEMKO , CB , VDE

Whether the smart:: NO

Place of Origin:: Guangdong, China

Brand Name:: Jinbeili

Model Number:: MFR01-A1F03L3S-R

Max. Current:: 80A

Max. Voltage:: 250V AC

LED:: NO

Certificate:

CAS VDE ENEC CQC

Product Description

Product Name :	Rotary Switch
CIRCUIT :	ON-OFF
INITIAL CONTACT RESISTANCE:	30mΩ MAX.
TERMINAL HOUSING:	NYLON 66(94V-0)
ACTUATOR:	NYLON 66(94V-0)
CONTACT:	Ag Alloy
RATING:	16A 250VAC 20A 125VAC T125
CONTACT RESISTANT:	<100mΩ
INSULATION RESISTANCE:	>100MΩ
DIELECTRIC STRENGTH:	1500V 1MIN
ACTUATOR & HOUSING COLOR:	BLACK
ACTUATOR PRINTING COLOR: BLACK	BLACK

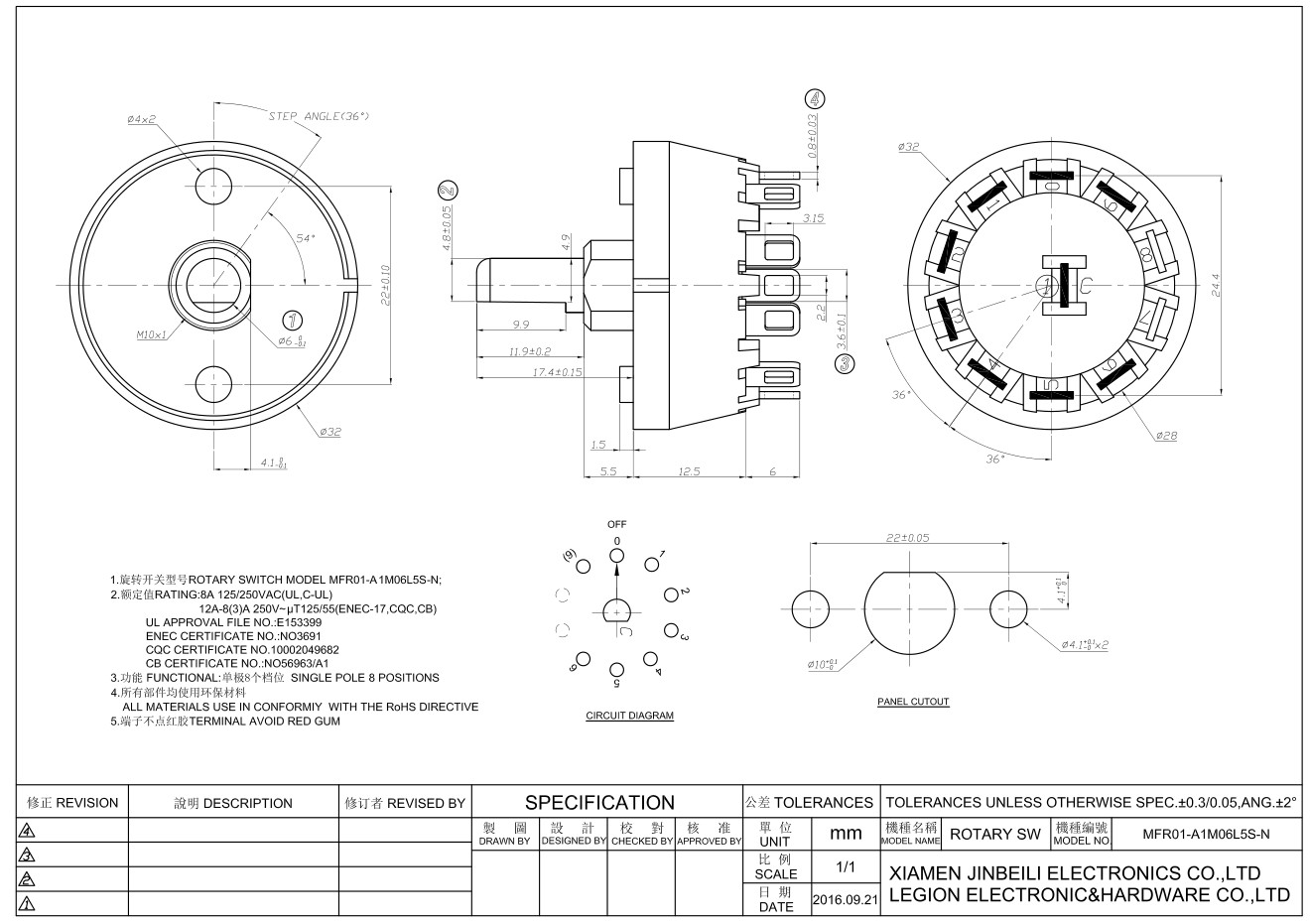

Spec Sheets

If you need original PDF Format data sheet to refer to , please contact us
