Product Descriptions :

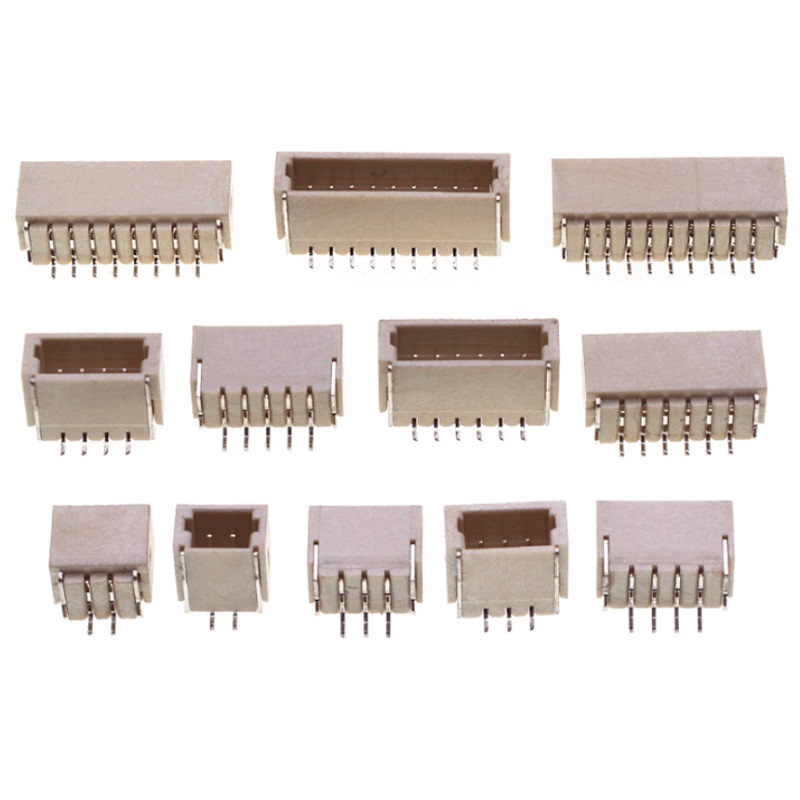

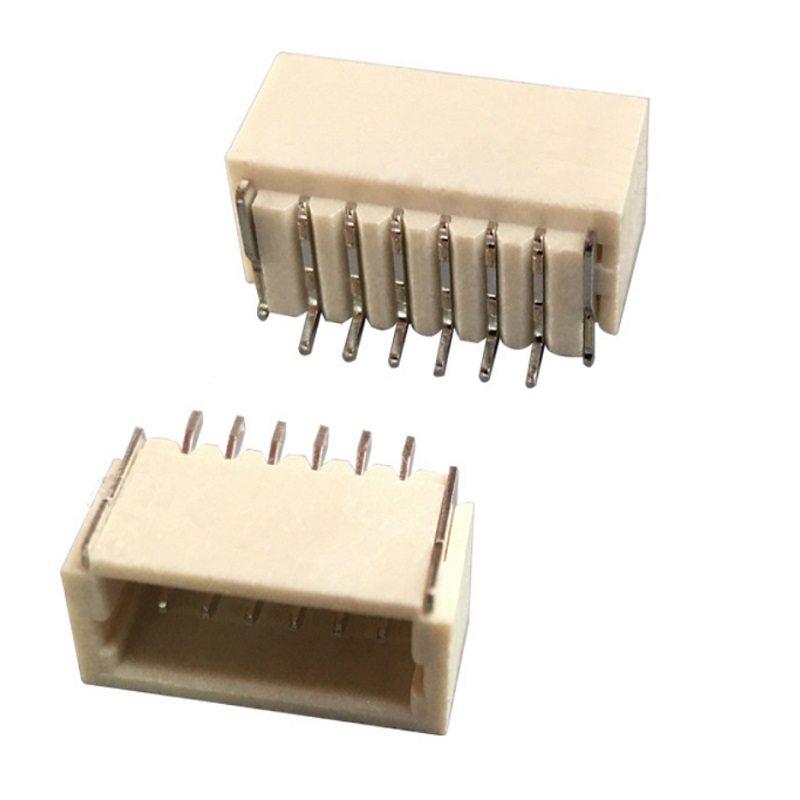

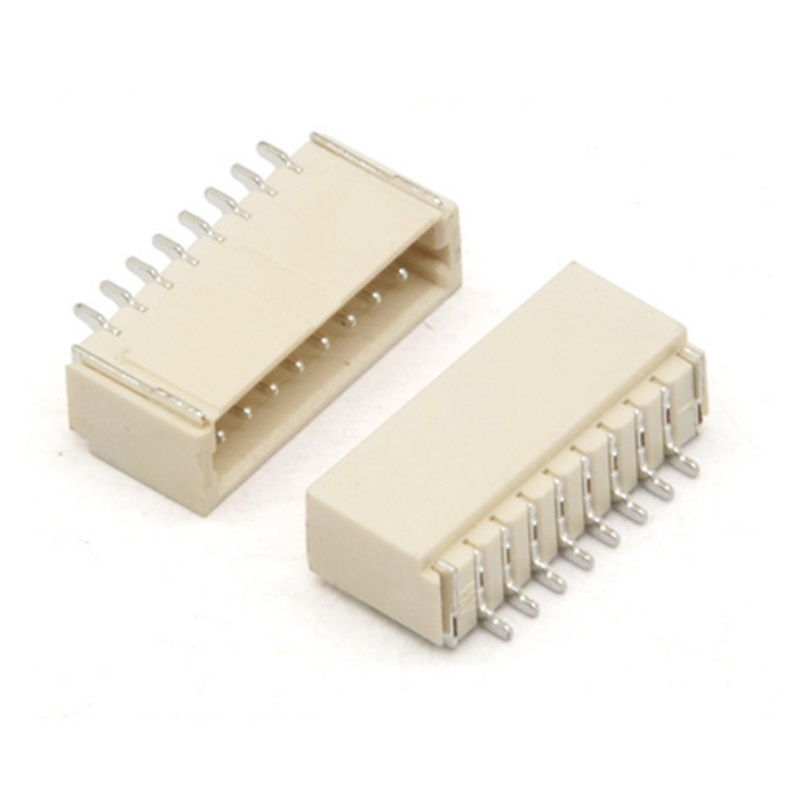

Product name : Connector Header Surface Mount 6 position 0.039″ (1.00mm)

Model: SH1.0-LT-nA

Features : Sure Face Mount Right Angle SMT

Applicable wire : Conductor Size/AWG #32 to #28

Conductor /7 Strands, tin-coated copper alloy

Insulation :O.D. 0.4mm to 0.8mm

Position Numbers : 02pin to 22pin customized as buyer’s request

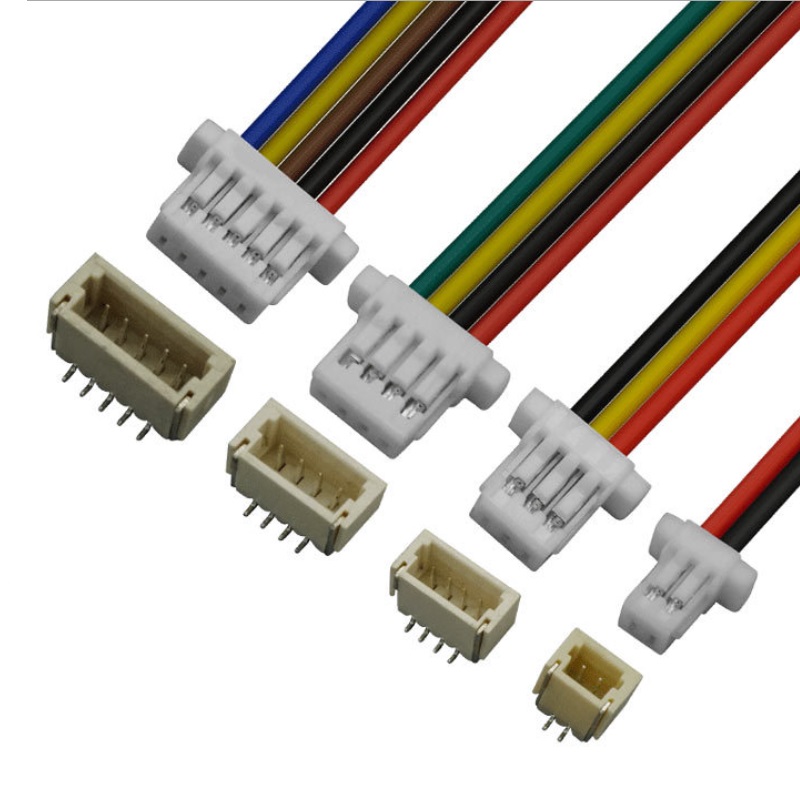

Style : Board to Cable/Wire

Contact Type : Outer Shroud Contact

Fastening Type: Push-Pull

Current Rating (Amps) : 1.0A AC DC (AWG #28)

Voltage Rating: 50V

Contact Resistance: Initial Value 20mΩ Max, After environmental tests 40mΩ Max

Insulation Resistance: 100MΩMin

Dielectric Strength: AC 500V for 1min

Working Temp : -25°C~+85°C

Package : Tape & Reel (TR)

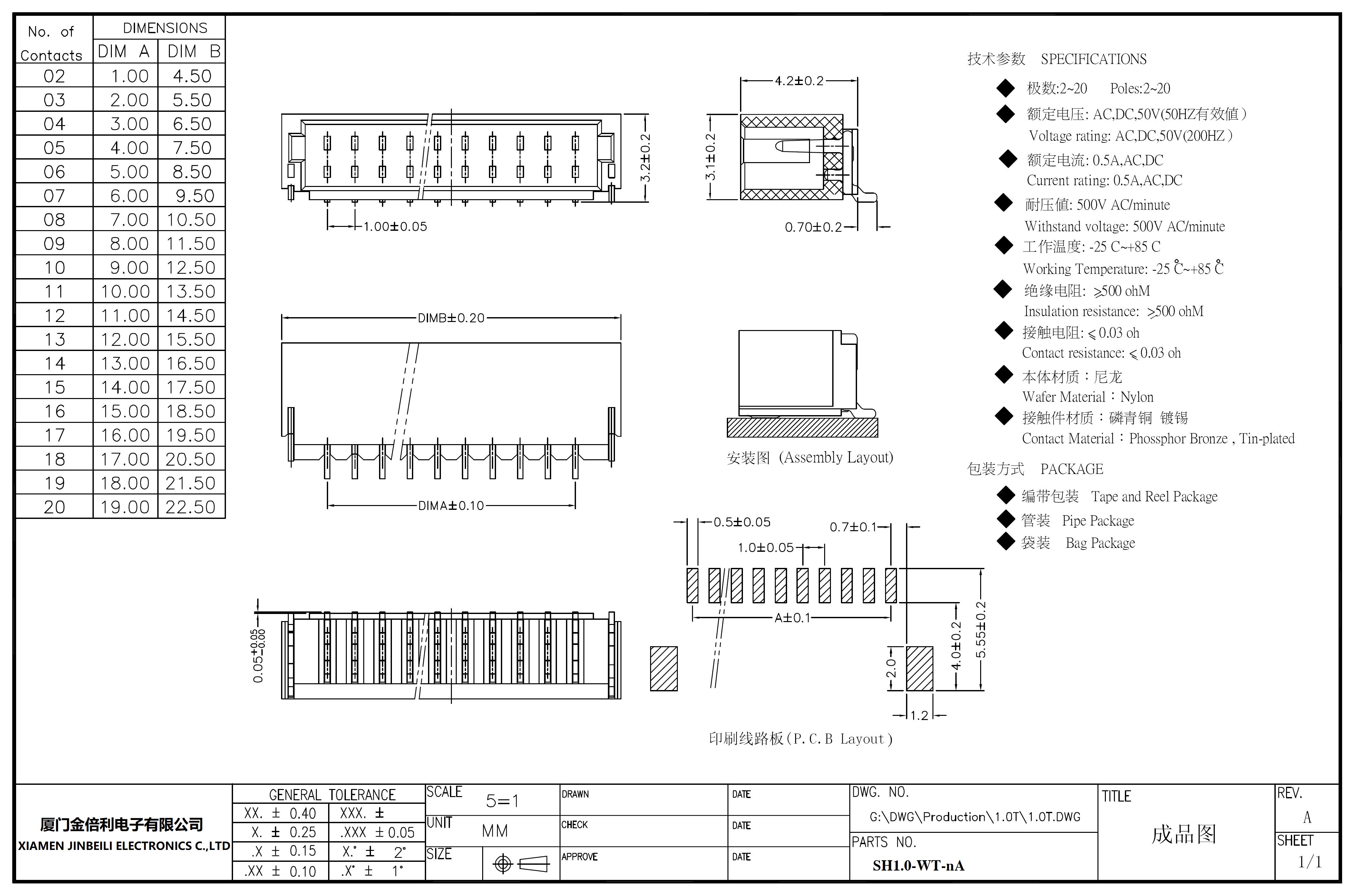

Datasheets :
