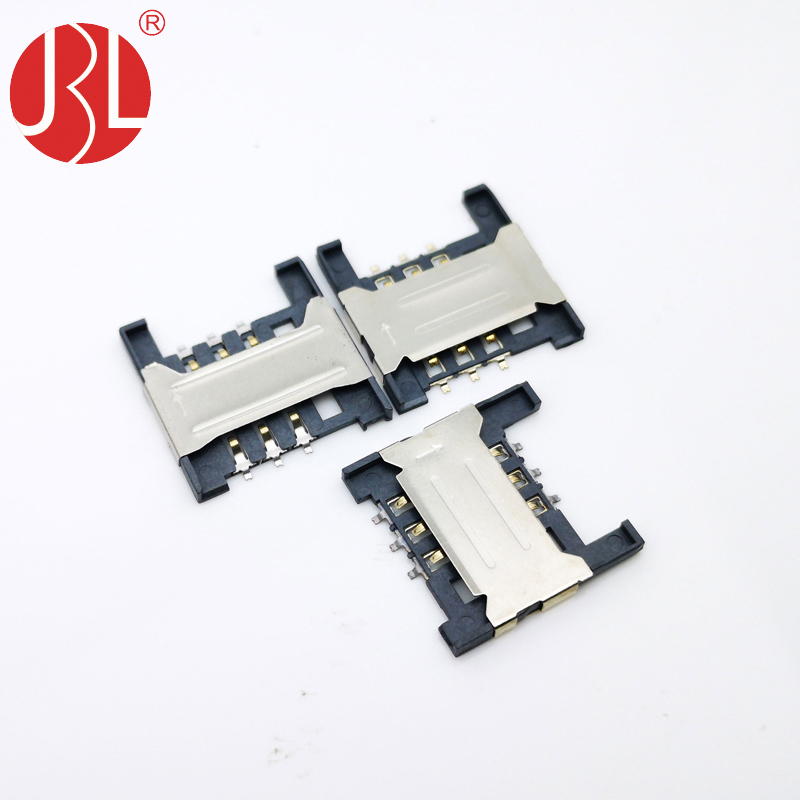

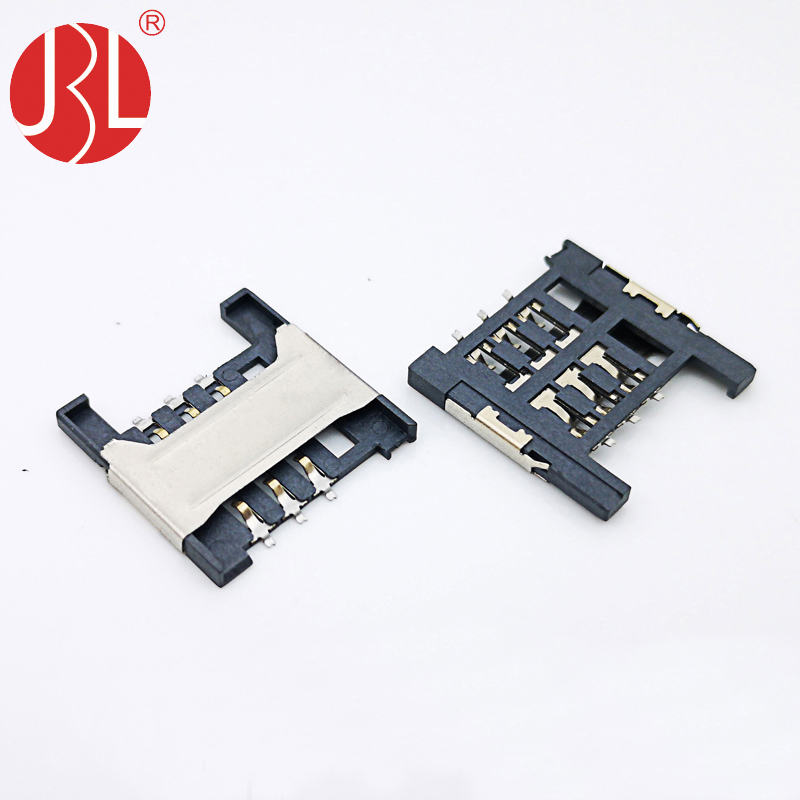

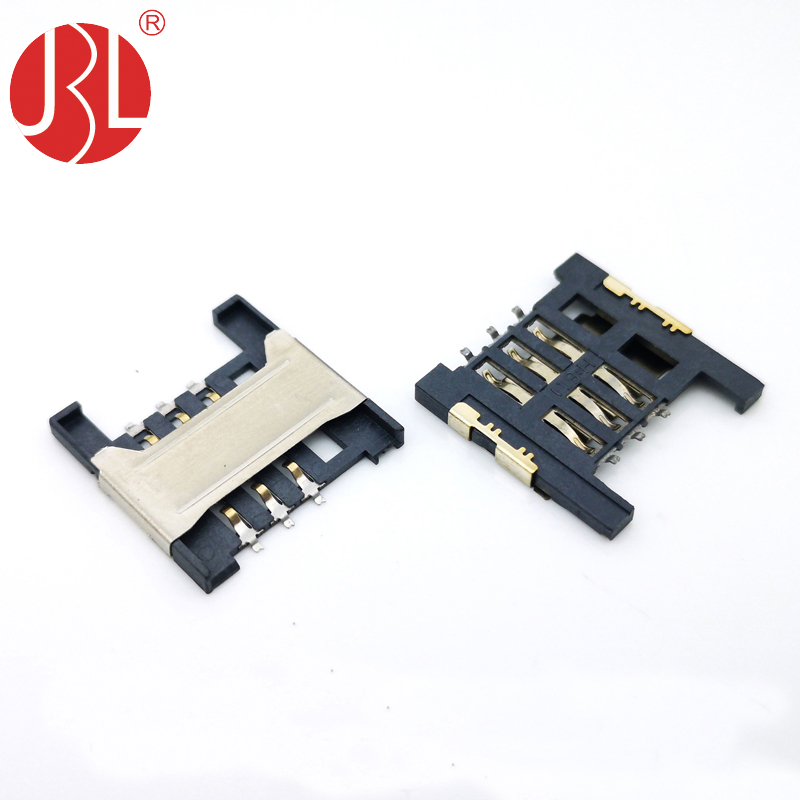

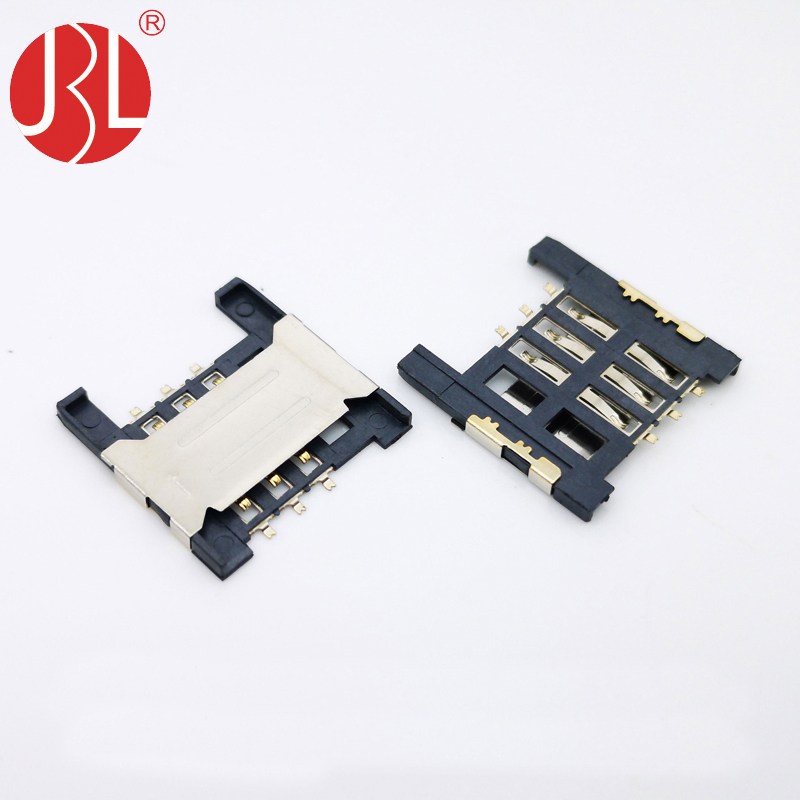

SIM-03G-H1.8 External surface mount card Push-Pull for PCB SMT SIM Card holder Connectors 6pin

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Model Number:: SIM-03G-H1.8

Type:: Other

Place of Origin:: Guangdong, China

Brand:: JINBEILI

Application:: soket

Interface Type:: push pull

Packaging:: Tape & Reel (TR)

Cross Reference:: JINBEILI SIM Card connector

Color:: sliver

Material:: Bronze

Media Available:: JINBEILI SIM card

Description:: SIM-03G-H1.8

Specifications:: 6PIN SMT

Termination:: no

Features:: 6 Contacts

Number of Positions:: 6

Pitch:: /

Number of Rows:: /

Mounting Type:: SMT

Connector Usage:: sim card connector

Gender:: phone

Number of Positions/Contacts:: 6

Voltage – Rated:: DC 50V

Shell Material:: BRASS

Current Rating (Amps):: 0.5A

Voltage Rating:: DC 50V

Diameter – Outside:: NO

Contact Size:: NO

Frequency – Max:: /

Number of Ports:: 1

Center Gender:: /

Center Contact Plating:: gold

Board Thickness:: /

Maximum Working Height:: /

Recommended Working Height:: /

Minimum Working Height:: /

Size / Dimension:: /

Housing Finish:: Nickel Plating

Port Direction:: SMT

Voltage:: DC 50V

Current Rating (Per Contact):: 0.5A

Current:: 0.5A

Approved Countries:: China

Head Style:: Sim card socket

D/C:: SIM-03G-H1.8

INSERTION FORCE:: 0.5~1.0KG

Operating Life:: 5000CYCLES

Supplier Type:: Original manufacturer

Pin or Socket:: Socket

Impedance:: 100 Ohms

Give you better reason to choose us

1.The height of the switch handle can be customized according to customer needs 2.Meet ROHS and REACH standards And Small orders accepted
3.We have a professional design, development and production team of more than 200 peopleOur advantages are more than these, please check below……………

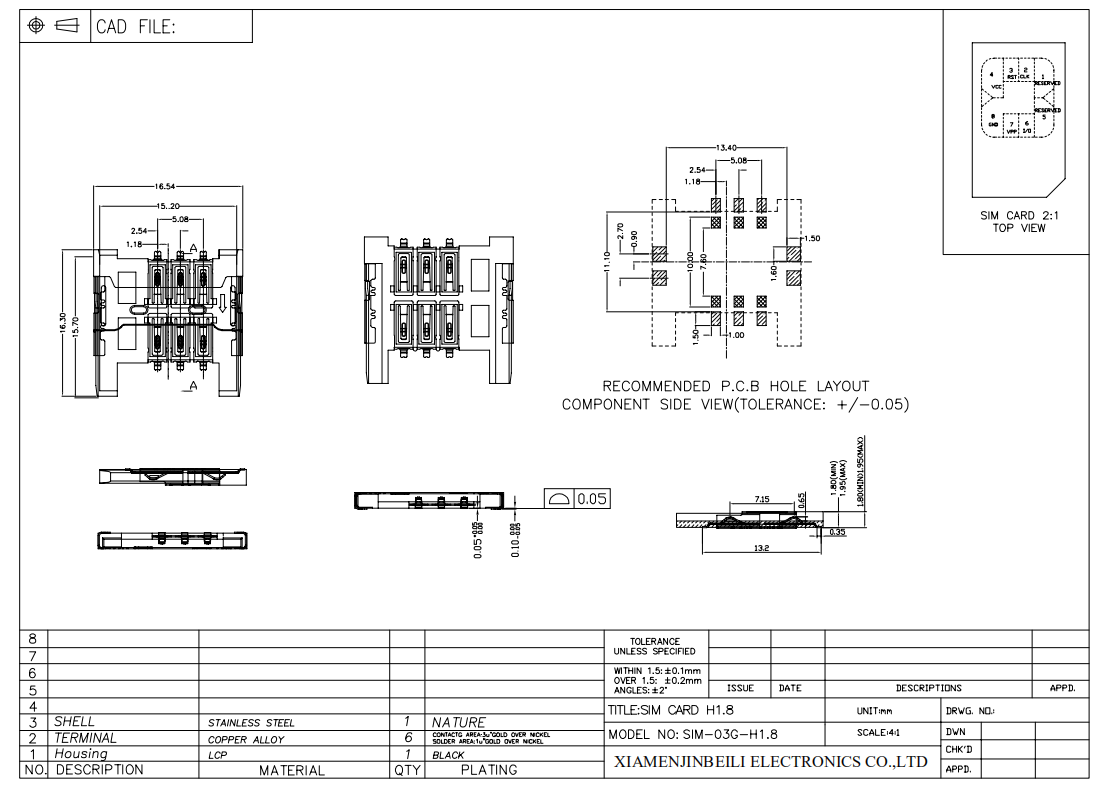

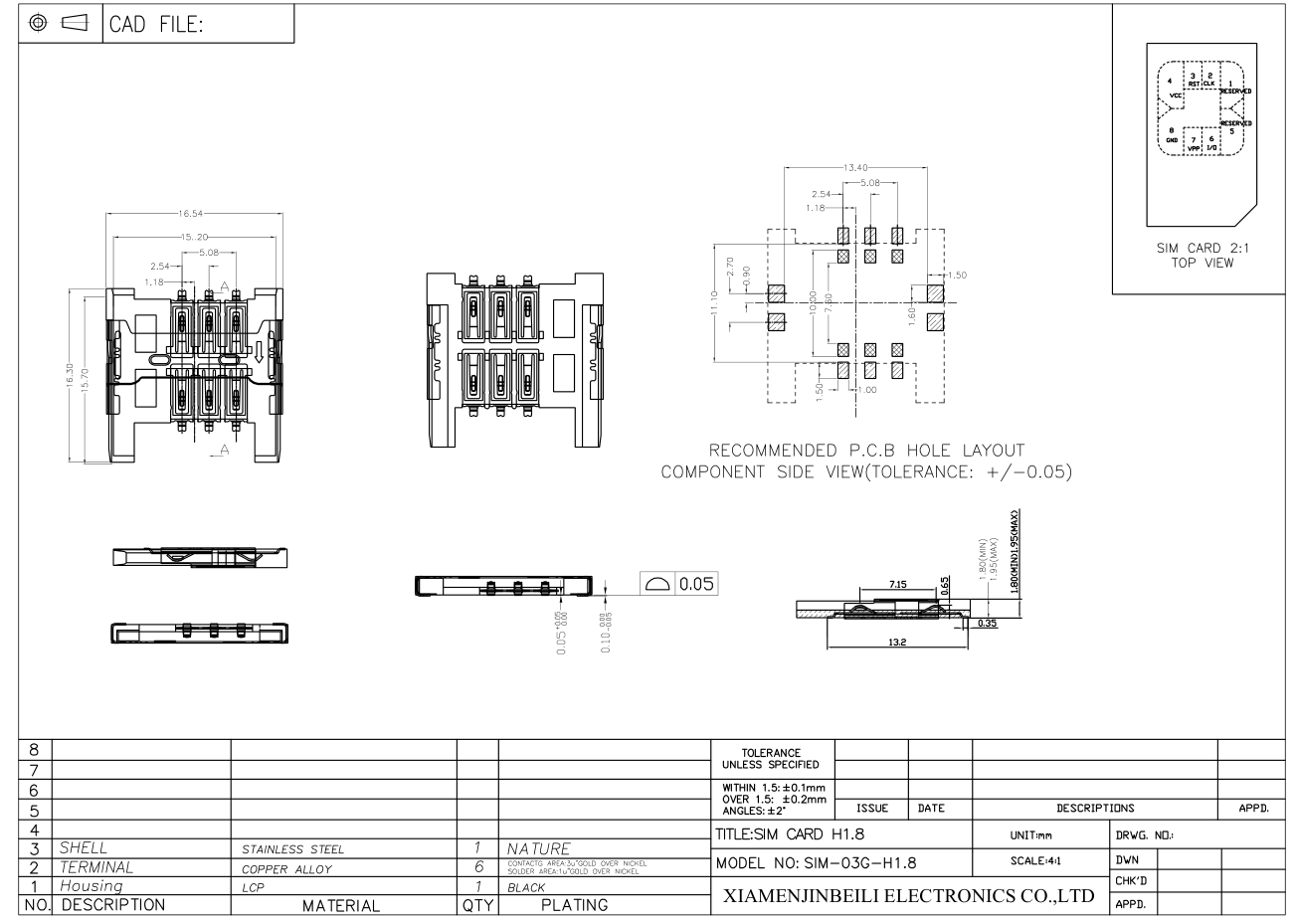

Spec Sheets

Product parameter

SPECIFICATION:1. CURRENT RATING: 0.5A MAX.2. VOLTAGE: 50V DC3. TEMPERATURE RANGE:-25°C~85°C4. CONTACT RESISTANCE: 50 MILLIONHM MAX.5. DIELECTRIC WITHSTANDING VOLTAGE: AC 500 VAC r.m.s6. INSULATION RESISTNACE: 1000 MEGOHMS MIN7. INSERTION FORCE: 0.5~1.0KG, EJECTION FORCE:0.5~1.0KG8. OPERATING LIFE: 5000CYCLES

If you need original PDF Format data sheet to refer to , please contact us

Email:sales06@jblec.com
TEL:+86-592-7390769
Web:www.jblec.com
