SK-12E12 1P2T Slide Switch right angle&DIP Type
Parameter of this SK-12E12 1P2T Slide Switch right angle&DIP Type
- Rating:DC 30V 0.3A
- Function:1P2T
- Timing: Non-shorting
- Contact Resistance: 70mΩMax
- Insulation Resistance: 100MΩMin
- Dielectric Strength: AC 500V for 1min
- Operating Force: 250gf±80gf(Can be customized according to customer requirements)
- Operating Life: 10,000 cycles
- Salt Spray Test: NSS 24H(Can be customized according to customer requirements)
- Operating Temperature:-20°C~+70°C

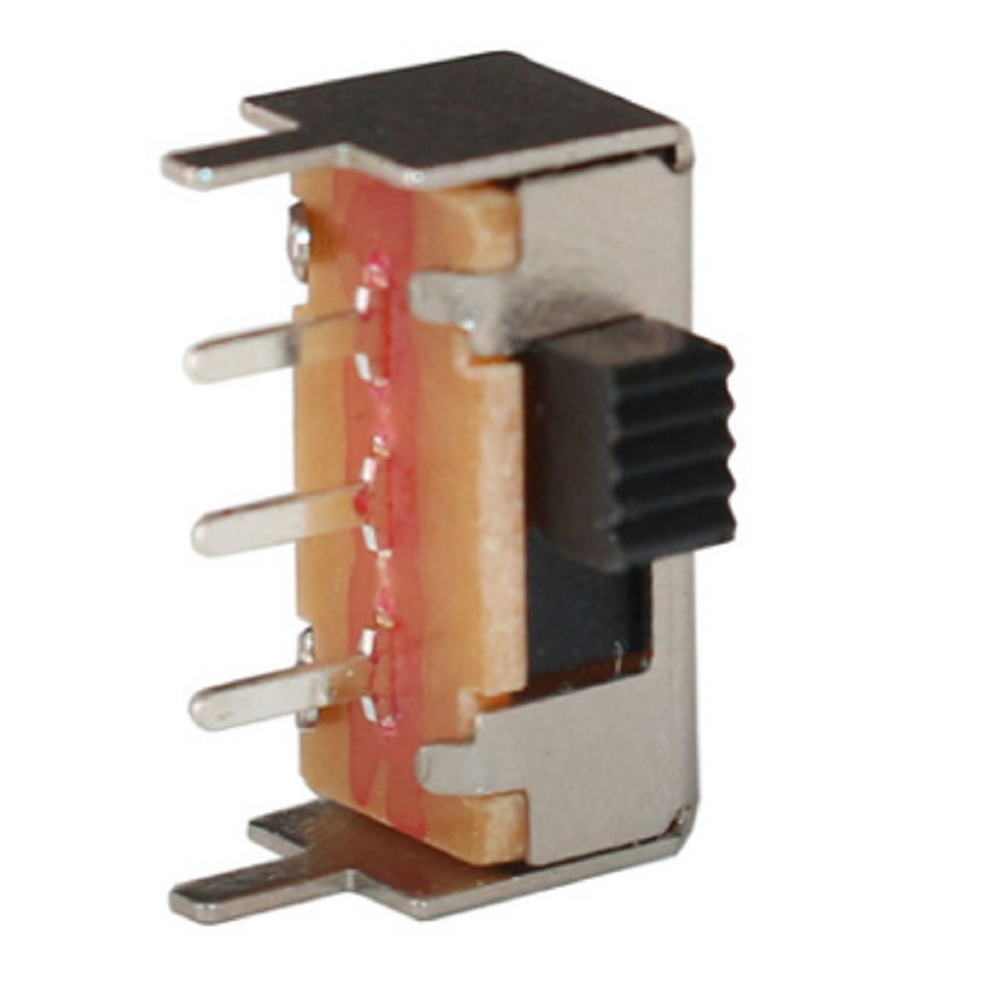

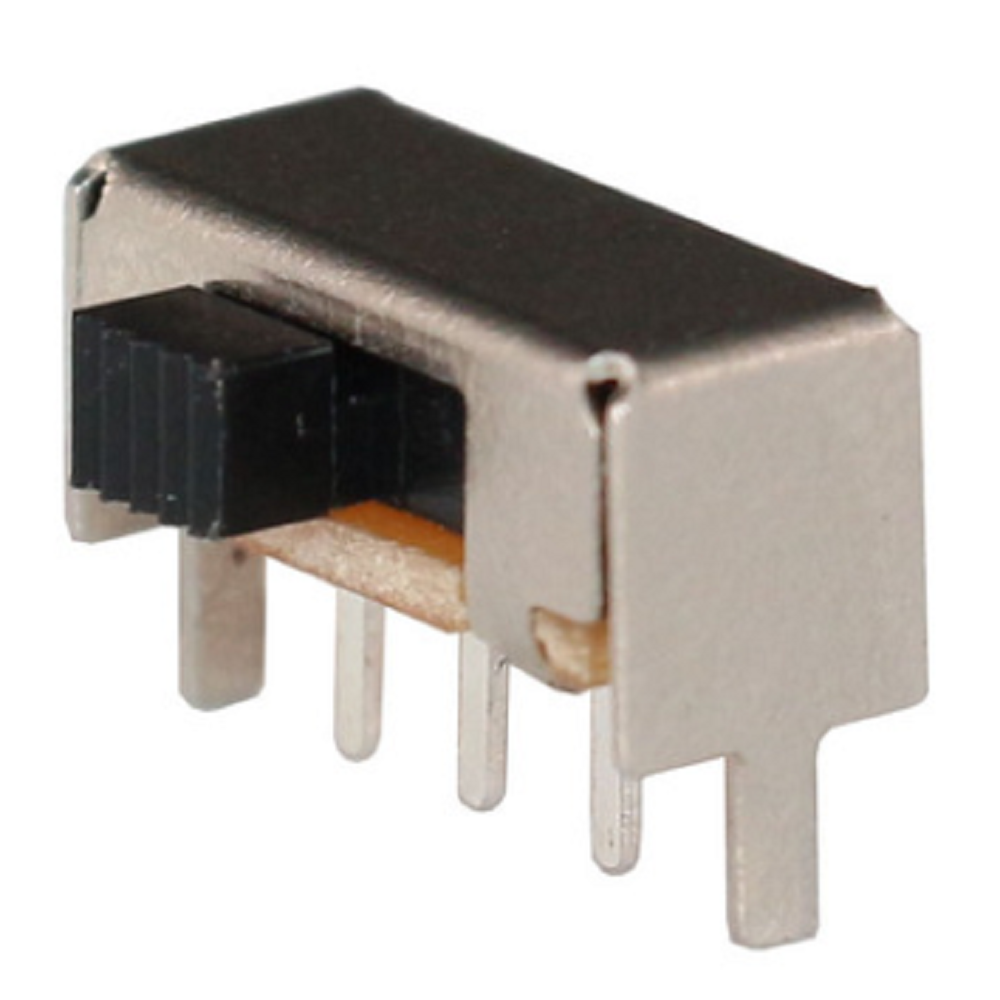

Image of this SK-12E12 1P2T Slide Switch right angle&DIP Type
![imgtitle](/uploads/bbgfn3m2ivh.png)
![imgtitle](/uploads/4adcoimvllf.png)
![imgtitle](/uploads/a4he5c20osy.png)
Advantage of this SK-12E12 1P2T Slide Switch right angle&DIP Type
1.The height of the switch handle can be customized according to customer needs;
2.Meet ROHS and REACH standards;
3.Have a professional technical team

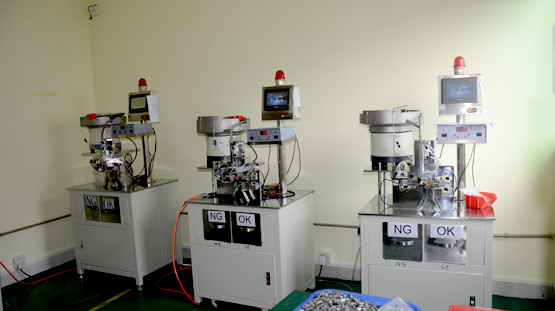

Our Factory of this SK-12E12 1P2T Slide Switch right angle&DIP Type
Our factory has more experience in production SK-12E12 1P2T Slide Switch right angle&DIP Type,and we can provide multiple types related products. If you want to know more details about these, welcome to contact us!
![imgtitle](/uploads/eplcj5pzfyc.jpg)
![imgtitle](/uploads/qrsu0ih2tep.jpg)
![imgtitle](/uploads/nokv1rhjbv2.jpg)
Our Service of this SK-12E12 1P2T Slide Switch right angle&DIP Type
We have standardization process in production SK-12E12 1P2T Slide Switch right angle&DIP Type, and ensuring our product’s quality.We have hard-working after-sales team, who are providing after-sales service and protection for our clients.
Certifications of this SK-12E12 1P2T Slide Switch right angle&DIP Type
![imgtitle](/uploads/eangbaxntkr.png)
![imgtitle](/uploads/zteequgewbc.png)
