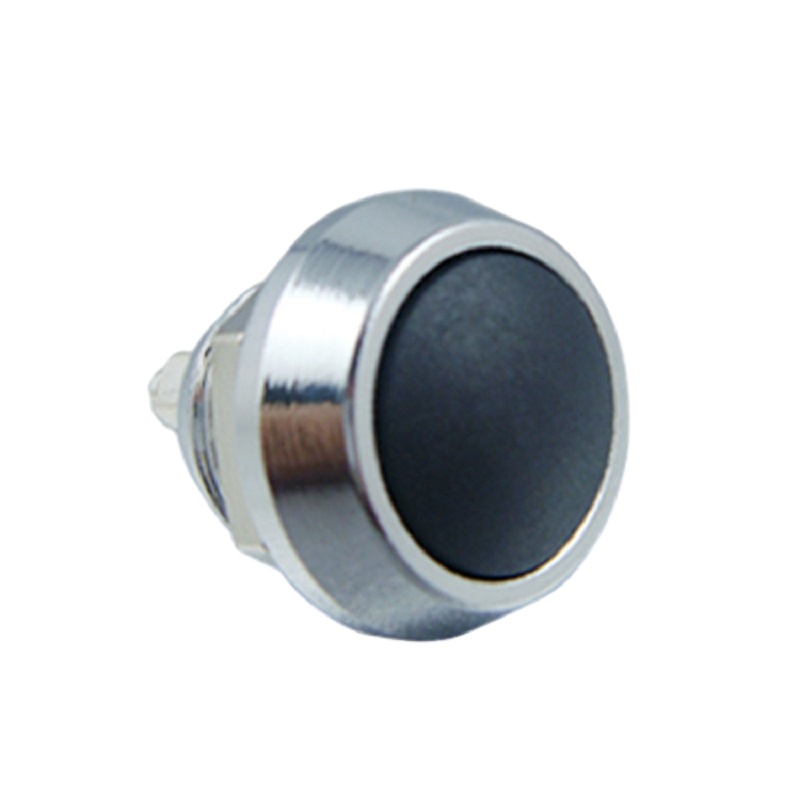

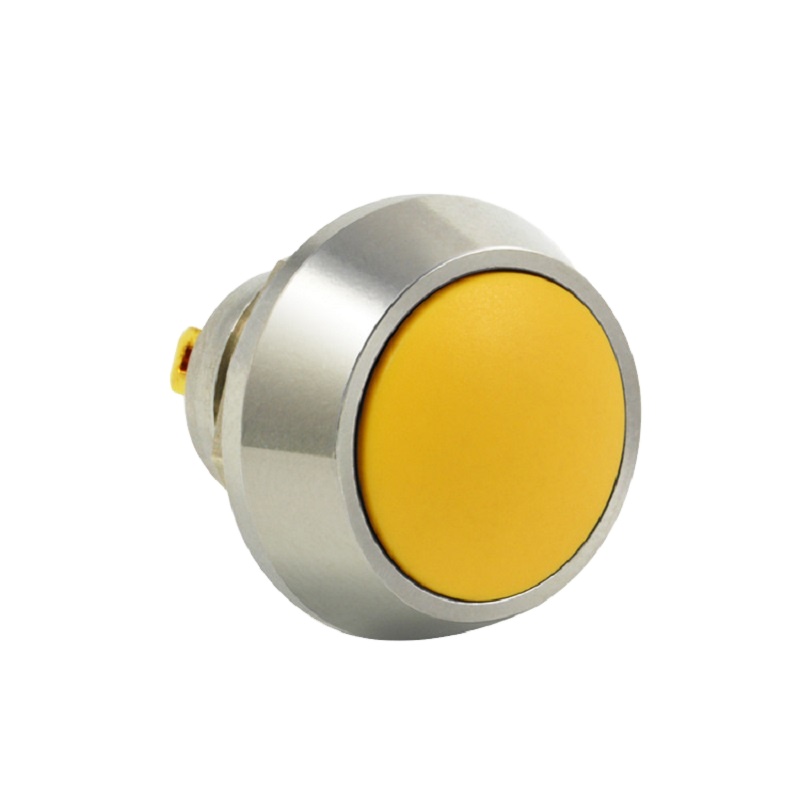

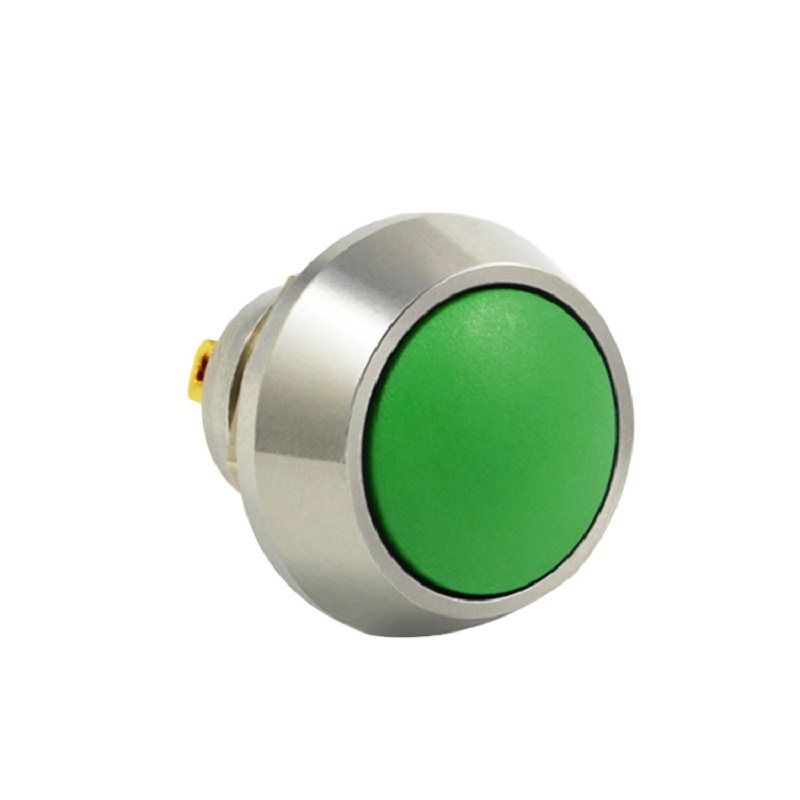

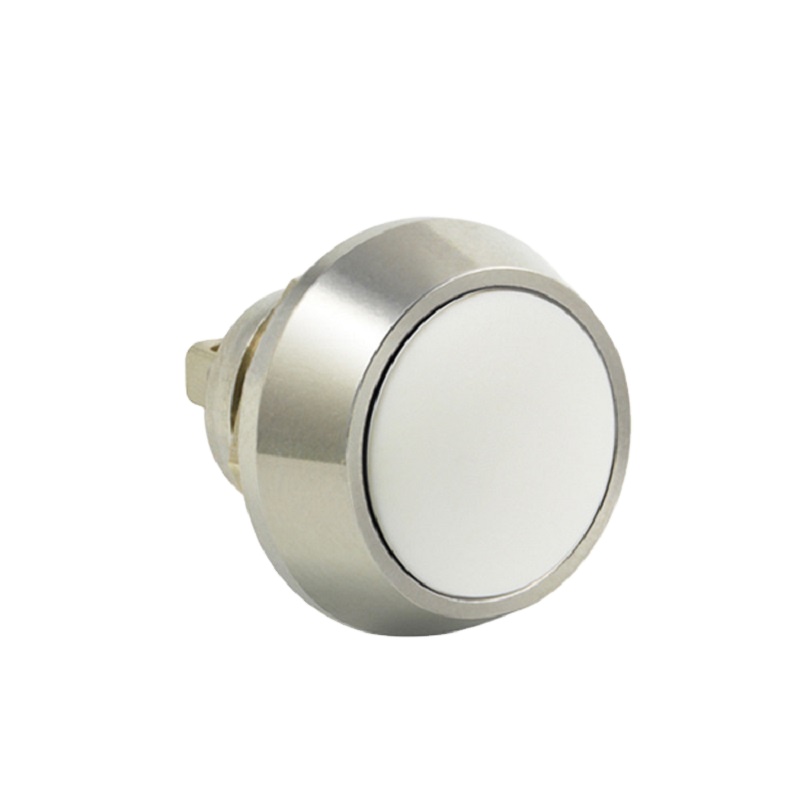

SPST 12 mm Metal Pushbutton Switch Custom Self Locking LED Color Power Symbol Push Button Switch

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Certification:
CCC / VDE
Whether the smart:
NO
Place of Origin:
Guangdong, China
Brand Name:
Jinbeili
Model Number:
PLM12-11M-FS-DR6
Protection Level:
IP65
Max. Current:
2A
Max. Voltage:
36V DC
LED:
NO
Circuit::
SPST
Panel Cut-Out Diameter:
12 mm
LED Color ::
Mutiple Options
Cap Symbol ::
Customizable
Voltage Rating::
36V DC
Current Rating::
2A
Custom Fuction ::
Momentary Switch or Latching Switch
Product Description
Product Name :
Metal Push Button Switch
Switch Rating :
36V DC , 2A
Panel Cut out Diameter :
12 mm
Fuction :
SPST
Travel :
2.0mm±0.5mm
Contact Resistance :
50m ohm max
Insulation Resistance:
100M ohm min
Dielectric Strength :
1000VAC for 1 min
Operating Force :
400gf±150gf
Operating Life :
200,000 cycles / Customizable
Operation Temperature Range :
-20°C ~ +85°C
Protection :
IP65

FEATURES :

1, 200000 cycle life or customizable2, Multi LED Options3, Symbol customizable4, Self locking or Non locking Options5 , Terminal & Travel customizable

6,SPST

APPLICATIONS :

1 , Electronic lock system

2, Hotel equipment
3, Medical equipment

4, Smart Home Appliance

5, Aerospace ship

6, , Automobile peripheral products

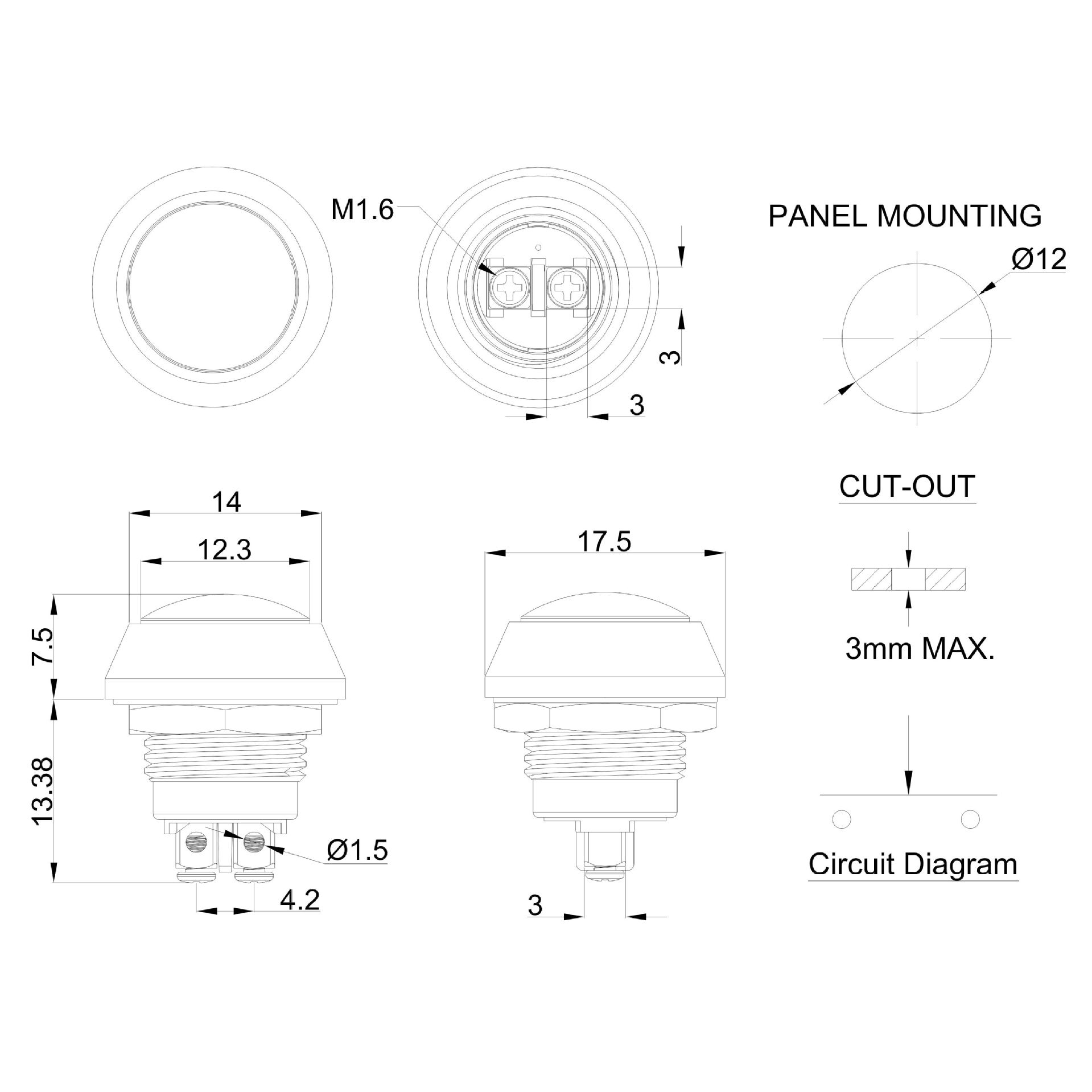

Spec Sheets




If you need original PDF Format data sheet to refer to , please contact us


Customization




PRODUCT CUSTOMIZATION




With more than 20 years of expriences and complete facilites , we are committed to providing a wide range of switches to the
worldwide marketplace , and capable of customizing products in different colors , materials , marking , finishes and shapes to meet customers specific needs.


R&D Development

Our engineer design and develop products by software and 3D printer to provide a precision pattern

Tooling

we design tools for moduling, including metal cutting, surface processing to provide high quality products in a short time

Stampling

It can stample materials such as stainless steel, aluminum, and brass in diameters from 2mm to 30mm

Plastic Molding

All the plastic parts of switches are custom in our factory.Molding process materials includes: thermoplastic, silicone and elastomer

Automate Assembly Line

most of products are assembled by full automated , only a little by manual, for high efficiency. We have advanced facilities to assemble over 100000 pcs products per day

Testing & Inspection

We strictly test each product by this reflow soldering machine to test if the product is stable and high temperature resistance
Xiamen Jinbeili Electronicsl Co.,ltd specializes in the manufacture of connector parts, DC jack connectors and switches. The main products are computer high-speed USB connectors, tact switches, toggle switches, pushbutton switches, headphone sockets, power sockets, etc.

Our company was founded in 1999 and has more than 300 employees with 2 plants in Dongguan, Guangdong Province. Our products are widely used in electrical appliances, industrial equipment, meters, ventilation systems and fitness equipment. Combining R&D experience and advanced manufacturing equipment, we proudly announce that all our switches and other electronic products comply with RoHS and REACH environmental protection requirements.




ISO9001 CERTIFICATED


IATF 16949 CERTIFICATED



Factory Inside







Instructions

Notes :

1, Our switches are available for Reflow Soldering, Wave Soldering and Manual Soldering

2 , Operating Temperature Range : -20℃ to + 70
3, Please keep our products away from moisture and sunlight to avoid oxidation when storing them.

Type
Manual soldering
Max Temp
360℃
Max Time
2 S
Rework
less than 2  times
Operating Temp
-20℃ to + 70℃

Type
Wave Soldering
Pre-Heat Temp
130℃
Pre-Heat Time
1.3 minutes
Max Soldering Temp
250℃
Soldering Time
2s – 3s
Deliver Speed
1300mm/min


FAQ
1, Q : Could you provide me the spec data sheet for further reference ?


A: Of course. Please contact us via Alibaba , we will send you PDF format sheet as soon as possible
2, Q : Do you customize material of switch as buy’s requirement ?

A : Yes, we do. we customize different colors, materials, shapes etc. Please provide us your spec sheet and requirement
3, Q : Could I get a sample to test ?

A: Sure, we provide you free sample, but shipping cost should be paid by buyer


4, Q : How quick could you deliver a order ?

A: For custom order, it takes about 15 days normally. It depends on quantities of your order.
