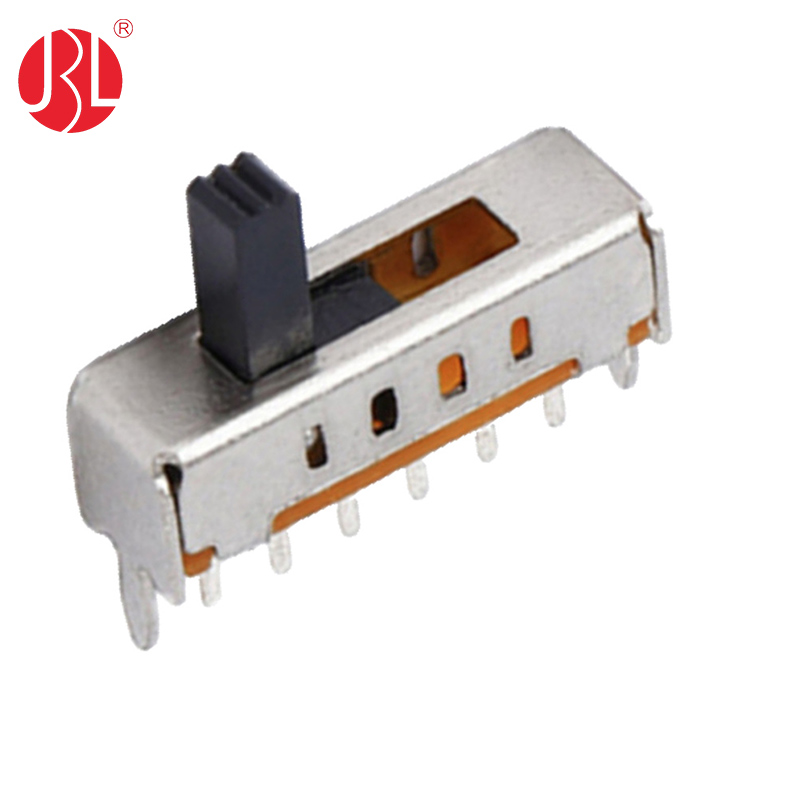

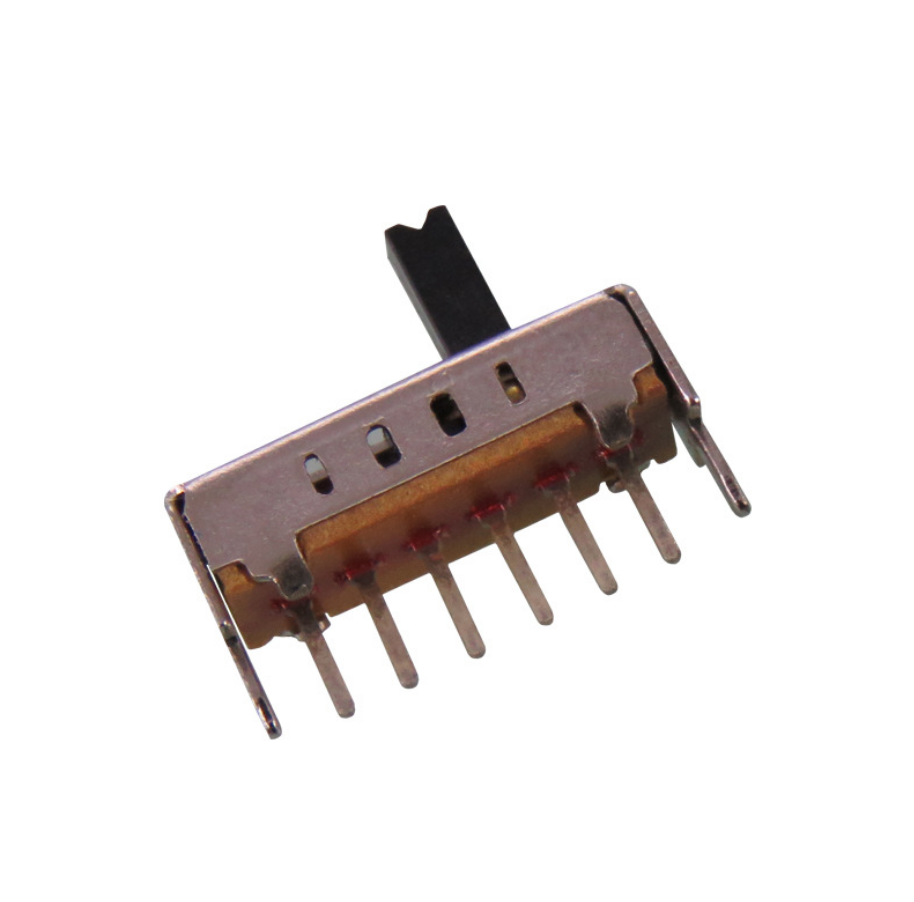

SS-14D01 Slide Switch SP4T Through Hole

Short Description:

Slide Switch 1P4T Through Hole


  • Item: Slide Switch
  • Configuration: SP4T
  • Mounting: THT Hole
  • Terminating: PCB Pin
  • Travel: 2.0mm
  • Power Rated: DC30V 0.3A
  • Product Detail

    Product Tags

    Slide Switch – 1P4T, Through-Hole Mounting, 2.0mm Travel, DC30V 0.3A

    This versatile slide switch features a Single Pole Four Throw (1P4T) configuration, enabling seamless switching between four separate circuits. Designed with through-hole mounting, it offers easy and secure installation onto printed circuit boards (PCBs), ensuring stable electrical connections. The switch provides a travel distance of 2.0mm, allowing for smooth and precise sliding action with clear tactile feedback.

    With a voltage rating of DC30V and a current rating of 0.3A, this switch is suitable for a variety of low-voltage applications. Its reliable performance and compact design make it ideal for use in electronic devices, control panels, and other systems where precise and dependable switching is required.

    Key Features:

    • 1P4T Configuration: Facilitates switching among four distinct circuits, providing versatile control options.
    • Through-Hole Mounting: Ensures secure and stable installation on PCBs, allowing for easy integration into various electronic systems.
    • 2.0mm Travel: Delivers smooth and accurate sliding motion with clear tactile feedback for reliable operation.
    • Rated for DC30V 0.3A: Suitable for low-voltage applications, providing dependable performance within specified electrical parameters.

    This slide switch combines functionality with a compact design, making it a practical choice for a wide range of electronic and control applications where precise and reliable switching is essential.

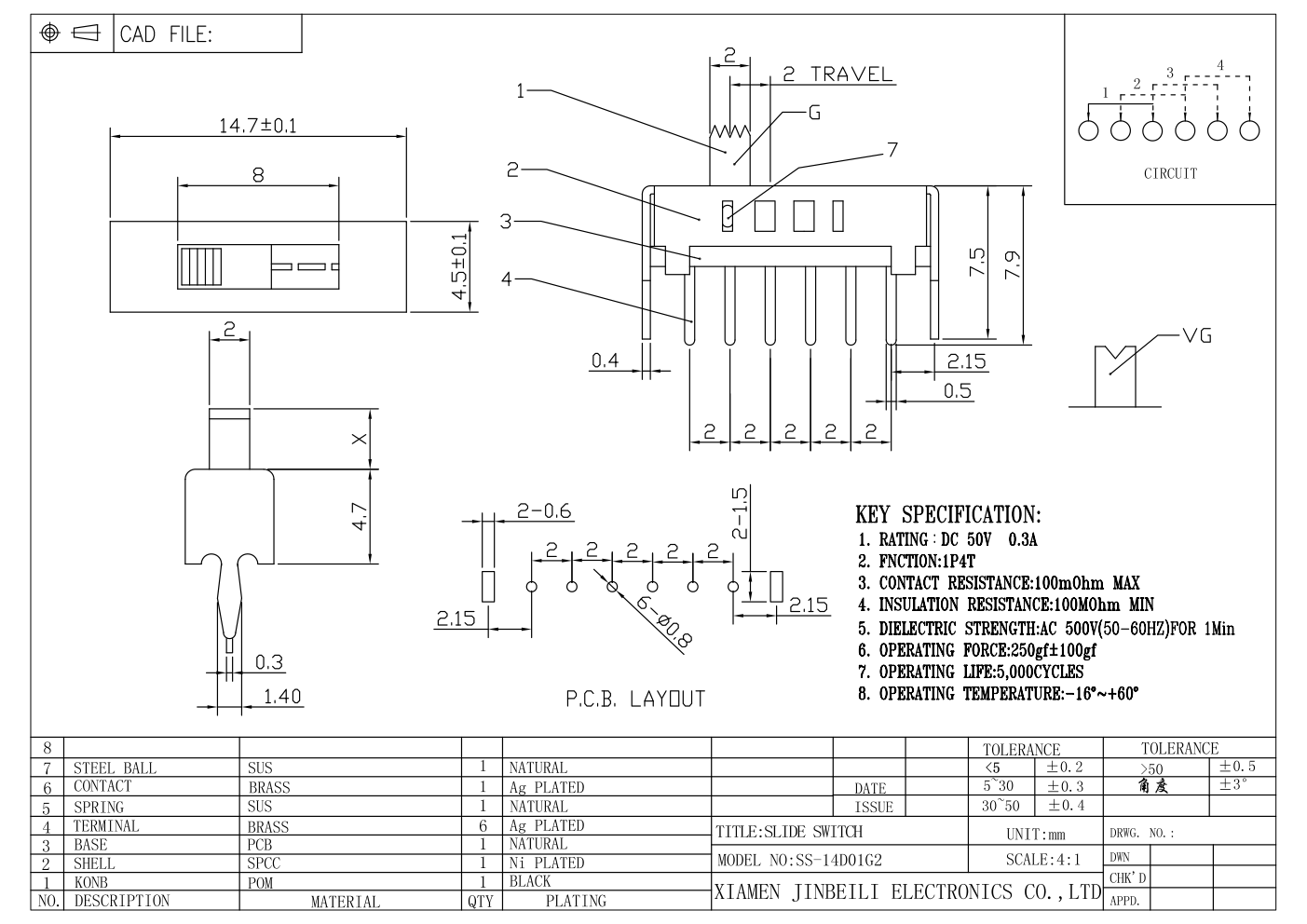

    SS-14D01 (1)www.jbl-ec.com
