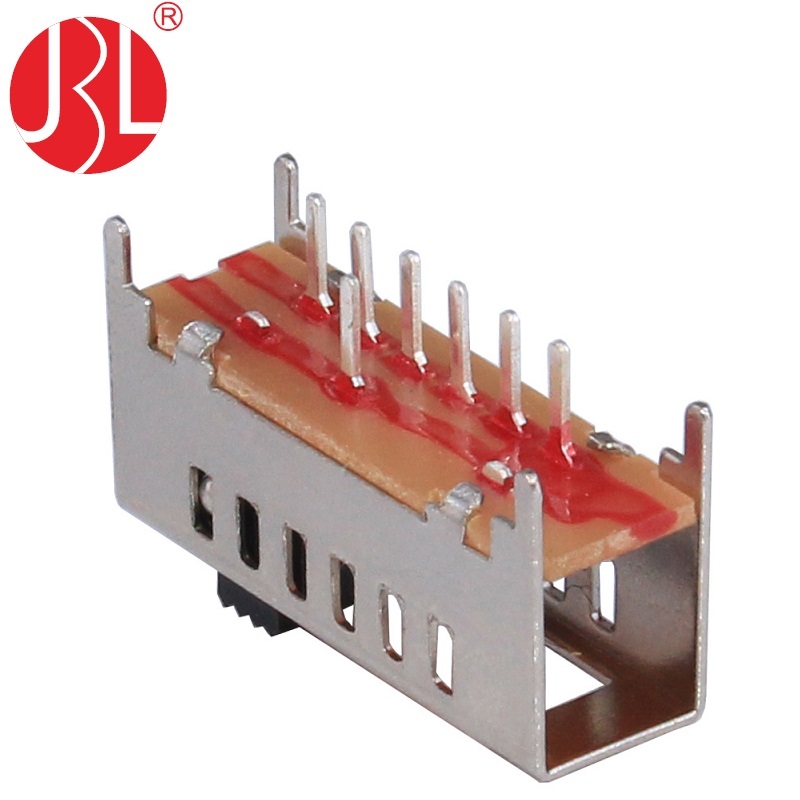

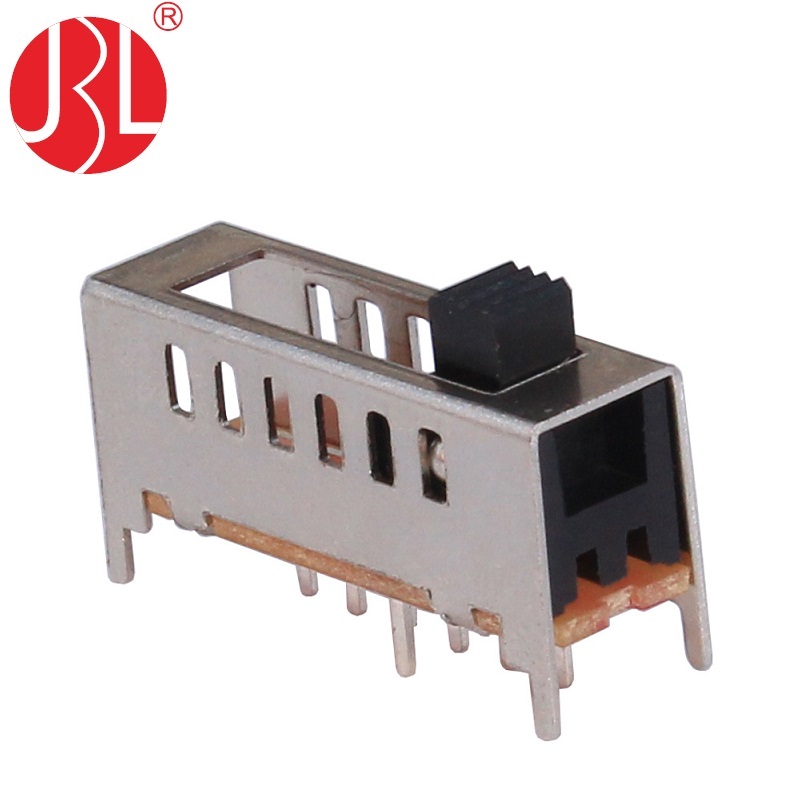

SS-16F03 Slide Switch SP6T Through Hole

Short Description:

Slide Switch 1P6T Through Hole


  • Item: Slide Switch
  • Configuration: SP6T
  • Mounting: THT Hole
  • Terminating: PCB Pin
  • Travel: 3.0mm
  • Power Rated: DC30V 0.3A
  • Product Detail

    Product Tags

    Slide Switch – 1P6T, Through-Hole Mounting, 3.0mm Travel, DC30V 0.3A

    This robust slide switch features a Single Pole Six Throw (1P6T) configuration, providing versatile switching capabilities among six distinct circuits. Designed with through-hole mounting, the switch ensures secure and stable installation on printed circuit boards (PCBs), facilitating reliable and consistent electrical connections. It offers a travel distance of 2.0mm, which allows for smooth, precise sliding action with clear tactile feedback, ensuring accurate operation.

    Rated for DC30V and 0.3A, this switch is suitable for a variety of low-voltage applications where reliability and durability are key. Its compact design and multi-position functionality make it an ideal choice for use in complex electronic devices, control panels, and other systems requiring multiple switching options in a limited space.

    Key Features:

    • 1P6T Configuration: Enables switching among six different circuits, providing extensive control options for diverse applications.
    • Through-Hole Mounting: Offers easy and secure installation on PCBs, ensuring a stable connection and simplified integration into electronic systems.
    • 3.0mm Travel: Provides smooth and precise sliding motion with clear tactile feedback, enhancing user control and switch reliability.
    • Rated for DC30V 0.3A: Suitable for low-voltage applications, delivering dependable performance within specified electrical parameters.

    This slide switch is designed to meet the needs of complex electronic and control systems, combining high functionality with a compact and durable design for reliable operation in various applications.

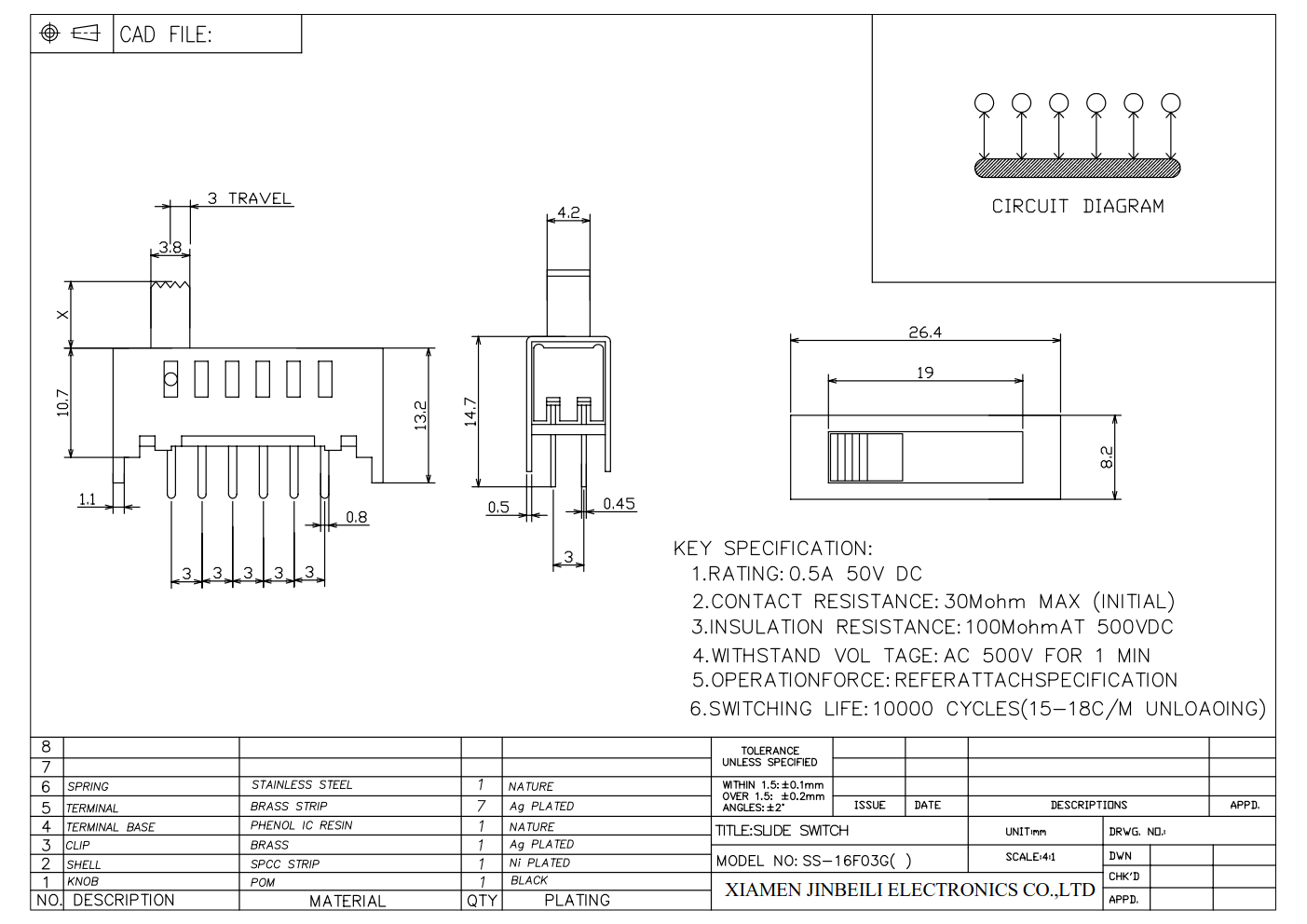

    SS-16F03 Model (1)_1www.jbl-ec.com
