SS-16F04 Slide Switch SP6T DIP Through Hole Horizontal
Description of this SS-16F04 1P6T Slide switch vertical DIP type
SS-16F04 1P6T Slide switch vertical DIP type,DC 30V 0.3A, 10,000 cycles operating life test.
Parameter of this SS-16F04 1P6T Slide switch vertical DIP type
1. Rating：DC 30V 0.3A
2. Function：1P6T
3. Timing: Non-shorting
4. Contact Resistance: 100mΩMax
5. Insulation Resistance: 100MΩMin
6. Dielectric Strength: AC 500V for 1min
7. Operating Force: 250gf±80gf(Can be customized according to customer requirements）
8. Operating Life: 10,000 cycles
9. Salt Spray Test: NSS 24H(Can be customized according to customer requirements）

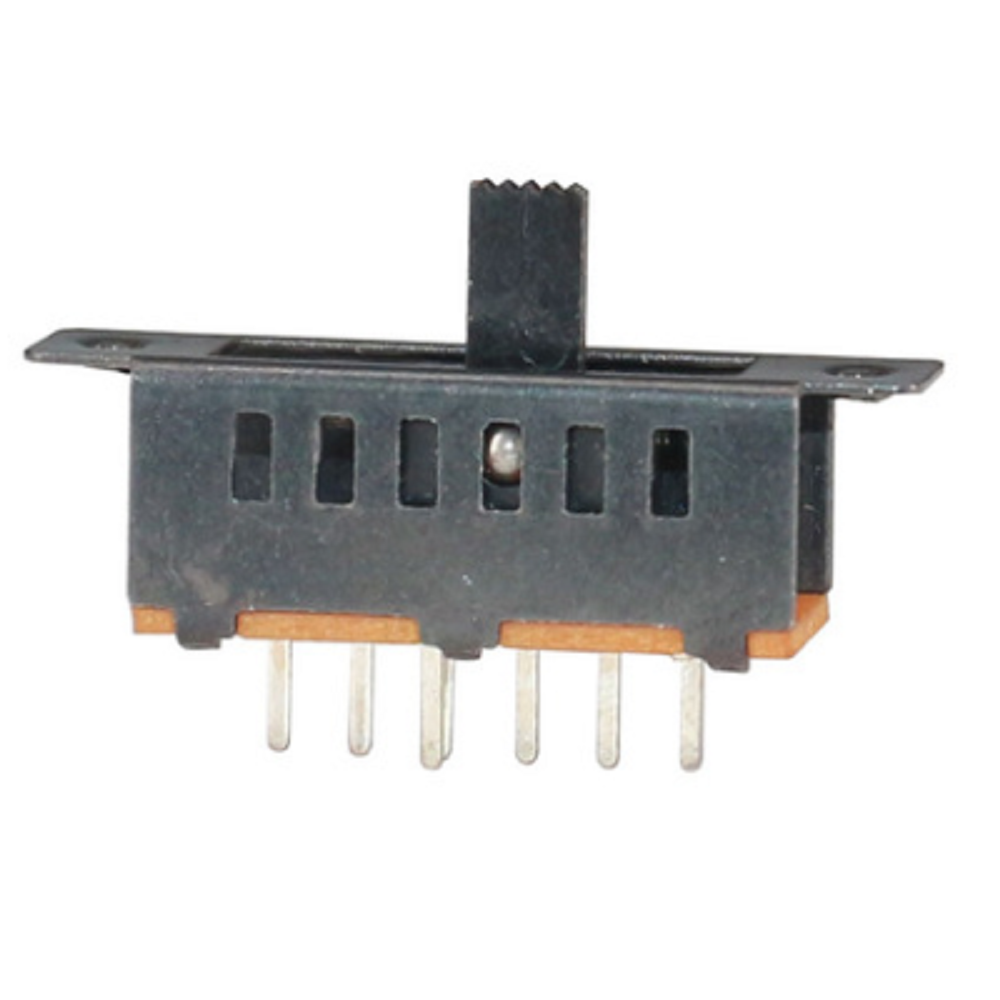

Image of this SS-16F04 1P6T Slide switch vertical DIP type
If you need original PDF Format data sheet to refer to , please contact us
Email:sales06@jblec.com
TEL:+86-592-7390769
Web:www.jblec.com
TEL:+86-592-7390769
Web:www.jblec.com
Hot/More Products
Details Images
contact us
If you need original PDF format date or other product details,pls contact us
Email:sales06@jblec.com
TEL:+86-592-7390769
Web:www.jblec.com
The way our products are used
Manual welding:
Temperature:360°c max
Time：25 MAX
Number of rewelding：25 time
wave soldering
Preheating temperature：130°c
Preheating time：1.3min
Welding temperature：250°c max
Welding time：2-3s
Chain speed(transfer speed):1300mm/min
Reflow soldering Surface of product temperature
Automatic flow soldering(for the product of SMT,type solder according to the following conditions
