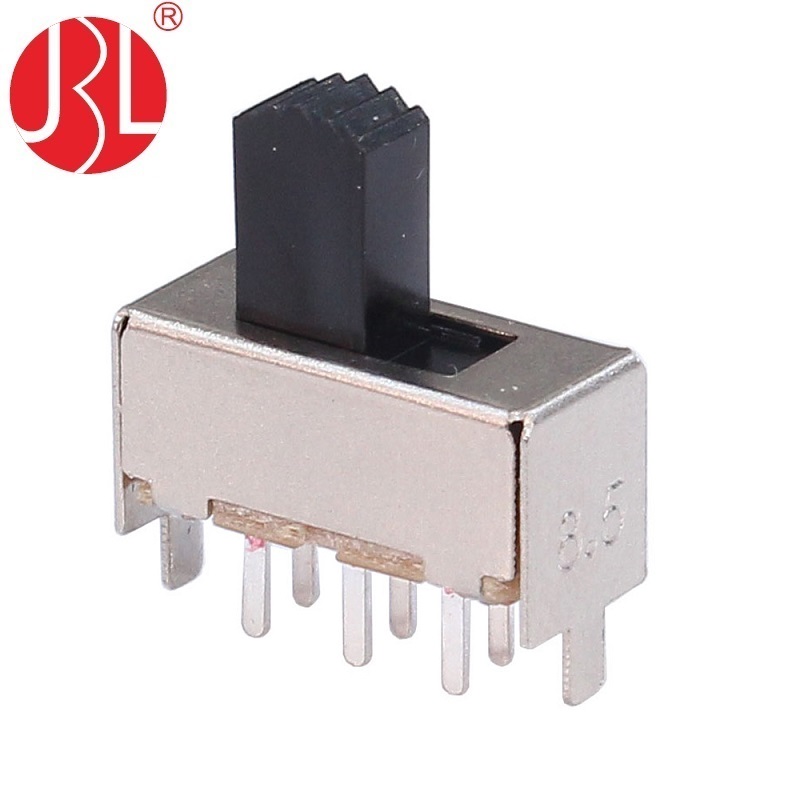

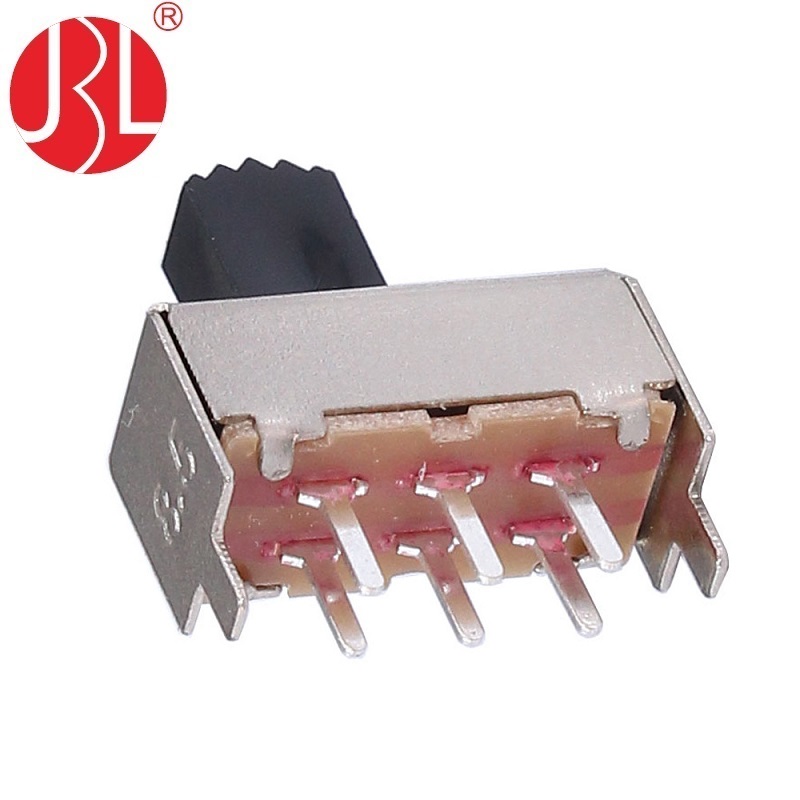

SS-22F07 Slide Switch DPDT Through Hole

Short Description:

Slide Switch 2P2T Through Hole 3.2mm Travel


  • Item: Slide Switch
  • Configuration: 2P2T
  • Mounting: THT Hole
  • Terminating: PCB Pin
  • Travel: 3.0mm
  • Power Rated: DC30V 0.3A
  • Product Detail

    Product Tags

    Slide Switch – 2P2T, Through-Hole, 3.2mm Travel, DC30V 0.3A

    This slide switch features a Double Pole Two Throw (2P2T) design for controlling two circuits. It offers through-hole mounting for secure PCB attachment and a 3.2mm travel distance for smooth operation. Rated for DC30V and 0.3A, it is ideal for low-voltage applications requiring reliable and precise switching.

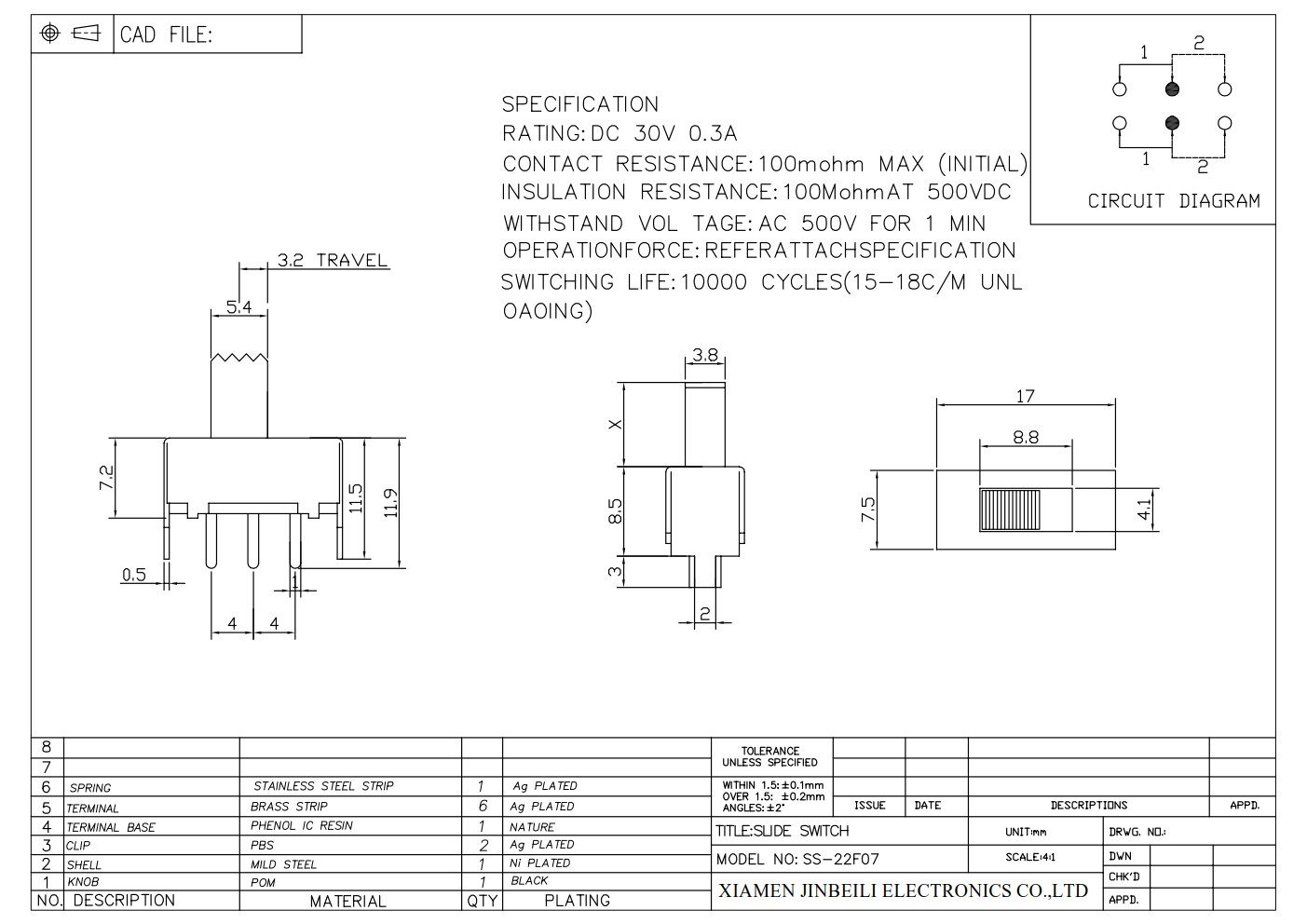

    SS-22F07 Model (1)_1www.jbl-ec.com
