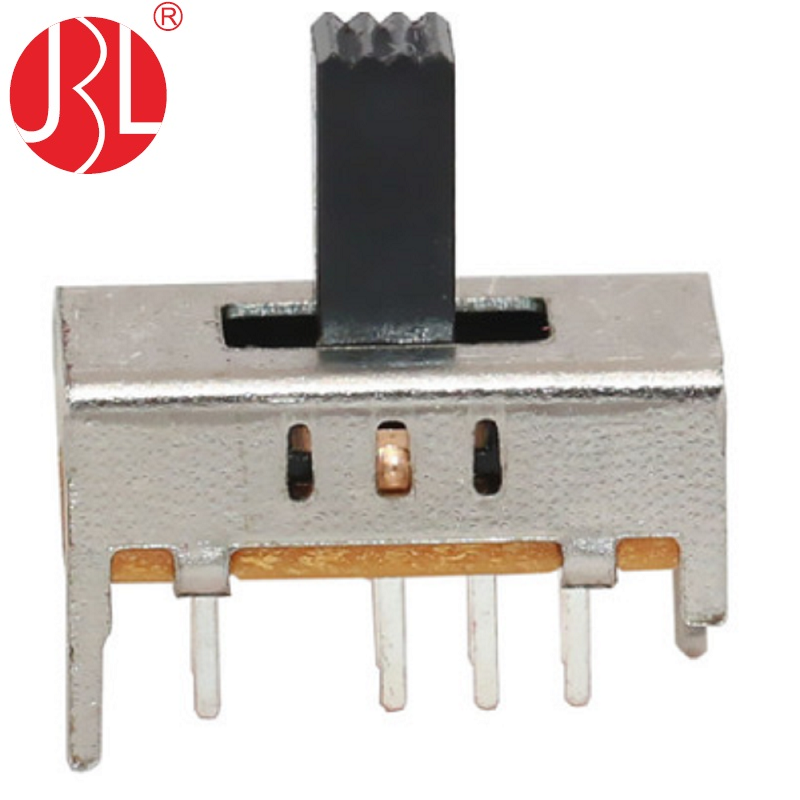

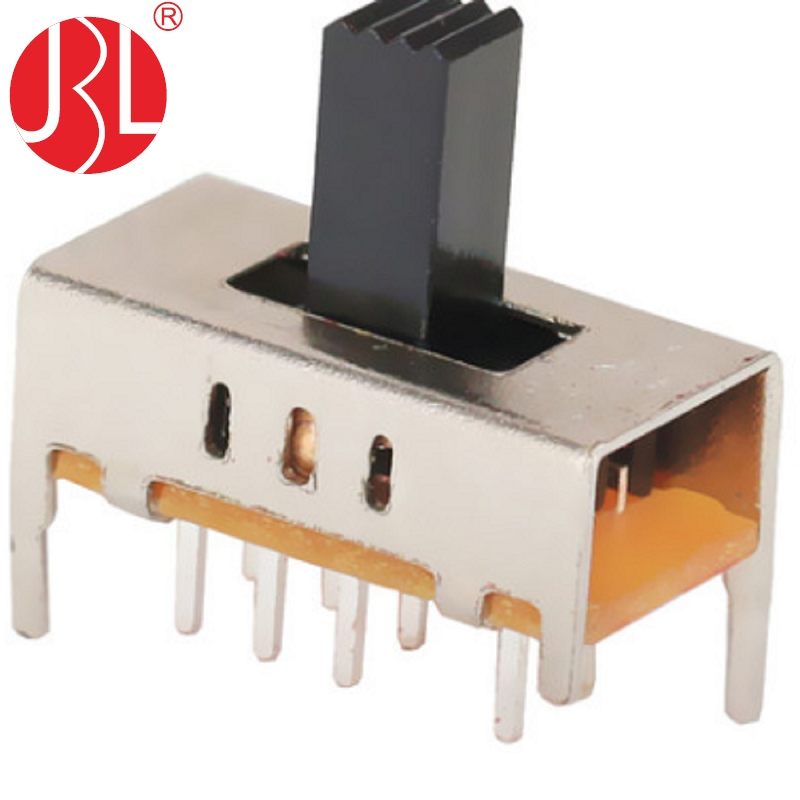

SS-23D15 DP3T Slide Switch DIP Through Hole Horizontal PC Pin

SS-23D15 DP3T Slide Switch DIP Through Hole Horizontal PC Pin Featured Image
  • SS-23D15 DP3T Slide Switch DIP Through Hole Horizontal PC Pin
  • SS-23D15 DP3T Slide Switch DIP Through Hole Horizontal PC Pin

Short Description:

Switch Slide DP3T  Vertical DIP Through Hole Horizontal


  • Item: Slide Switch
  • Configuration: 2P3T
  • Mounting: Through Hole
  • Power Rated: DC30V 0.3A
    • Download as PDF

    Product Detail

    Product Tags

    Product Descriptions :

    Product name : DP3T Slide Switch

    Features : DIP Veritcal

    Knob Height : Customization available

    Voltage : DC30V

    Current : 0.3A

    Working Temp : -25°C ~ 85°C

    Packaging : BAG

    Datasheets :

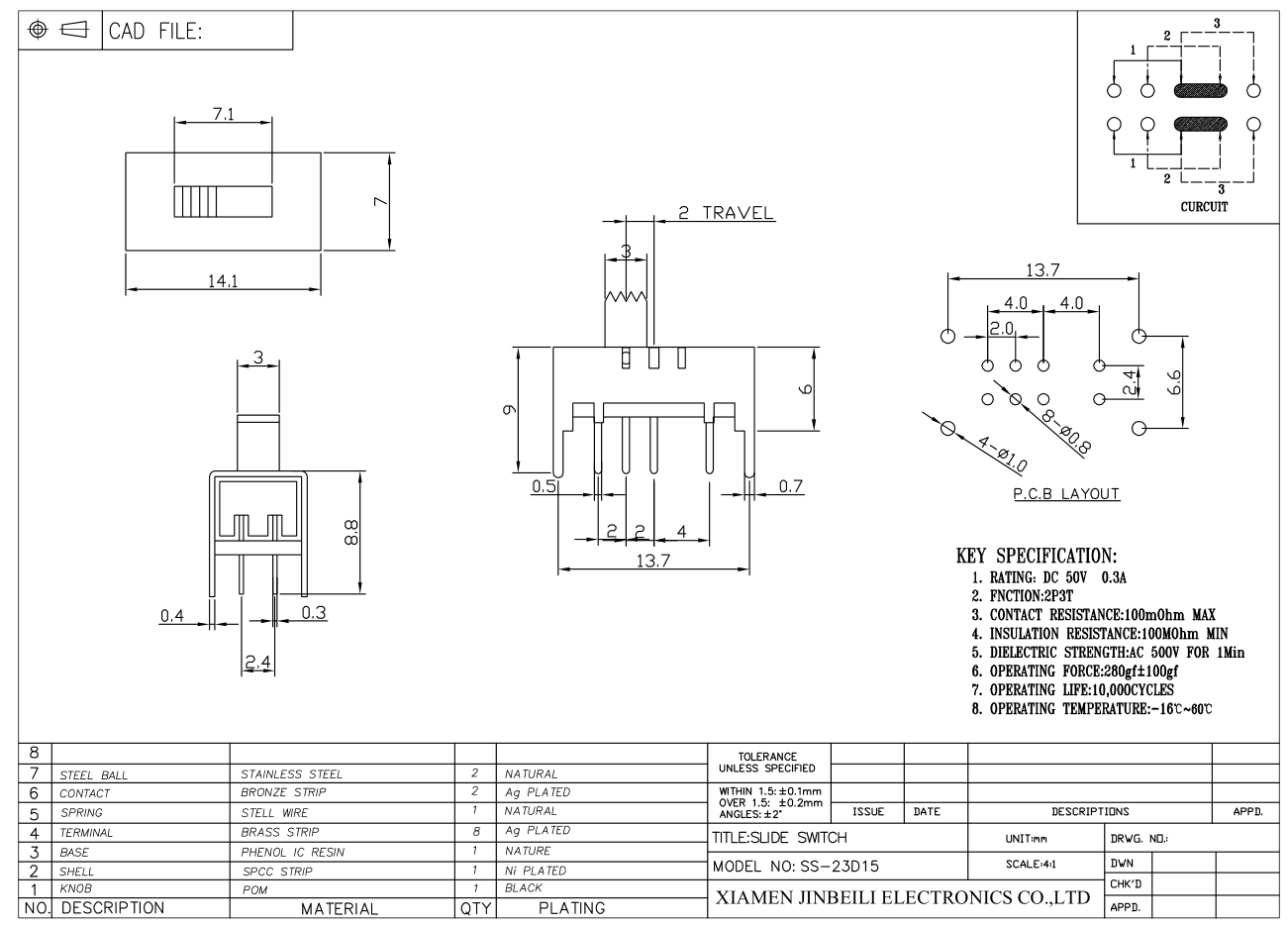

    ss-23d15 slide switch DP3T





    Product design & development, Tooling ,Moulding and Manufacturing :



    Jinbeili component manufacturer
