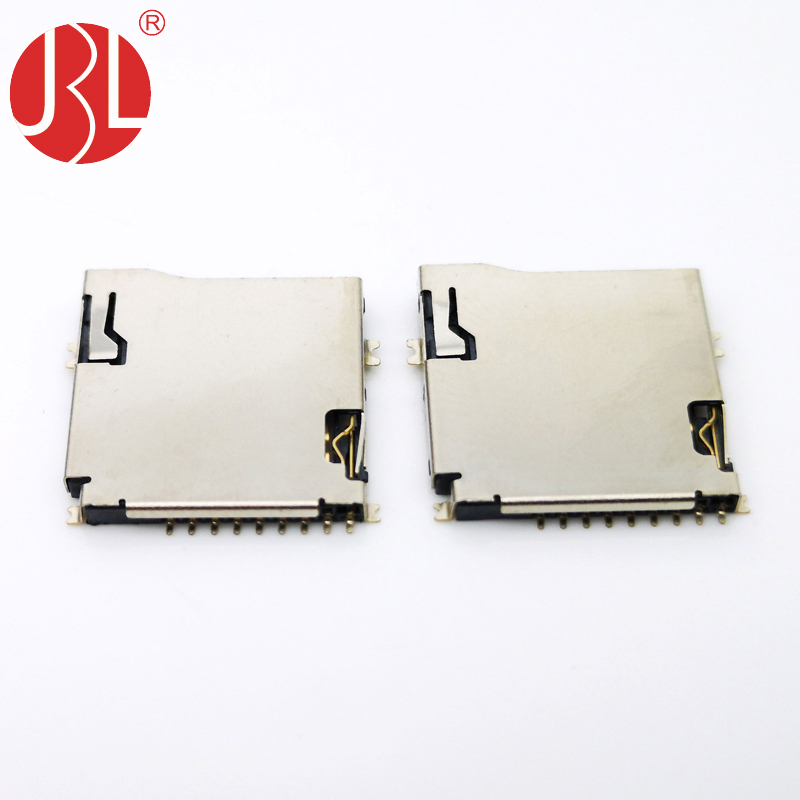

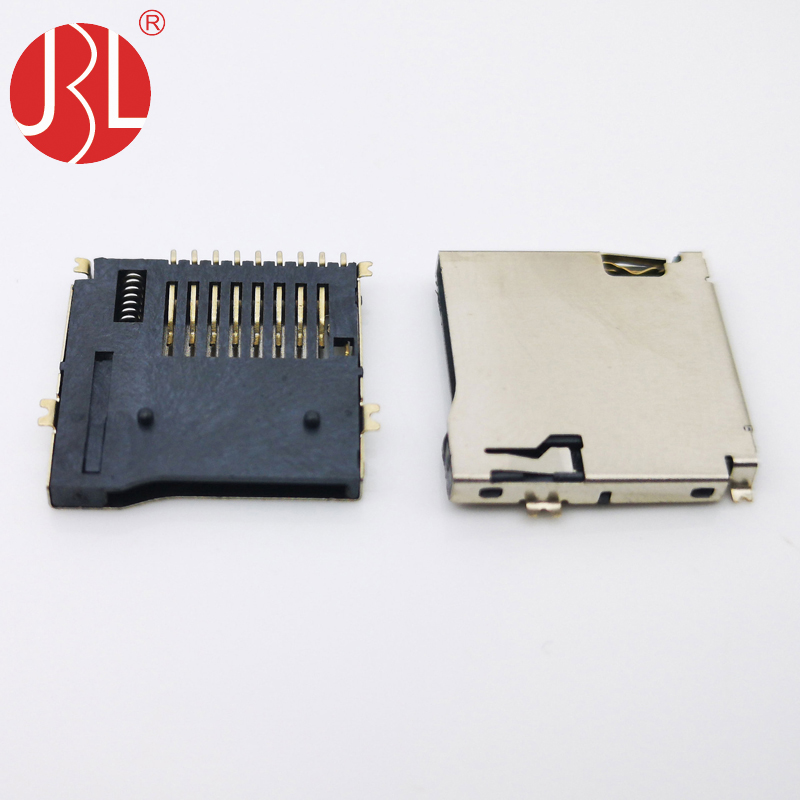

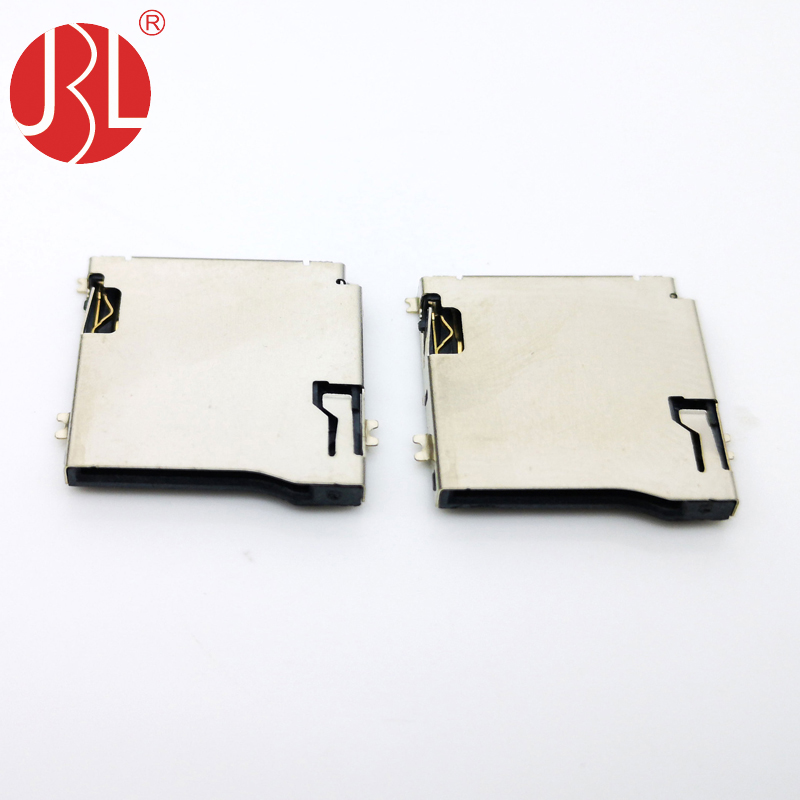

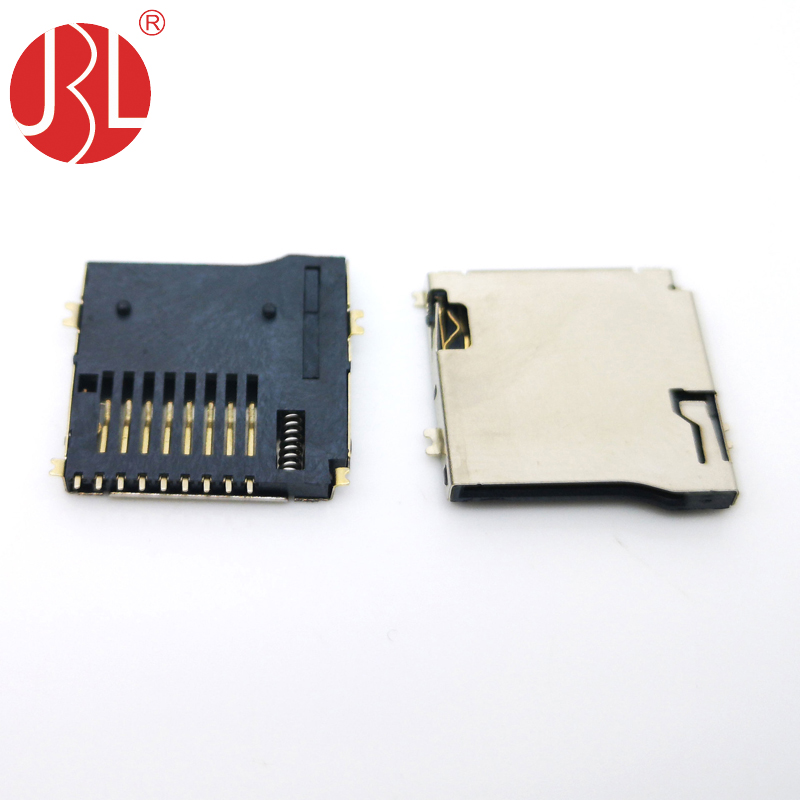

T Flash Micro SD Card Connector 9 PIN Height 1.8mm

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Model Number:: TF-01-H1.8

Type:: micro sd card, Headers and PCB Receptacles

Place of Origin:: Guangdong, China

Brand:: jinbeili

Application:: SD CARD

Interface Type:: Socket

Color:: silver

Material:: Bronze

Media Available:: 1.8 Micro SD Connector

Description:: 1.8 Micro SD Connector

Specifications:: 1.8MM

Termination:: no

Features:: 9 Contacts

Number of Positions:: 9

Mounting Type:: SMT

Connector Usage:: SD card connector

Gender:: notebook

Number of Positions/Contacts:: 9

Voltage – Rated:: DC 50V

Shell Material:: BRASS

Current Rating (Amps):: 0.5A

Voltage Rating:: DC 50V

Diameter – Outside:: NO

Contact Size:: NO

Number of Ports:: 1

Center Contact Plating:: GOLD

Size / Dimension:: 14.8*13.8

Housing Finish:: Nickel Plating

Port Direction:: SMT

Voltage:: DC 50V

Current Rating (Per Contact):: 0.5A

Current:: 0.5A

Approved Countries:: RoHS / REACH

Head Style:: Sim card socket

D/C:: TF-01-H1.8

Current Rating::: 0.5a

Voltage Rating::: 50V DC

Terminals:: 9

Packaging:: Tape & Reel (TR)

Product Description

Product Name :	SD CARD SOCKET
Rating :	50V DC , 0.5A
Mounting :	SMT
Insulation Resistance:	100MΩ
Dielectric Withstanding Voltage:	100V AC
Insertion Force:	0.5~1.0KG
Ejection Force:	0.5~1.0KG
Product Type :	Sim Card Socket
Dielectric Strength:	AC 500V for 1min
Operation Temperature Range :	-25°C ~ +85°C

FEATURES :

1, SD Card socket2, Meet ROHS and REACH standards;3, 50V DC 0.5A4, PCB Board Connector5 , H 1.86 , SMT

APPLICATIONS :

1 , Home Appliance

2, Building intercom

3, Telecommunications markets

4, Telecommunications

5, Computer/peripherals

6, , Digital products

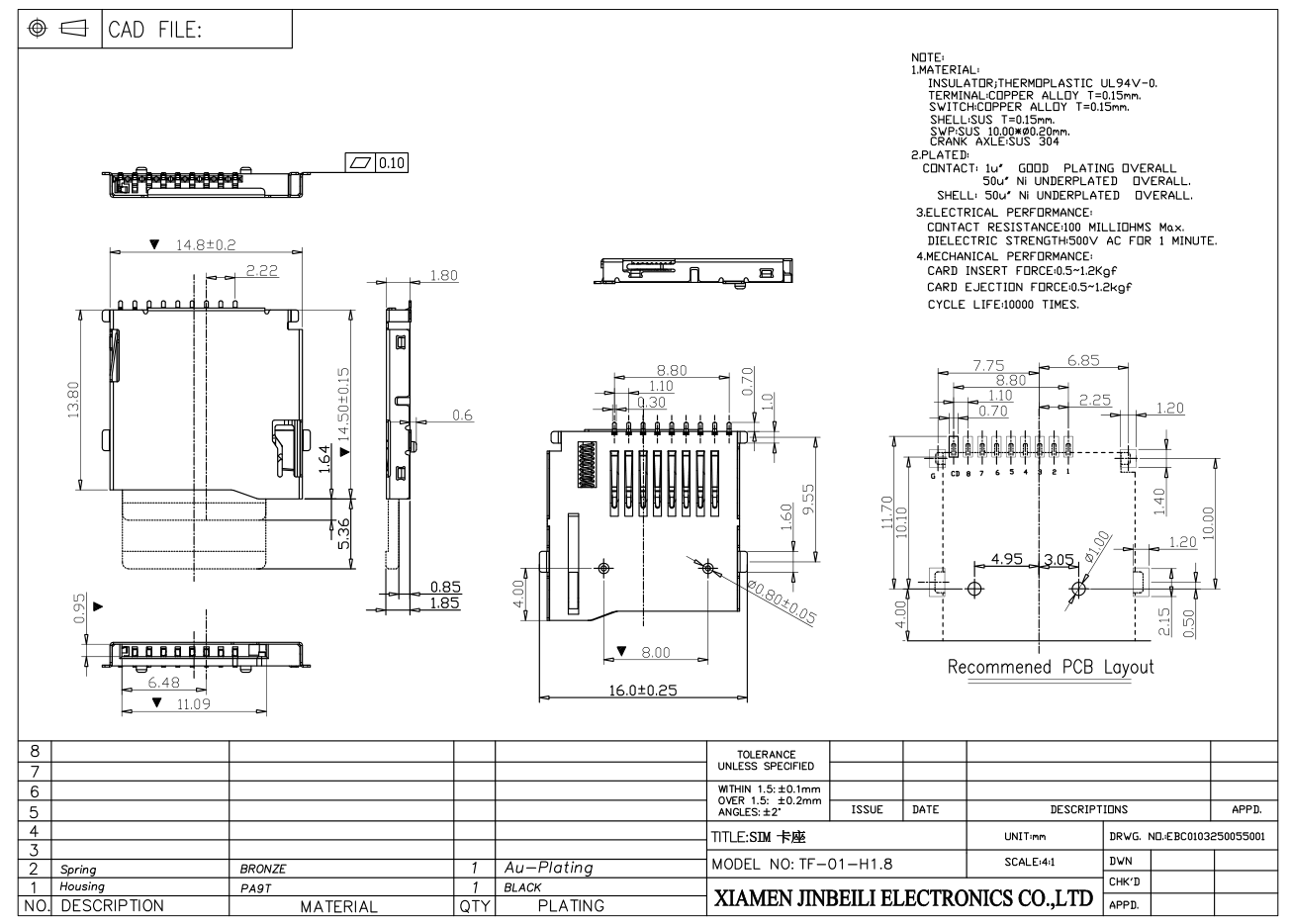

Spec Sheets
