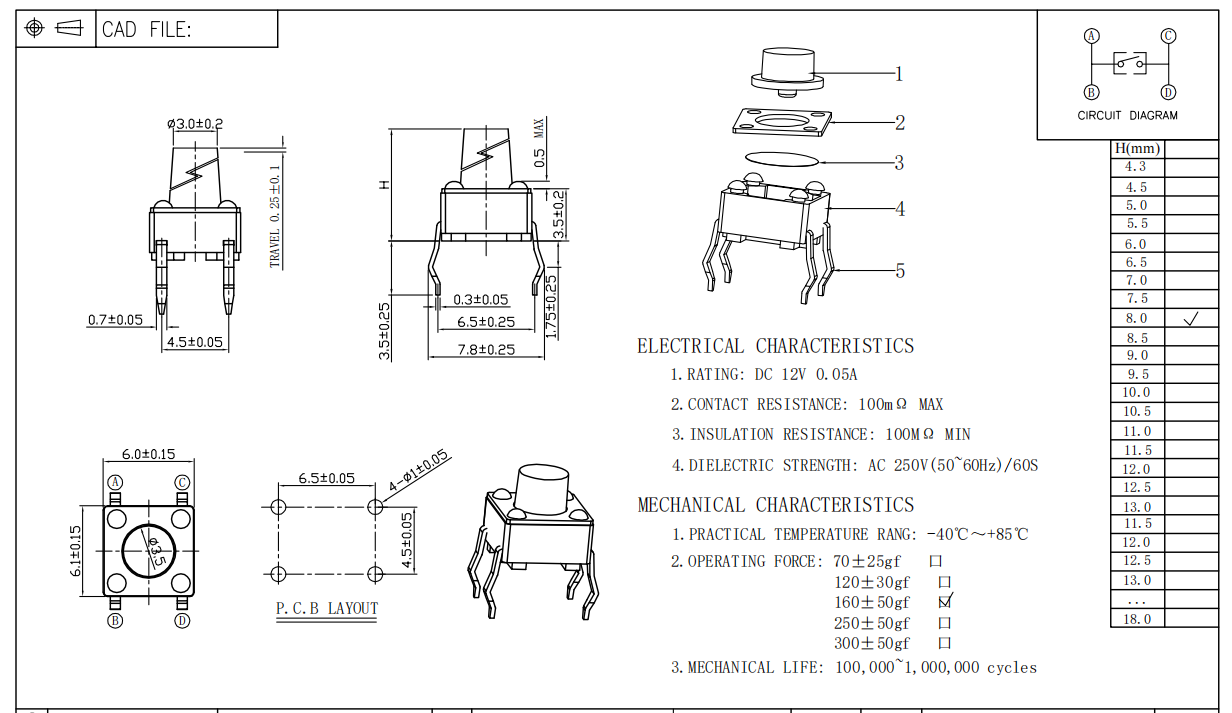

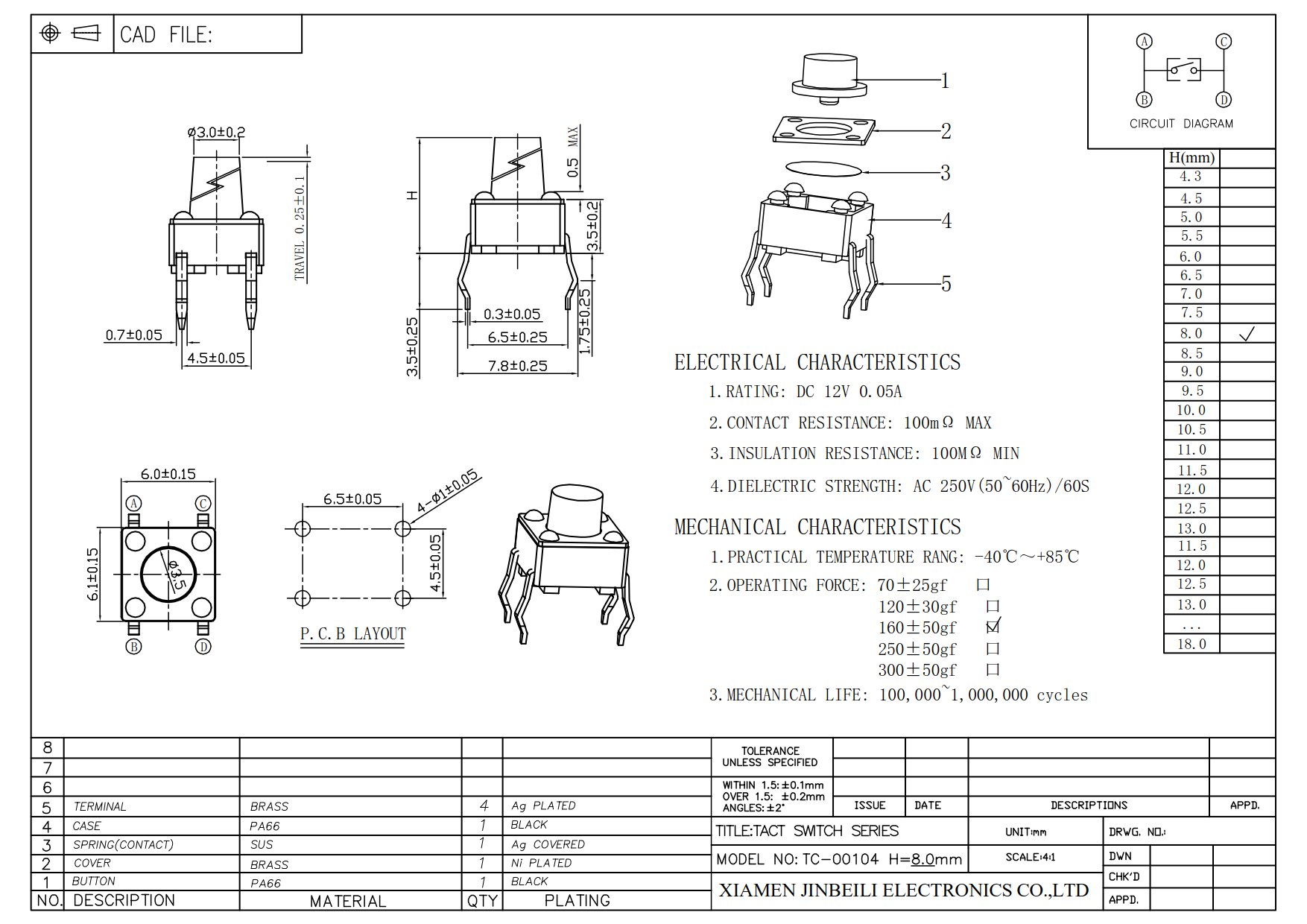

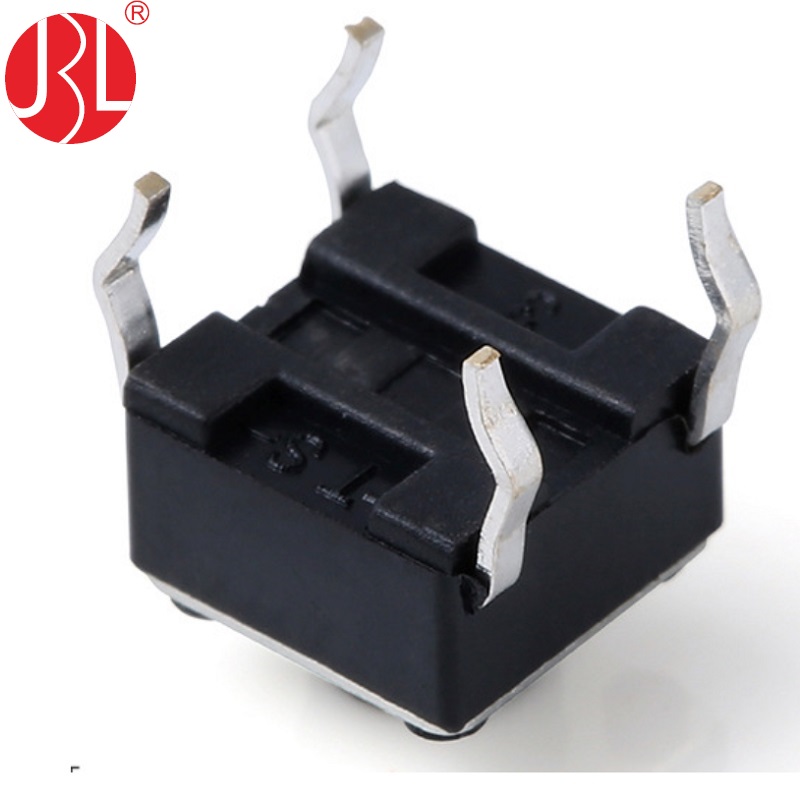

TC-00104 Tactile Switch 6×6 mm Through Hole
KEY SPECIFICATIONS:
1.ELECTRICAL CHARACTERISTICS：
1.1.RATING: DC 12V 50mA
1.2.CONTACT RESISTANCE: 100mΩ MAX
1.3.INSULATION RESISTANCE: 100MΩ MIN
1.4.GENERAL TOLERANCE:±0.3
1.5.DIELECTRIC STRENGTH: AC 250V(50~60Hz)/60S
2.MECHANICAL CHARACTERISTICS：
2.1.PRACTICAL TEMPERATURE RANG: -40℃～+85℃
2.2.OPERATING FORCE:
80±30gf 口
100±30gf 口
120±30gf 口
160±40gf 口
200±50gf 口
250±50gf 口
300±60gf 口
400±60gf 口
2.3.MECHANICAL LIFE: 100,000 cycles
2.4.Salt Mist（NSS）Duration:24hours(can be cudtomized according to customer needs)
