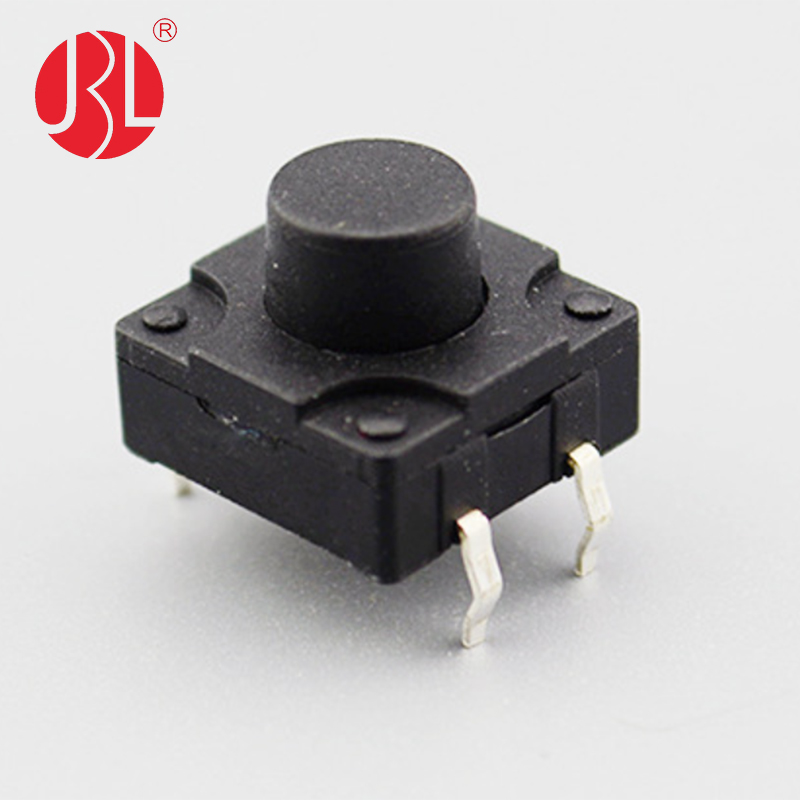

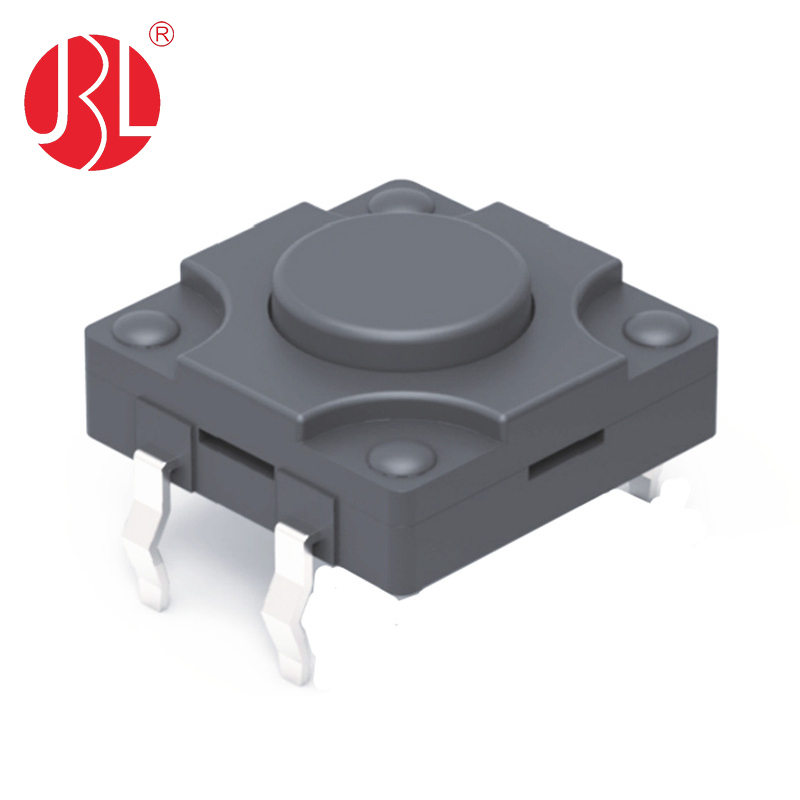

Tact Switch (Through-Hole Type, 12×12mm, IP67 Waterproof, Adjustable Actuator Height)

This high-quality tact switch is a through-hole type momentary push-button switch with a compact 12×12mm outline, designed for reliable operation in demanding environments. It features an IP67 waterproof rating, ensuring protection against dust ingress and water immersion up to 1 meter for 30 minutes, making it suitable for outdoor, industrial, and automotive applications.

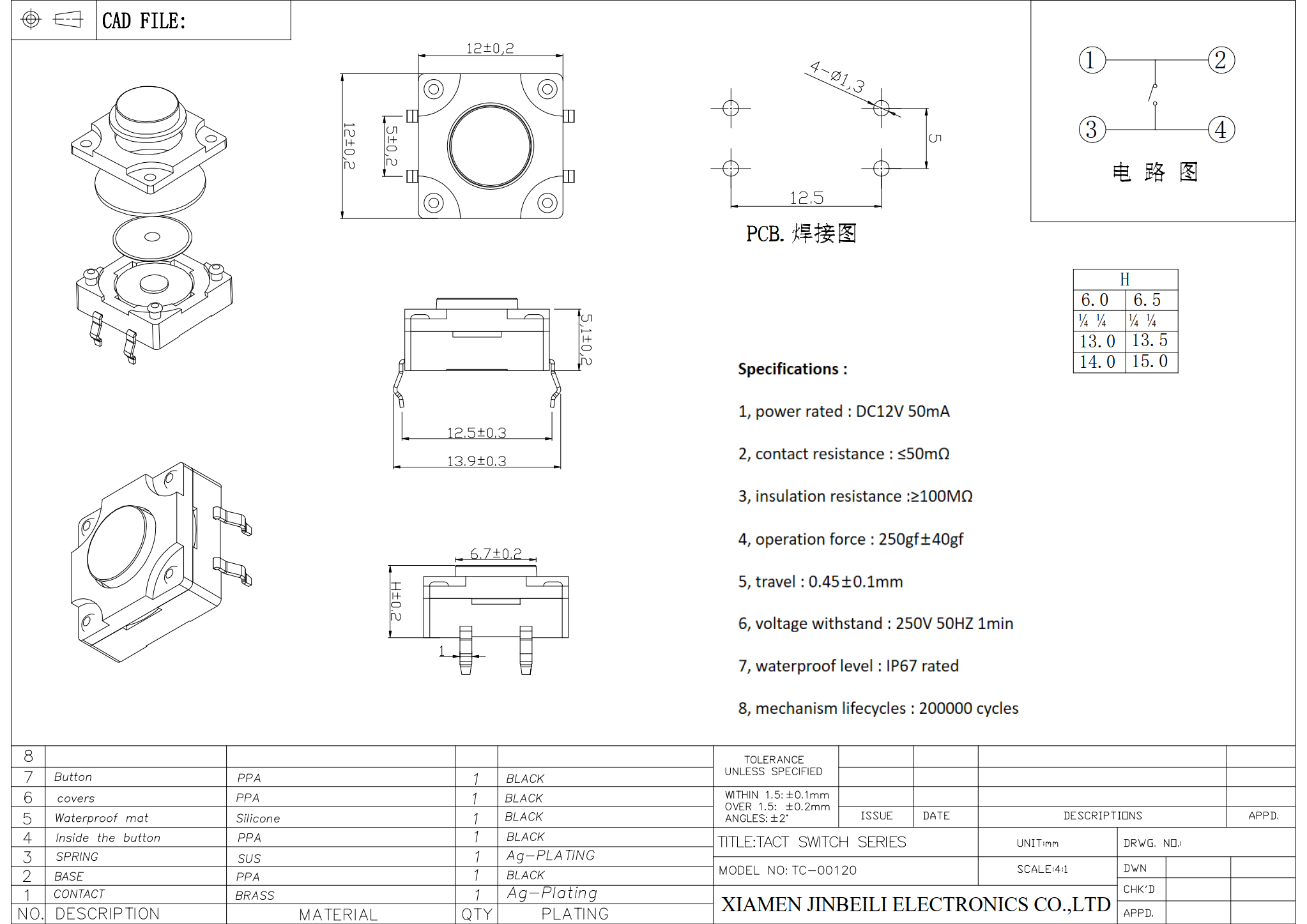

The switch offers customizable actuator height options, ranging from 6.0mm to 15.0mm off the PCB, providing flexibility for different panel thicknesses and ergonomic requirements. Users can select between two operation force options—160gf (light touch) or 250gf (firm press)—to suit specific tactile feedback preferences.

Rated for DC 12V at 50mA, this tact switch ensures stable performance in low-power circuits. Its durable construction guarantees a long mechanical lifespan, with precise actuation and consistent responsiveness. The through-hole mounting design ensures secure PCB attachment, enhancing mechanical stability during repeated use.

Ideal for control panels, medical devices, marine equipment, and other applications requiring waterproofing and robust tactile switches, this 12×12mm tact switch combines versatility, durability, and user-defined customization for optimal performance.
