Product Descriptions :

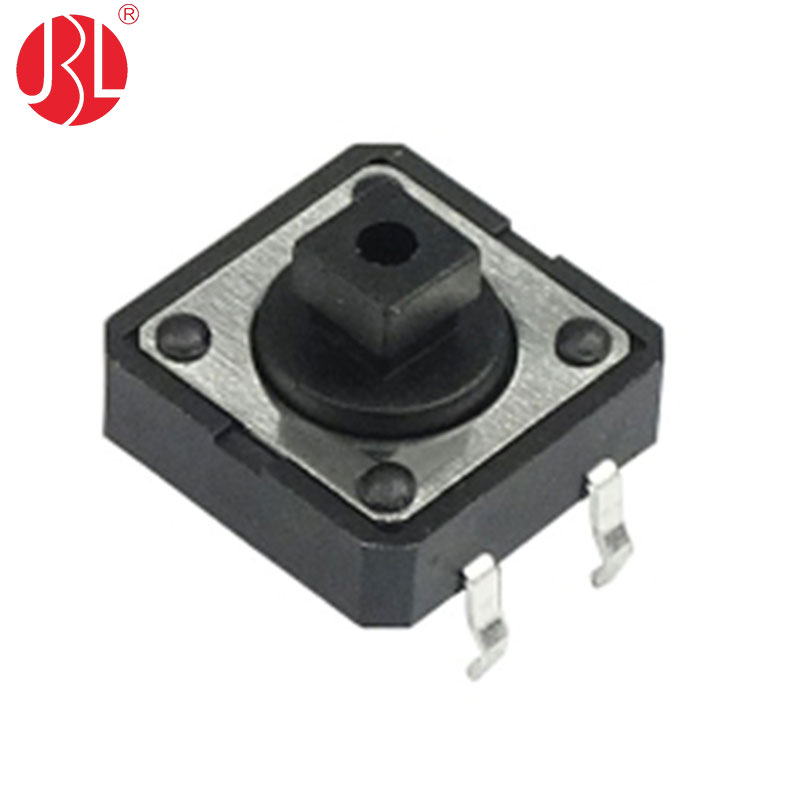

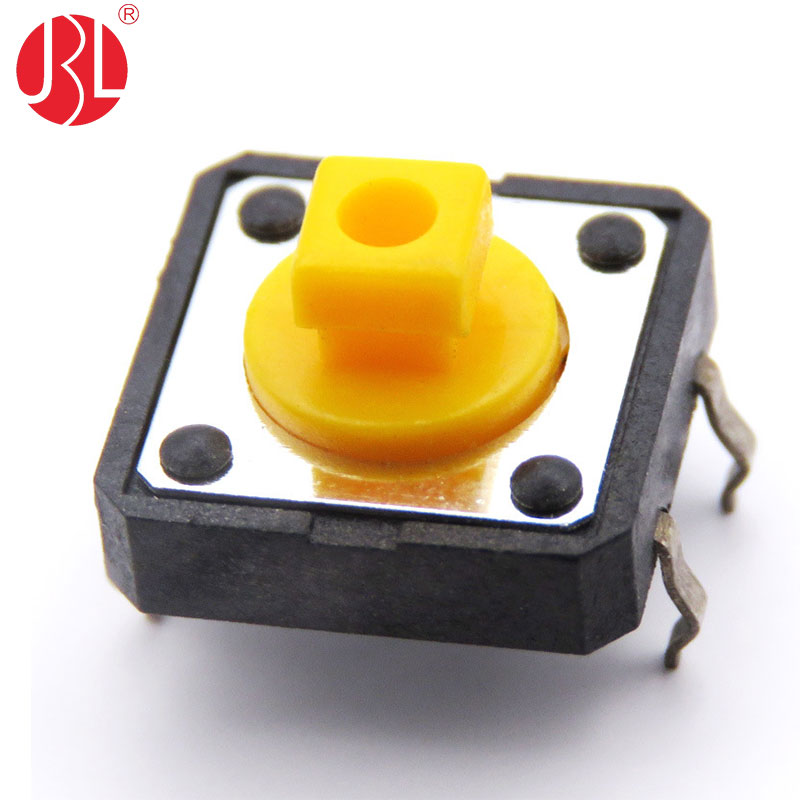

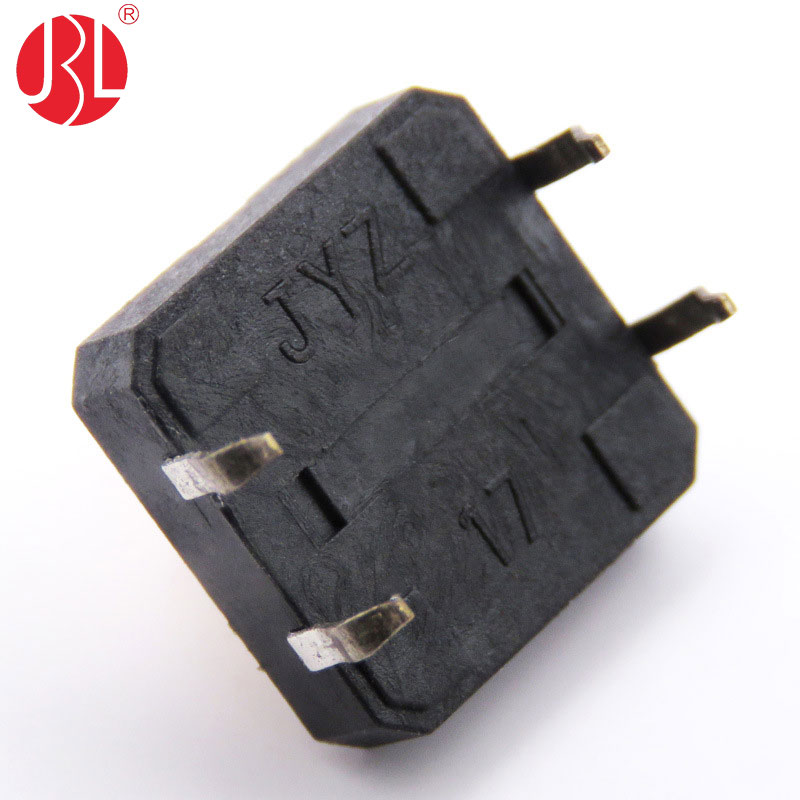

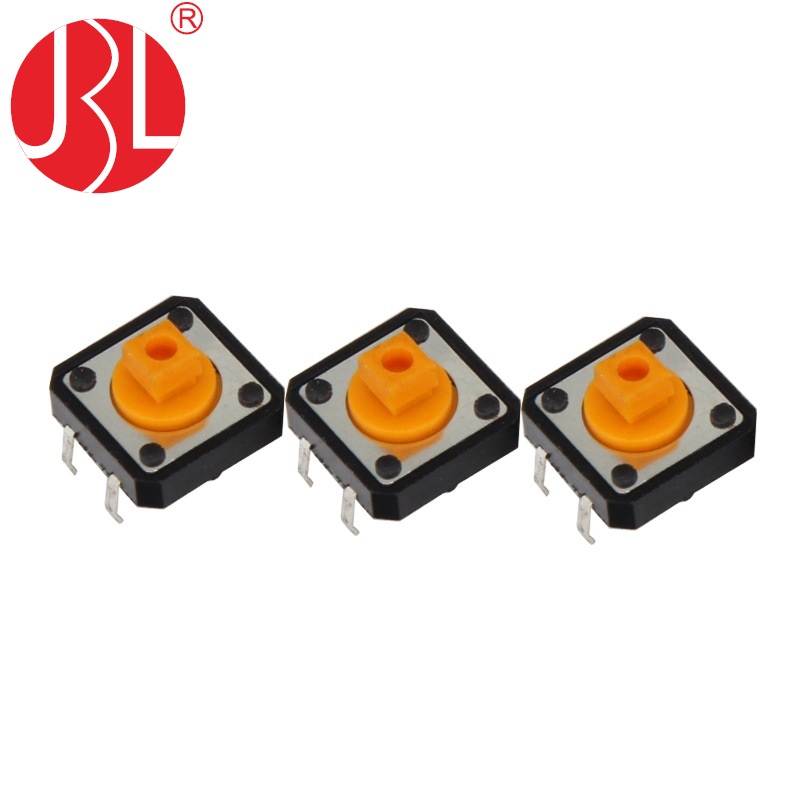

Product name : 12MM Tact switch

Features : DIP Vertical

Power Rated : DC12V 0.05A

Operating force options : 180gf / 250gf / Customization available

Actuator height off PCB options : 4.3mm / 5.0 mm / Customization available

Actuator Color options : white, black, red , Yellow / customization available

Operating life : 100000 cycles

Working Temp : -25°C ~ 85°C

Packaging : bag

Replacement parts :
TL1100F260Q5JBLK，B3W-4055，B3F-4050，B3F-5151，B3F-4055，B3F-4050，B3W-4055S，B3W-4055，430456073736，PTS125SJK73-2 LFS，FSM103，B3F-5051，430476073716，B3F-4155，B3F-5050，430466073726，PTS125SJM73，PTS125SJK73

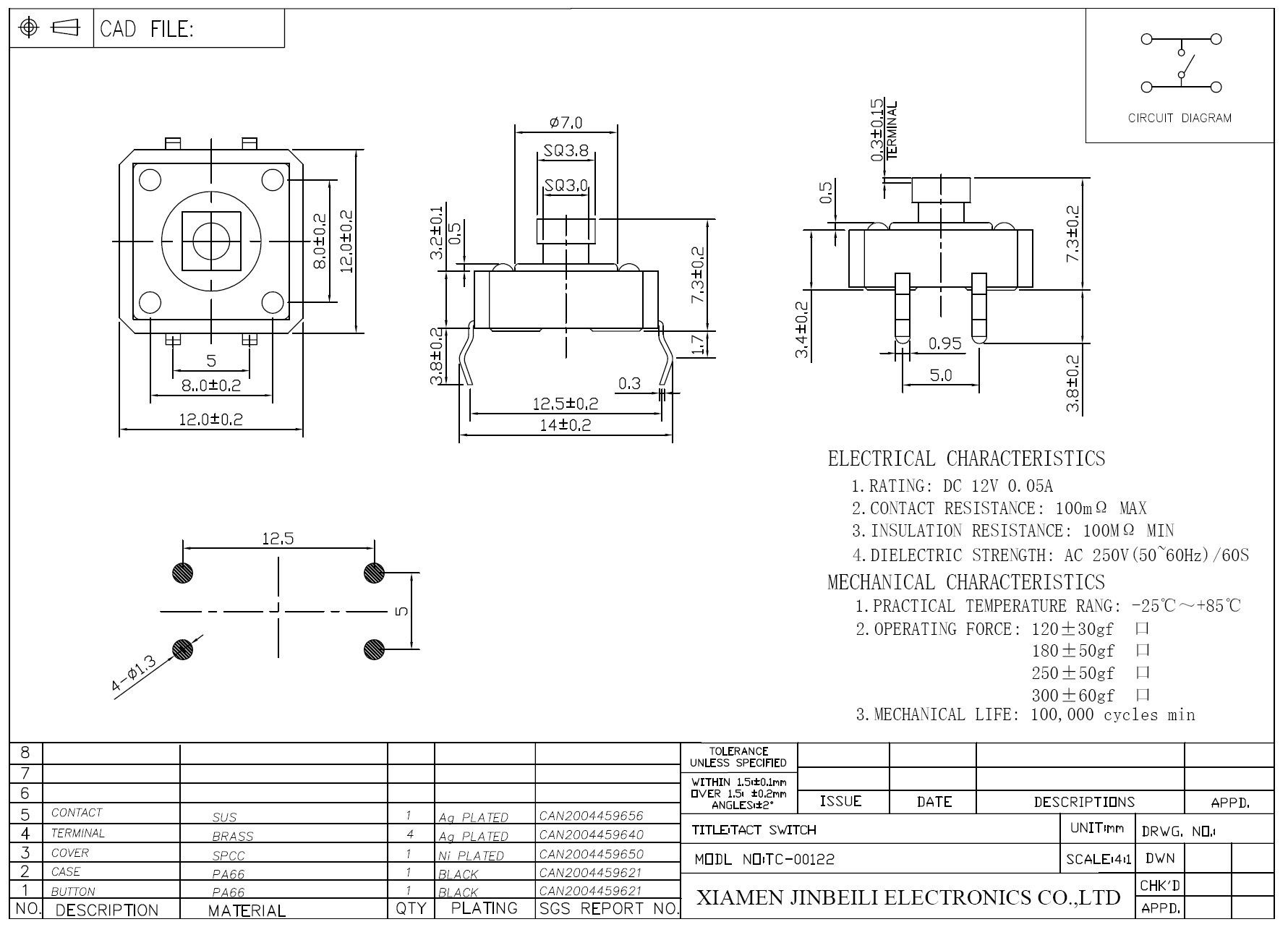

Datasheets :
