TD-22325RWH9.5 Custom Dual Illuminated Tactile Switch Panel Mount

Short Description:

IP67 Rating Waterproof Dual Illuminated LED Tact Switch Panel Mount with Wire Leads


  • Item: Dual LED Tact Switch
  • Mount: Panel Mount
  • Configuration: SPST
  • Power Rated: DC5V 20mA
  • Led Color : Red and Blue
  • Waterproof Level: IP67 Rated
  • Product Detail

    Product Tags

    Introducing our Panel Mount Dual Illuminated LED Tactile Switch, a versatile and reliable switch designed for a wide range of applications. This switch features two tactile switches in parallel, each rated for DC5V and 20mA power, ensuring stable and consistent performance.

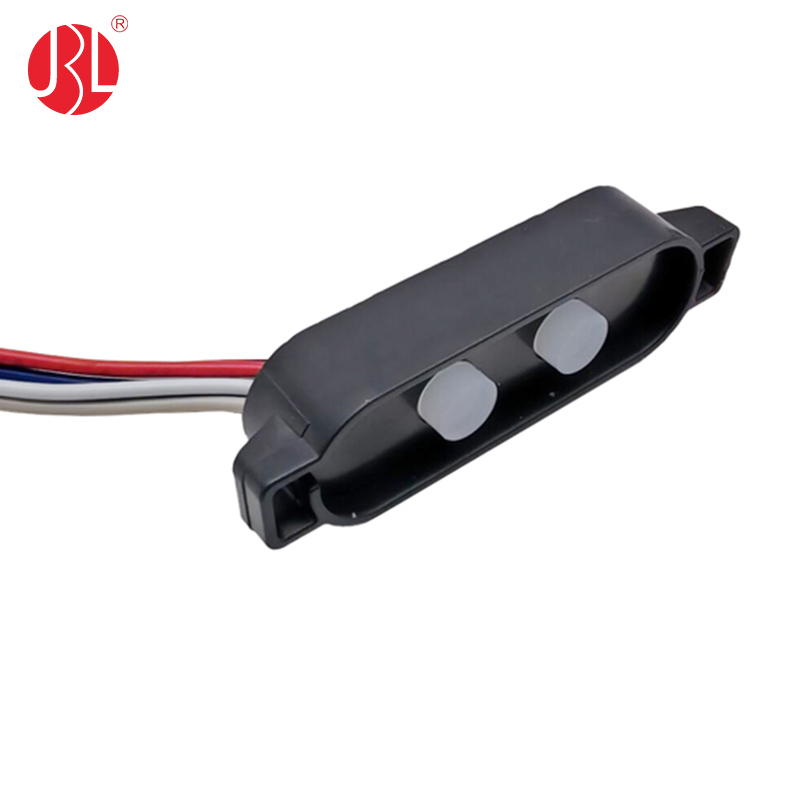

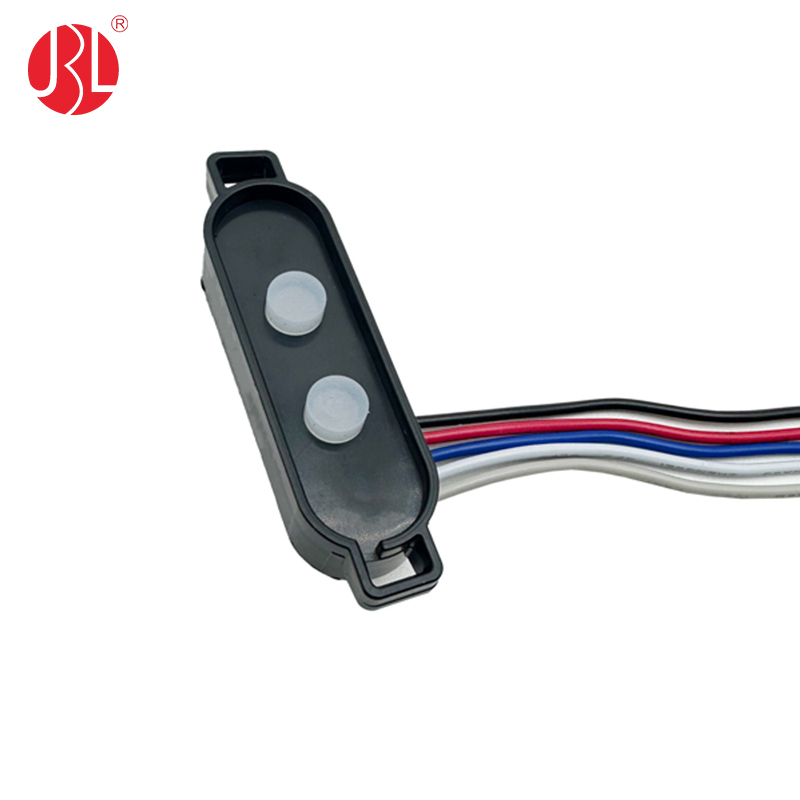

    The switch is equipped with both red and blue LED lights, providing clear visual indication of switch status. The actuator is made of translucent silicone material, allowing the LED light to shine through and illuminate the switch, making it easy to identify and operate even in low-light conditions.

    Our Panel Mount Dual Illuminated LED Tactile Switch is IP67 rated waterproof, making it suitable for use in outdoor or wet environments. The rugged and durable design ensures that the switch can withstand exposure to water, dust, and other contaminants, providing reliable performance even in harsh conditions.

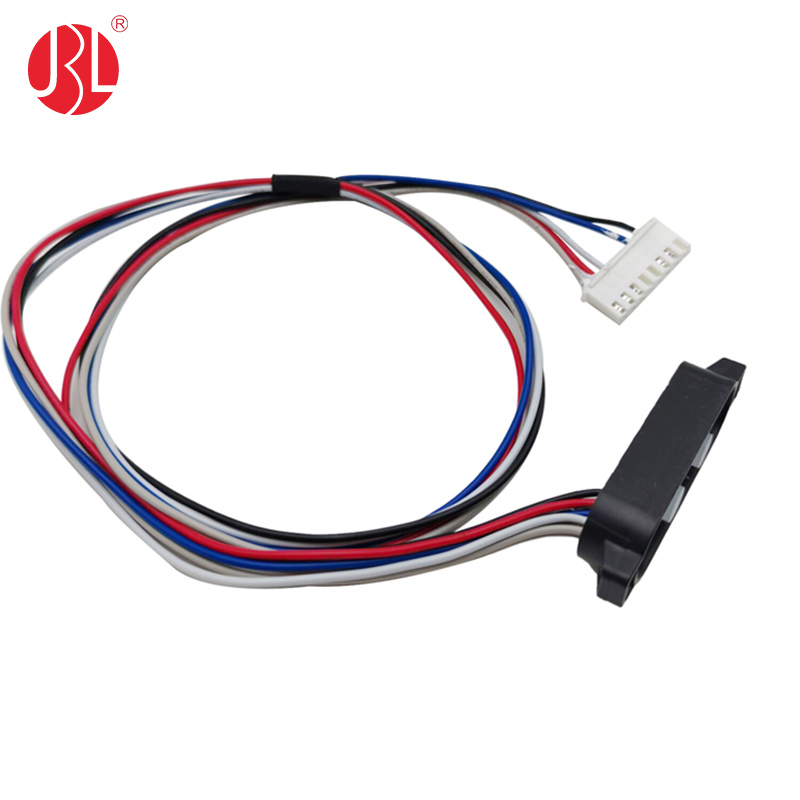

    The switch comes with wire leads for easy installation and connection to your circuit. And with our customization options, we can tailor the switch to meet your specific needs and requirements. Whether you need a different LED color, actuator material, or other modifications, we can provide the perfect solution for your application.

    Overall, our Panel Mount Dual Illuminated LED Tactile Switch is a versatile, reliable, and customizable switch that is perfect for a wide range of applications. With its waterproof design, clear visual indication, and easy installation, it is an excellent choice for any project that requires a durable and reliable tactile switch.

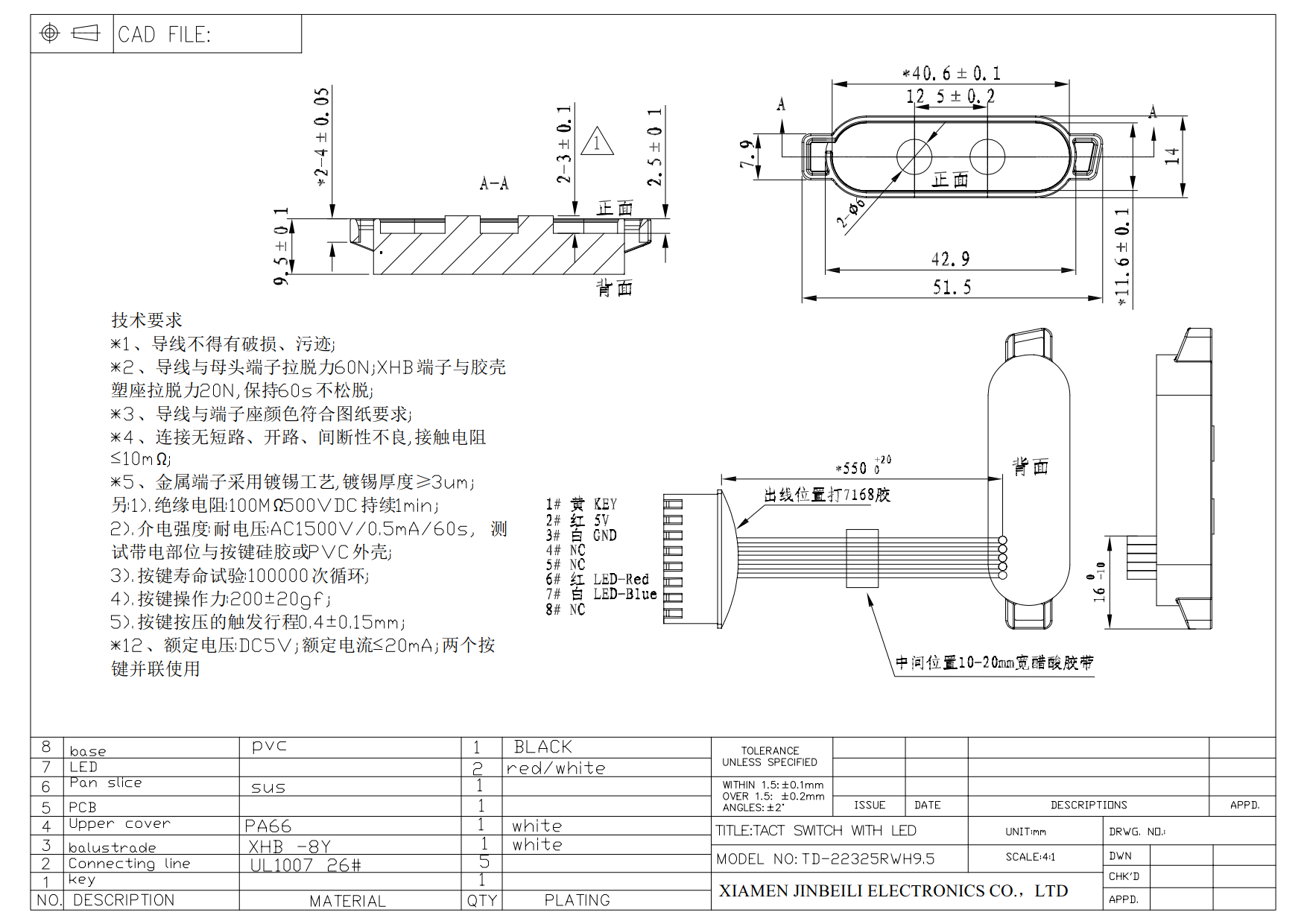

    TD-22325RWH9.5 (1)_1www.jbl-ec.com
