TD01-108L Series Illuminated LED Tactile Switch with Keycap Through Hole

Short Description:

LED Tactile Switch THT Hole 6*6mm with Switch Cap


  • Item: Illuminated Tact Switch
  • Mount: Through Hole
  • LED Color Options: Red, Yellow, Green, Blue, White, Red Yellow, Red Green, Red Blue...
  • Actuator Height Off PCB: 10mm
  • Power Rated: DC12V 50mA
  • Product Detail

    Product Tags

    Introducing our versatile illuminated tact switch, designed for reliability and aesthetic appeal. This through-hole switch operates at DC 12V and 50mA, making it suitable for a variety of electronic applications. Key Features:

    • Compact Dimensions: With a switch outline of 6mm x 6mm and a keycap size of 10mm x 10mm, this switch is perfect for modern devices where space is at a premium.
    • Illumination Options: Available in both single LED and double LED color options, enhancing visibility and adding a dynamic touch to your projects.

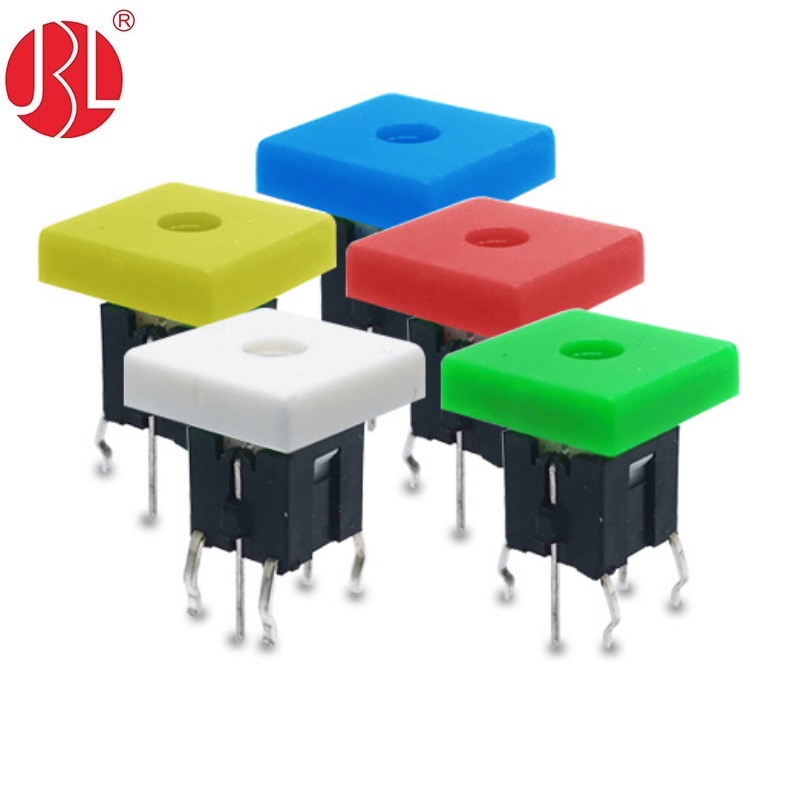

    • Diverse LED Color Choices: Choose from a wide range of colors, including Red, Blue, Green, White, Yellow, and combinations like Red/Green, Red/Yellow, Red/Blue, and more, allowing for customization to fit your design requirements.

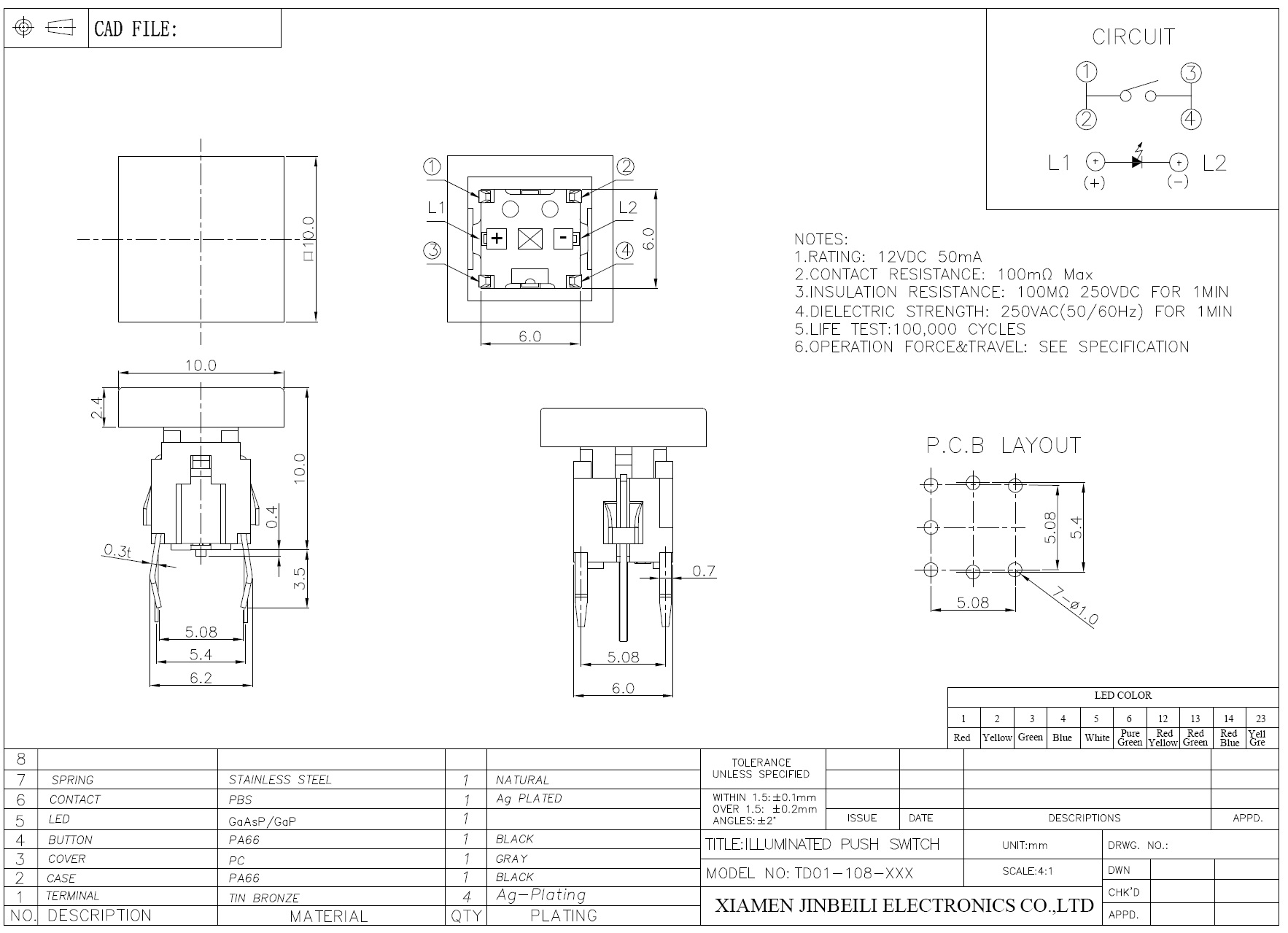

    TD01-108L tact switch (6)www.jbl-ec.com
