The LED tactile switch is a compact and illuminated push-button switch with a 6x6mm outline. It features a square keycap that measures 12.5×12.5mm, providing a clear and ergonomic activation point. The keycap has a height of 10mm above the PCB, offering a tactile feel when pressed.

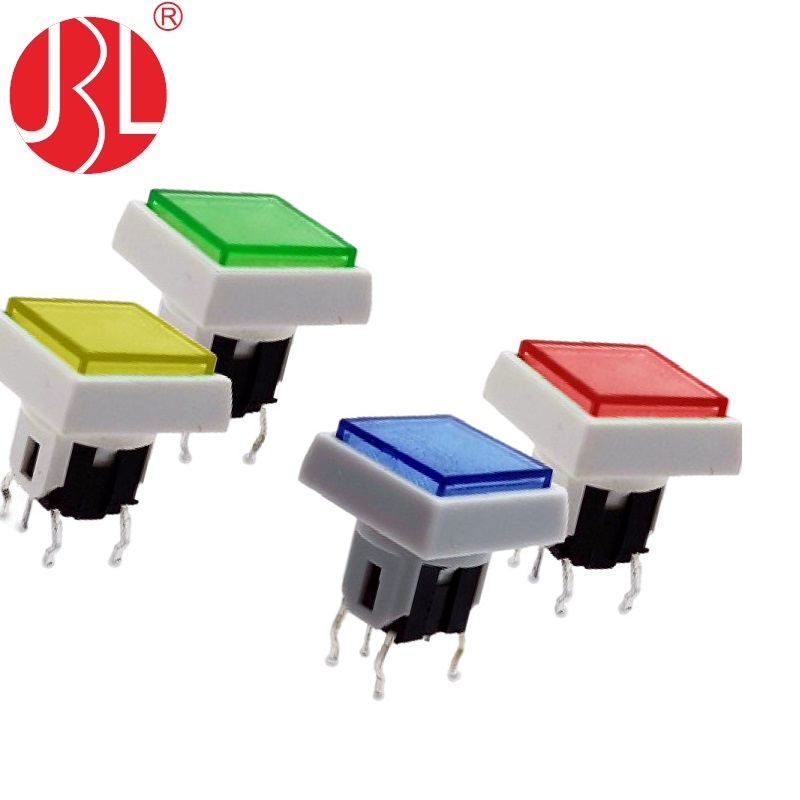

The switch is illuminated by an LED that can be configured in multiple color options: Red, Green, Blue, Yellow, and White. This allows for easy identification and customization based on user preference or application requirements. The LED operates at DC12V and draws a current of 50mA, ensuring efficient power consumption.

The LED tactile switch is perfect for use in a variety of applications, including control panels, user interfaces, and other electronic devices. Its square keycap adds a modern and sleek aesthetic to the switch, complementing a wide range of design styles. With its compact size, versatile color options, and efficient power consumption, the LED tactile switch is a reliable and effective solution for creating intuitive and user-friendly controls in a variety of electronic applications.

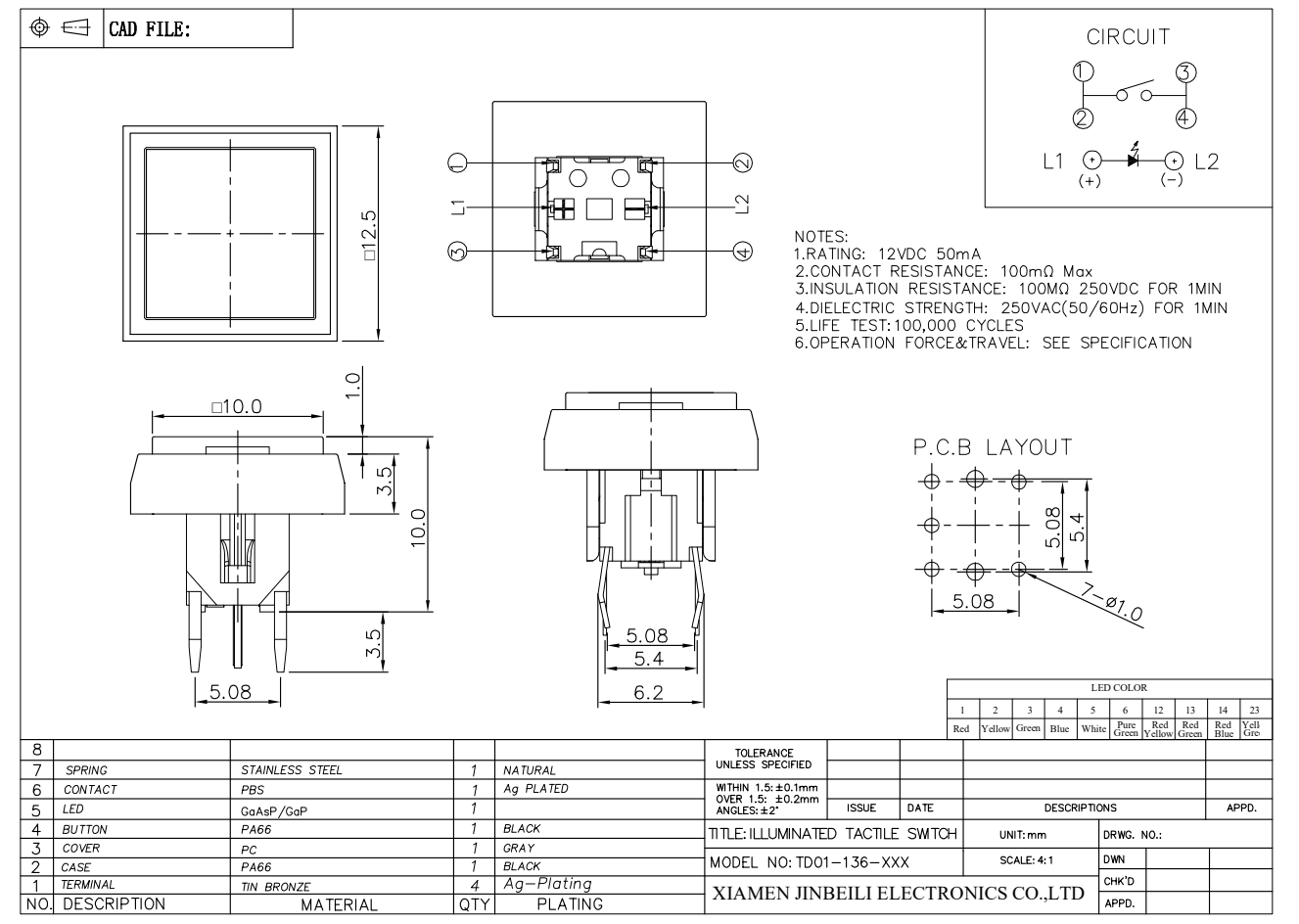

Datasheets :
