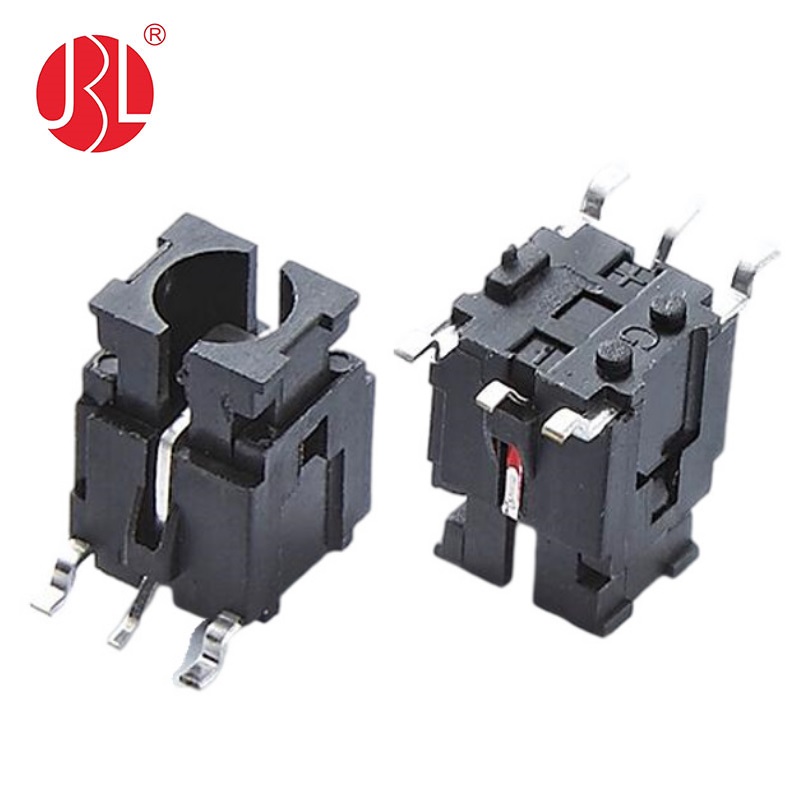

TD01-1S 6*6 Illuminated tactile switch SMT type without tact switch cover led colors can be customized

Short Description:

Feature :
• Metal dome and rubber dome options.
• Precise design terminal type adequate for DIP IC pitch size (multiple of 2.54mm).
• Adequate for DIP & SMT.
• Several LED colors options.
• Several traveling force options.
• Several cap legends options.

Applications :
• Operating switches in all types of electronic equipment such as audio apparatus, office equipment , communications apparatus, TV sets, VCRs, etc.

FSMIJM63BG04, FSMIJM62BB04, FSMIJM63AG04, ITS13FV2SR, ITS40FV2SR,228BMVARFR,TL3240F100Y


Product Detail

Product Tags

Key specifications:
1. Switch Rating:DC 12V 0.05A
2. Travel:0.25mm±0.1mm
3. Timing: Non-shorting
4. Contact Resistance: 100mΩMax
5. Insulation Resistance: 100MΩMin
6. Dielectric Strength: AC 250V for 1min
7. Operating Force: □120±40 gf
□160±50 gf
■250±50 gf
□300±60 gf
8. Operating Life: 200,000 cycles
9. Salt Spray Test: NSS 48H(Can be customized according to customer requirements)
10. Operation Temperature Range:-20°C~+70°C
11.Be applied in smart home appliances such as smart toilets,range hoods,soymilk machines,etc.

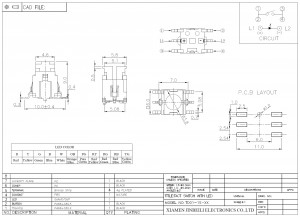

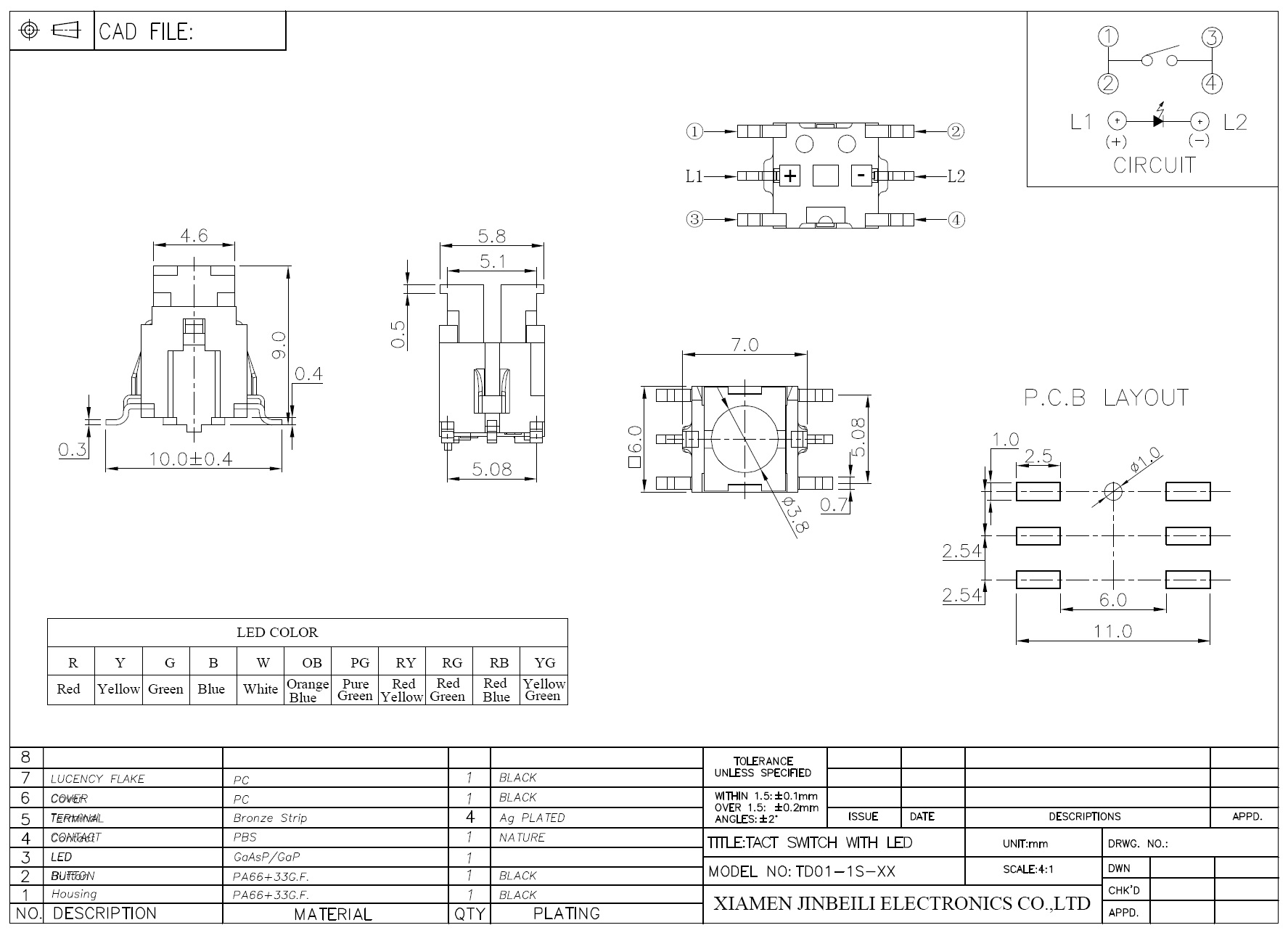

DATASHEET
TD01-1S-5
