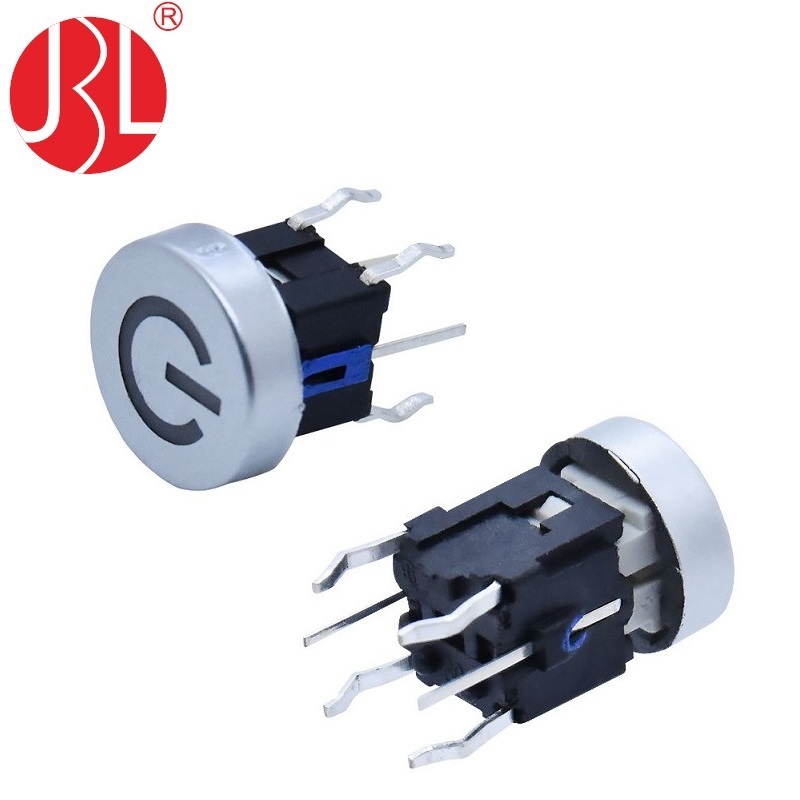

TD03-1010L Series Illuminated LED Tactile Switch with Round Keycap

Short Description:

Illuminated LED Tact Switch Through Hole with Round Keycap


  • Item: LED Tact Switch
  • Mounting: Through Hole
  • Outline: 6*6mm
  • LED Color Options: Red, Green, Blue, Yellow, White
  • Power Rated: DC12V 50mA
  • Keycap Height Off PCB: 8.2mm
  • Product Detail

    Product Tags

    The LED tactile switch is a compact and illuminated push-button switch with a 6x6mm outline. It features a round keycap that measures 10mm in diameter, providing a clear and ergonomic activation point. The keycap has a height of 8.2mm above the PCB, offering a tactile feel when pressed.

    The switch is illuminated by an LED that can be configured in multiple color options: Red, Green, Blue, Yellow, and White. This allows for easy identification and customization based on user preference or application requirements. The LED operates at DC12V and draws a current of 50mA, ensuring efficient power consumption.

    The LED tactile switch is ideal for use in a variety of applications, including control panels, user interfaces, and other electronic devices. Its small size and illuminated design make it an excellent choice for creating intuitive and user-friendly controls. The round keycap adds to its versatility, providing a sleek and modern aesthetic that complements a wide range of design styles. With its compact size, versatile color options, and efficient power consumption, the LED tactile switch is a reliable and effective solution for a variety of electronic applications.

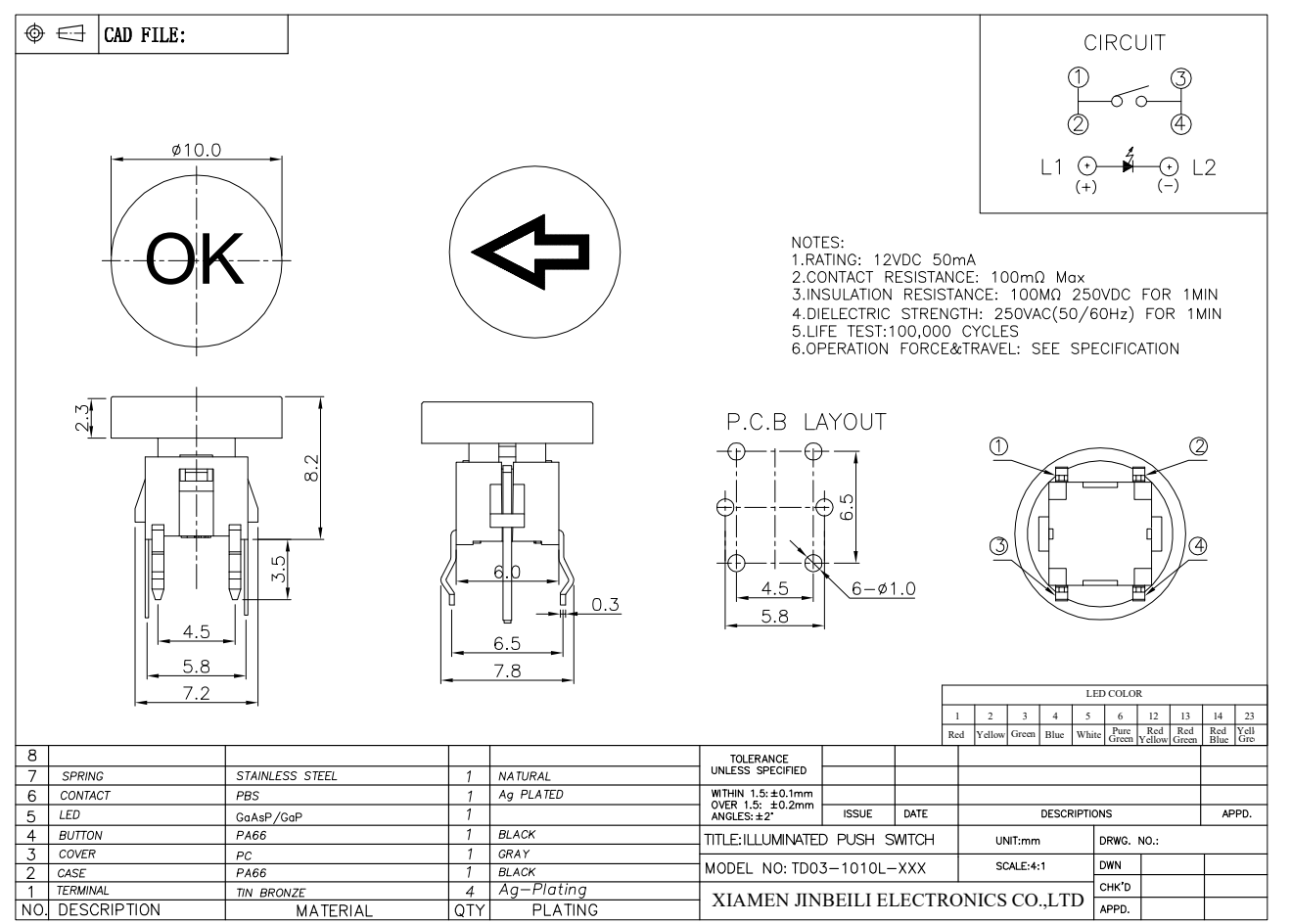

    Datasheets :

    TD03-1010L illuminated tactile switch (1)www.jbl-ec.com
