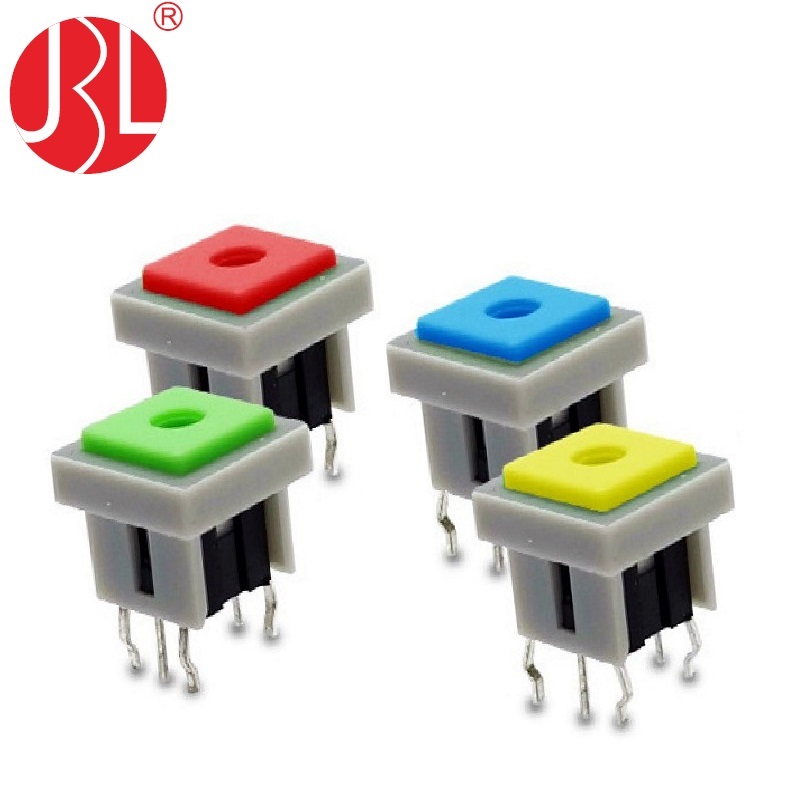

TD03-112 Illuminated Tactile Switch with Keycap

Short Description:

Illuminated LED Tact Switch with Square Keycap


  • Item: LED Tact Switch
  • Mounting: Through Hole
  • Outline: 6*6mm
  • LED Color Options: Red, Green, Blue, Yellow, White
  • Keycap Height Off PCB: 8.3mm
  • Product Detail

    Product Tags

    The LED tactile switch is a compact, illuminated push-button switch designed for use in various electronic applications. It features a 6x6mm outline and comes with a square keycap that measures 10x10mm, providing a clear and prominent activation point. The keycap has a height of 8.3mm above the PCB, offering a tactile feel when pressed.

    The switch is illuminated by an LED that can be configured in multiple color options: Red, Green, Blue, Yellow, and White. This allows for easy identification and customization based on user preference or application requirements. The LED operates at DC12V and draws a current of 50mA, ensuring efficient power consumption.

    The LED tactile switch is ideal for use in applications where a clear and visible indication of button activation is needed, such as in control panels, user interfaces, and other electronic devices. Its small size and illuminated design make it an excellent choice for creating intuitive and user-friendly controls.

    Datasheets :

    TD03-112 Illuminated tact switch dip (1)www.jbl-ec.com
