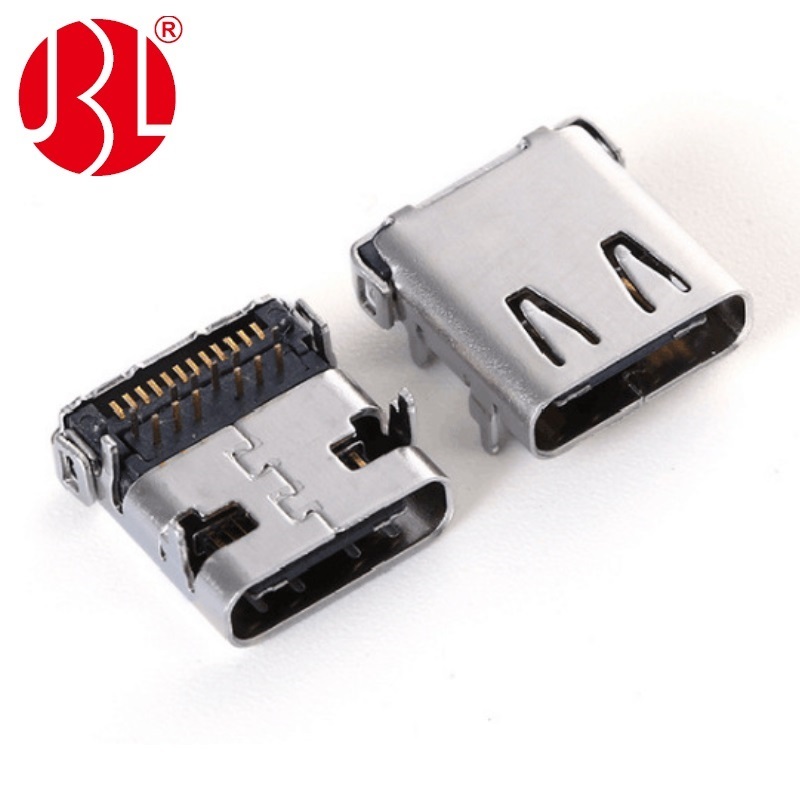

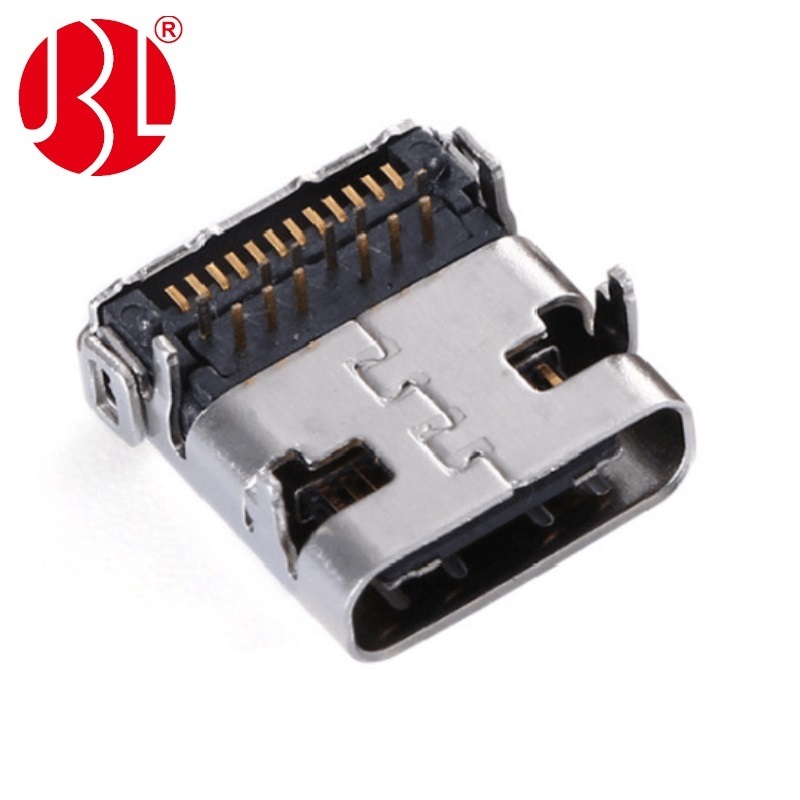

USB-31C-F-02 USB Type C 24Pin USB3.1 USB C Receptacle 2171830001

Short Description:

USB3.2 USB 3.2 USB Type-C USB-C Female Connector Socket 24Pin

Replacement part : 2171830001

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Model Number:: USB-31C-F-02

Type:: USB C Connector

Place of Origin:: Guangdong, China

Brand:: JINBEILI

Packaging:: bag

Description:: USB C Receptacle

D/C:: USB-31C-F-02

Current Rating::: 5A

Voltage Rating::: 20v DC

Product Description

Product Name :	Mini USB C Connector
Rating :	20V DC , 5A
Mounting Angle :	Right Angle
Insulation Resistance:	100MΩ
Dielectric Withstanding Voltage:	100V DC for 1 min
Installation :	DIP+SMT
Total unmating force:	8N to 20N
Product Type :	USB C
Recommended IR Reflow Temp:	260°C
Operation Temperature Range :	-40°C ~ +105°C

FEATURES :

1, USB C2, Meet ROHS and REACH standards;3, 20V , 5A

4, SMT+DIP6 , Right Angle

APPLICATIONS :

1 , Home Appliance

2, Consumer electronics

3, Telecommunications markets

4, Audio / Video products

5, Computer/peripherals

6, , Testing / instrumentation

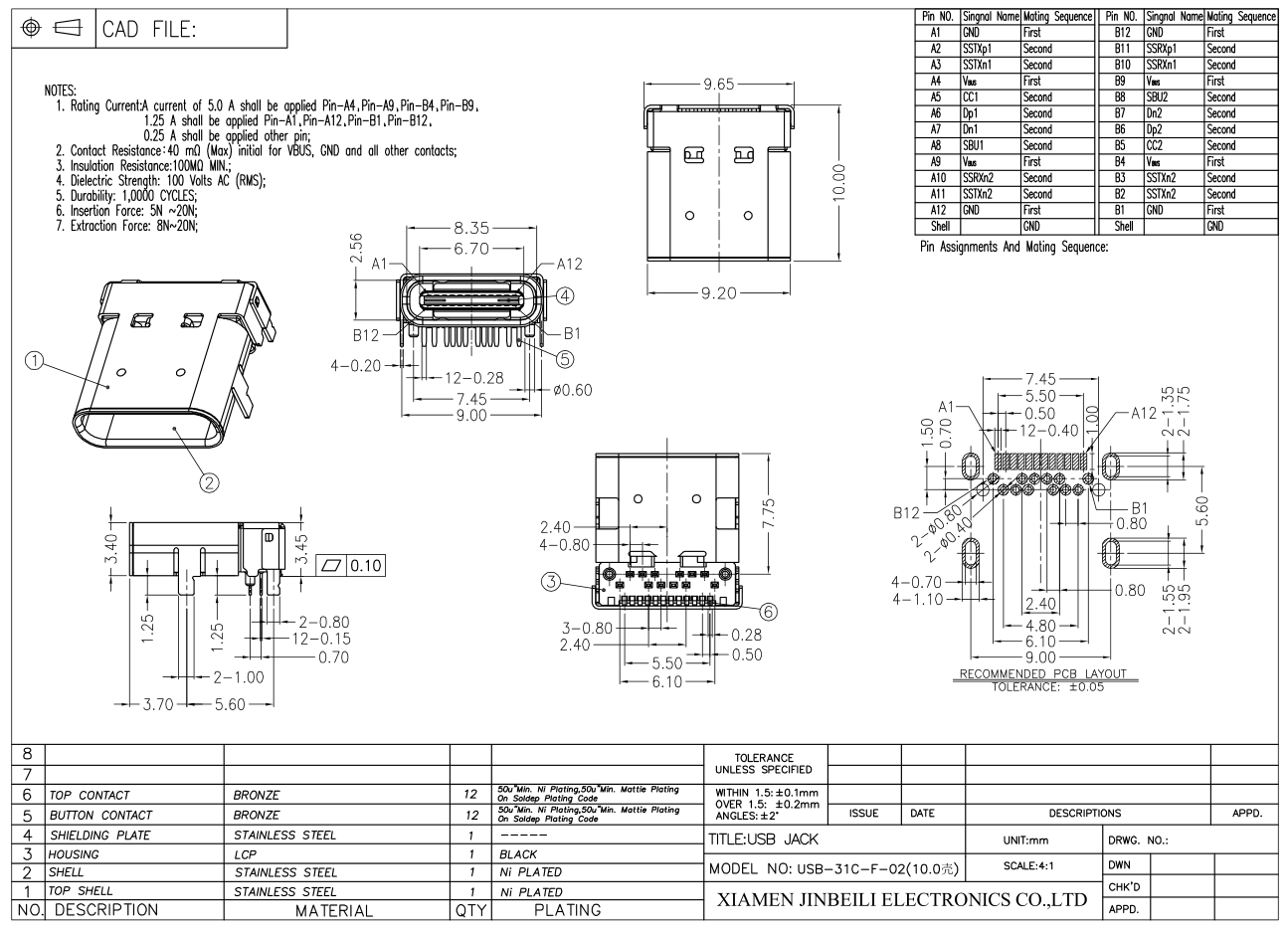

Spec Sheets

If you need original PDF Format data sheet to refer to , please contact us
