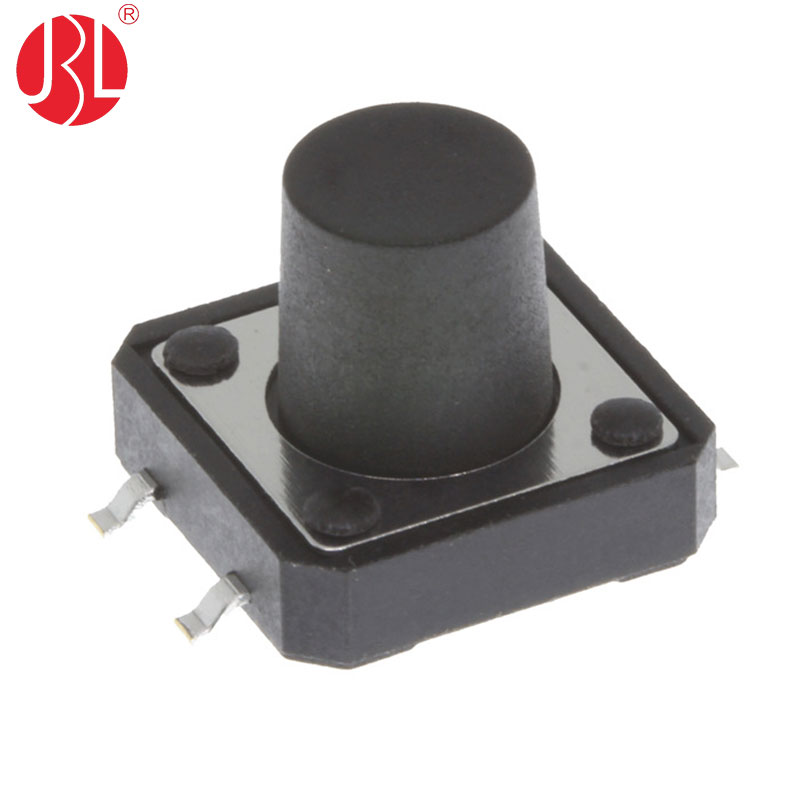

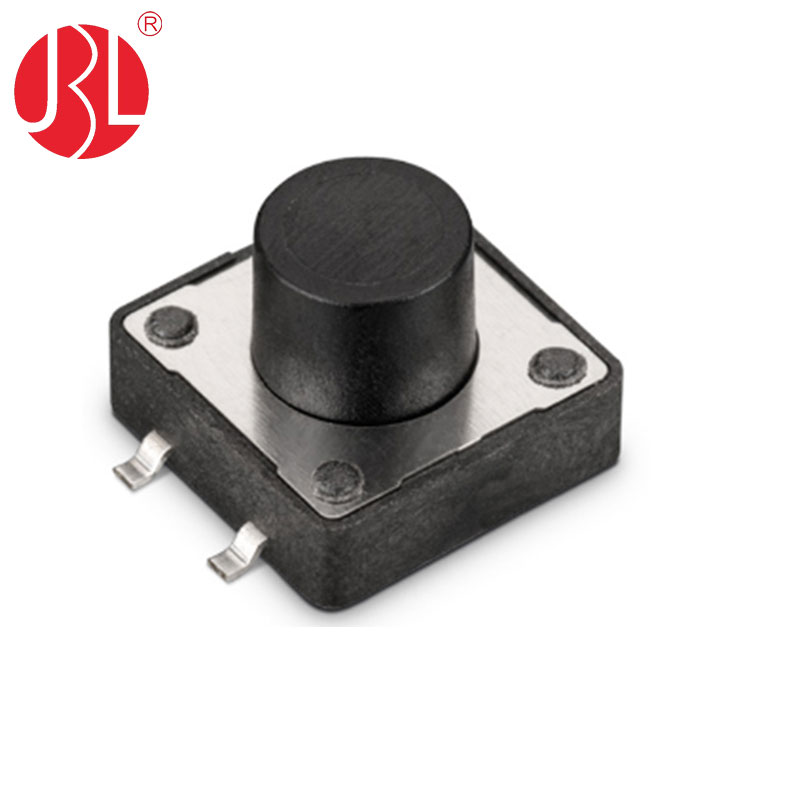

This tactile switch is a surface mount technology (SMT) component with a compact 12x12mm footprint. It features a single-pole, single-throw (SPST) configuration, making it ideal for various electronic applications.

The switch offers a customizable actuator height ranging from 4.3mm to 14mm above the printed circuit board (PCB), providing designers with the flexibility to tailor the switch to their specific needs. Additionally, it comes with multiple operation force options: 120gf, 180gf, and 250gf, allowing for precise tactile feedback and activation force selection.

As a versatile alternative to popular switches such as E-switch TL3300DF260Q, TL3300CF160Q, TL3300CF260Q, TL3300DF160Q, Würth Elektronik 430162043826, 430172043816, CTS switches 224AMVBBR, 224AMVAAR, 224AMVBAR, and Omron switches B3FS-4002P, B3FS-4005P, this tactile switch combines reliability and performance in a compact package. It is an excellent choice for designers seeking a high-quality alternative to these popular models.

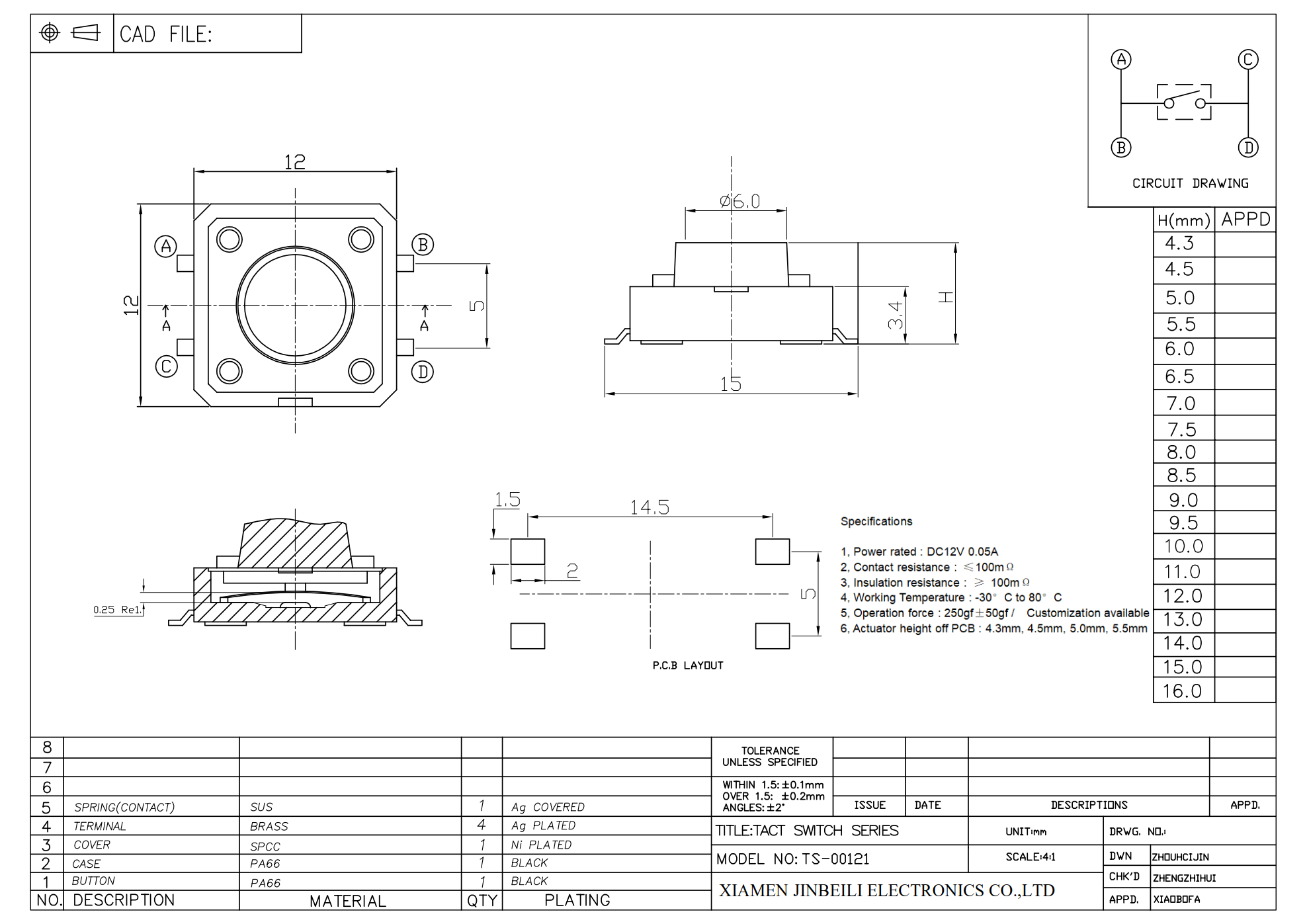

Datasheets :
