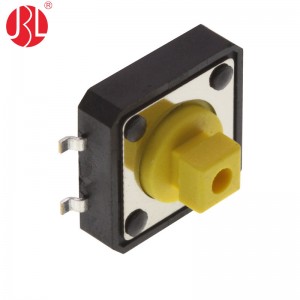

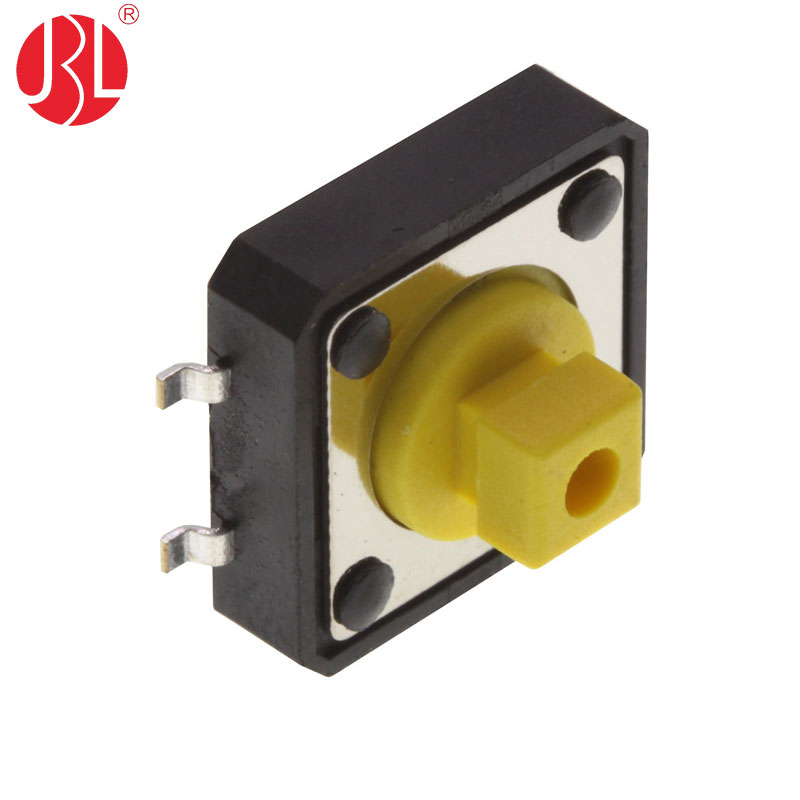

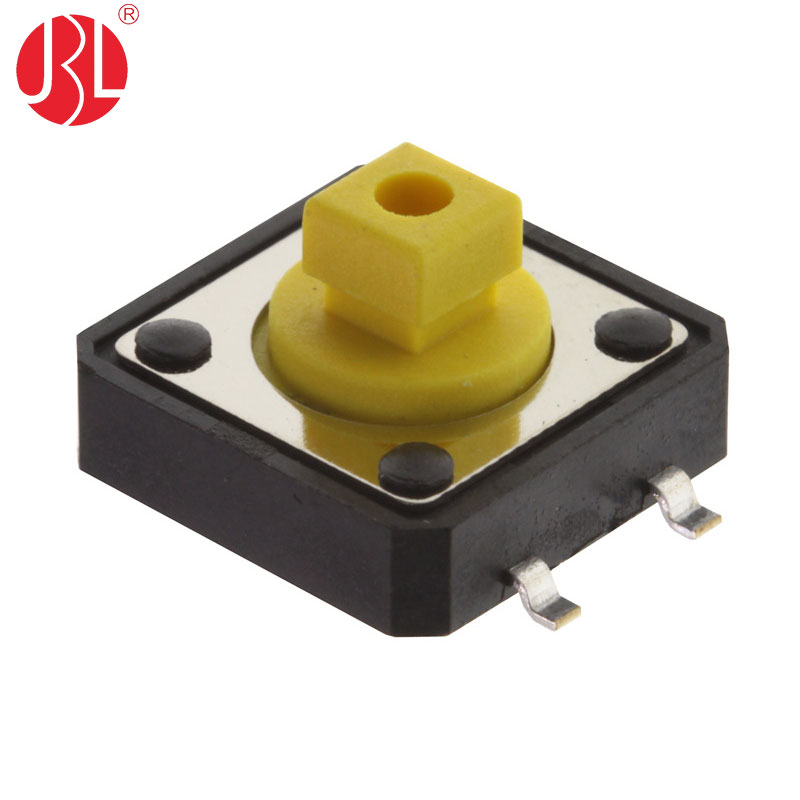

TS-00122 12x12mm Tactile Switch SMD
Product Descriptions :
Product name : 12MM Tact switch
Features : SMT
Power Rated : DC12V 0.05A
Operating force options : 180gf / 250gf / Customization available
Actuator height off PCB options : 4.3mm / 5.0 mm / Customization available
Actuator Color options : white, black, red , Yellow / customization available
Operating life : 100000 cycles
Working Temp : -25°C ~ 85°C
Packaging : tape and reel

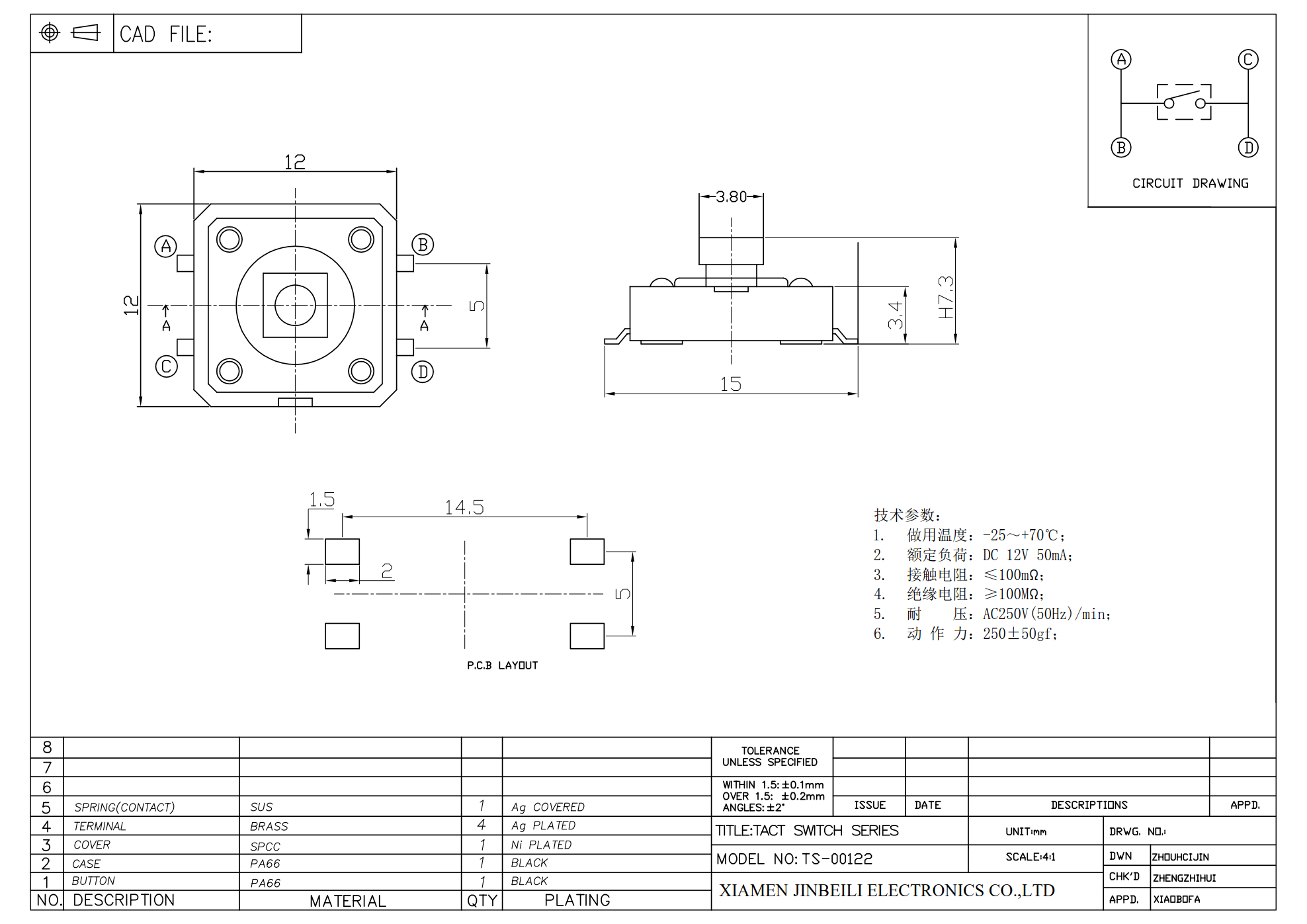

Datasheets :
Product design & development, Tooling ,Moulding and Manufacturing :
