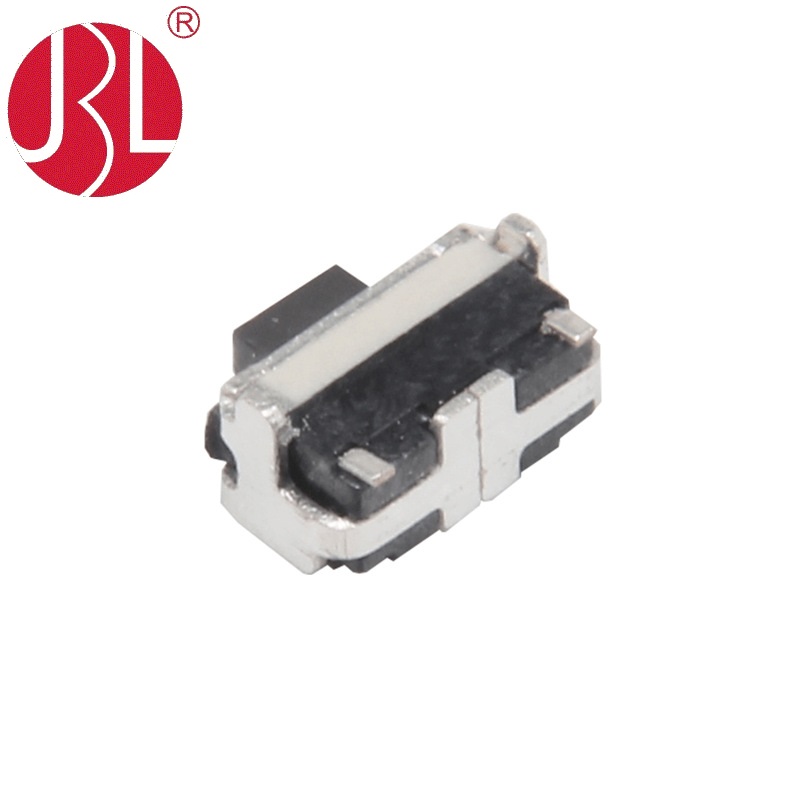

The tactile switch, specifically the Board Edge Mount SMT Right Angle version, is a compact and reliable electronic component designed for surface mount technology (SMT) applications. Measuring 4.6mm by 2.35mm in outline, this switch is ideal for use in space-constrained environments. Its right-angle design allows for easy mounting along the edge of a printed circuit board, facilitating efficient use of board space.

The tactile switch features an actuator length of 1.2mm, providing a distinct tactile feedback when pressed. This feedback is crucial for user interfaces where confirmation of button press is essential. The switch is available with multiple operation force options, including 120gf, 160gf, and 250gf, allowing for customization based on the desired level of sensitivity and durability.

Whether used in consumer electronics, industrial controls, or automotive applications, this tactile switch offers dependable performance and long-lasting reliability. Its SMT compatibility and compact size make it an excellent choice for designers seeking to integrate high-quality switch functionality into their electronic devices.

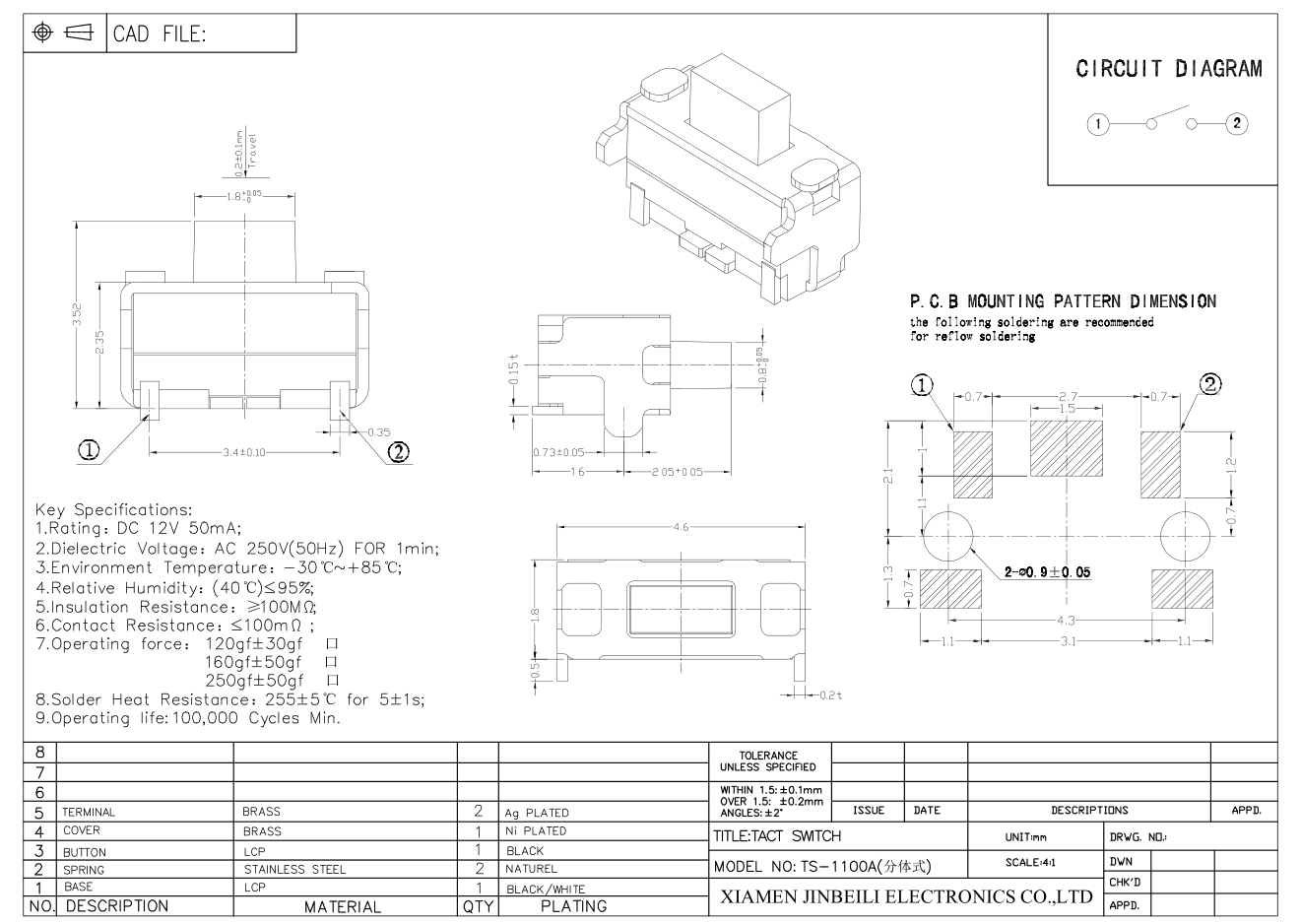

Datasheets :
