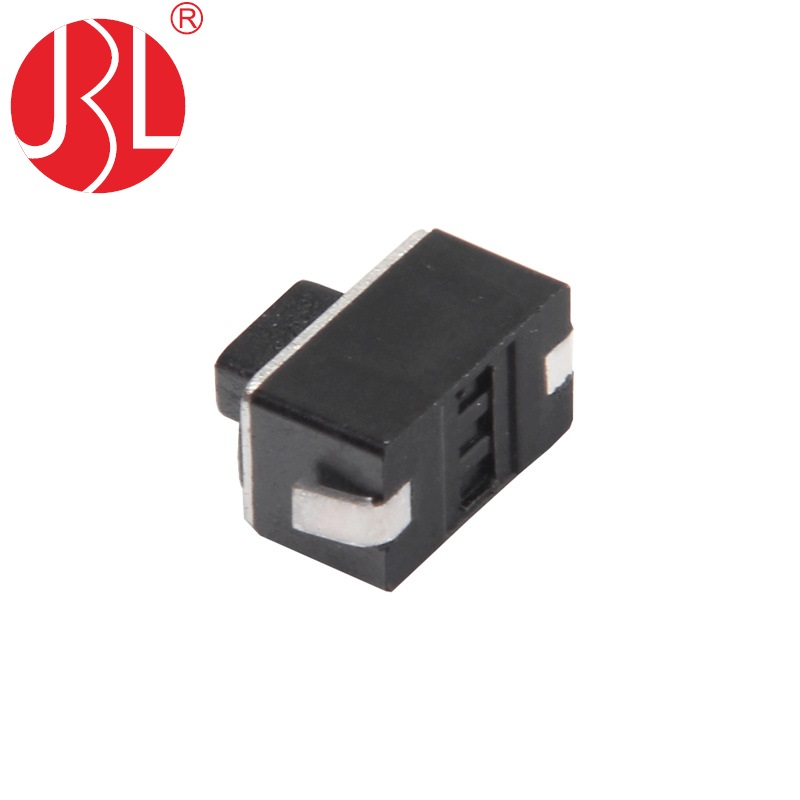

The tactile switch in question is a compact, surface-mount technology (SMT) component with J-hook leads designed for easy integration into printed circuit boards. Measuring 6mm by 3.5mm in outline, this switch offers a sleek and space-saving design suitable for various electronic applications. Operating at a DC voltage of 12V with a current rating of 50mA, it provides reliable performance within specified electrical parameters.

This tactile switch serves as a versatile alternative to several popular models, including E-switch’s TL6400AF260QJ, TL6400BF260QJ, TL6400AF160QJ, and TL6400BF160QJ, as well as Würth Elektronik’s 434113050826 and 434123043836 switches. Additionally, it can replace Panasonic switches such as EVQ-PJS04K, EVQ-PJS05K, EVQ-PJX04M, EVQ-PJX05M, EVQ-PJU04K, EVQ-PJU05K, and EVQ-PJS05K.

Its tactile feedback ensures that users can confidently confirm the activation of the switch, enhancing user experience in devices ranging from consumer electronics to industrial controls. With its compact size, electrical specifications, and compatibility with multiple switch models, this tactile switch is an excellent choice for designers seeking a reliable and versatile component for their electronic projects.

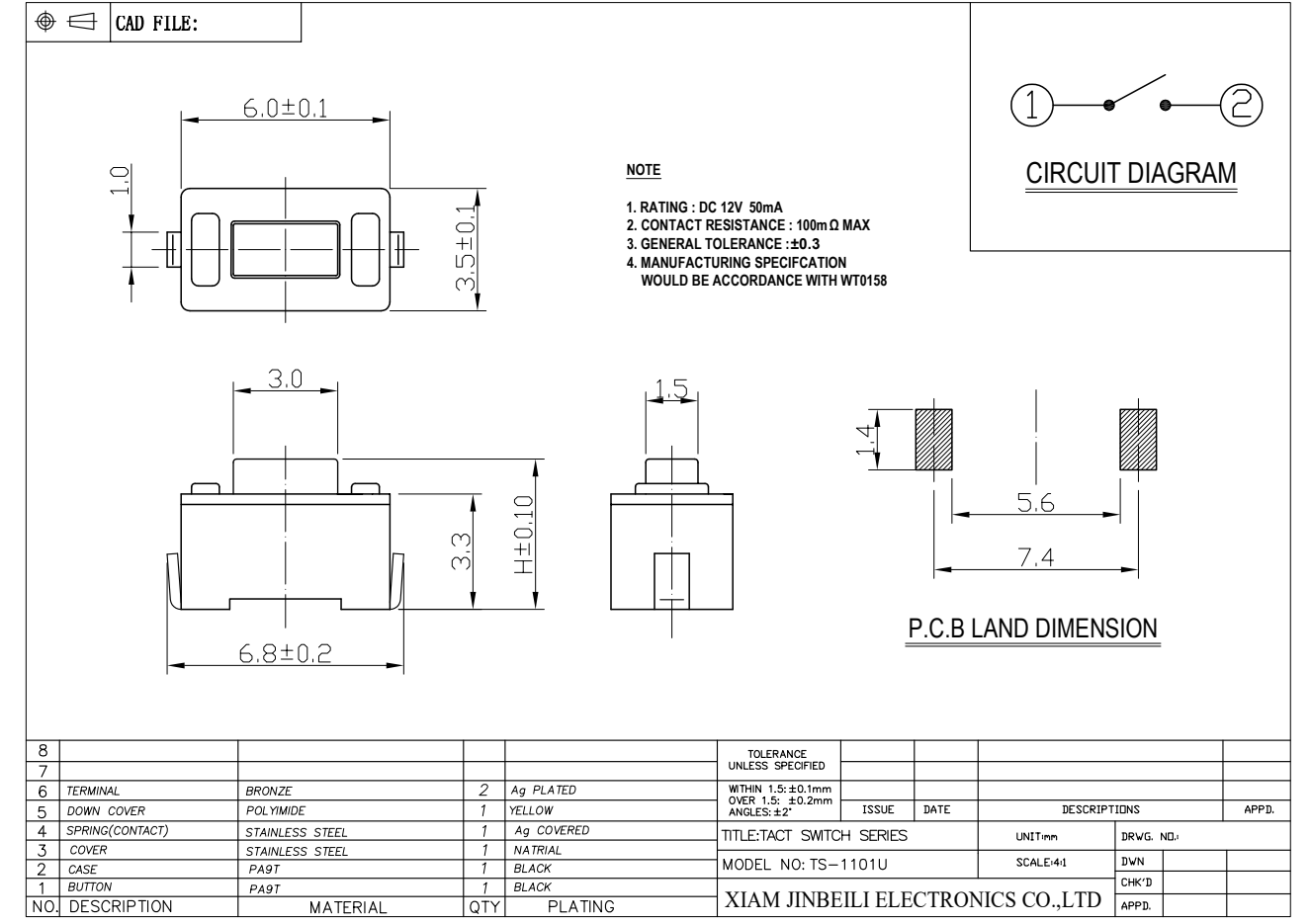

Datasheets :
