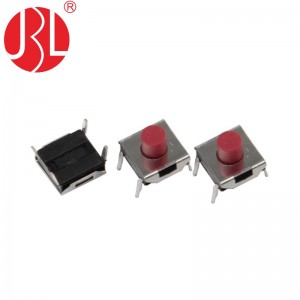

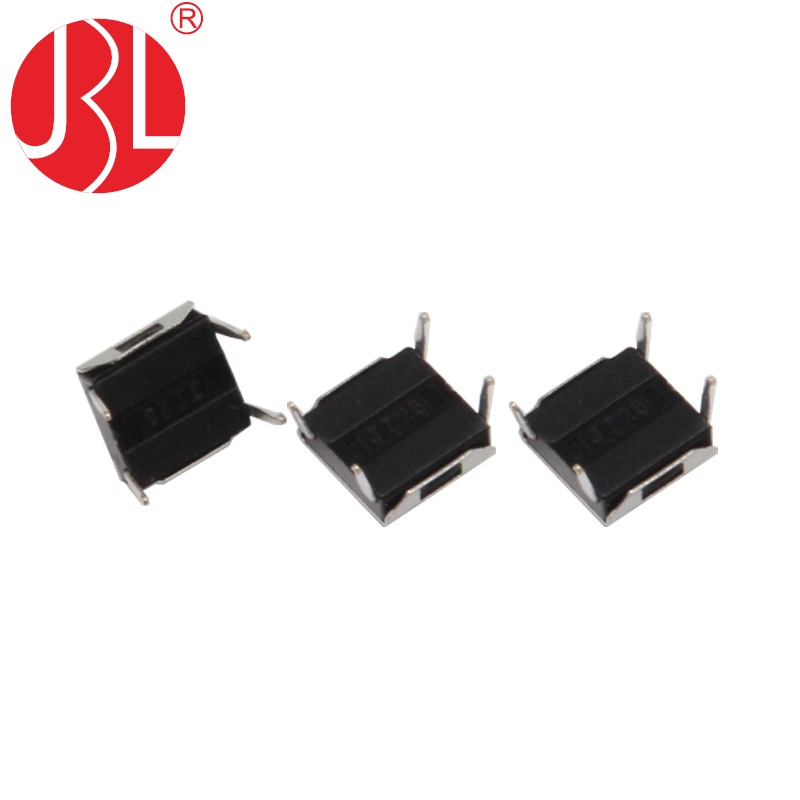

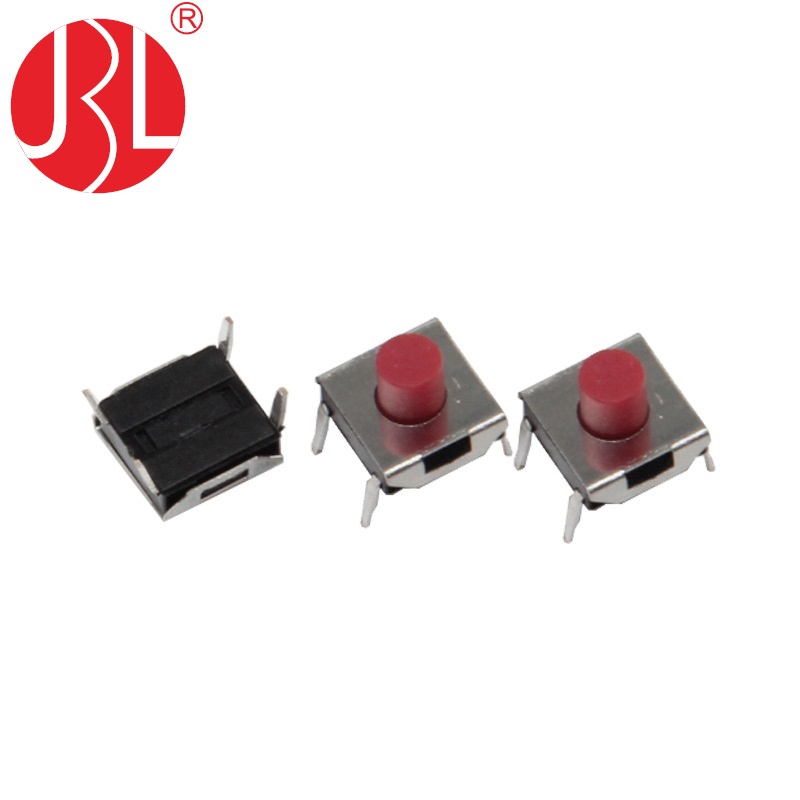

TS-1157A 6.2×6.2 mm Tactile Switch DIP
Product Descriptions :
Product name : 6.2×6.2 mm Tact switch
Features : SMD , Vertical , Gull Wing
Power Rated : DC12V 0.05A
Terminals : 4Pin or 5Pin
Operating force options : 100gf / 180gf / 260gf / 320gf
Actuator color : black / red / customization available
Actuator height off PCB : Customization available
Operating life : 100000 cycles
Working Temp : -25°C ~ 85°C
Packaging : Tape & Reel

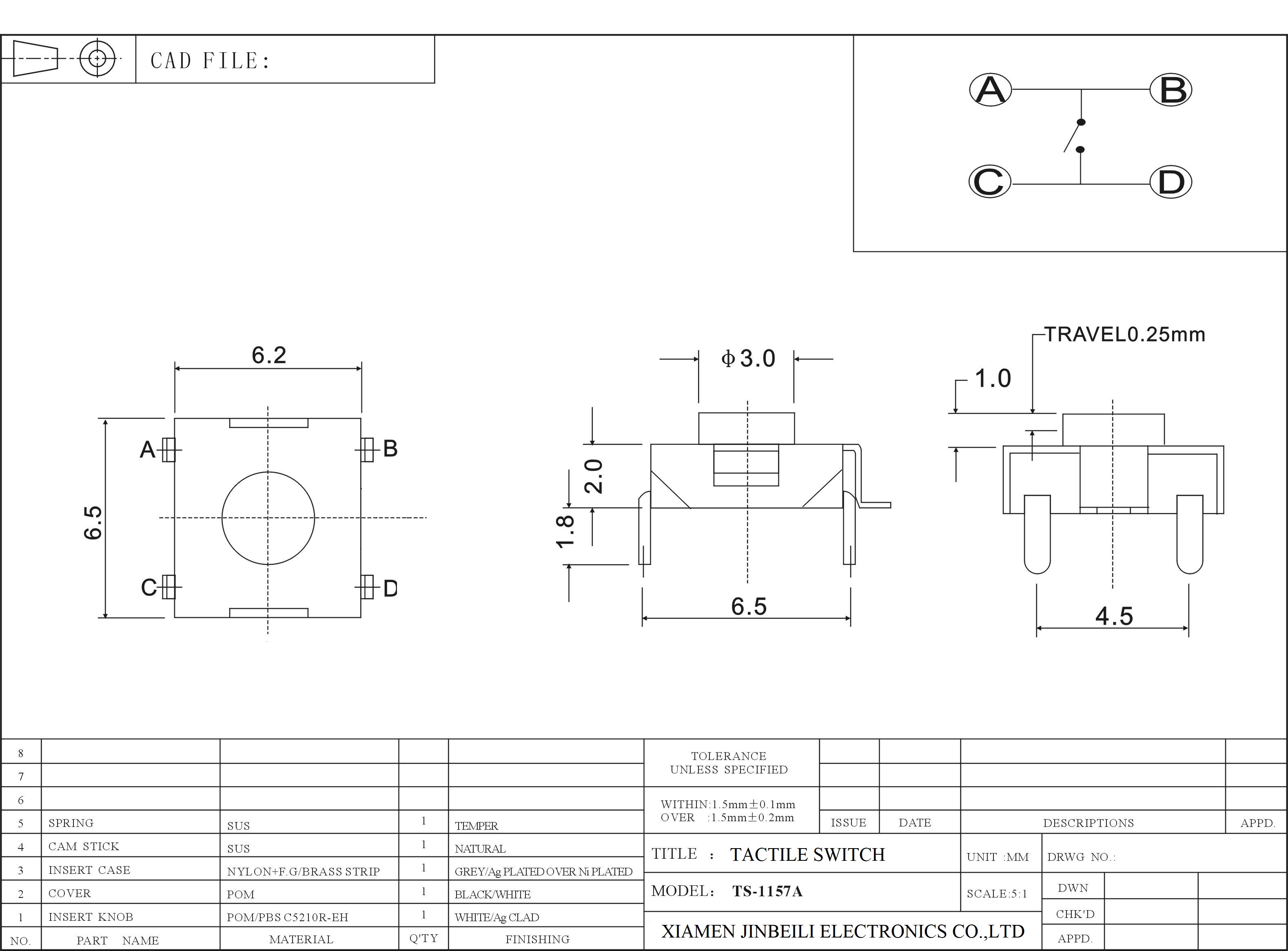

Datasheets :
