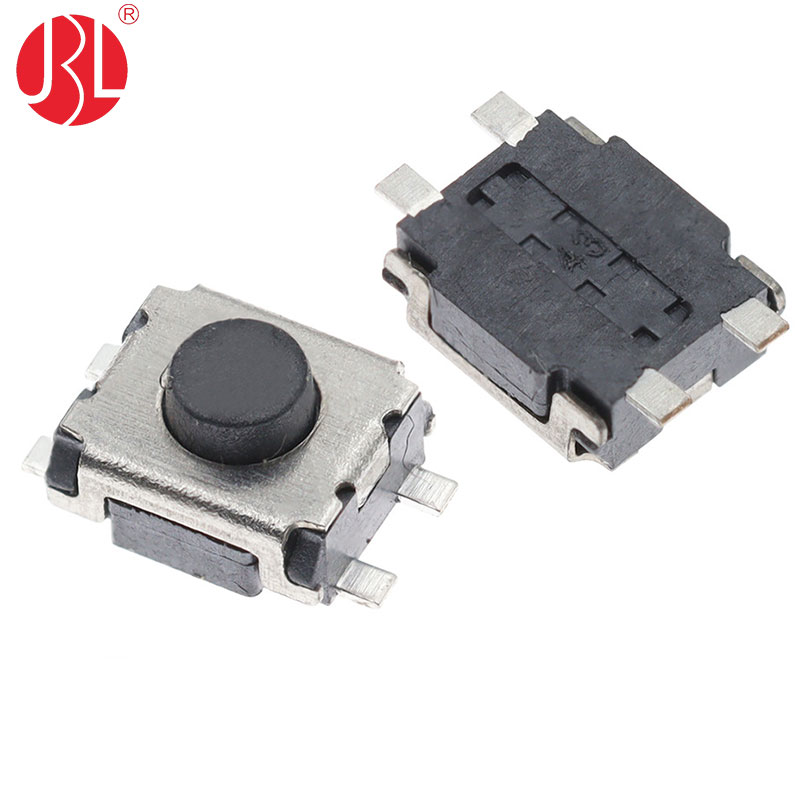

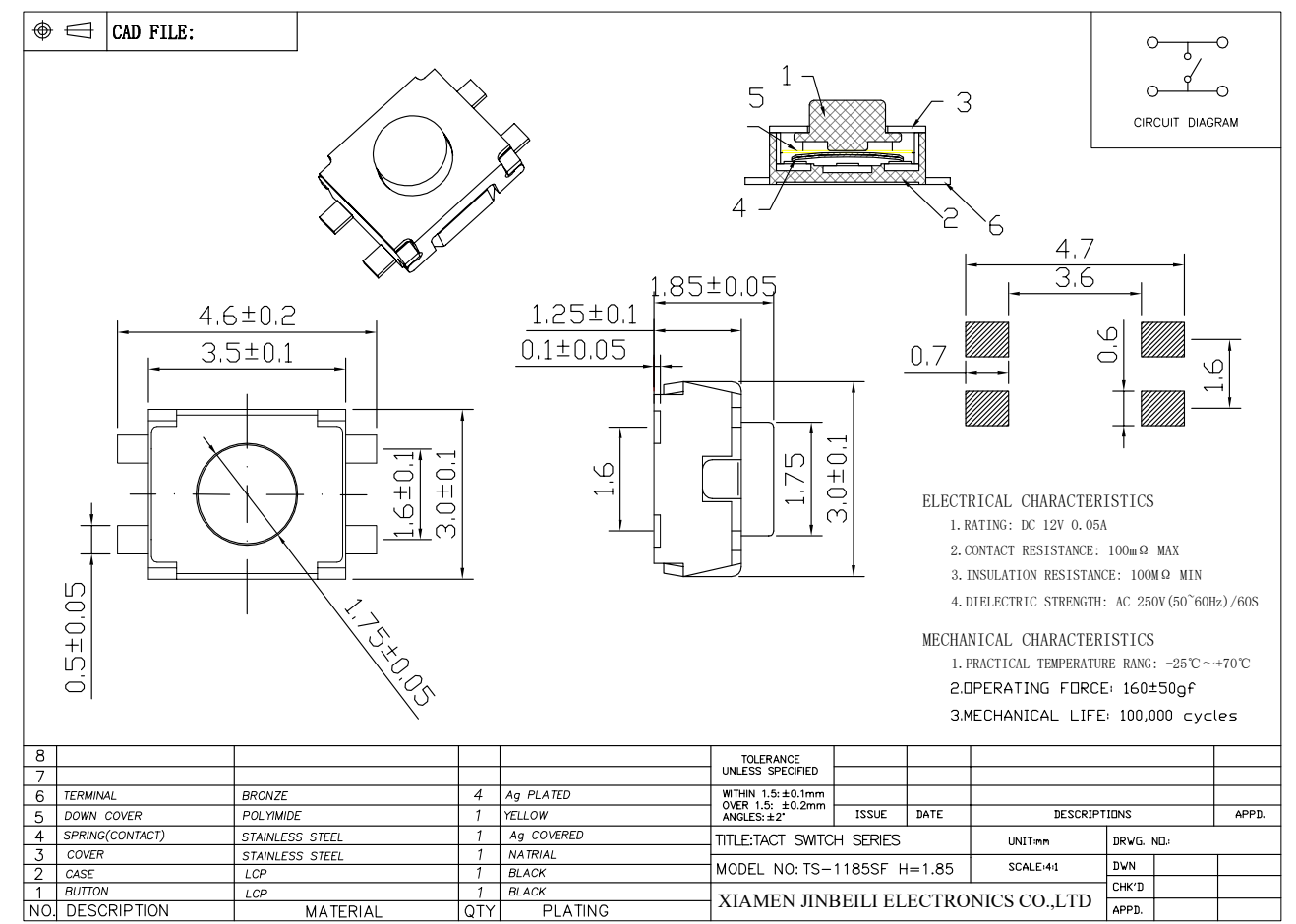

The tactile switch is a surface-mount technology (SMT) component with compact dimensions, featuring an outline of 3.5mm by 3.0mm. It incorporates gull-wing leads for easy and secure mounting onto PCBs. The actuator, which is the part pressed to activate the switch, has a height of 1.85mm above the PCB, providing a clear and tactile feel when engaged.

This switch operates at a DC voltage of 12V and can handle a current of up to 50mA. It is ideal for a wide range of applications, including electronic devices, appliances, and industrial controls, where reliable and consistent tactile feedback is crucial. The switch’s small footprint and sturdy design make it a versatile choice for integrating into space-constrained designs, ensuring both functionality and user satisfaction.
