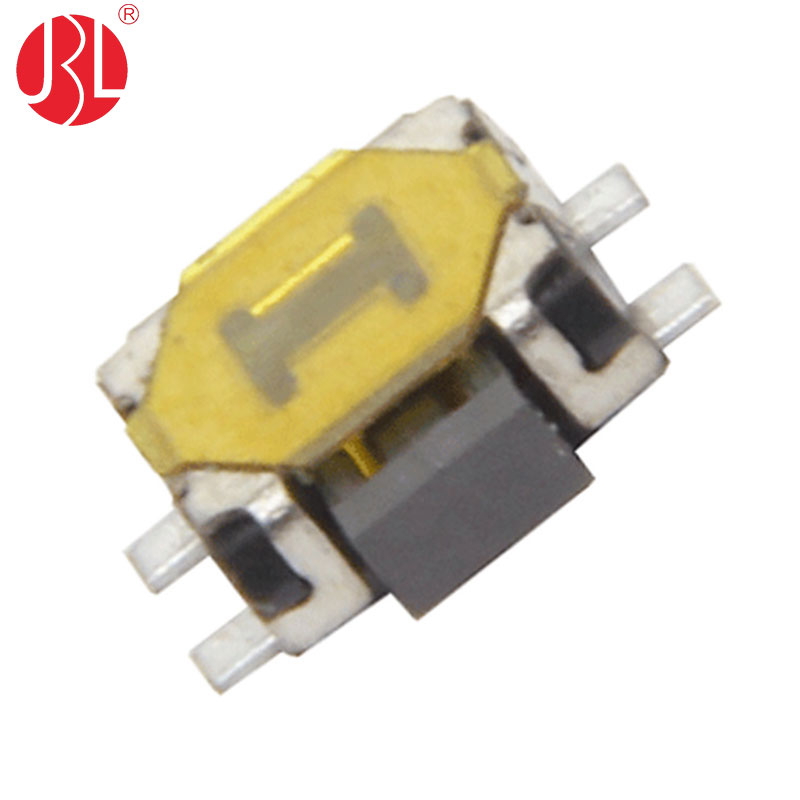

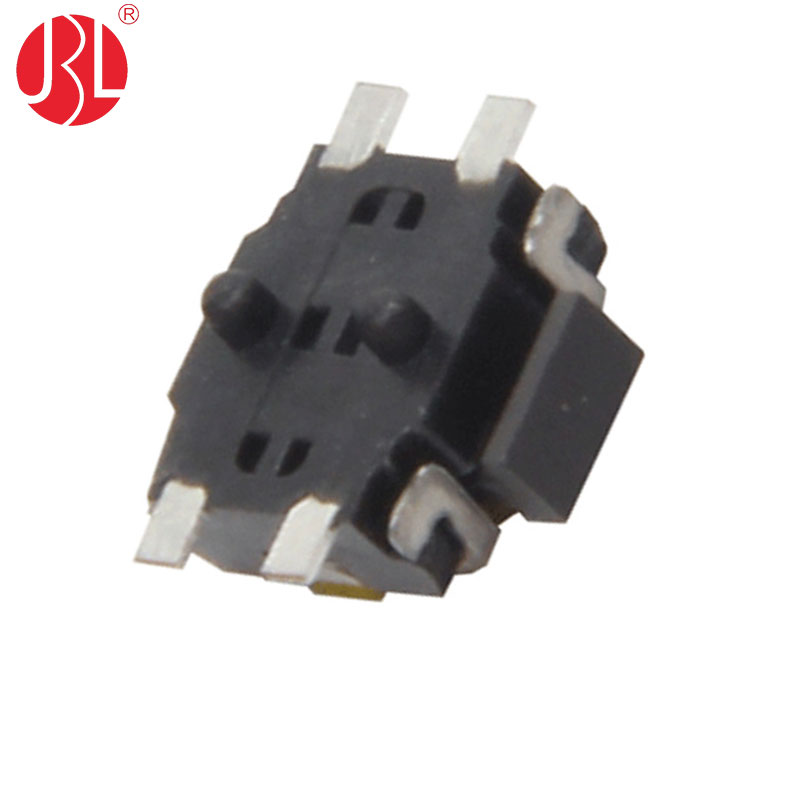

The tactile switch under discussion is a compact and versatile component designed for surface mount technology (SMT) applications. Measuring 3.5mm by 2.9mm (alternatively known as a 4.7mm by 2.9mm tact switch), this switch is ideal for integration into space-constrained electronic devices. Its board edge mount design allows for secure and reliable installation, ensuring a sturdy connection that can withstand the rigors of daily use.

The side actuated SMD right-angle switch features an actuator length of 0.7mm, providing a crisp and tactile response when pressed. This makes it an excellent choice for user interfaces that require precise and immediate feedback, such as buttons on remote controls, game controllers, and other electronic gadgets.

Compatible with a wide range of switch series, this tactile switch can serve as a direct replacement for Alps Alpine SKSCL series switches, including models like SKSCLCE010, SKSCLAE010, and others. It is also interchangeable with E-switch TL1016 series switches, such as TL1016AAF220QG and TL1016BAF220QG, among others. Additionally, it can replace Panasonic EVQ-7P series switches like EVQ-P7A01K and EVQ-P7J01K, as well as C&K PTS840 series switches and CTS Electrocomponents 226EM1 series switches.

This versatility makes the switch a highly flexible option for designers and engineers looking to standardize their componentry across multiple product lines or seeking a cost-effective alternative to more expensive switch options. With its robust construction and reliable performance, this tactile switch is well-suited for a variety of applications, from consumer electronics to industrial controls. Whether you’re designing a new product or looking to upgrade an existing one, this switch offers an excellent balance of performance, compatibility, and cost-effectiveness.

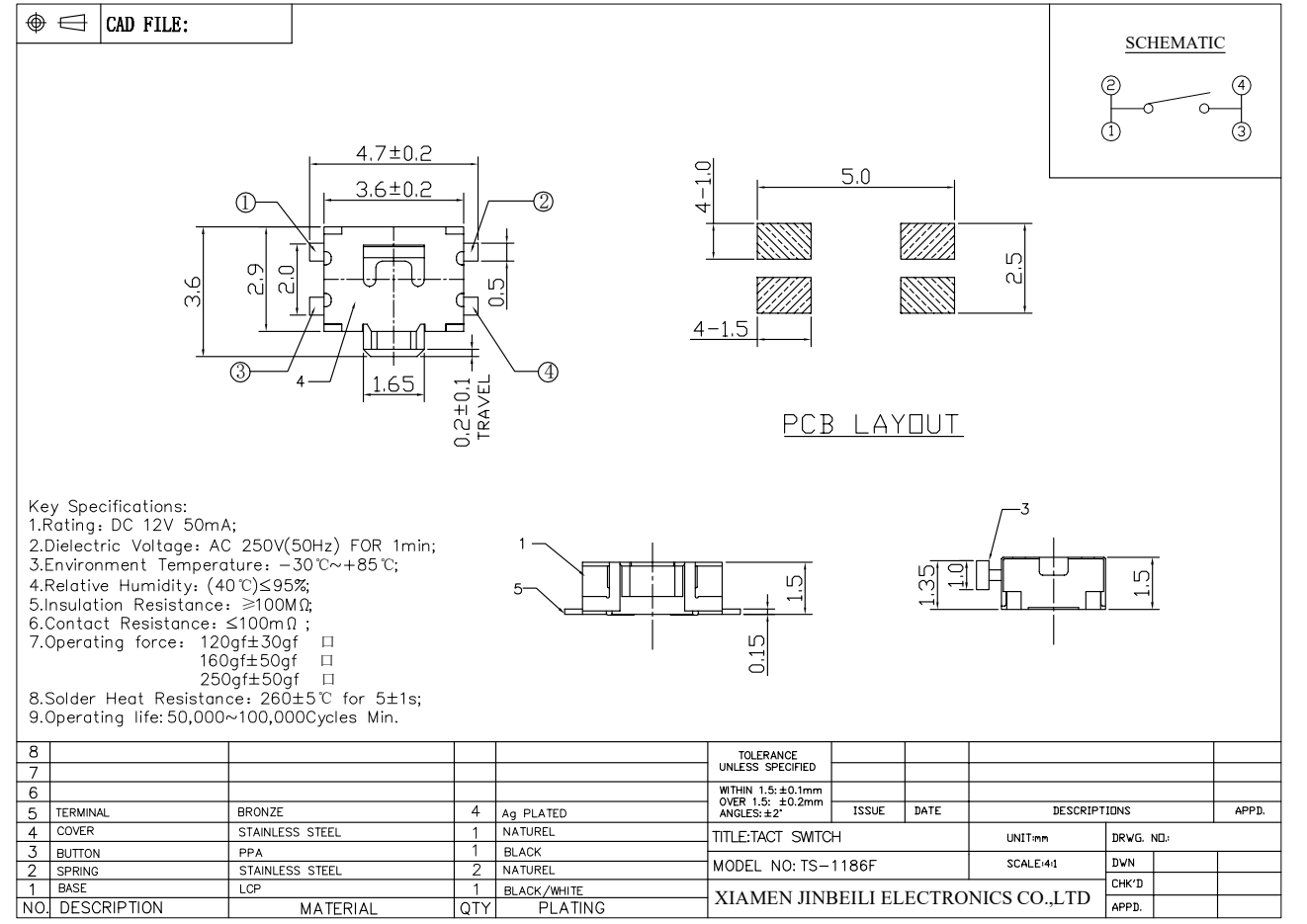

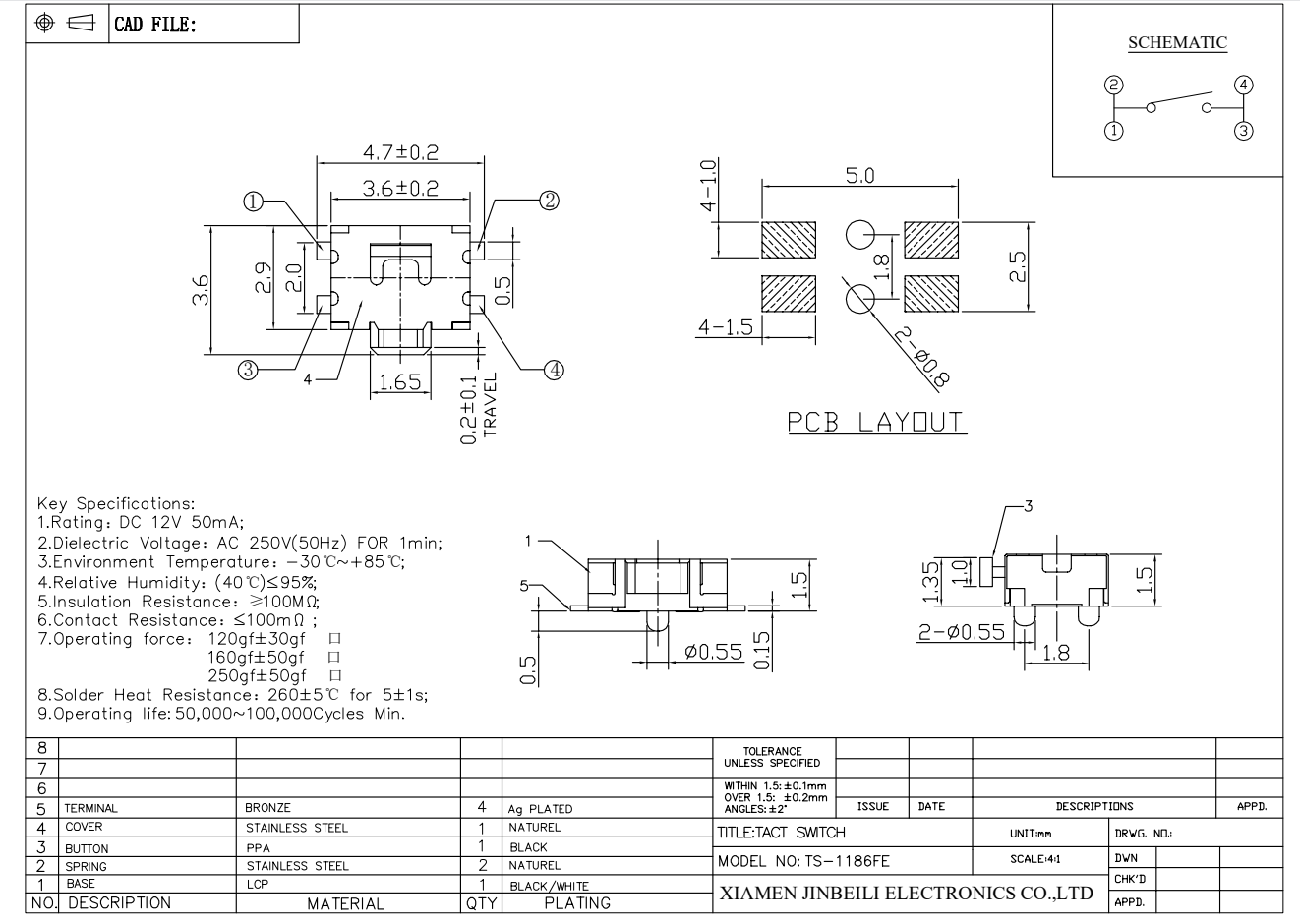

Datasheets :
