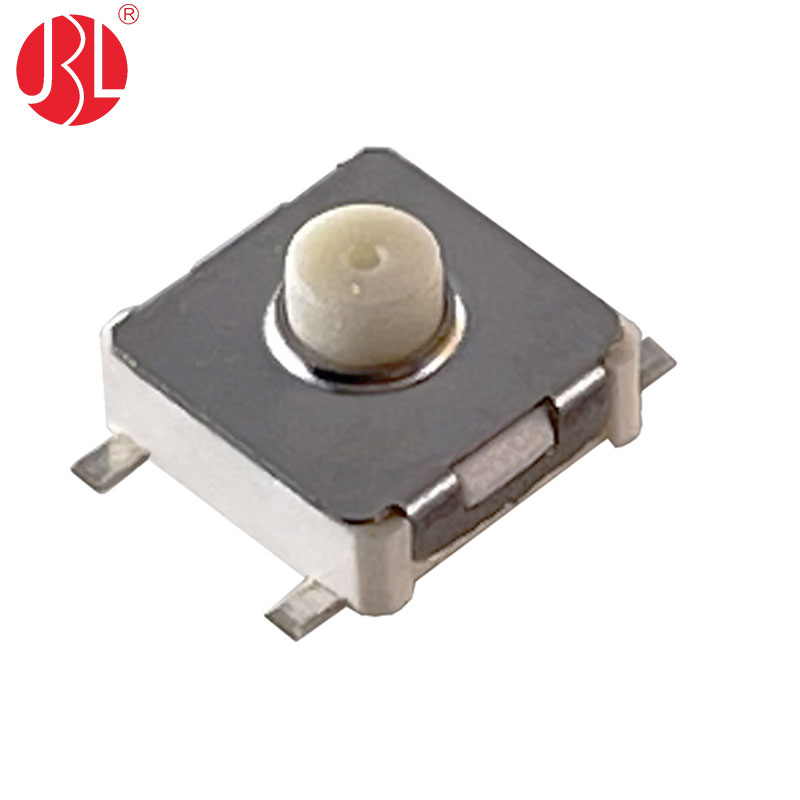

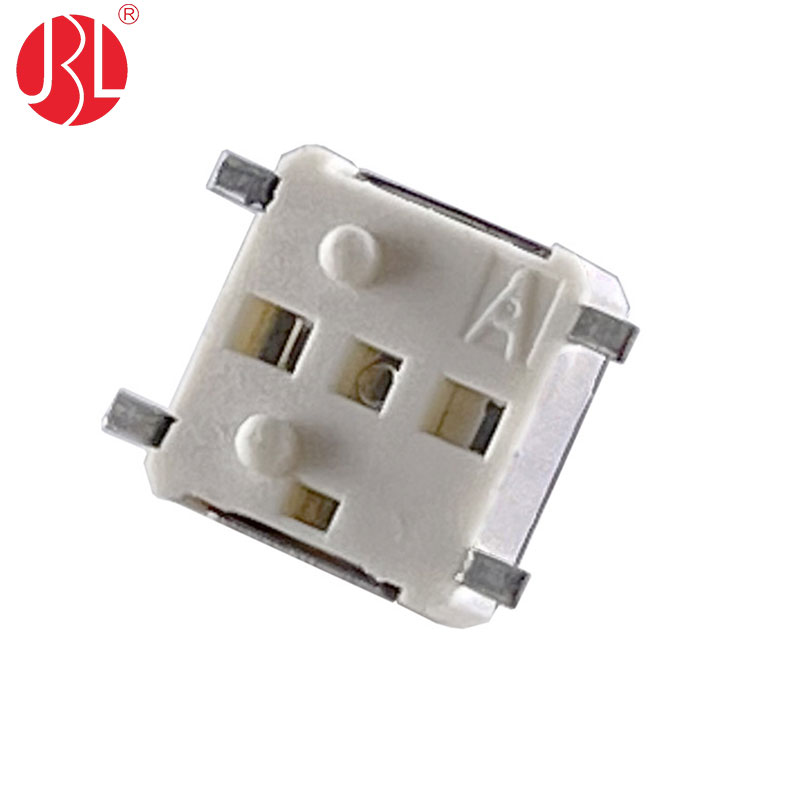

TS-2204 Tactile Switch DPDT SMD

DPDT Tactile Switch 6.5*6.2 SMD SPST NO x 2 Top Mount for Camera Replacement part TL3350BF100Q

Product Detail

Product Descriptions :

Product name : 6.5×6.2 tact switch

Features : SMD , Vertical, DPDT

Power Rated : DC12V 0.05A

Operating force options : 100gf , 160gf

Actuator height off PCB : 3.8mm / customization available

Actuator Color : white, black, / customization available

Operating life : 100000 cycles

Working Temp : -25°C ~ 85°C

Packaging : Tape & Reel

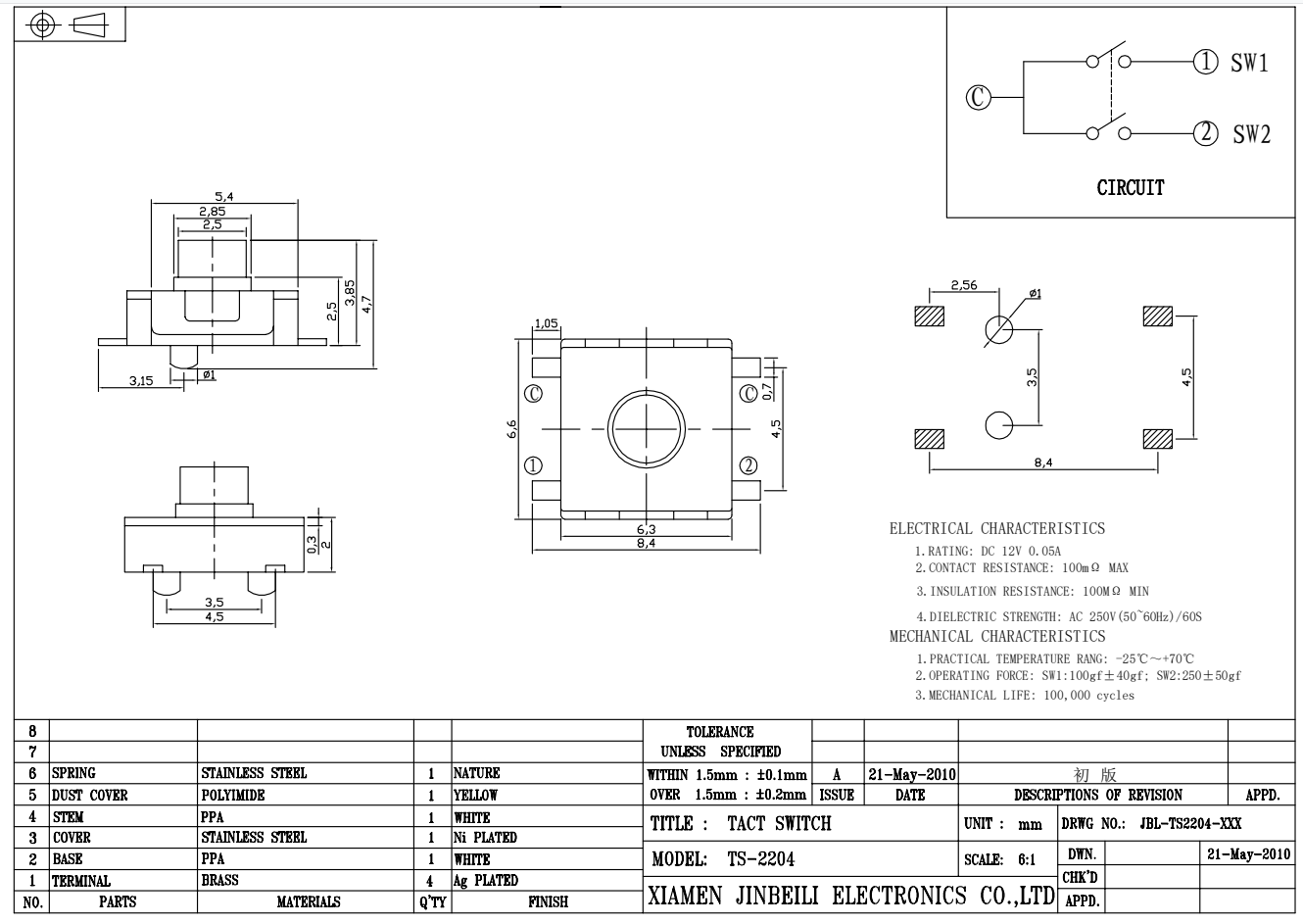

Datasheets :
