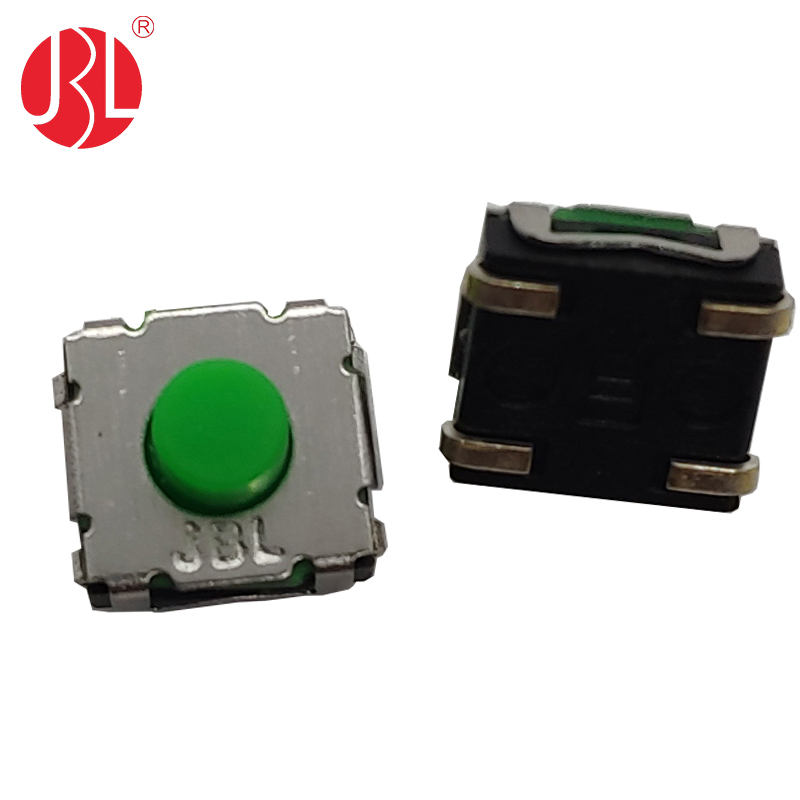

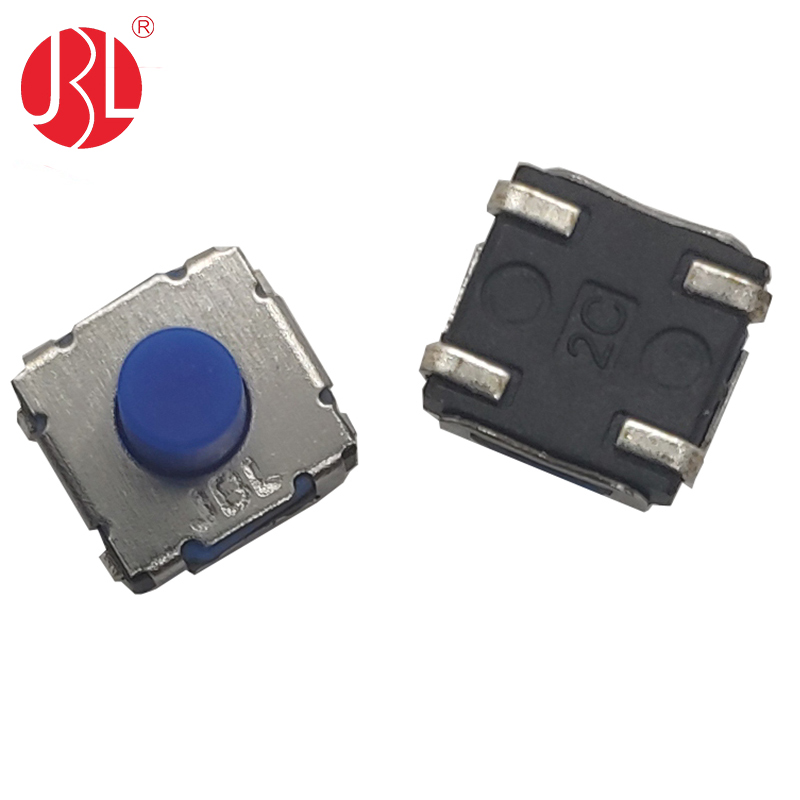

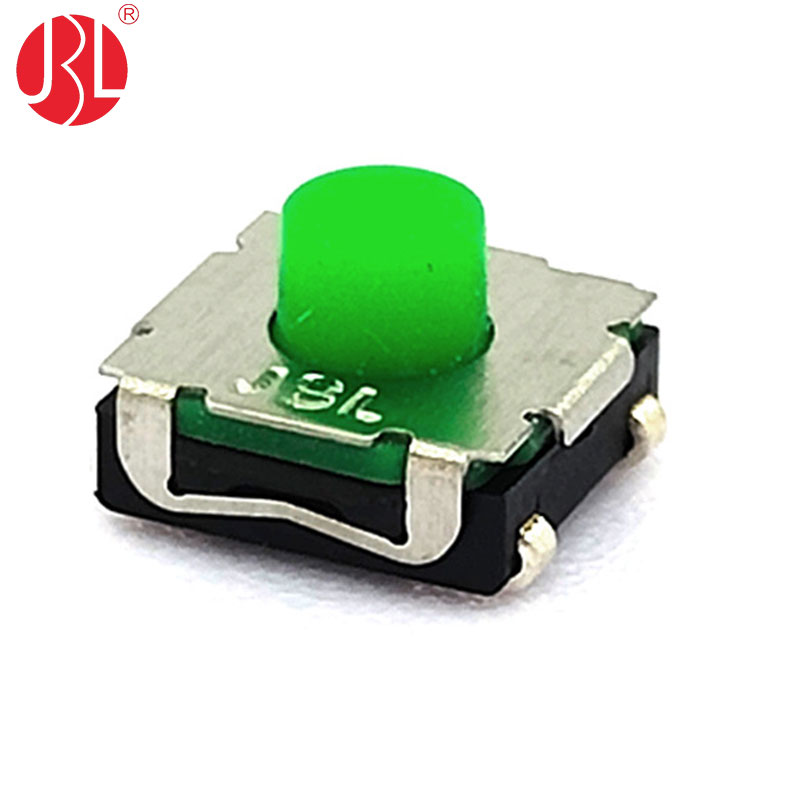

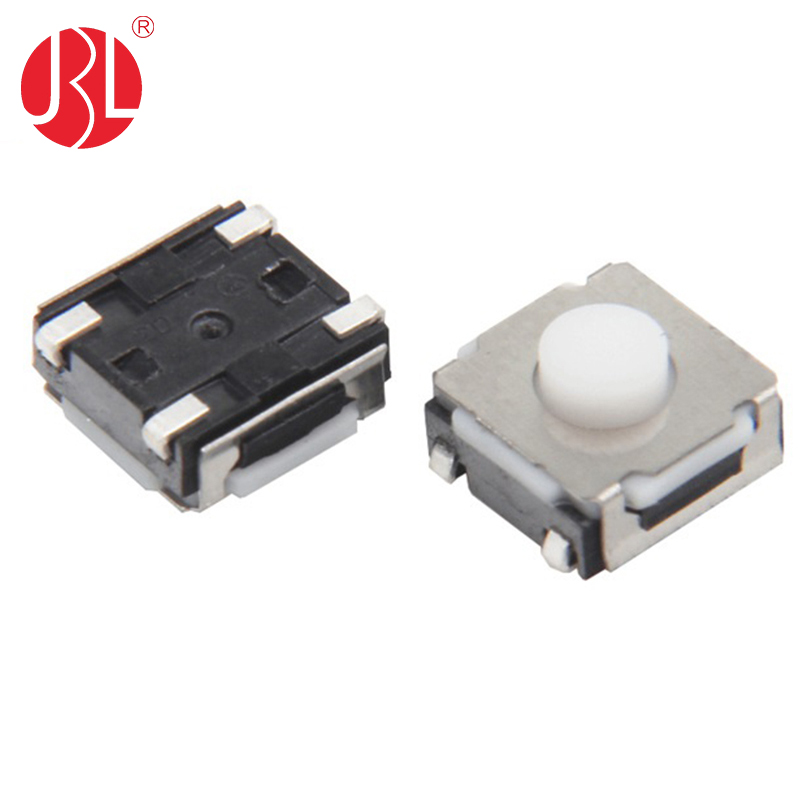

TSF-062 6.2*6.2mm Waterproof Tactile Switch Surface Mount
-
-
This high-performance, IP67-rated tactile switch is engineered for reliability in demanding applications where exposure to dust and moisture is a concern. Its robust construction ensures complete protection against particulate ingress and temporary immersion, making it an ideal choice for automotive controls, outdoor instrumentation, industrial interfaces, and medical devices.

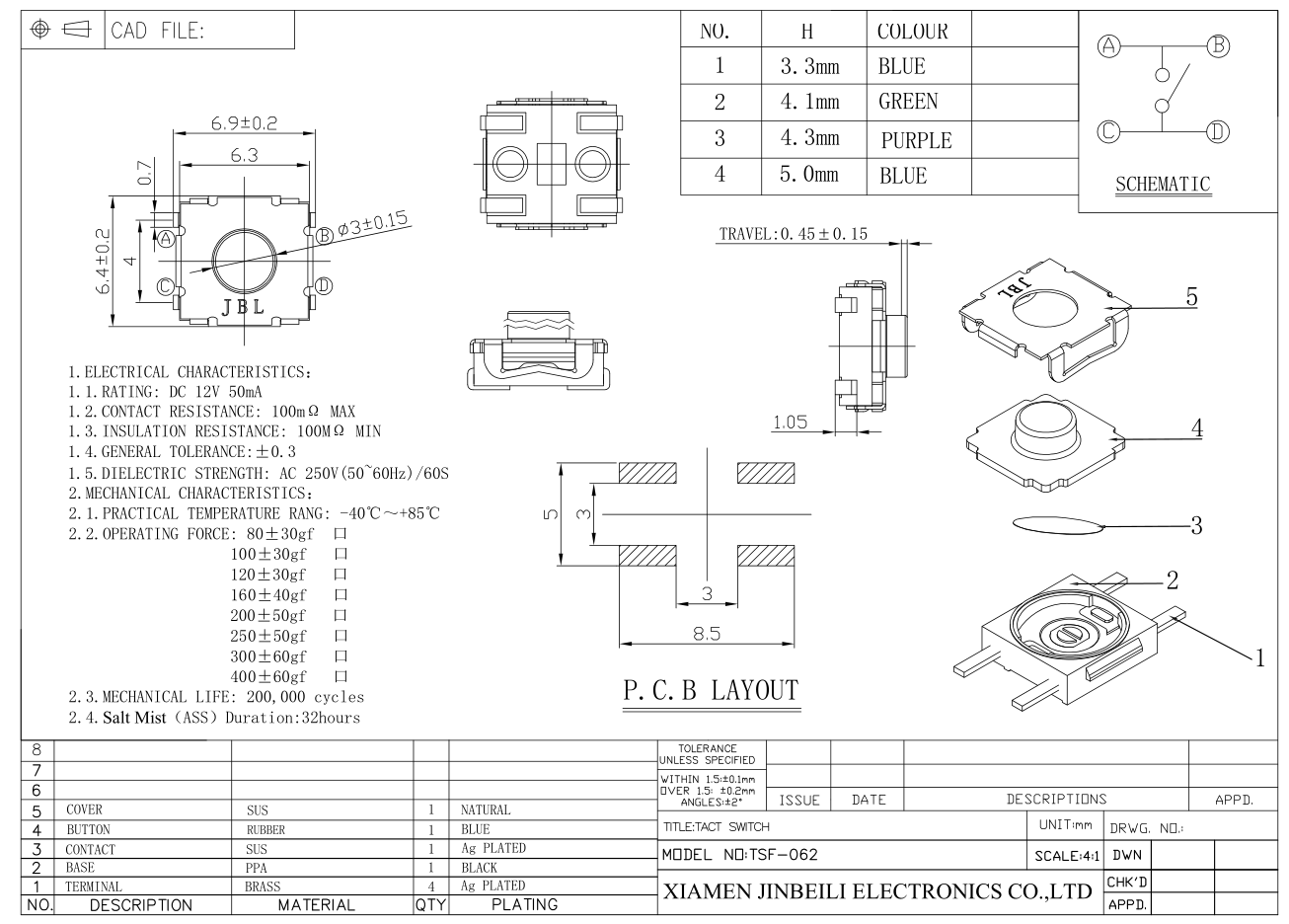

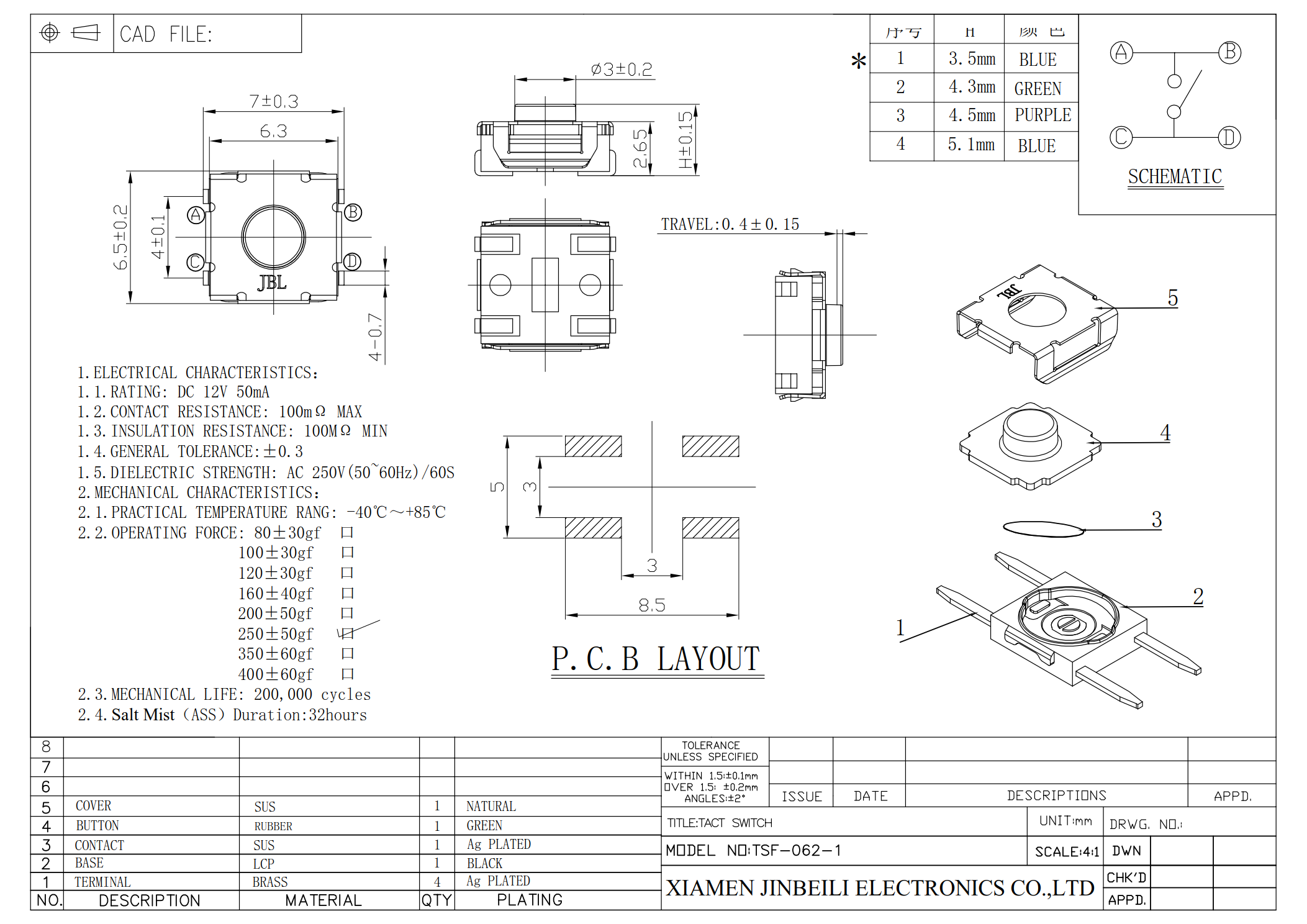

The switch features a compact, Gull Wing Leads, surface-mount outline of 6.2 x 6.2mm, designed for streamlined PCB integration. It is offered with a soft rubber actuator for enhanced tactile feel and user comfort, available in blue, purple, and green for intuitive visual identification or aesthetic matching. To accommodate diverse panel and overlay thicknesses, multiple actuator heights off the PCB are available: 3.1mm, 3.5mm, 4.3mm, 4.5mm, and 5.1mm. Furthermore, a wide range of operation force options—100gf, 120gf, 160gf, 180gf, 200gf, and 250gf—allows designers to precisely tailor the actuation feel to the specific user interface requirements.
This switch is designed as a direct and superior alternative to popular models such as the E-Switch TL3145/TL6800/TL6150 series and the C&K KSC221 (e.g., Y31B11132FPLFS) series, offering equivalent or enhanced performance in a comparable footprint.
Critical to its long-term reliability is our meticulous manufacturing process. Each switch is assembled within a controlled factory cleanroom environment. This strict protocol prevents any contaminating dust particles from entering the switch mechanism during production, a common point of failure in lesser assemblies. This guaranteed internal cleanliness from the point of origin ensures consistent electrical performance, a crisp tactile response, and an extended operational lifespan.
Product design & development, Tooling ,Moulding and Manufacturing :
