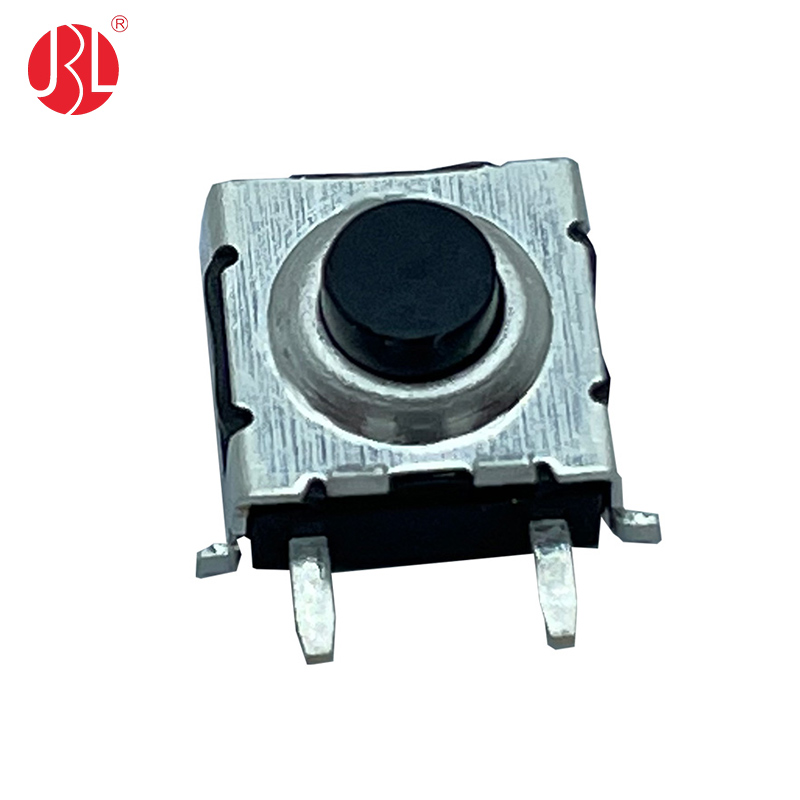

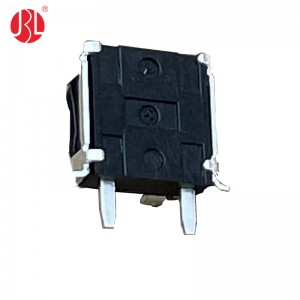

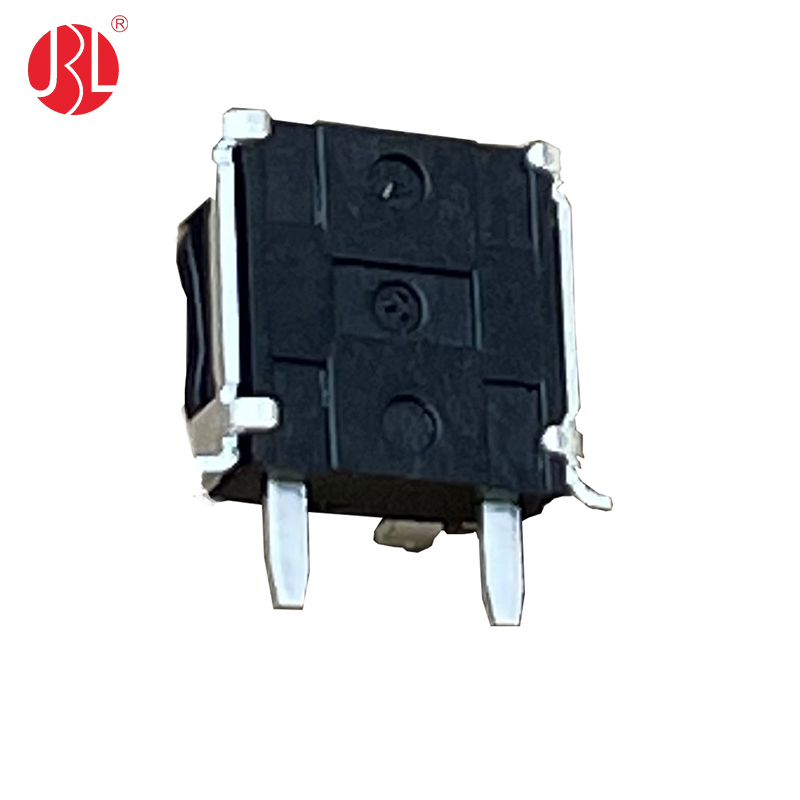

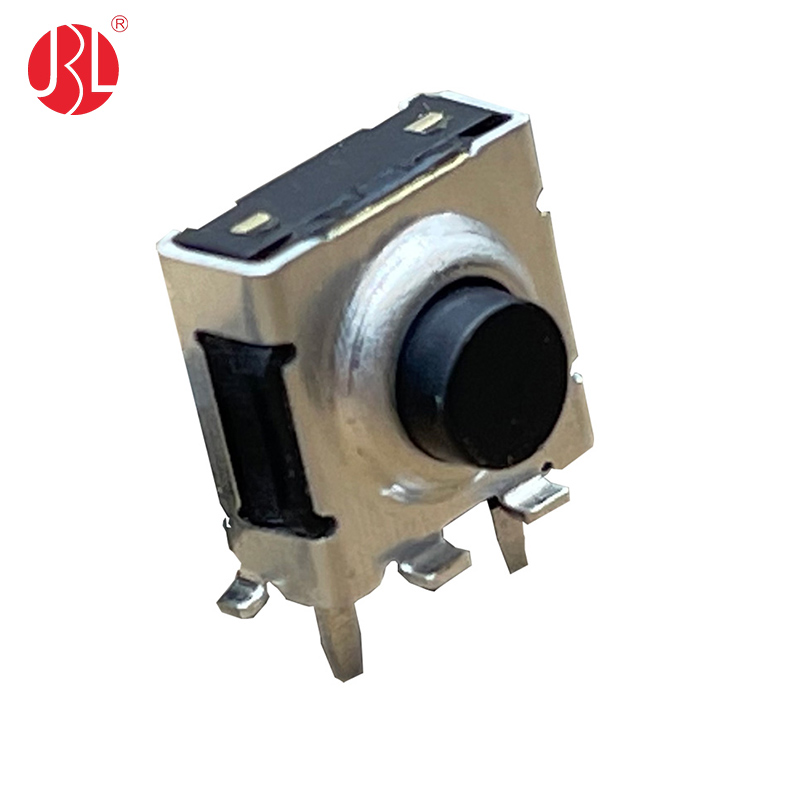

TSF-062C IP67 Waterproof Tactile Switch Through Hole Right Angle

Short Description:

IP67 Rating Waterproof 6.4*6.35mm Tactile Switch SPST Through Hole Right Angle


  • Item: Tact Switch
  • Mount: Through Hole Right Angle
  • Configuration: SPST
  • Power Rated: DC12V 50mA
  • Actuator Height off Switch Base: 4.2mm
  • Switch Travel: 0.4mm
  • Waterproof Level: IP67 Rating
  • Product Detail

    Product Tags

    The waterproof tactile switch is a SPST (Single Pole, Single Throw) Normally Open type, featuring a through-hole right-angle design with 2 pins. It has compact dimensions, with an outline measuring 6.4mm x 6.35mm, making it ideal for space-constrained applications. The switch boasts an IP67 rating for exceptional waterproof performance, ensuring reliability in harsh environments and wet conditions.

    The tactile switch offers a travel distance of 0.4mm, providing a crisp, tactile feel when actuated. Its high-quality construction and performance make it a suitable alternative for C&K switches such as the KSC441V2SPDLFS and KSC421V270SHLFS, as well as the E-Switch TL6155AF350Q.

    This switch is perfect for a wide range of applications, including consumer electronics, industrial controls, automotive systems, and outdoor devices. Its durability and reliability ensure that it will perform consistently and effectively, even in the most demanding conditions.

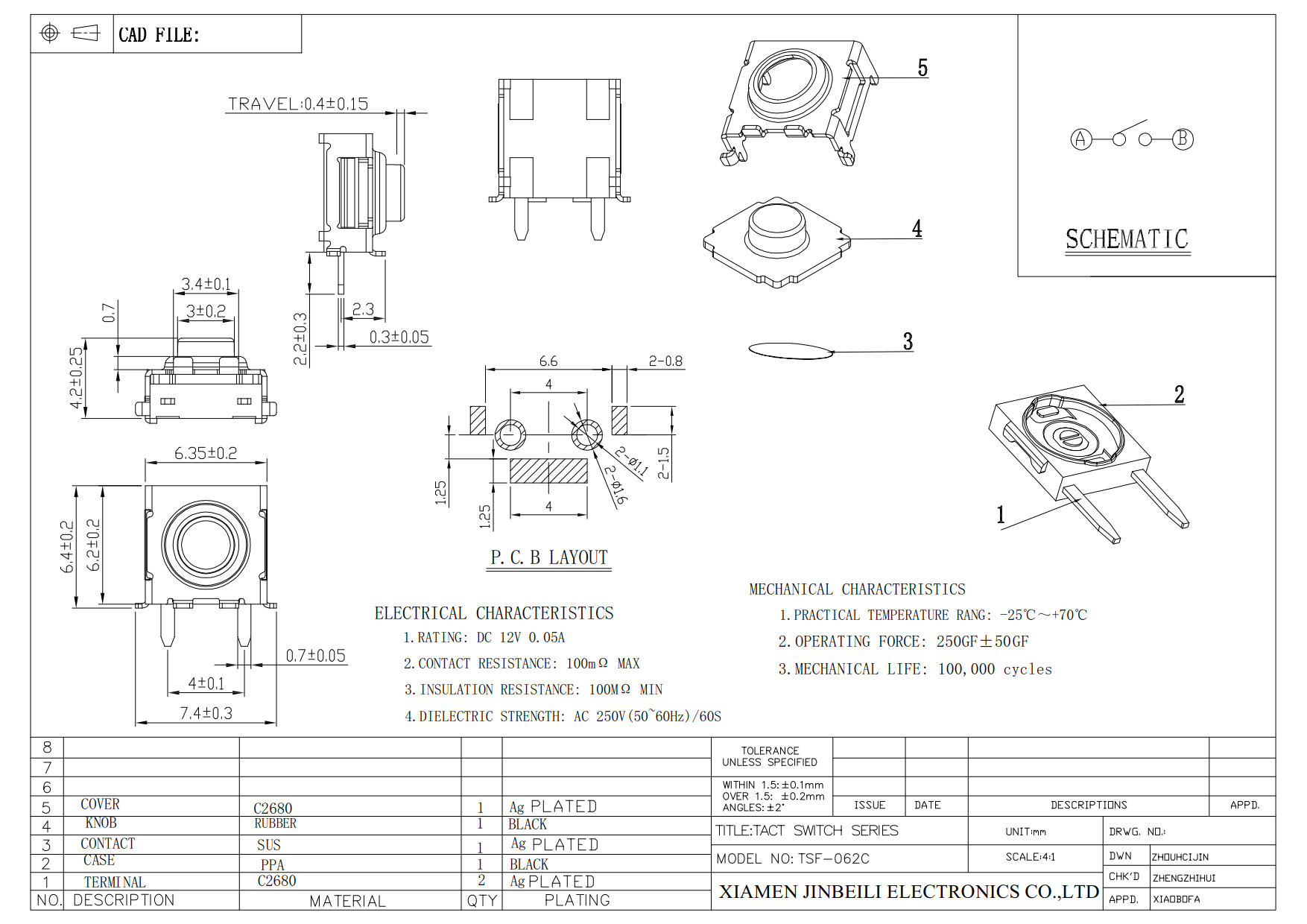

     TSF-062C_1www.jbl-ec.com
