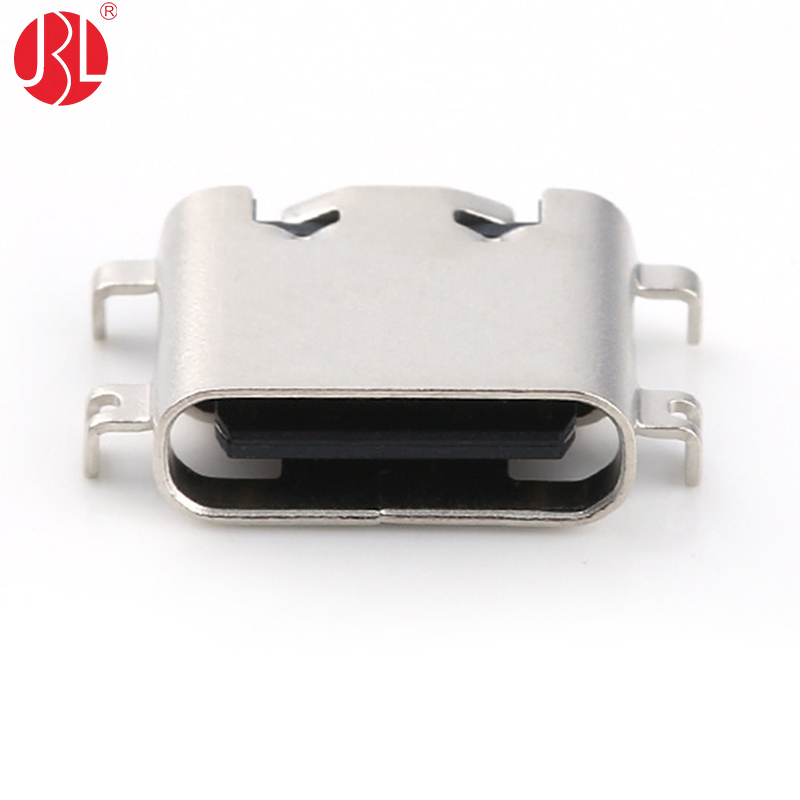

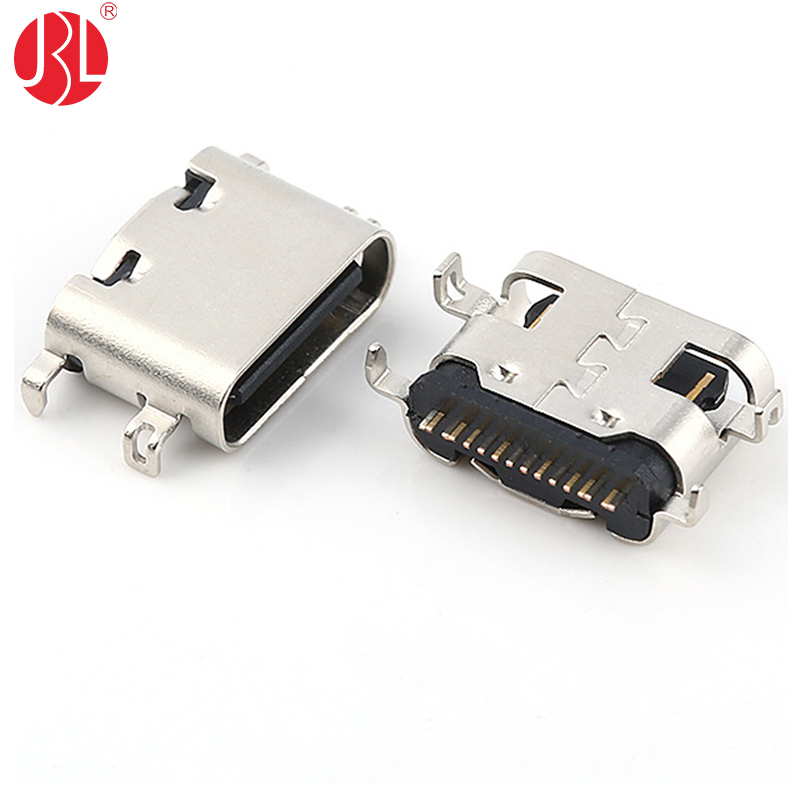

USB-20C-F-01C08 USB Type C 16 Position Mid Mount SMT Through Hole

USB-20C-F-01C08 USB Type C 16 Position Mid Mount SMT Through Hole Featured Image
  • USB-20C-F-01C08 USB Type C 16 Position Mid Mount SMT Through Hole
  • USB-20C-F-01C08 USB Type C 16 Position Mid Mount SMT Through Hole

Short Description:

Mid-Mount USB 2.0 USB Type-C 16 Pin Board Edge SMT Through Hole 0.8mm Offset. Replacement Parts : USB4500-03-0-A , USB4500-03-1-A


  • Item: USB Type C Jack
  • Mount: SMT Through Hole Right Angle
  • Feature: Mid Mount with Offset 0.8mm
  • Contact: 16 Pin
  • Power Rated: DC24V 3A
    • Download as PDF

    Product Detail

    Product Tags

    Product Descriptions :

    Product name : USB Type C

    Positions : 16 Pin

    Features : mid mount, smt

    Voltage : DC30V

    Current : 2A

    Working Temp : -25°C ~ 85°C

    Packaging : Tape & Reel

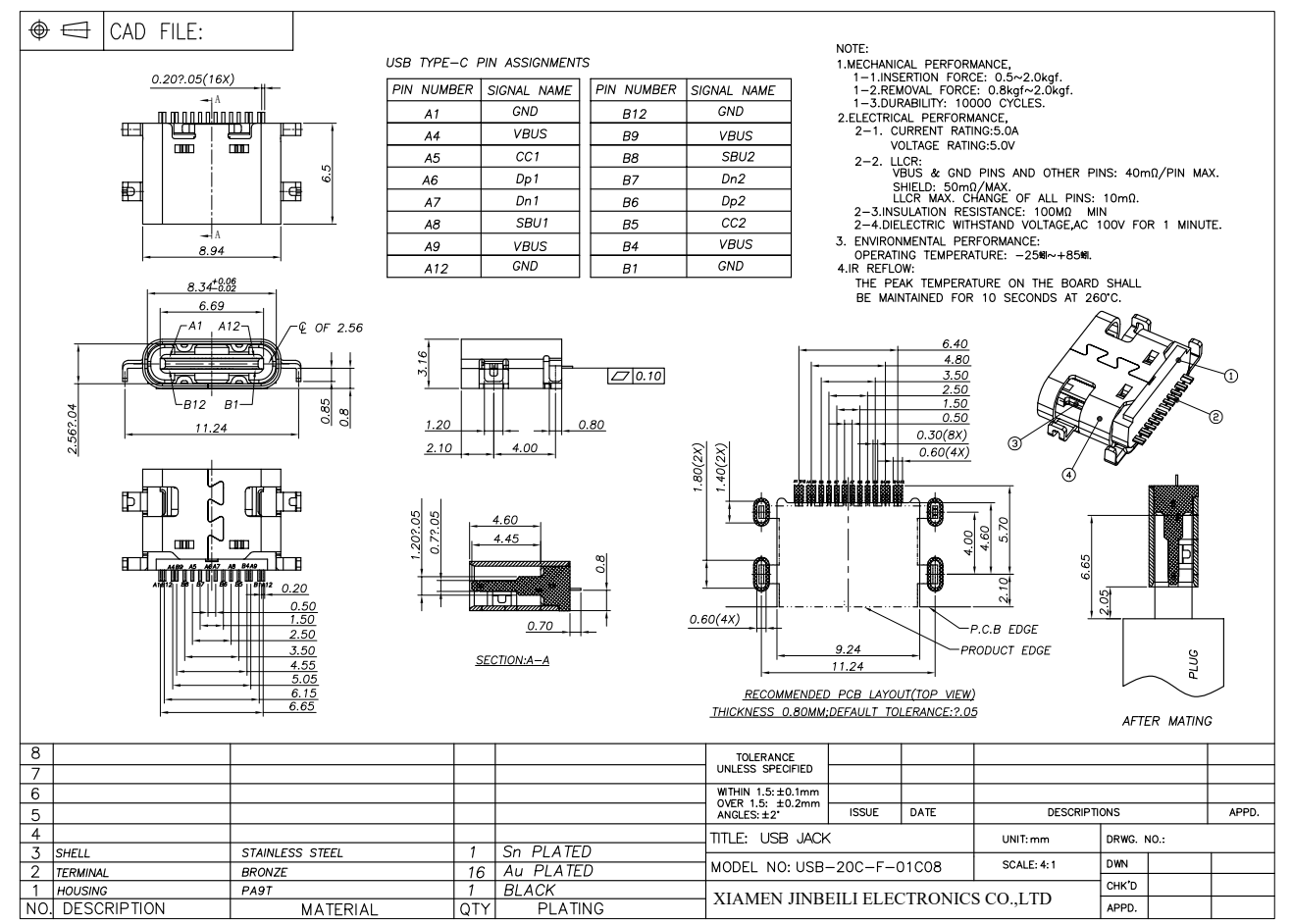

    Datasheets :

    USB-20C-F-01C08 (1)
