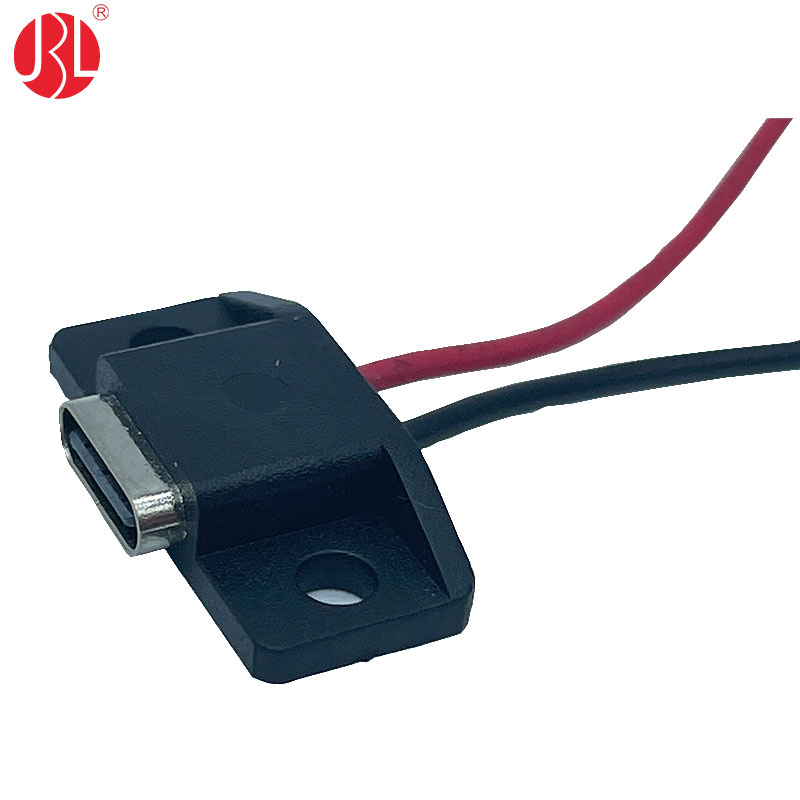

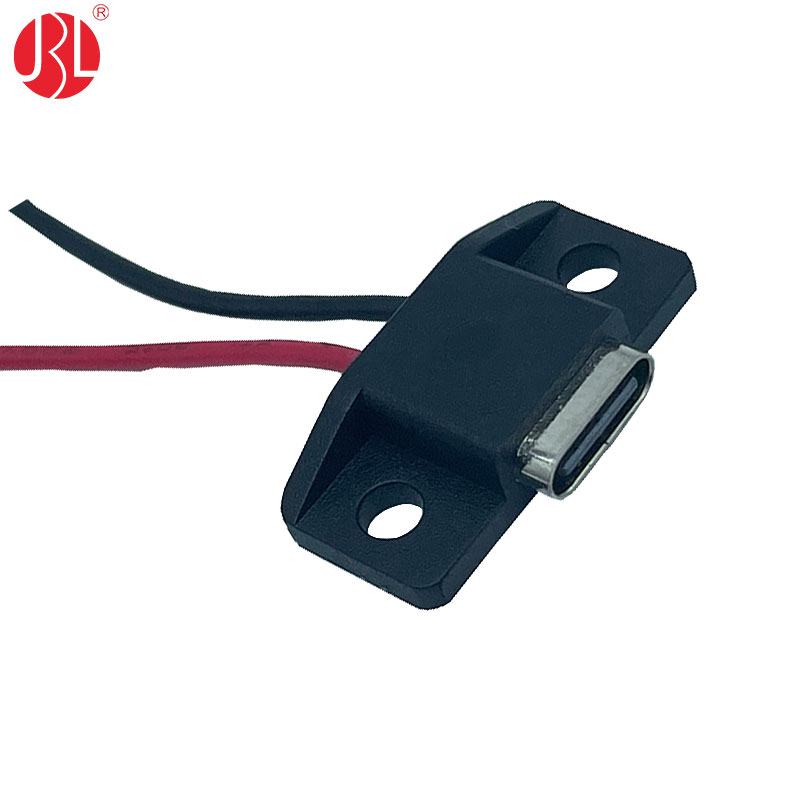

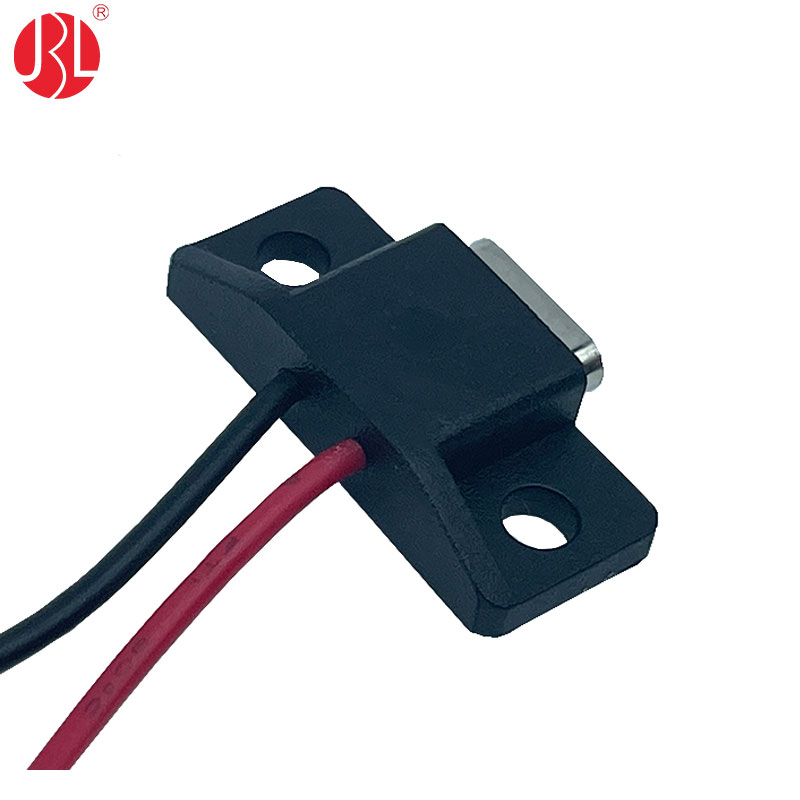

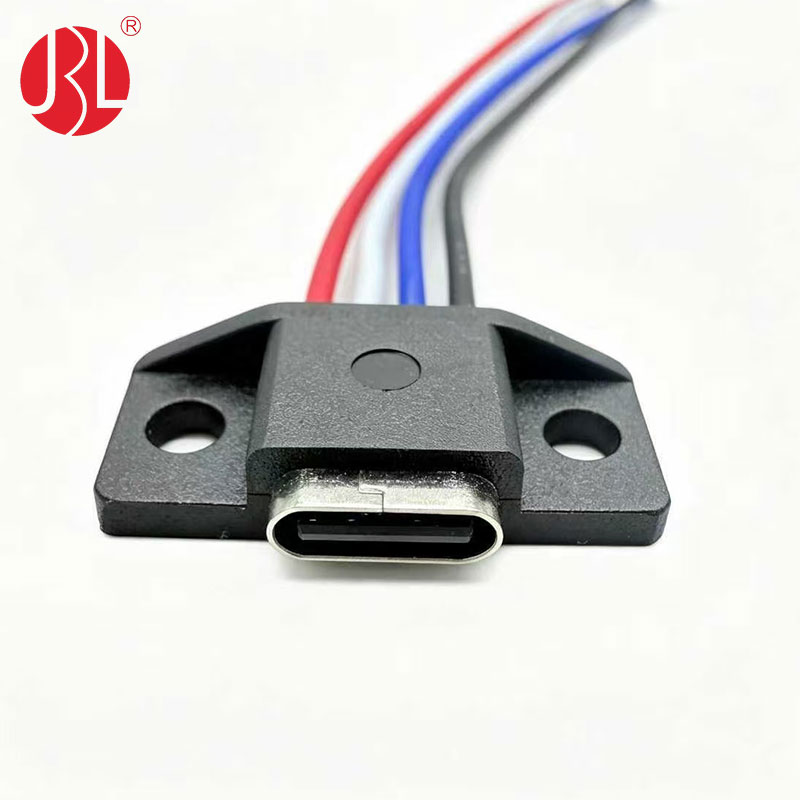

USB-20C-F-01E175-2P-L Screw Lock Panel Mount USB Type C Extension Cable

Short Description:

Custom Screw Locking Panel Mount USB Type C Female Connector with Option of Pull-Up 56K ohm Resistors for Charging Iphone 15 16


  • Item: USB Type C Extension Cable
  • Mounting: Panel Mount , Screw Locking
  • Power Rated: DC5V 2A
  • Wires Length Options: 50mm, 100mm, 150mm, 200mm, 250mm, 300m, 350mm, 400mm
  • Wire Dimensions Options: 24AWG, 22AWG
  • Configuration Option 1: : Vbus, GND
  • Configuration Option 2: : Vbus, GND, D+, D-
  • Configuration Option 3: : Vbus, GND, D+, D-, CC1, CC2
  • Configuration Option 4: : Vbus, GND, D+, D-, SUB1, SUB2
  • Product Detail

    Product Tags

    USB Type C Extension Cable with Screw Lock Panel Mount

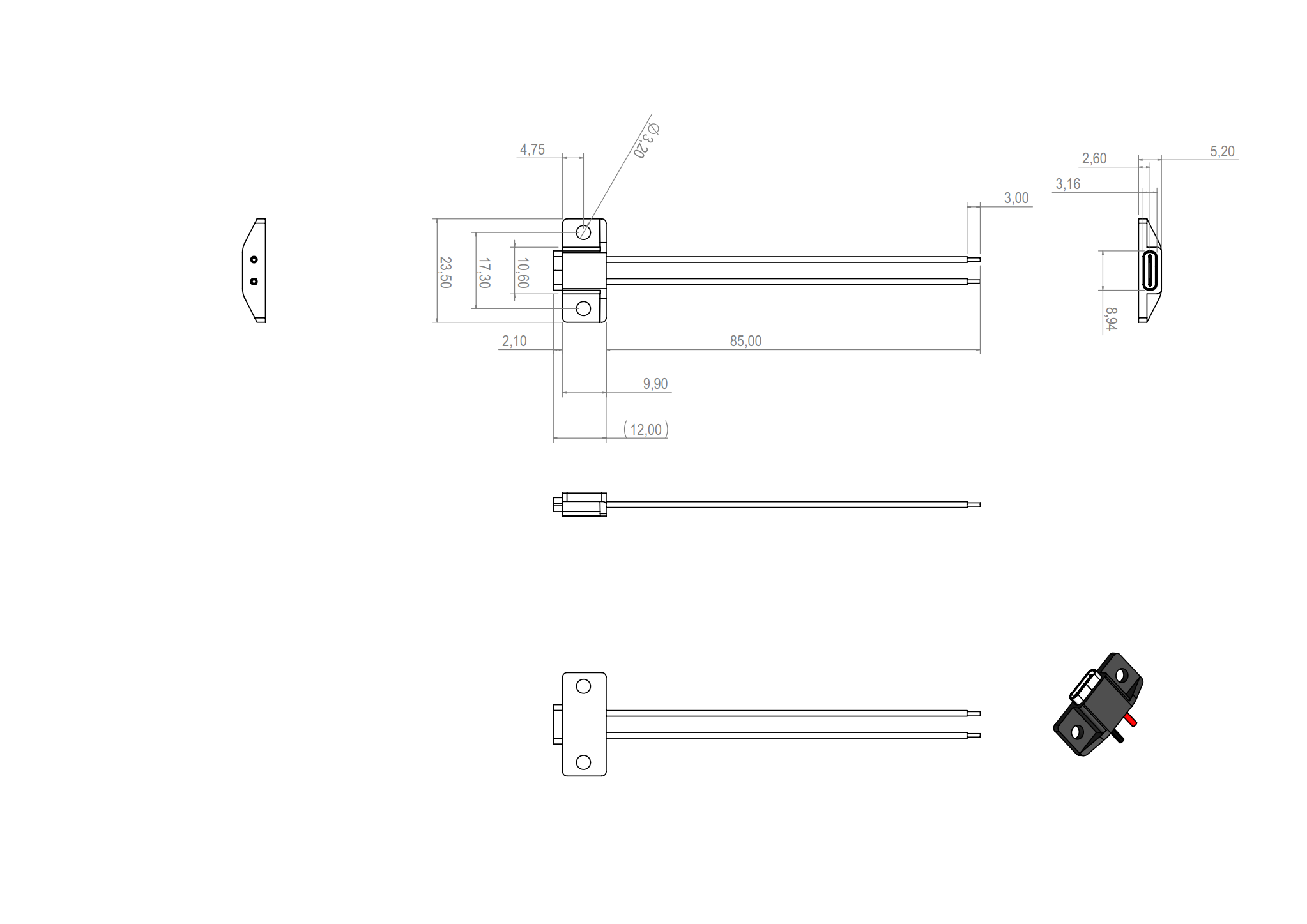

    This robust USB Type C extension cable features a secure screw-locking panel mount female connector (screw hole Ø3.2mm), designed for reliable installations in industrial or fixed setups. Available in 24AWG or 22AWG wire gauges and lengths from 50mm to 500mm, it suits diverse applications.

    Configurable Pinouts:

    1. Power-Only (Vbus + GND): For basic charging.

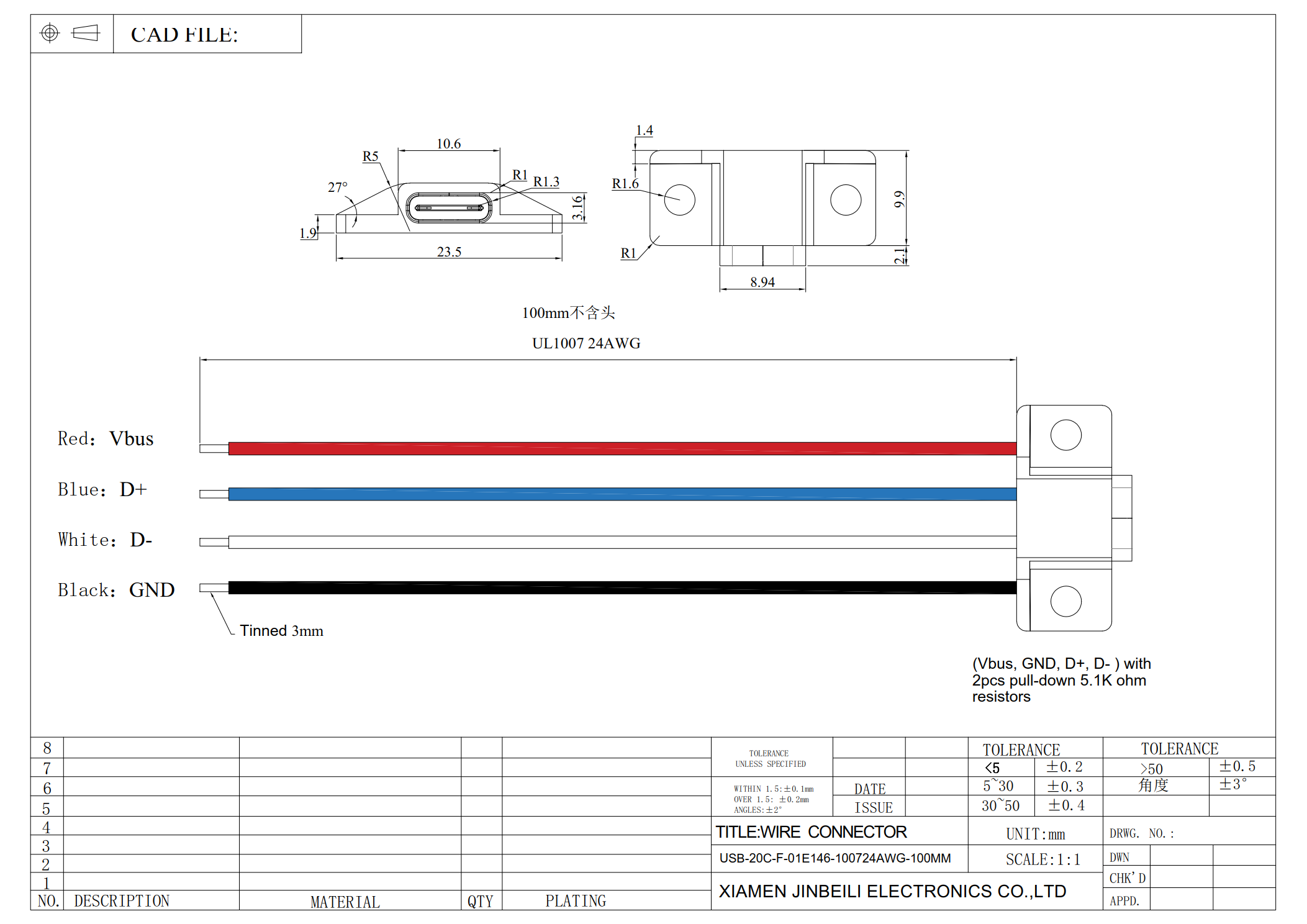

    2. Data + Power (Vbus, GND, D+, D-): Supports data sync and charging.
    3. Full-Featured (Vbus, GND, D+, D-, CC1, CC2): Enables Power Delivery (PD) negotiation for enhanced power.
    4. Advanced Signaling (Vbus, GND, D+, D-, SUB1, SUB2): Adds support for USB alternate modes (e.g., DisplayPort).

    iPhone Compatibility: Customize with dual 56KΩ pull-up resistors to enable 5V/2A charging for iPhone 15/16. Note: If using a 12V DC input, pair with a PD module to step down voltage to 5V before connecting to the iPhone.

    Tailored Solutions: Our factory offers overmolding for custom cable designs—provide your drawings for a seamless fit. Ideal for OEMs or projects requiring rugged, application-specific USB Type C extensions. Perfect for charging, data transfer, or integrating into devices needing secure, panel-mounted connectivity.

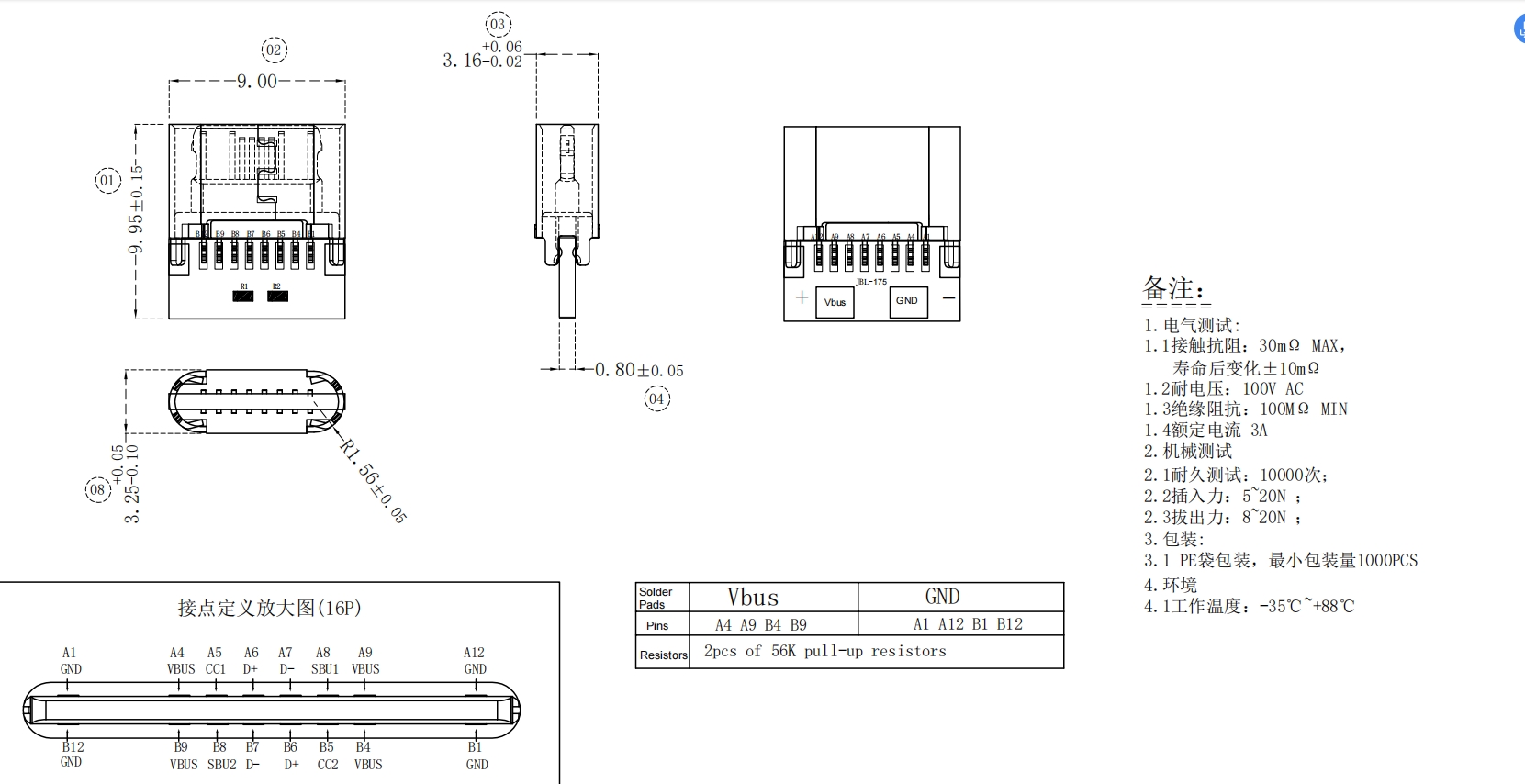

    USB-20C-F-01E175–2P-LJRC-175www.jbl-ec.com
