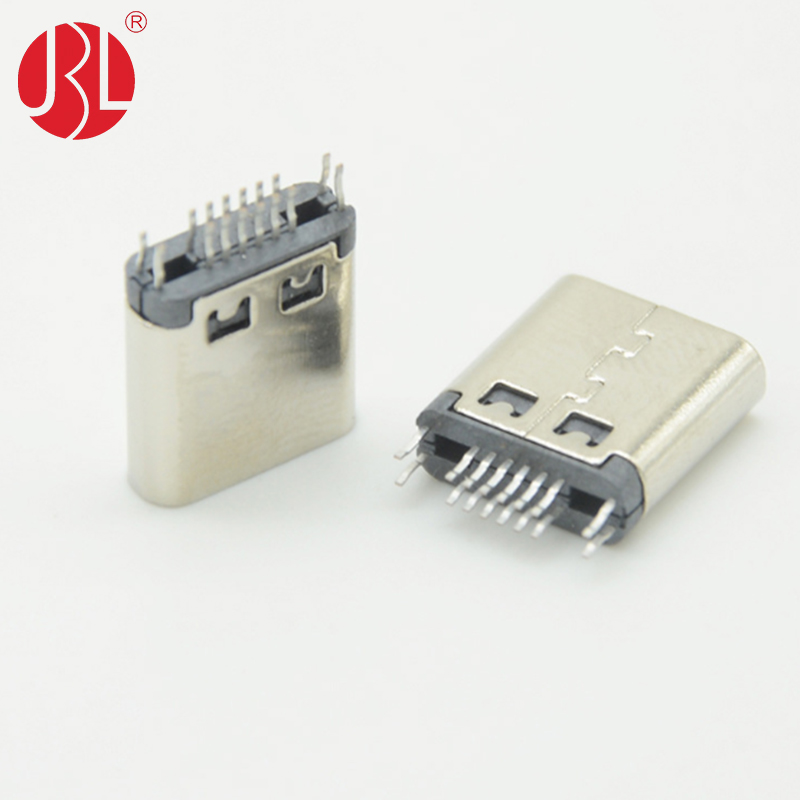

USB-20C-F-01J08 Straddle Mount USB Type C 2.0 Female Connector 16 Position

USB-20C-F-01J08 Straddle Mount USB Type C 2.0 Female Connector 16 Position Featured Image
  • USB-20C-F-01J08 Straddle Mount USB Type C 2.0 Female Connector 16 Position
  • USB-20C-F-01J08 Straddle Mount USB Type C 2.0 Female Connector 16 Position
  • USB-20C-F-01J08 Straddle Mount USB Type C 2.0 Female Connector 16 Position

Short Description:

USB 2.0 Type C Receptacle 16 Postion Board Edge Mount / Straddle Mount


  • Item: USB Type C Jack
  • Contact: 16 Pin
  • Mounting: Edge Mount
  • Power : DC24V 3A
    • Download as PDF

    Product Detail

    Product Tags

    Product Descriptions :

    Product name : USB Type C

    Positions : 16 Pin

    Features :  Vertical, Straddle Mount

    Voltage : DC30V

    Current : 2A

    Working Temp : -25°C ~ 85°C

    Packaging : Tape & Reel

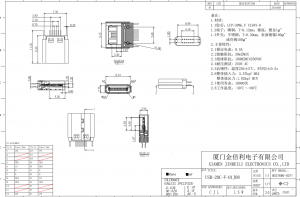

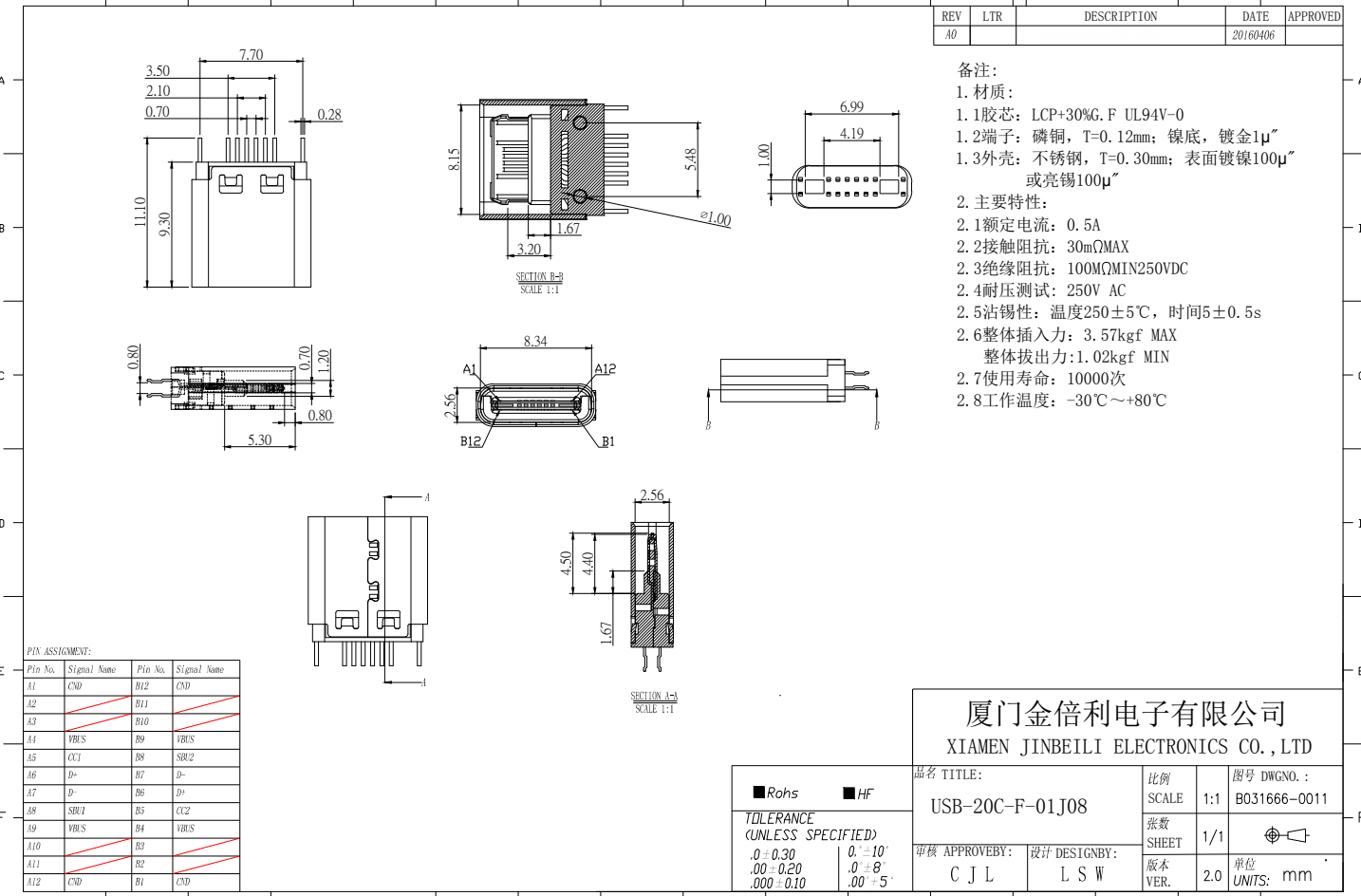

    USB-20C-F-01J08 USB Type C board edge





    Product design & development, Tooling ,Moulding and Manufacturing :



    Jinbeili component manufacturer
